SKU 62138549020 Categories ,
  • Model Number:TS6216P-2G1F
  • Type:FTTx Solutions
  • Place of Origin:Guangdong, China
  • Use:FTTX
  • PoE Standard:IEEE802.3af /IEEE802.3at
  • Poe power:52VDC 2.5A
  • Power input:100-240VAC 50/60HZ
  • Product Name:16 Port PoE Switch
  • Device Type:Switch – 16 Ports – Unmanaged
  • Condition:100% Original Brand
  • Warranty:3 Years
  • Keywords:16 port PoE switch
  • Application:CCTV
  • Certification:CE RoHS FCC
  • No. of Fiber:12.
  • Selling Units:Single item

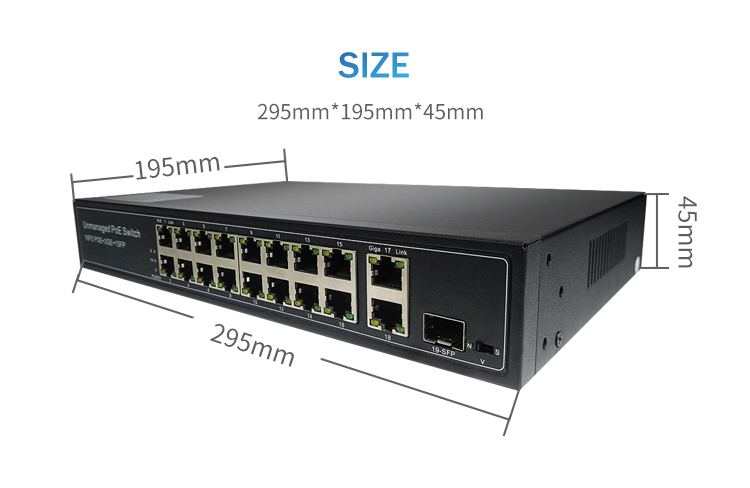

  • Single package size: 30X20X5 cm
  • Single gross weight:2.800 kg
  • Package Type:carton ,bubble box
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1011 – 100101 – 500>500Lead time (days)51520To be negotiated
Product Description

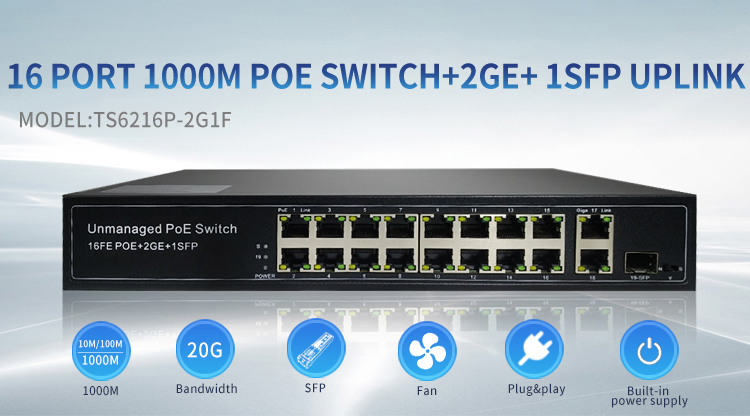

250m long distance 16 port 10/100Mbps Ethernet 48V PoE switch with 2 Gigabit RJ45 and 1 SFP uplink port

Overview


TS6216P-2G1F is one 16 port 100Mbps 250M long range PoE switch. It’s with 16 port 10/100Mbps LAN PoE ports and 2*gigabit RJ45+1*fiber SFP uplink ports. The PoE ports is compliant with IEEE802.3af/at standard supplying PoE power up to 30W each port.

Key Features:

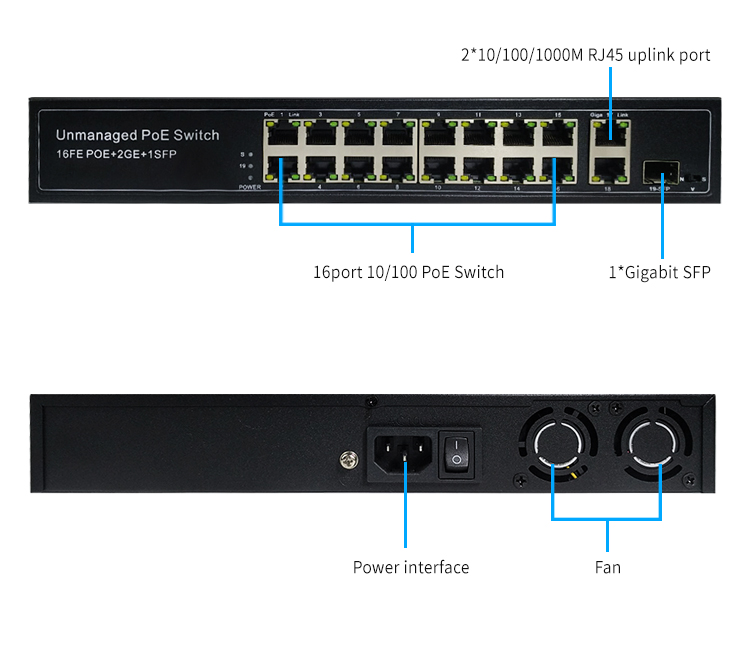

* 16*10/100mbps POE port;2*10/100/1000mbps UP Link;1*10/100/1000mbps SFP* 250m Distance;Vlan support* Support IEEE802.3AF/AT* Whole Power:300W* All port supported by MDI/MDIX auto flip and self negotiation* Supply 18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.* Each port max. power supply reached 30W.

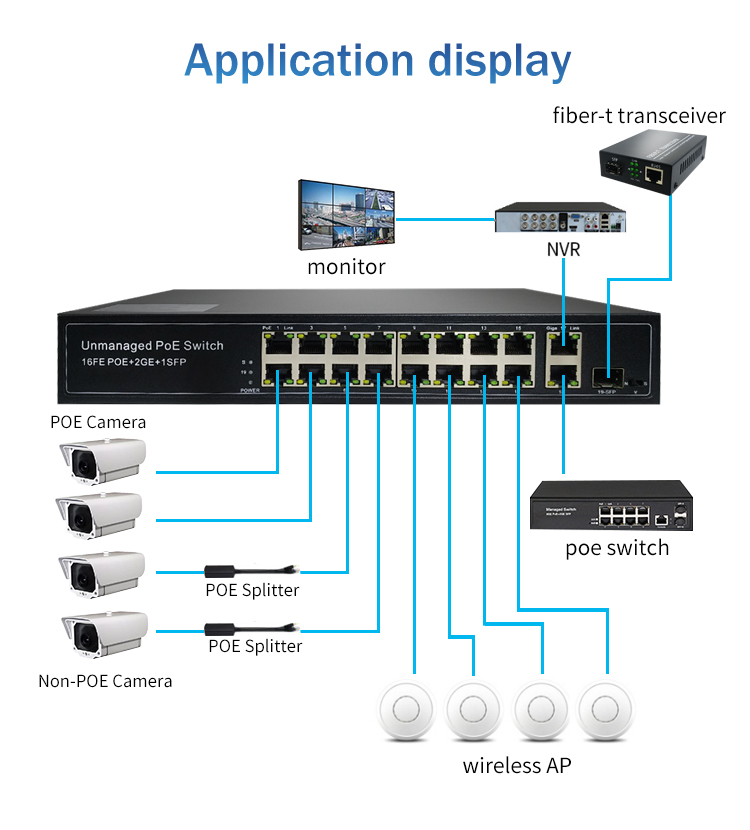

Application:

* Wireless Access Point* IP Camera* IP Phone* Computer Networks

* VoIP device

* Access control system

* LED lighting
