- Private Mold:NO
- Products Status:Stock
- Ports:24
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:14.8G
- Brand Name:HTF
- Model Number:HT-POE5624M
- Place of Origin:Guangdong, China
- Product Model:HT-POE5624M
- Product Name:28 Port Gigabit Managed POE Switch
- MAC:8K
- Forwarding Mode:Store-And-Forward
- MTBF:100,000 hours
- Warranty:2 years warranty
- Bandwidth:56Gbps (non-blocking)
- Packet Forwarding rate:41.66Mpps
- Packet Buffer Memory:4M
- Jumbo frame:9.6Kbytes
- Selling Units:Single item
- Single package size: 50X35X9 cm
- Single gross weight:10.000 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32535To be negotiated
The 32-ports Gigabit Managed POE Switch is a Green Energy-Saving POE Switch independently . It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data.
Features
1. Can transfer data for network surveillance cameras;
Features
1. Can transfer data for network surveillance cameras;
2. 24 x 10/100/1000Mbps auto-sensing POE Ports, 4 x 10/100/1000Mbps Combo
Ports, 1 x Console Port;
Ports, 1 x Console Port;
3. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward;
4.Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
5. Ethernet port supports 10/100/1000M adaptive and POE functions;
6.Panel indicator monitoring the status and help failure analysis;
7. Fanless design, Natural Cooling, 1U Rack Mount;
8. Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
9. Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
10. Support POE Power Management;
11. Support POE Watchdog
12. Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV.
Target Industries
1.HD monitor transmission and power supply
Target Industries
1.HD monitor transmission and power supply
2.Wireless AP layout transmission and power supply
3.Network telephone transmission ,intelligent house and home system
4.Intelligent transportation supervisory system (ITS)
5. High-speed Way supervisory/Tele-Communication System
6. Security protection system, TV medical treatment
7. Long-distance Muti-media Schooling, Campus monitoring
8. Long-distance broadcast television transmission system
9. High-building Security Protection, Military Tele-Com proje
Product Description
|
General Performance Indicator
|
||
|
Product Name
|
28 Port Gigabit Managed POE Switch
|
|
|
Product Model
|
HT-POE5624M
|
|
|
Interface
|

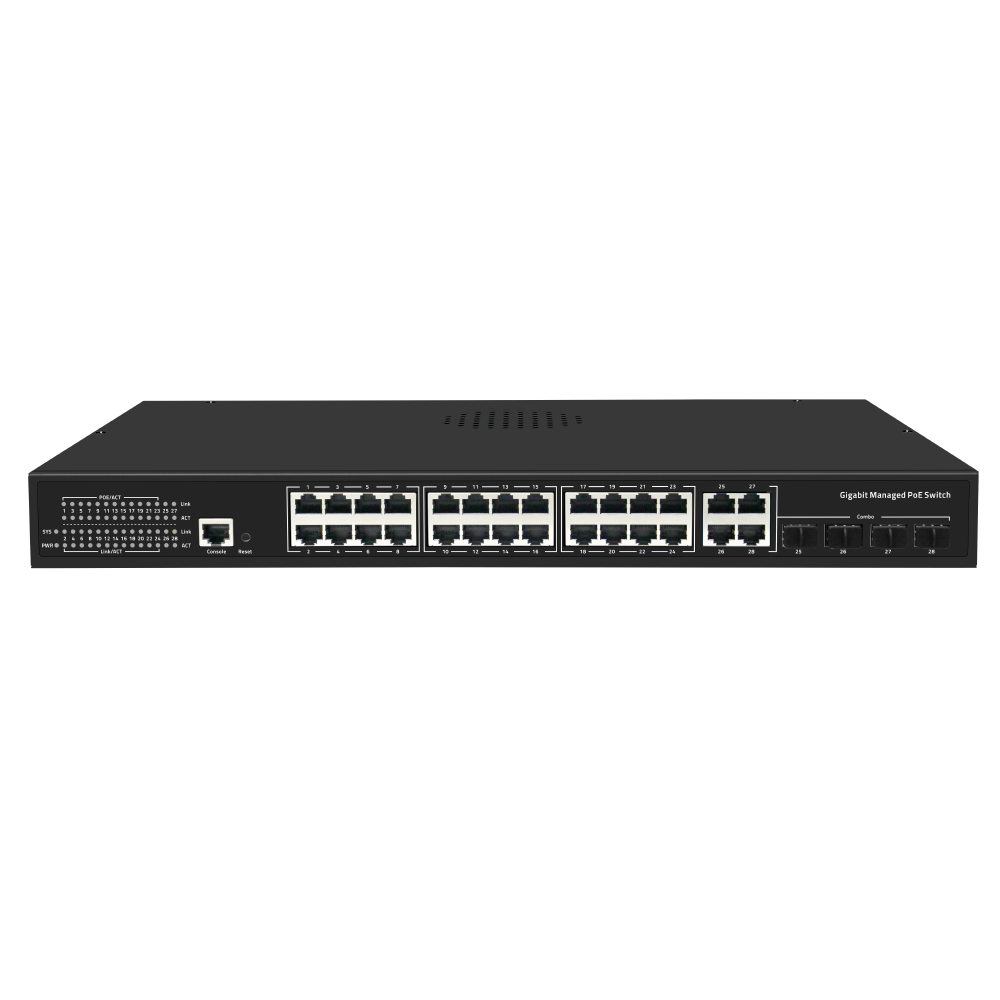

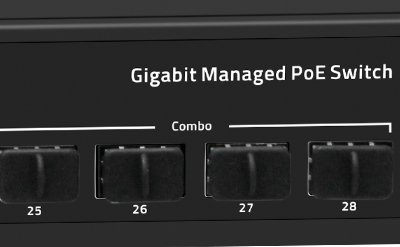

24*10/100/1000M POE Ports + 4*Gigabit SFP/TP Combo Ports + 1*Console Port
|
|
|
Network Protocols
|
IEEE 802.3
IEEE 802.3u IEEE 802.3ab/ad/az/af/at IIEEE 802.3x IEEE 802.1q IEEE 802.1p,QoS IGMP Snooping |
|
|
PoE Parameters
|
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
|
|
|
PoE compatibility: IEEE 802.3af/at adaptive
|
||
|
POE port output: DC48-55V
|
||
|
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)
|
||
|
Port Lightning Protection
|
General Mode 6KV,
Differential Mode 4KV, ESD 15KV. |
|
|
Network Transmission Medium
|
10BASE-T: Cat3, 4, 5 UTP (≤ 100 m)
100BASE-TX: UTP (≤100 m) above Cat5 1000BASE-TX: UTP (≤100 m) above Cat5 |
|
|
Optical
|
Multimode fiber: 1310nm, 2Km
Single mode fiber: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
|
|

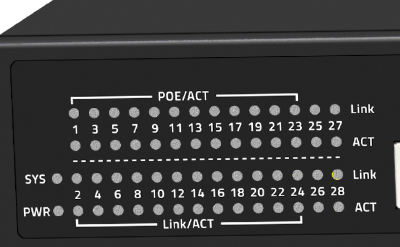

The LED indicator
|
SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3)
|
|
|

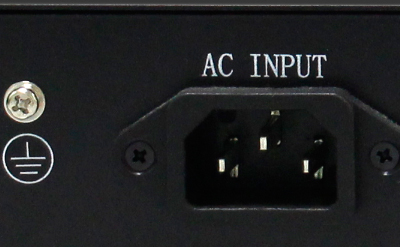

Power Supply
|
Machine input voltage: AC110-264V;
Output: DC52V7.69A Total power: 400W |
|
|
Physical Dimension
|

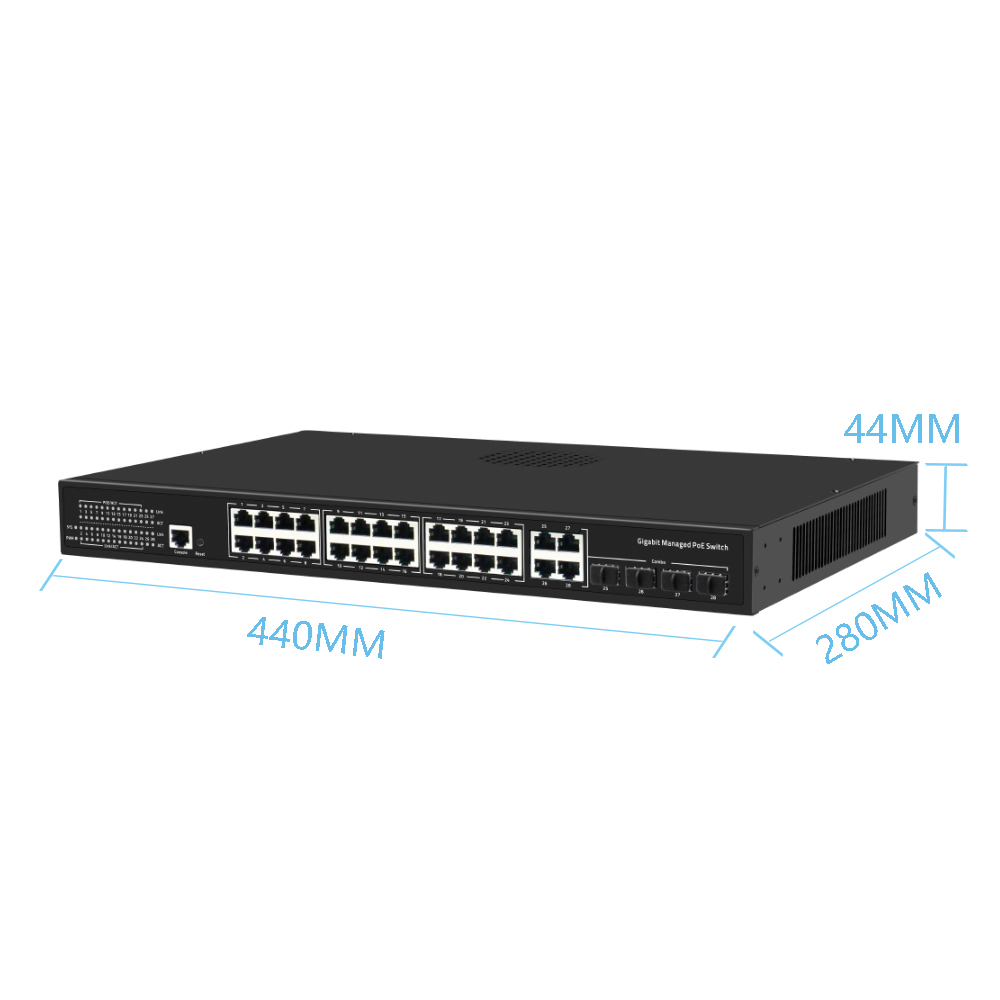

Product size (L×W×H): 445mm× 285mm× 45mm
Package size (L × W × H): 470mm × 350mm × 120mm Product weight: 3.9kg Package weight: 4.5 kg |
|
|
Working Environment
|
Operating Temperature: -20°C ~ 55°C;
Storage Temperature: -40°C ~ 85°C; Operating Humidity: max 90%, non-condensing Working height: up to 10,000 feet (3,000 meters) Storage height: up to 10,000 feet (3,000 meters) |
|
|
MTBF:
|
100,000 hours
|
|
|
Package Contents
|
1. Switch: 1 set
2. Instruction manual: 1 3. Certificate of conformity: 1 4. Warranty card: 1 5. AC power cord 1 6. A pair of hanging ears |
|
|
Warranty
|
2 years warranty
|
|
|
Technical Indicators
|
||
|
Bandwidth
|
56Gbps (non-blocking)
|
|
|
Packet Forwarding rate
|
41.66Mpps
|
|
|
Jumbo frame
|
9.6Kbytes
|
|
|
Flash Capacity
|
16M
|
|
|
Memory Capacity
|
1024M(1G)
|
|
|
MAC
|
8K
|

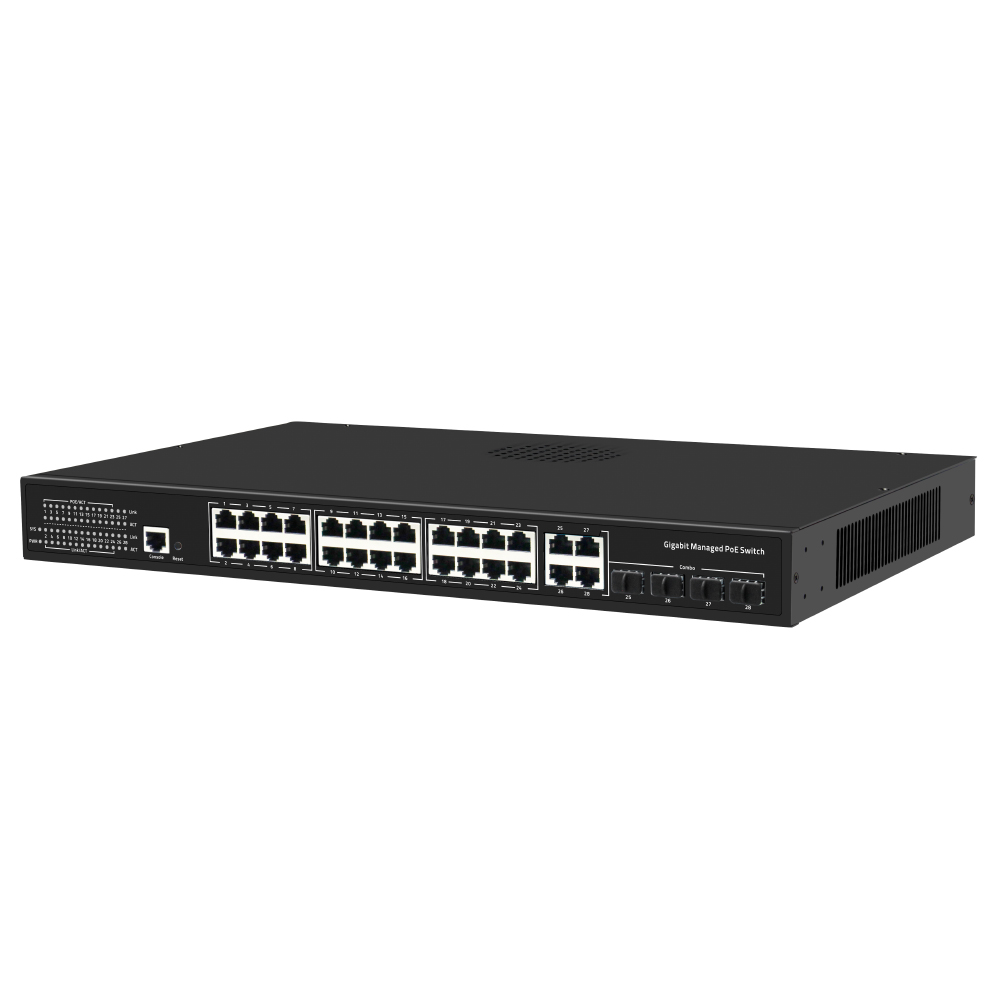

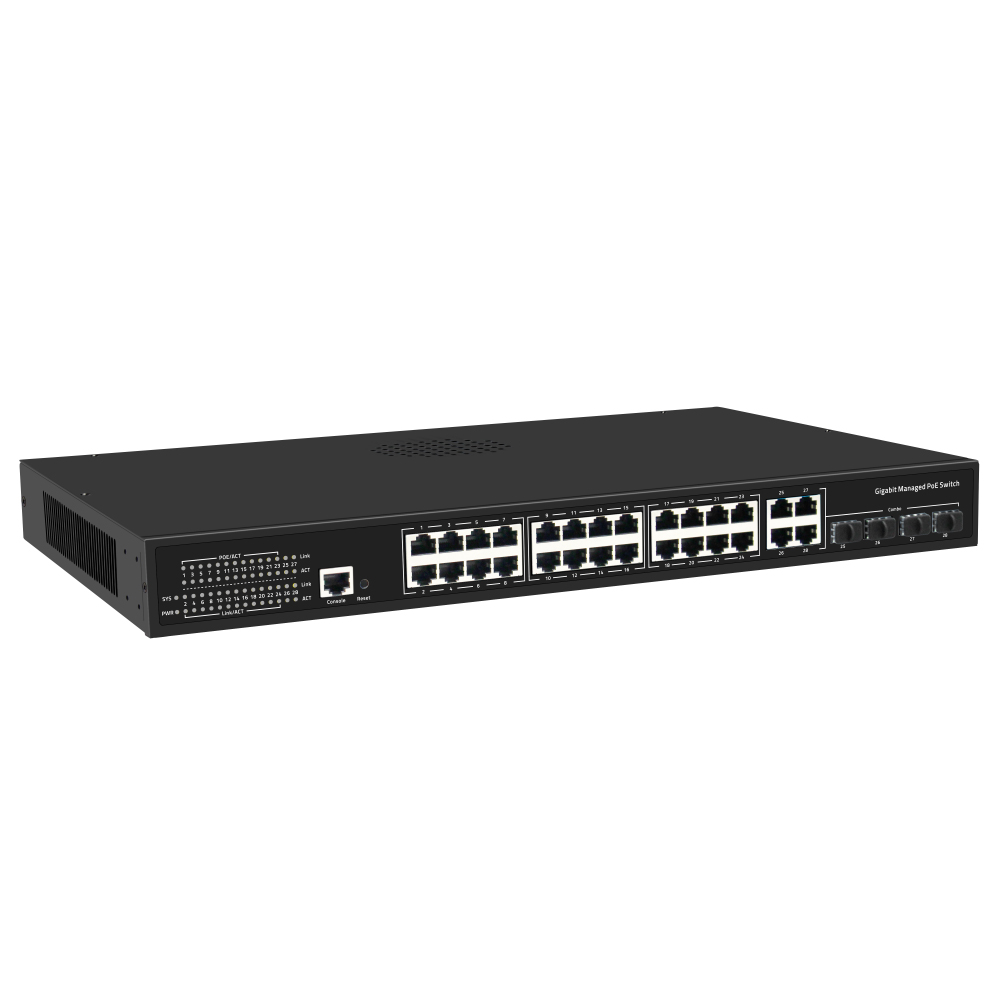

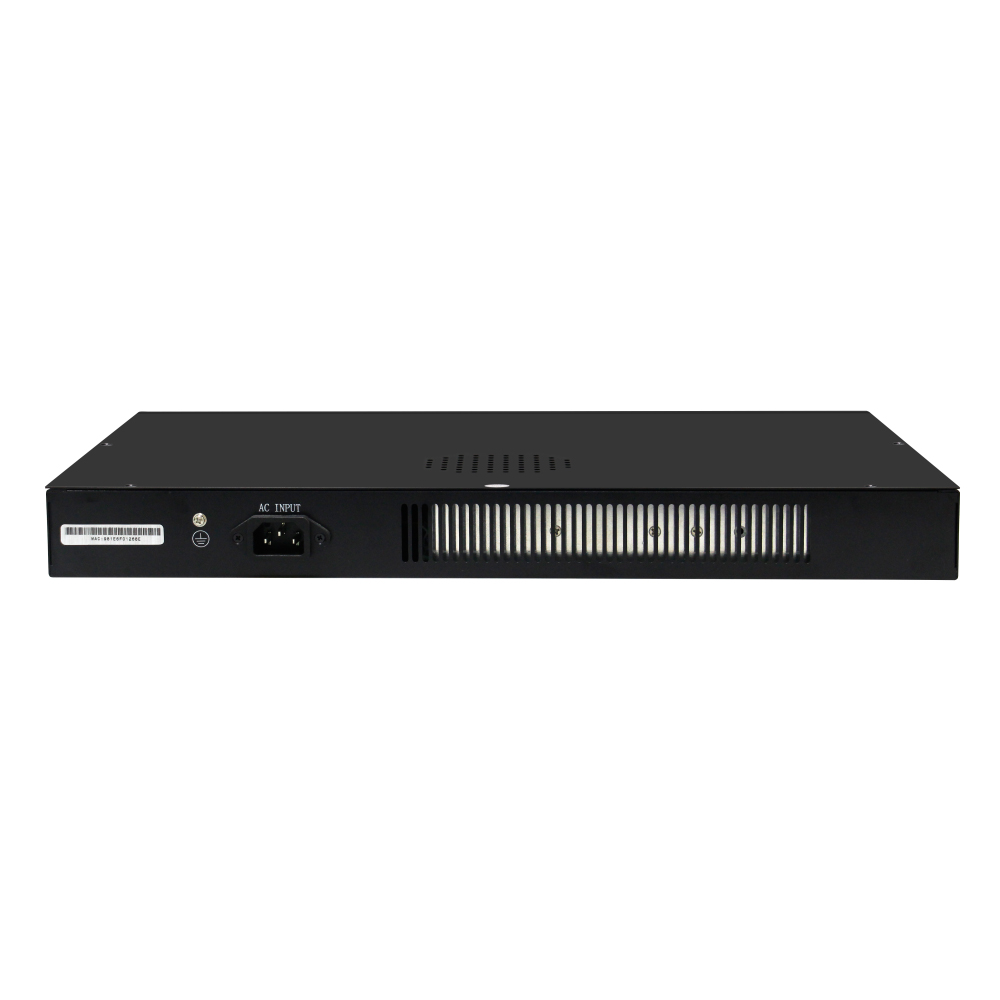

Product Photos
