Features:
24 ports with poe,2 ports 10/100/1000M rj45 and SFP
fully ieee80.2af/at standard compilant
support poe poer up to 30w for each port
auto detect powered device(PD)
safe and reliable power to ech of poe end device
plug&play,no configuration required
fully ieee80.2af/at standard compilant
support poe poer up to 30w for each port
auto detect powered device(PD)
safe and reliable power to ech of poe end device
plug&play,no configuration required
Specification:
|
POE
|
POE PORT
|
1-24
|
|
POE Standard
|
IEEE802.3AF IEEE802.3AT
|
|
|
POE power pin
|
endspan:1/2(+) 3/6(-)
|
|
|
POE power
|
30w(at), 15.4w(af)
|
|
|
RJ45
|
Rj45 port
|
1-26
|
|
speed
|
1-24 10M/100M
25-26 10M/100M/1000M |
|
|
SFP
|
SFP
|
25-26
|
|
speed
|
1.25G
|
|
|
performance parameter
|
Backplane bandwidth
|
12.8G
|
|
network delay
|
<20 ms
|
|
|
Packet forwarding rate
|
6.5Mpps
|
|
|
The packet buffer memory
|
256KB
|
|
|
The address database size
|
8000
|
|
|
The mean time to failure
|
5 years
|
|
|
network protocol
|
network protocol
|
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3ab 1000BASET IEEE 802.3z 1000BASEX |
|
POE standard
|
IEEE802.3AF IEEE802.3AT
|
|
|
Power support
|
power supply
|
450W
|
|
Power voltage
|
52vdc
|
|
|
characteristics
|
FPC
|
|
|

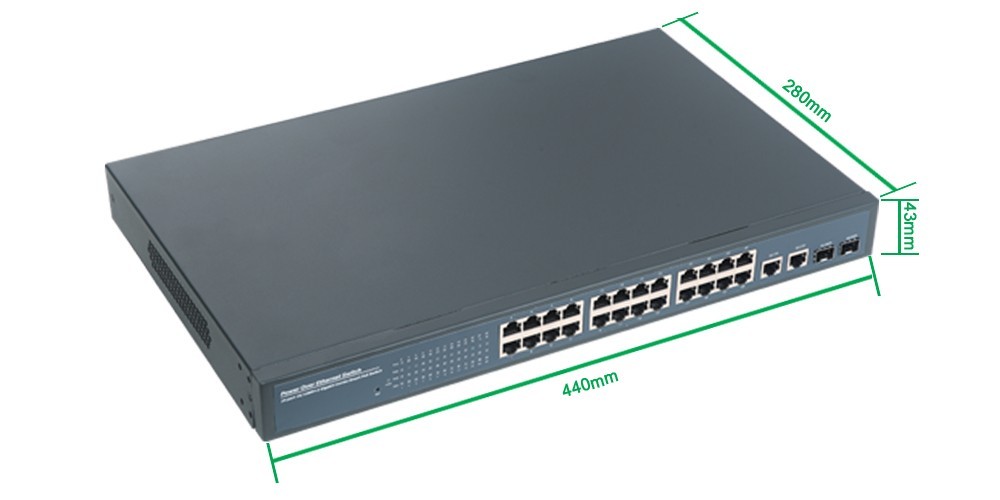

size
|
Long*wide*high
|
440*278*44mm
|
|
weight
|
5kg
|
|
|
Environmental specifications
|
operation temperature
|
-20° -70°C( 32° 104° F)
|
|
Storage temperature
|
-40° -85°C (14° 158° F)
|
|
|
Operating humidity
|
10% 90%, no condensation
|
|
|
Operating height
|
3000 meters above sea level (10000ft)
|
|
|
Radiation and security
|
Radiation
|
CE mark,commercial
FCC Part 15 Class A EN 55022 (CISPR 22),Class A |
|
security
|
EN 55024
|
|
|
Guarantee
|
switch
|
1 year
|
|
Packing
|
Package content
|
switch
AC power line The product specification Warranty card certificate |

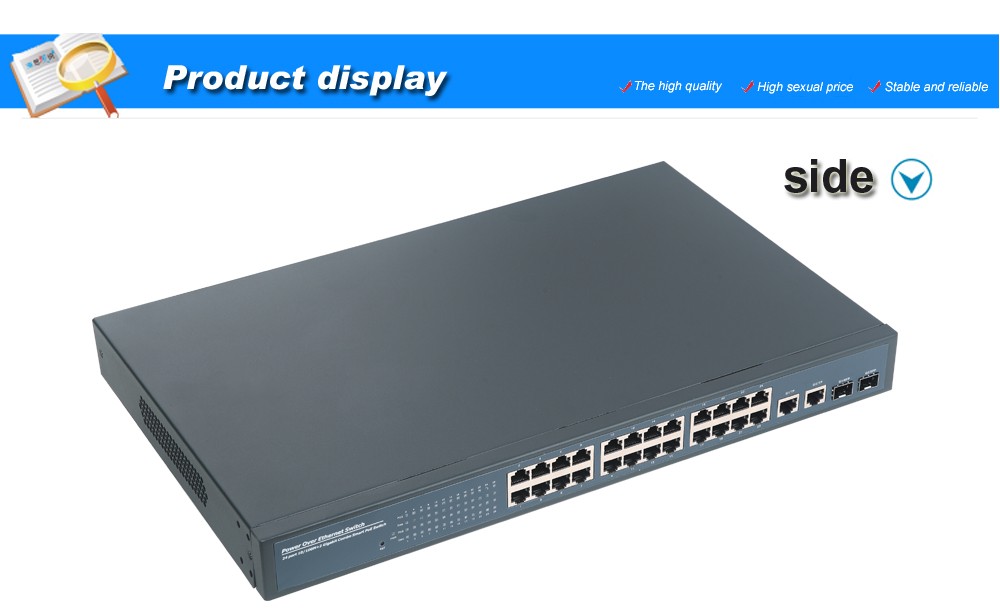

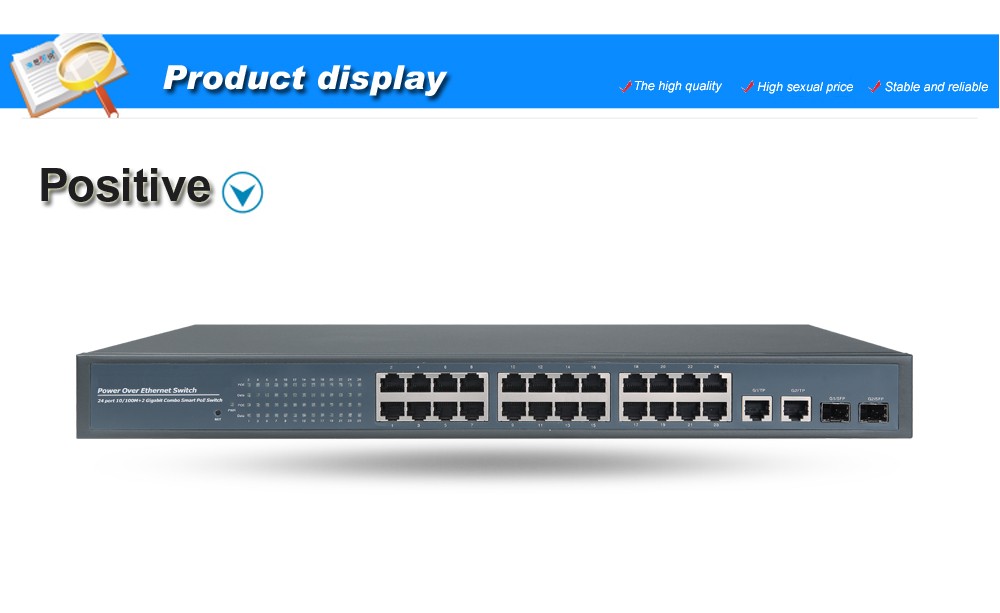

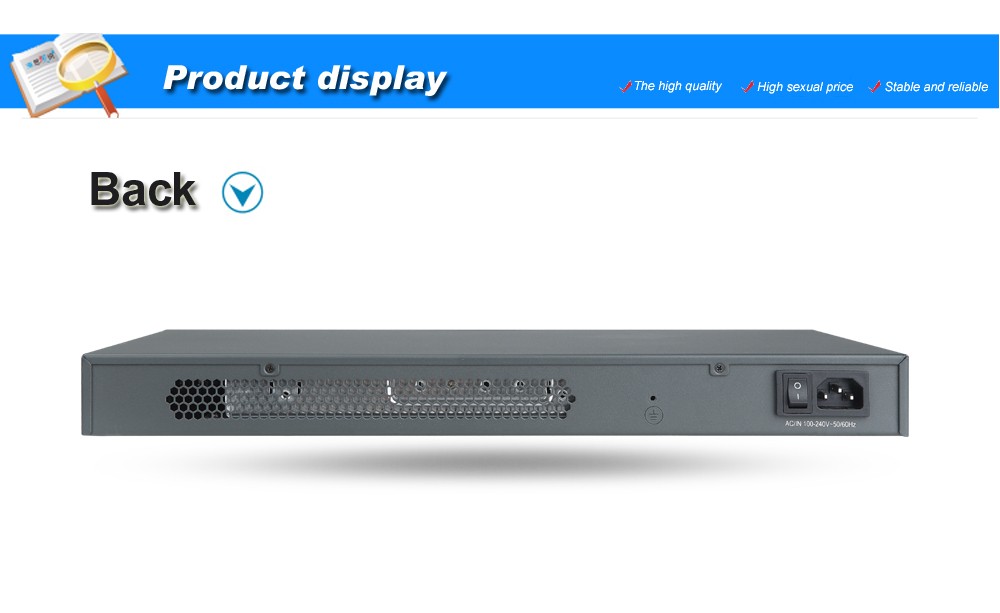

Detailed Images
