- Products Status:Stock
- Ports:16+2
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:56Gbps
- Model Number:TS8216P-2F
- Place of Origin:Guangdong, China
- Product Name:16 port PoE switch
- PoE Standard:IEEE802.3af /IEEE802.3at
- Application:CCTV Security Monitoring
- PoE Ports:1-16 Port Support PoE
- Uplink ports:2*1Gb fiber SFP
- Power Supply:Built-in 300W (AC100~240V)
- Management:Unmanaged
- Warranty:1 years
- Certification:CE FCC RoHS
- Selling Units:Single item
- Single package size: 44X29X4.5 cm
- Single gross weight:5.000 kg
- Package Type:ESD bag+kraft paper box+outer carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 100101 – 500>500Lead time (days)71520To be negotiated
Product Description

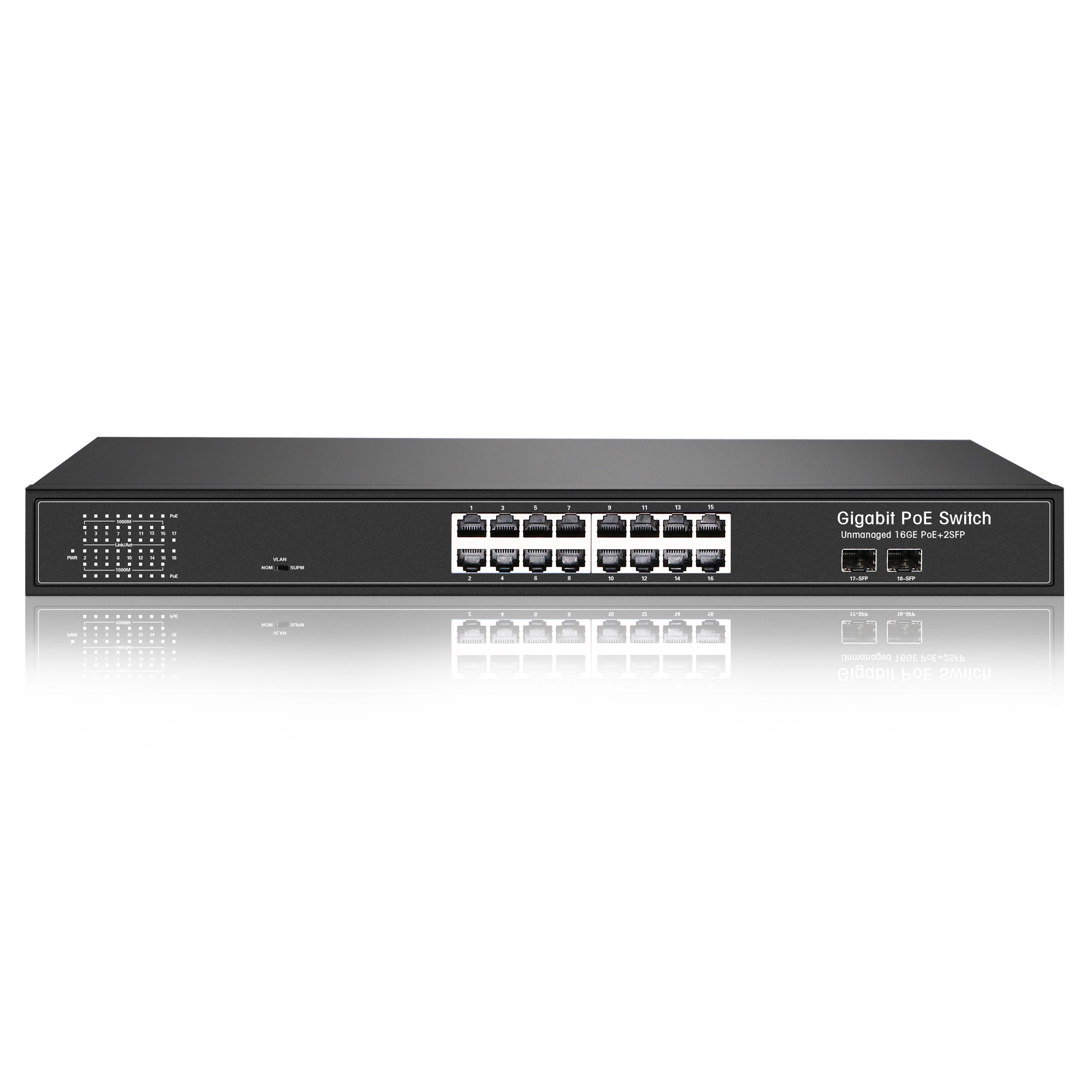

16 10/100/1000M PoE+ ports 2 1Gbe SFP gigabit Ethernet unmanaged 300W 16-Port PoE switch for IP Camera
Introduction
TS8216P-2F Gigabit Unmanaged PoE switch fully compliant with IEEE802.3af/at standard. Automatically detect and provide required power for your PoE devices and protect your non-PoE equipment from being damaged. It supplies 24*10/100/1000Base-T LAN PoE ports and 2*1Gbe fiber SFP uplink ports. The single port supplies PoE power up to 30W (Total power 400W). The switch is 1U rack-mounting and wall-mounting design. Compact & Sturdy Metal Housing design makes it safe to use in various environments.
Main Features
– Full Gigabit access
Provides 16 10/100/1000M adaptive RJ45 port, all the ports have the line speed forwarding capacity; provide 2 independent Gigabit SFP (Mini GBIC) expansion slot optical fiber module, fully protect user investment, convenient and flexible.
– Powerful VLAN capabilities
IEEE, 802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe.
– Excellent PoE power supply performance
PoE features comply with IEEE, 802.3af and IEEE 802.3at standards, automatically detect and identify equipment in accordance with IEEE, 802.3af and IEEE 802.3at standards, and supply power to them;
Intelligent power supply management, flexible power supply scheduling, conditions restart, conditional shutdown, adapt to complex office environment applications;
POE police function, real-time automatic device on-line detection function, when the lower equipment crashes, automatically restart the port power supply, to ensure rapid restoration of the network, without manual operation.
Specifications
|
Hardware
|
Description
|
|
Model
|
TS8216P-2F
|
|
Port
|
16*10/100/1000Mbps RJ45
2*1Gb fiber SFP
|
|
PoE port
|
1-16 support PoE
|
|
PoE power pin
|
1/2+,3/6-
|
|
Bandwidth
|
56Gbps
|
|
Packet forwarding
|
40.32Mpps
|
|
PoE port
|
16
|
|
CPU
|
500MHZ
|
|
RAM
|
128M
|
|
MAC
|
8k
|
|
Buffer
|
4.1M
|
|
Flash
|
16M
|
|
Transmission mode
|
Store and forward
|
|
Environmental
|
working temperature : 0℃~50℃
Storage temperature : -40℃~70℃ Operating humidity : 10%~90% Non coagulation
Storage humidity : 5%~95% Non coagulation
|
|
Product size
|
440(L)*290(W)*45(H)mm
|
|
Packing size
|
497(L)*393(W)*97(H)mm
|
|
Weight
|
5.0kg
|
|
Power in
|
AC 100~240V 50/60hz
|
|
Power
|
≤350W
|
