- Products Status:Stock
- Ports:19
- Transmission Rate:10/100Mbps
- Function:POE, QoS, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:20G
- Model Number:TS6216P-2G1F
- Place of Origin:Guangdong, China
- PoE Standard:IEEE802.3af /IEEE802.3at
- poe power:300W
- power input:100-240VAC 50/60HZ
- Device Type:Switch – 16 Ports – Unmanaged
- Warranty:1 Year
- Certification:CE FCC RoHS
- Applications:IP Camera, IP Phone, Computer Networks
- Power distance:250m
- Operating temperature:0°– 55°C
- Weight:3kg
-
- Supply Ability
- 2000 Piece/Pieces per Week
-
- Packaging Details
carton ,bubble box
-
- Port
ShenZhen,Guangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 23 – 100101 – 500>500Lead time (days)51520To be negotiated

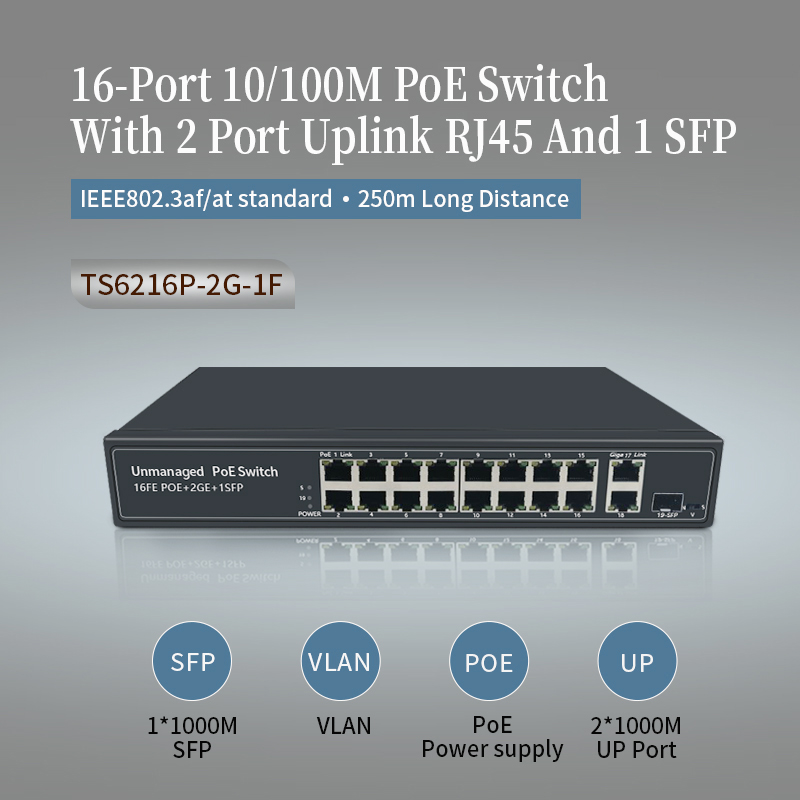

16 Port 100Mbps 250m Long Distance IEEE802.3 af at PoE Switch with 2 Gigabit RJ45 SFP Uplink
Description:
TS6216P-2G1F is a advantage PoE switch,it’s with 16*100Mbps PoE Ports,and 2*1000Mbps RJ45+1*Fiber SFP Uplink ports,VLAN supported. It supplys MAX 250M long distance transmission. The model is widely used in security surveillance system,Wireless APs and IP Phones.
Main Features:
* 16*10/100mbps POE port;2*10/100/1000mbps UP Link；1*10/100/1000mbps SFP
* 250m Distance;Vlan support
* Support IEEE802.3AF/AT
* Whole Power:300W
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
* Each port max. power supply reached 30W.

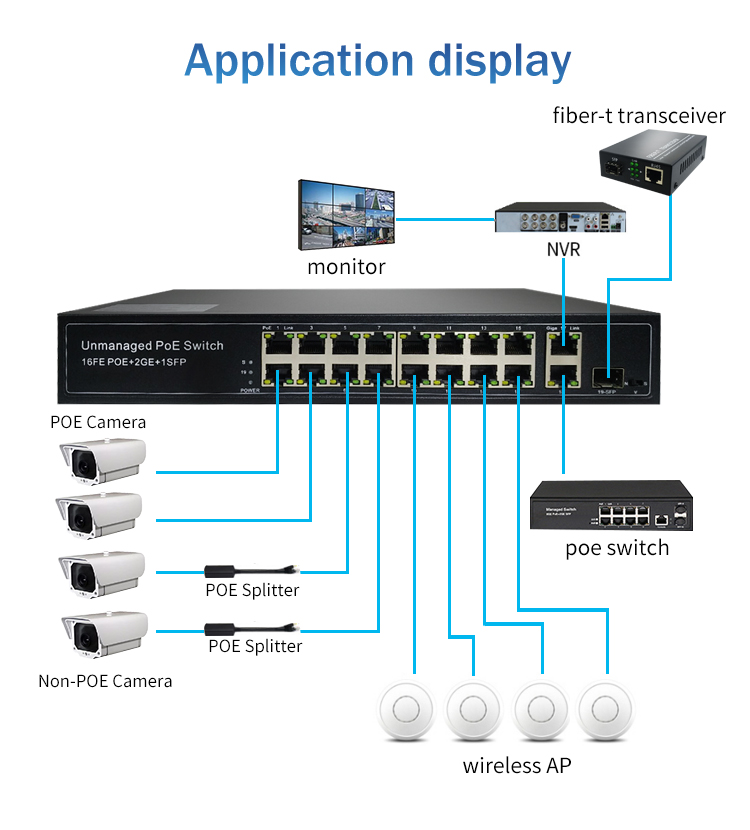

Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
|
Technical items
|
Description
|
|
Chipset
|
Realtek
|
|
Interface
|
16×10/100Mbps rj45+2x1000Mbps uplink rj45 +1 Gigabit sfp
|
|
PoE Port
|
Port 1-16
|
|
PoE power
|
30w per port
Wiring: Data & Power provided over pairs 12& 3 6 Cable: UTP cat.5 or higher |
|
Bandwidth
|
20G
|
|
LED indicator
|
Per port: Link,speed,PoE active
|
|
Working Tem.
|
0℃-40℃
|
|
Input power
|
AC100-240V 50/60HZ
|
|

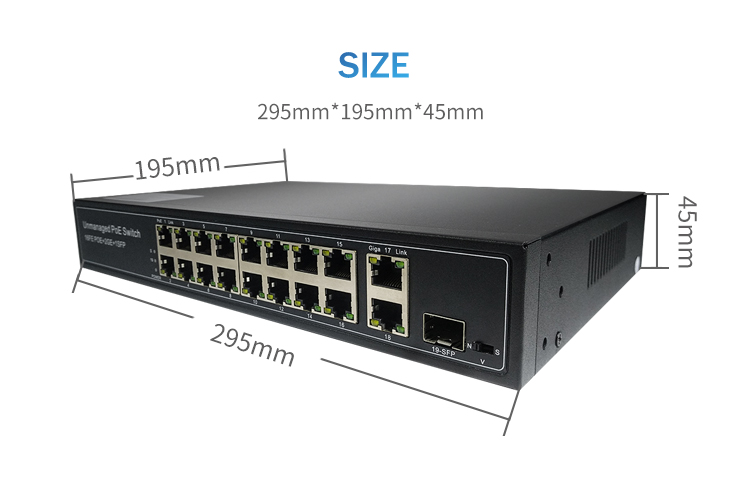

Dimension
|
295mm*195mm*45mm(L*W*H)
|
|
Weight
|
3.0kg
|
