- Model Number:GTBO GTXO GTCO GTTO
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Network:POE
- Supply Ability10000 Piece/Pieces per Year
- Packaging DetailsRetail Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated

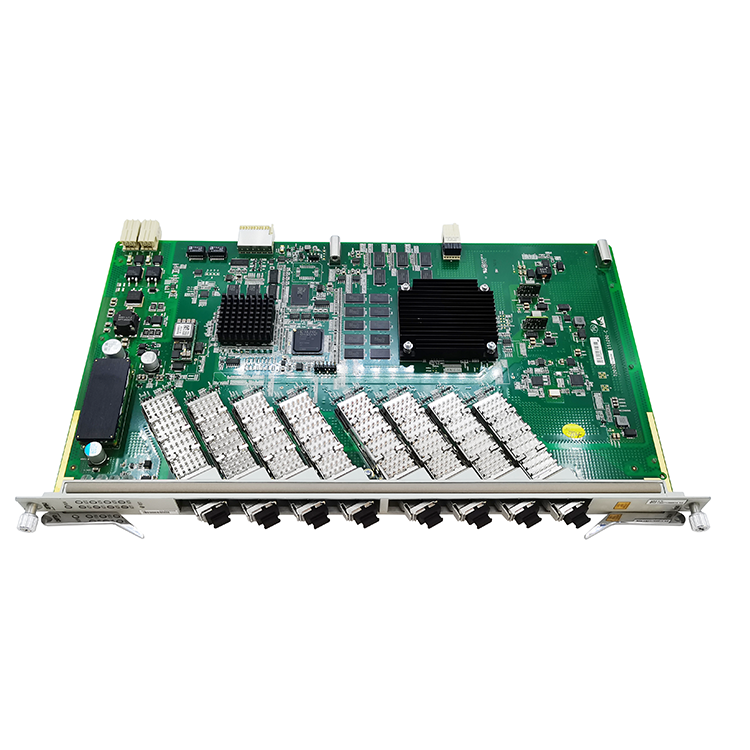

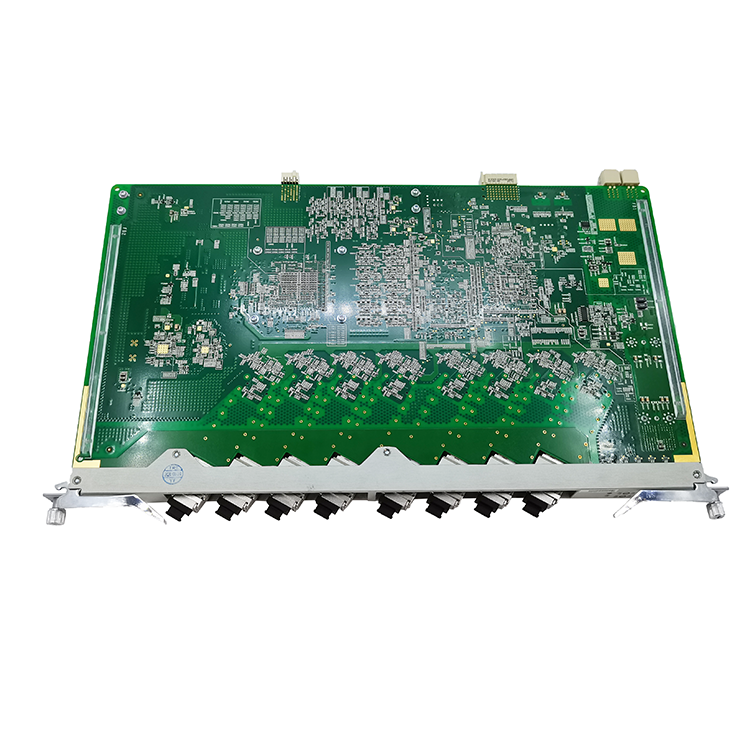

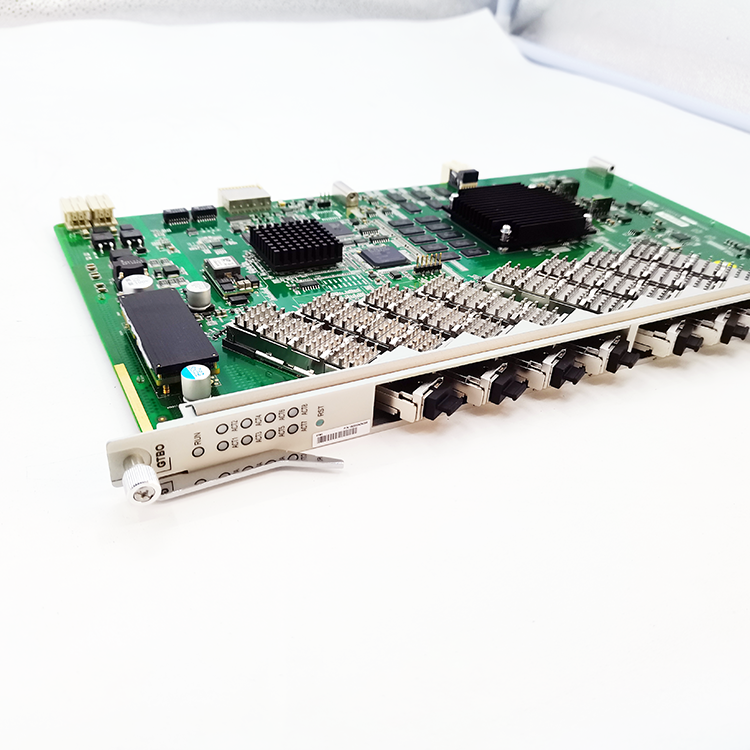

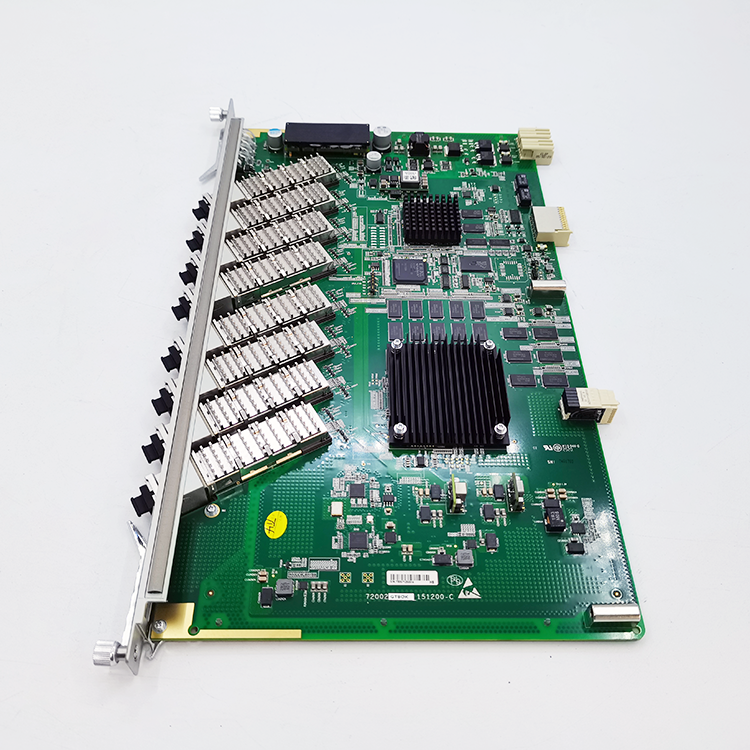

ZTE GTBO Service Board is an 8-Port XG-PON1 subscriber card designed to be used with ZXA10 C300 and ZXA10 C320.
Product Overview
ZTE GTBO Service Board is an 8-port XGPON OLT interface board, which cooperates with ONU to realize GPON access service for ZTE C320 C300. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port. ZTE ZXA10 C300 solution is very threatening to competitors in the global FTTP market. The new ZXA10 C300 platform is one of only a handful of FTTP OLT solutions that supports both standards-based GPON and EPON, not to mention point-to-point active Ethernet (AE) FTTP and 10G EPON. This gives ZTE a solid competitive advantage in terms of deployment flexibility vis-à-vis rival vendor OLTs, most of which will support only one or two of the various FTTP connectivity options.
Product Specifications
| Brand | ZTE |
| Item | GTBO |
| Port | 8 |
| Type | N1 Module: Single Fiber Bidirectional Optical Module N1 |
| N2a Module: Single Fiber Bidirectional Optical Module N2a | |
| Operating Wavelength | Tx: 1577 nm, Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | Tx: 10 Gbit/s, Rx: 2.488 Gbit/s |
| Minimun Output Optical Power | N1 Module: 2dBm |
| N2a Module: 4dBm | |
| Maximum Output Optical Power | N1 Module: 6dBm |
| N2a Module: 8dBm | |
| Maximum Receiver Sensitivity | N1 Module: -27.5dBm |
| N2a Module: -29.50dBm | |
| Optical Connector Type | SC/UPC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Saturation optical power | N1 Module: -7dBm |
| N2a Module: -9dBm | |
| Extinction ratio | 8.2dB |
| Weight | 1.68kg |
| Dimensions (W x D x H) | 393.1 mm(H) × 23.9 mm(W) × 214 mm(D) |
ZTE GTBO Service Board and More Service Boards
| GTGO | 8 ports GPON board with 8 B+ modules. |
| GTGO | 8 ports GPON board with 8 C+ modules. |
| GTGO | 8 ports GPON board with 8 C++ modules. |
| GTGH | 16 ports GPON board with 16 B+ modules. |
| GTGH | 16 ports GPON board with 16 C+ modules. |
| GTGH | 16 ports GPON board with 16 C++ modules. |
| GTTO | 8 ports 10G GPON board with 8 10G GPON modules |
| GTXO | 8 ports 10G GPON board with 8 10G GPON modules |
| ETGO | 8 ports EPON board with 8 modules. |
| ETGH | 16 ports EPON board with 16 modules |
| ETTO | 8 ports 10G EPON board with 8 10G EPON modules |
ZTE GTBO Service Board Product Features
- Support ISSU and NSR
- Support multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul.
- Support CFM functions defined by 802.1ag.
- Support Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces.
- Provide enriched equipment security, system security, network security and service security features
- Provide redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane
- Support 8 port XGS-PON/ XG-PON/Combo PON/10G-EPON cards, 8-port 10GE cards and 48-port GE P2P cards.
