- Model Number:F673AV9
- Type:ONU
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:FTTH Network
- Warranty Time:1 year
- Network:wifi, 4g
- Product name:ZTE dual band gpon xpon ont f673av9 Wireless 5g Wifi
- Application:FTTN
- Warranty:12 Months / 1 Year
- Weight:<500g
- Ports:4GE+1POTS+1USB+WiFi
- Connector Type:SC/UPC
- Antenna gain:5dBi
- Color::White
-
- Supply Ability
- 10000 Piece/Pieces per Day
-
- Packaging Details
Carton
-
- Port
NING BO/SHANG HAI
- Picture Example:
- Lead time:Quantity(pieces)1 – 5>5Lead time (days)7To be negotiated
ZTE dual band gpon xpon ont f673av9 Wireless 5g Wifi fiber optical Modem Router to CHILE
Product Description
F673AV9

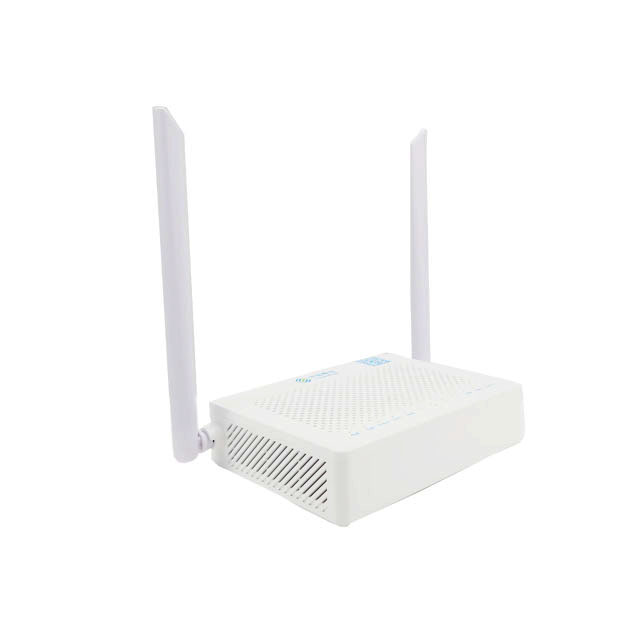

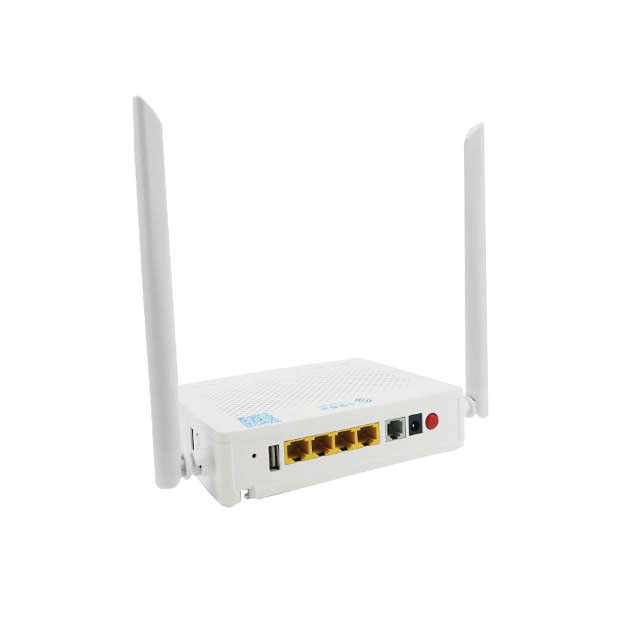

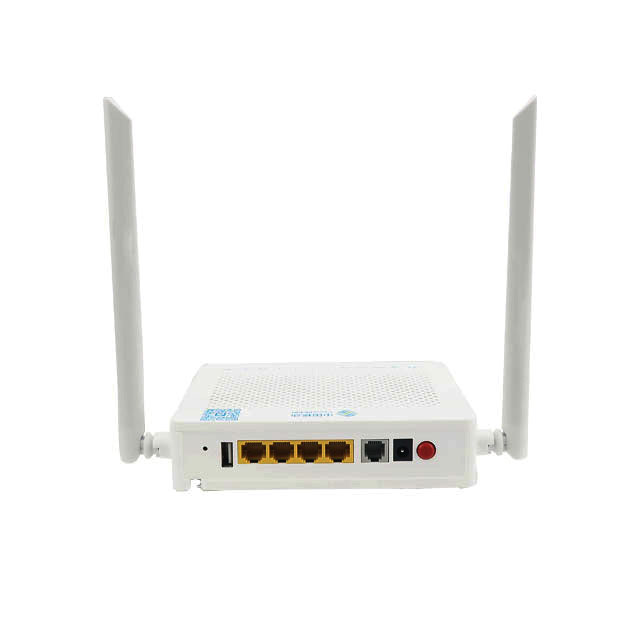

The F673AV9, a GPON optical network terminal (ONT) for home users, is designed for the fiber to the home (FTTH) scenarios, supports desktop mounting and wall mounting. The F673AV9 complies with the ITU-T G.984 standard, provides 2 488 Gbps downlink and 1.244 Gbps uplink at network side, and provides 4GE ports(four 10/100/1000M network interfaces), one Phone ports, one 802. 11b/g/n(2*2 @2.4GHz) Wi-Fi interface with two External anten-nas, one USB port at user side. Home users can easily access voice services, video services and many other kinds of high-speed broadband services by the F673AV9’S rich interfaces.
Specification
|
Name
|
GPON/ EPON/ XPON ONU
|
|||
|
Operating temperature
|
0°C to +40°C
|
|||
|
Operating humidity
|
5% RH to 95% RH (non-condensing)
|
|||
|
Power adapter input
|
100–240 V AC, 50/60 Hz
|
|||
|
System power supply
|
11–14 V DC, 0.5 A/1A
|
|||
|
Power consumption
|
2W-3.6W-7.5W
|
|||
|
Indicators
|
POWER/PON/LOS/LAN
|
