- Model Number:ZTE F601
- Type:ONU
- Place of Origin:Zhejiang, China
- Brand Name:ZTE
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- model:f601
- brand name:ZTE
- Modes of operation:Bridge
- Number of LAN ports:1x 10/100/1000BaseTX (RJ45)
- Dimensions:110 x 90 x 53 mm
- Weight:190g
- Power supply:DC 12V
-
- Supply Ability
- 100 Piece/Pieces per Month
-
- Packaging Details
1pcs/ctn
-
- Port
Shanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

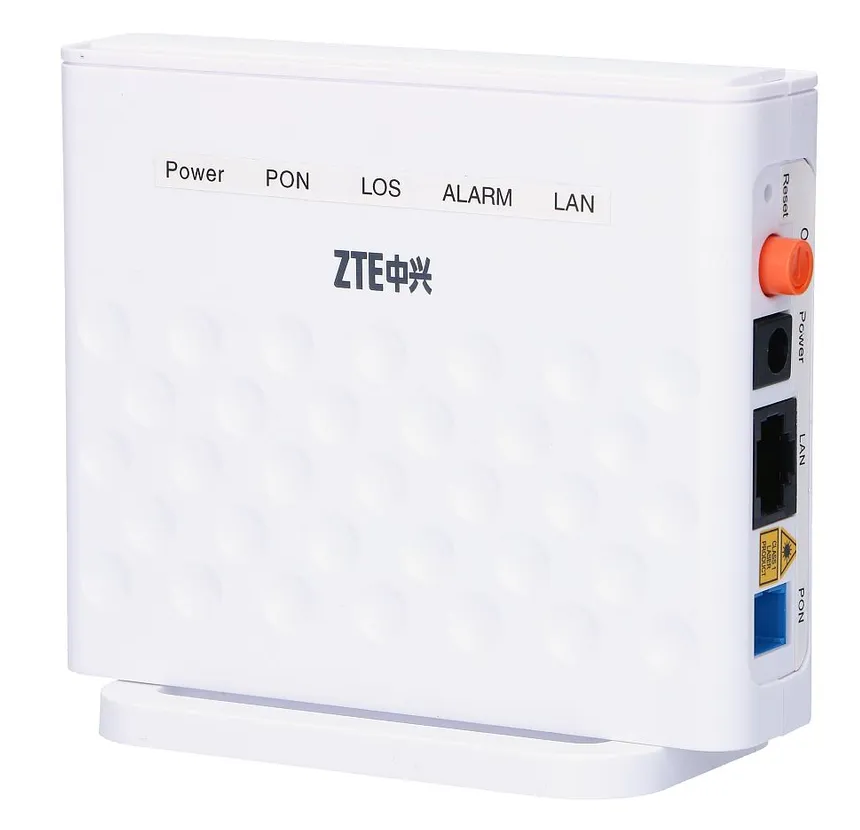

GPON ZXA10 F601 – GPON terminal
ZTE F601 FTTH is a GPON Optical Network Terminal designed for FTTH. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage. ZTE GPON ONT Series of ONTs for FTTX deployment scenarios cover various user interfaces: FE, GE, POTS, RF, Wi-Fi, USB and suitable for digital home networks. They are supporting the latest Wi-Fi 802.11n technology for higher bandwidth access. Easy OAM saves OPEX –support TR069, zero-touch and batch configuration. All EDGE Technologies provided ZTE GPON ONT has Multiple certifications – CE,FCC, RoHS, CoC, Wi-Fi.
|
Model
|
ZTE F601
|
|
GPON interface
|
1 x SC/PC or SC/APC
|
|
Transmit rate
|
Download: 2.448 Gb/s
Transmission: 1.244 Gb/s |
|
Transmission range
|
Up to 20km
|
|
Modes of operation
|
Bridge
|
|
Wavelength
|
Download: 1480 – 1500 nm
Transmission: 1290 – 1330 nm |
|
Power consumption
|
Up to 7W
|
|
Weight
|
190 g
|
|
Dimensions
|
110 x 90 x 53 mm
|
|
Power supply
|
12 V DC
|

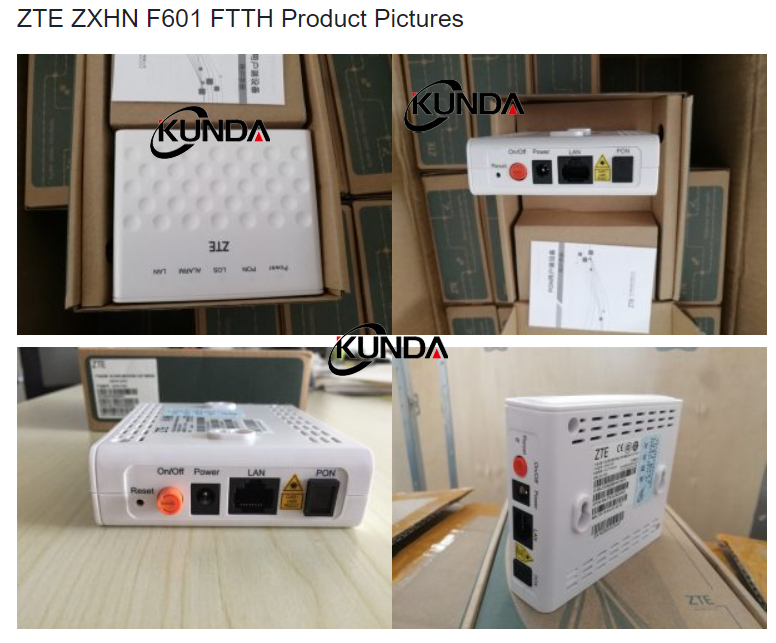

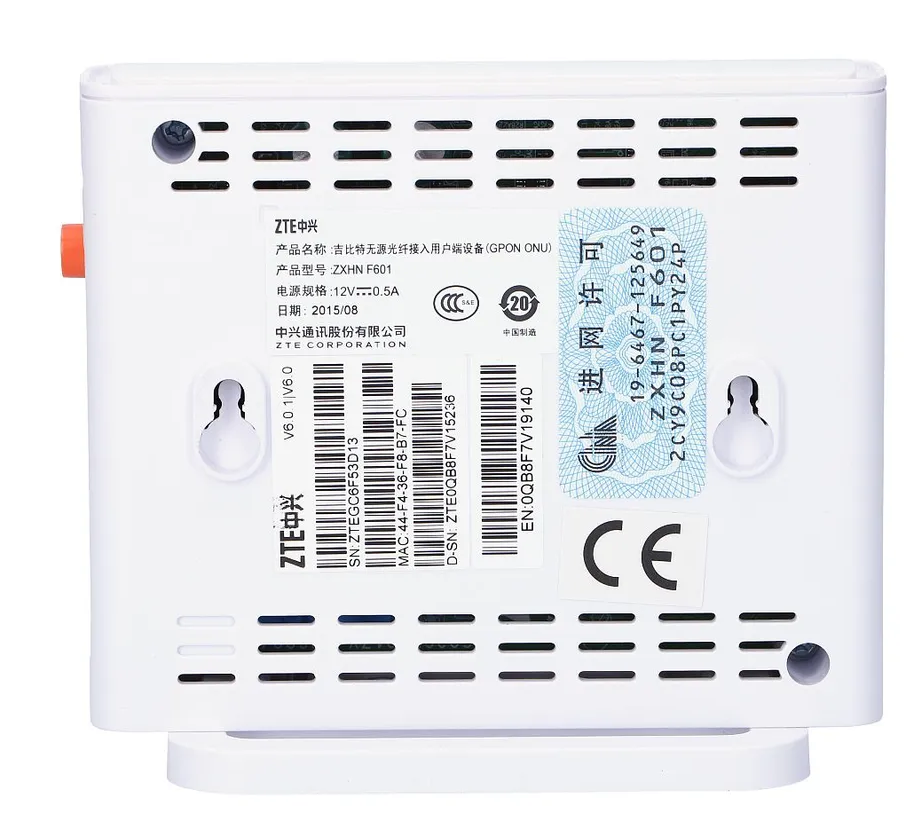

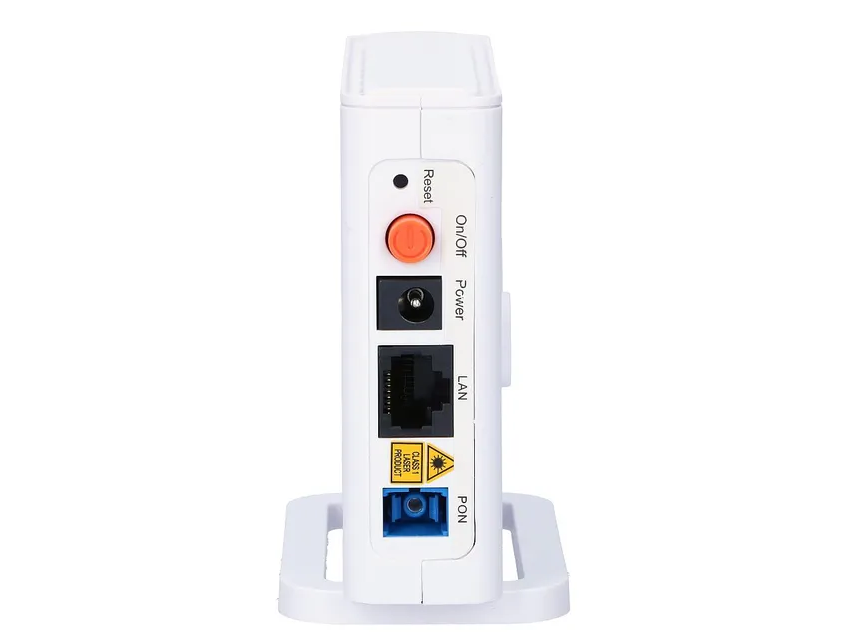

Details Images

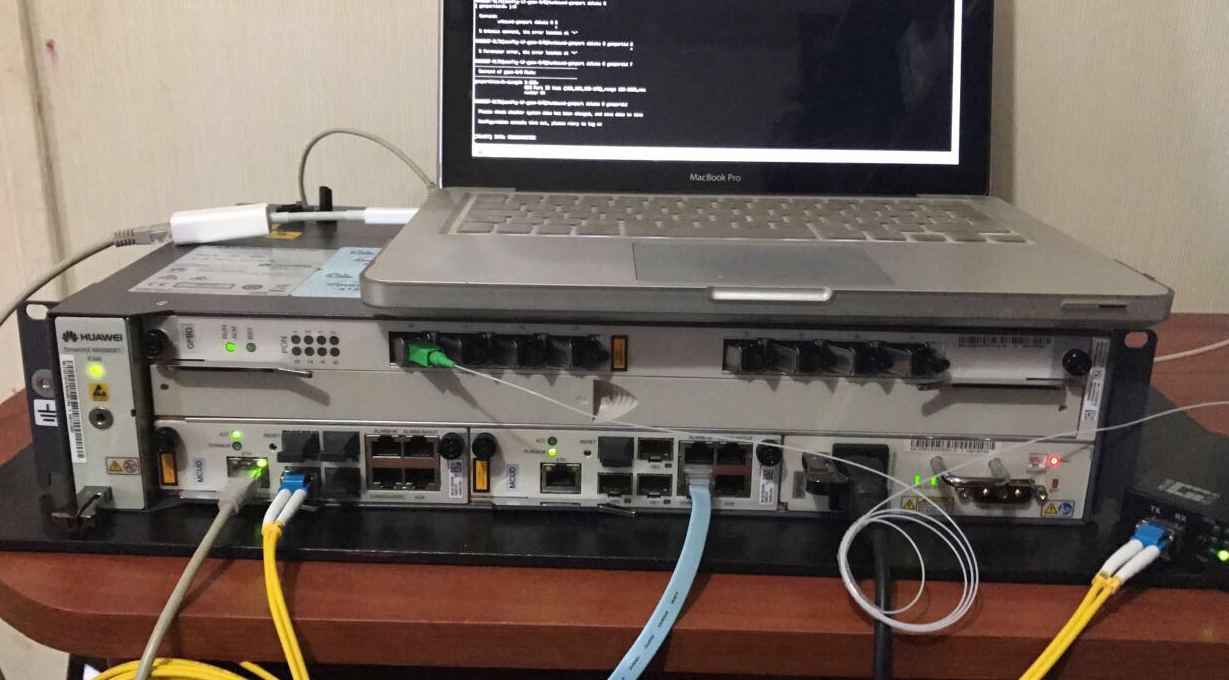

Application

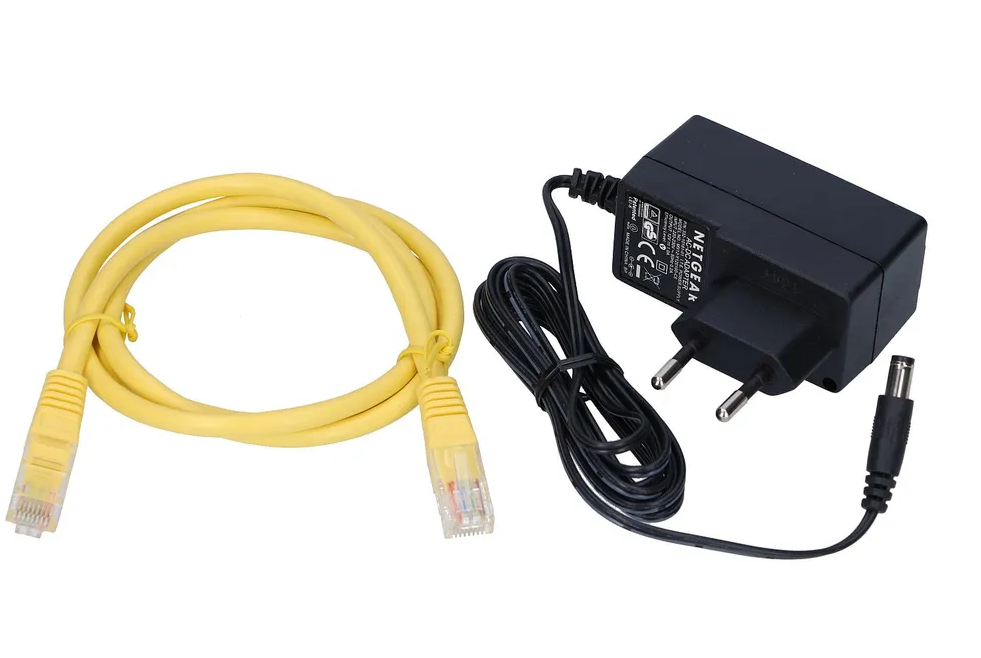

Packing&Shipping
