SKU 1600641964637 Categories ,
  • Model Number:PRWH
  • Type:OLT
  • Place of Origin:Guangdong
  • Brand Name:ZTE
  • Use:FTTX
  • Warranty Time:1 year
  • Network:None
  • Supply Ability
    500 Piece/Pieces per Week
  • Packaging Details

    Cartons

  • Port

    SHENZHEN

  • Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

Overview

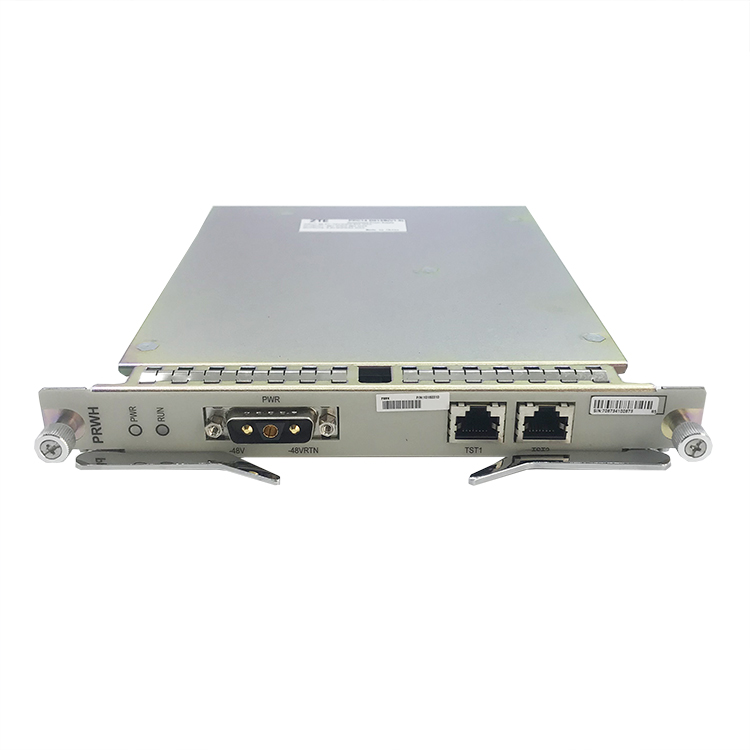

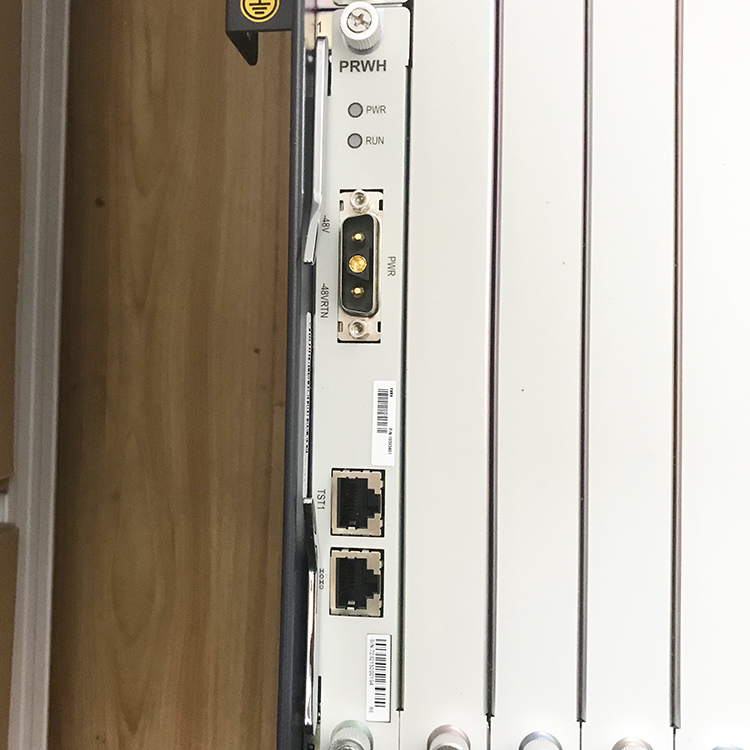

ZTE PRWH Power Board  is intended for installation on the ZTE C300 chassis. It is equipped with two RJ-45 control interfaces and one power port.

The dimensions is 197.75 mm × 25 mm × 225 mm, and its horizontal placement in the chassis significantly saves useful space for the installation of other expansion cards.

ZTE PRWH Power Board has additional system monitoring functions. Environment main features: Filtration and current limitation for input power status monitor and alarm indicator, etc. Support of electric serial number Built-in temperature sensor Voltage, current and power functions

Specification

Indicator Status Description
Brand ZTE
Model PRWH
RUN LED is OFF The card is powered off l  The card does not match l   CPU is not started
Green LED is ON The card self-checking completes but fails to receive data from the switching and control card or NM
Green LED flashes irregularly The card is downloading data from the network management server
Green LED flashes slowly (05 Hz) The card runs properly
Red LED is ON Card hardware failure
Red LED flashes slowly (05 Hz) The card is plugged in the wrong slot
Yellow LED flashes slowly (05 Hz) The software version of the card does not match that of the switching and control card Auto-update is not configured on the card
ACTi (i = 1–16) LED is OFF  No ONU is configured on the EPON interface
The EPON interface has no optical module installed
The EPON interface is shutdown
The EPON interface is TypeB protection port
Green LED flashes The EPON interface and connected ONUs work properly
Red LED is ON The EPON interface has Loss Of Signal (LOS) alarms

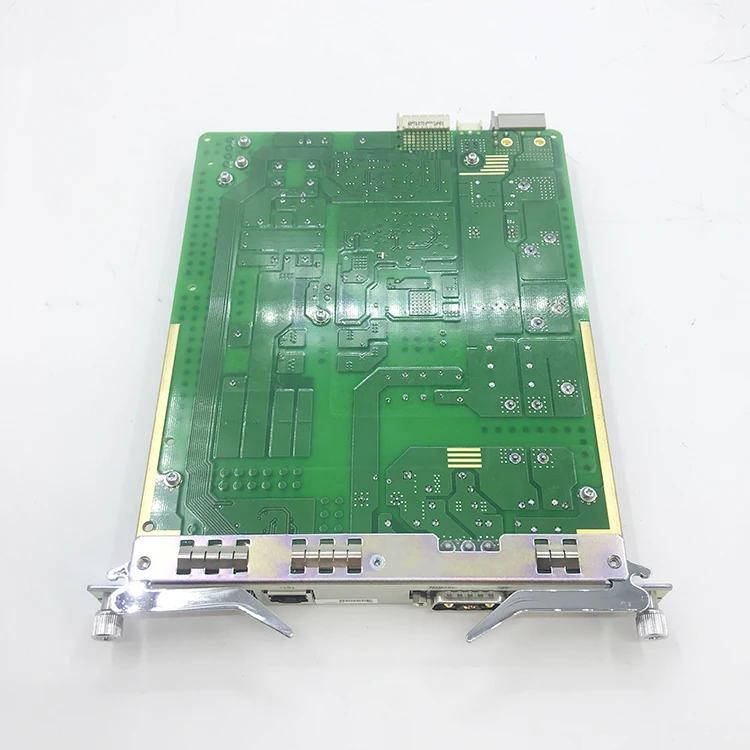

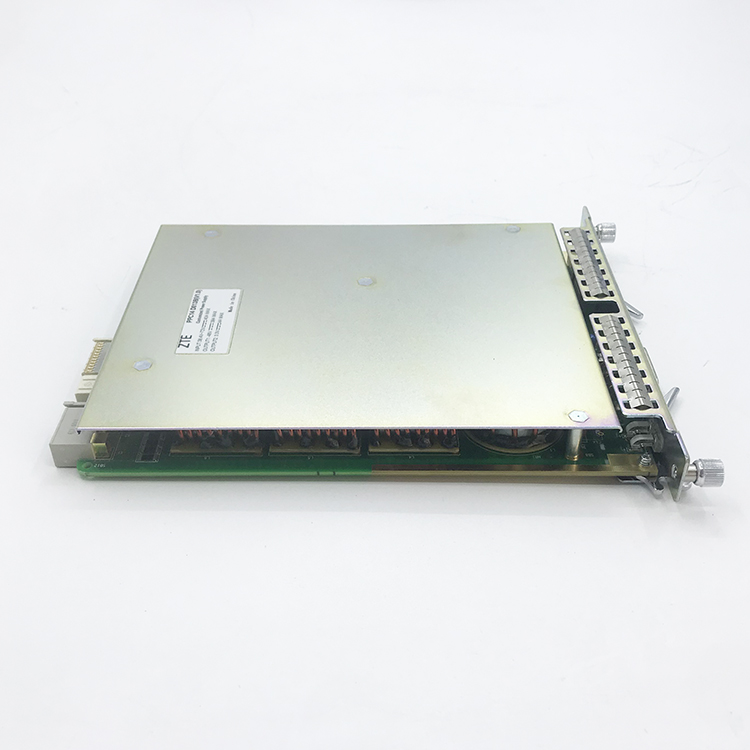

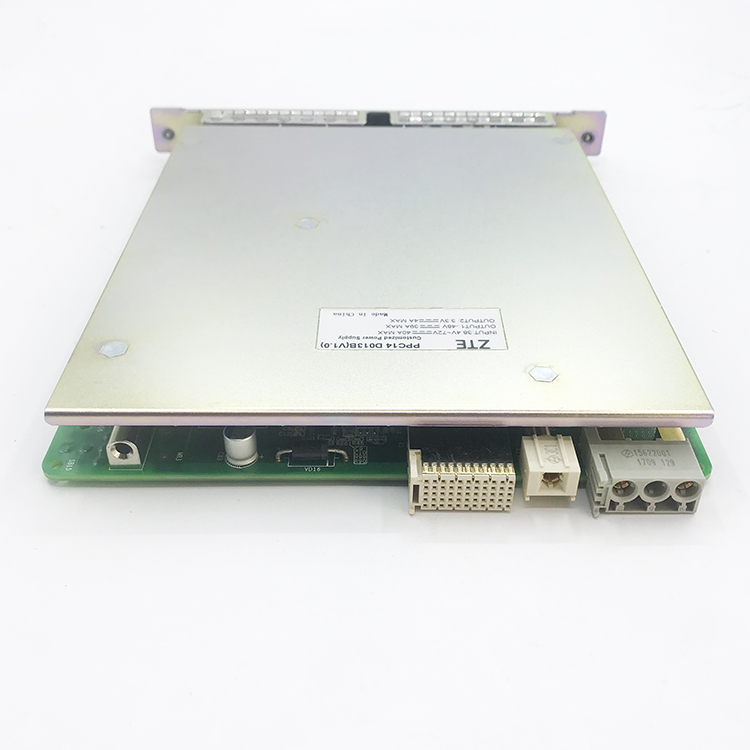

Product Pictures



ZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWHZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWHZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWHZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWHZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWH
