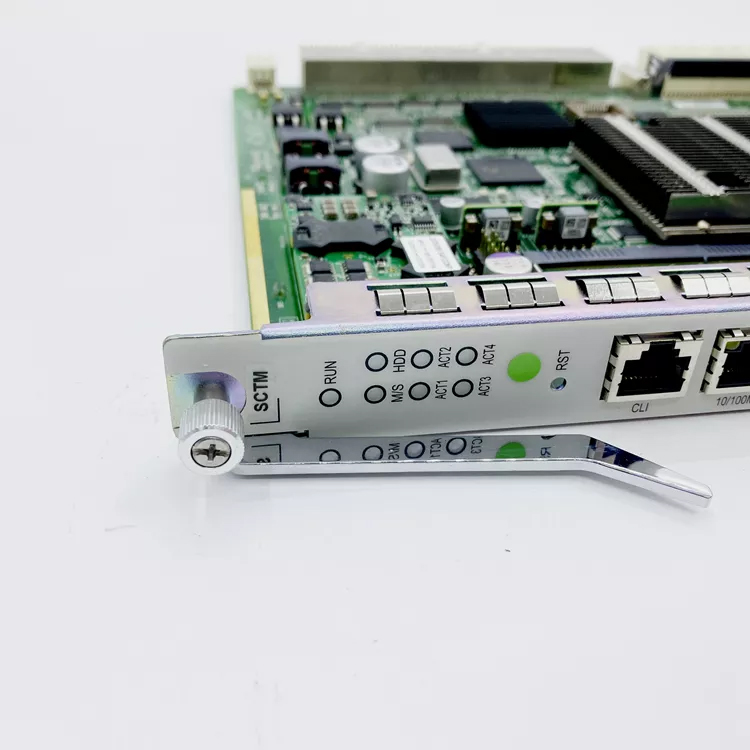

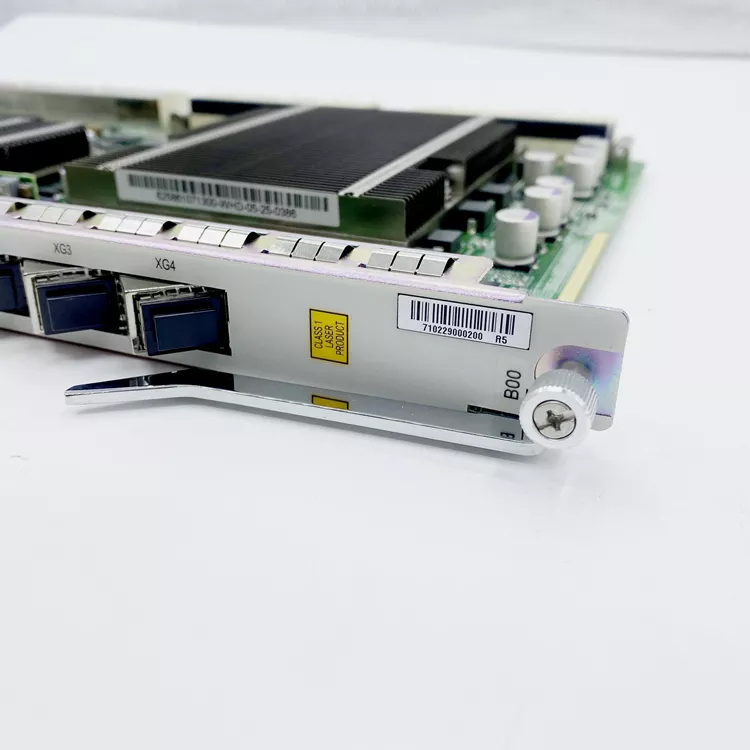

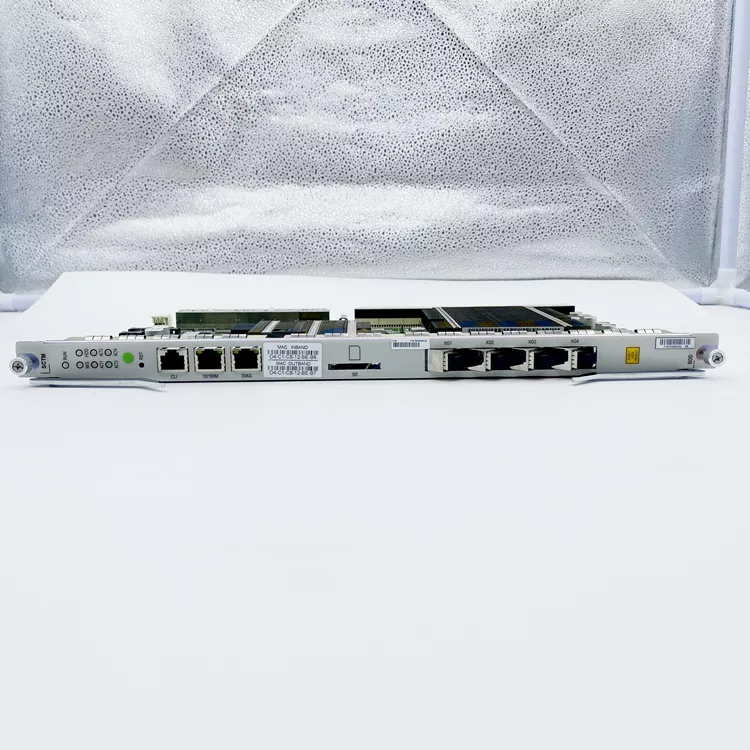

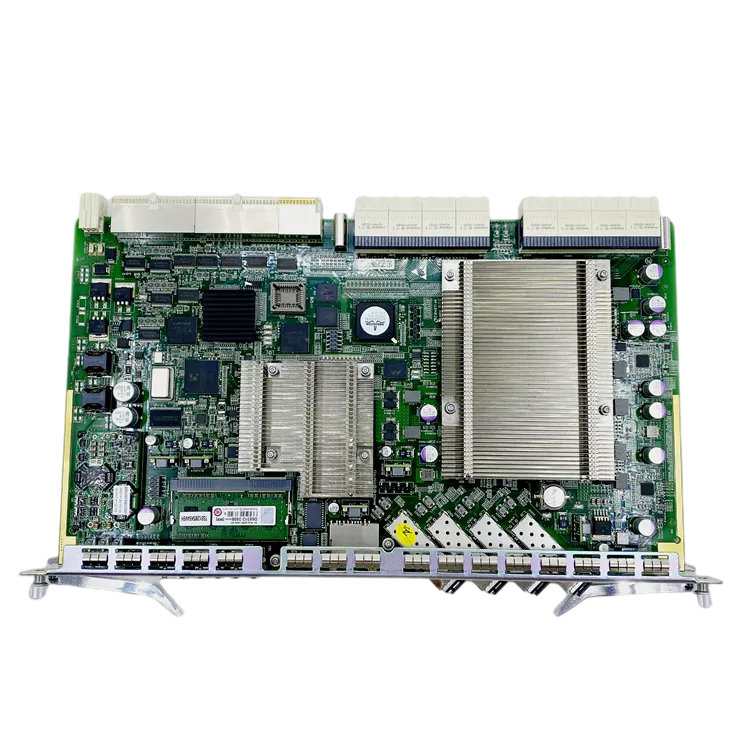

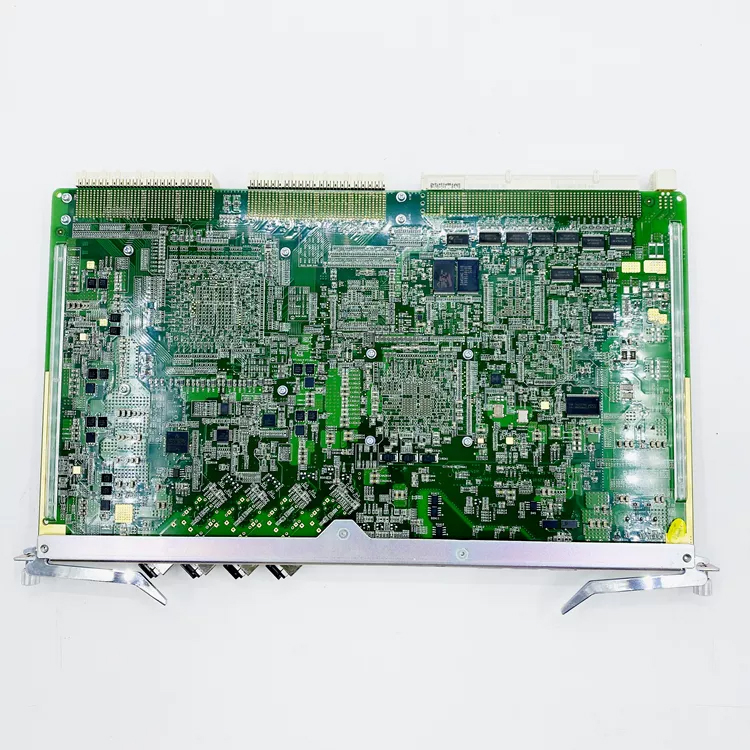

ZTE SCTM 10GE Description:
The ZTE SCTM 10GE Control Board serves as the primary control unit equipped with four 10GE uplink ports designed for integration with the ZTE C300 GPON/EPON OLT. The ZXA10 C300 stands out as a versatile optical-access platform renowned for its extensive capacity and high density. It supports a multitude of access methods and facilitates the seamless delivery of triple-play services. Additionally, it offers tailored solutions to accommodate diverse network requirements and customized scenarios.
ZTE SCTM 10GE Control Board is main control board with 4 pcs 10GE uplink port for ZTE C300 GPON/EPON OLT. ZXA10 C300 is a convergent optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands.
Product Features:
- Compatible with ITU G.984.x
- Support ITU-T G.987.x and G.988
- Support Optical Laser Supervising (OLS)
- Physical reach: 20~60km
- GPON Transceiver power: Class B+ and Class C+
- XG-PON1 Transceiver power: N1, N2a
- Support Type B and Type C protection
- Support SR-DBA and NSR-DBA
- Downstream and upstream FEC
- Support AES128 encryption
- Support SCB (Single Copy Broadcast)
- Full G.984.4 OMCI Stack
- Support migration to NG PON2
ZTE SCTM 10GE Control Board:
|
Card Type
|
Card Name
|
Descriptions
|
|
Control & switch cards
|
SCXN
|
Type N control and switch card, 480G switching capacity
|
|
SCTM
|
Type T control and switch card, 2.56T switching capacity
|
|
|
Subscriber cards
|
GTXO
|
8 ports XG-PON1 line card
|
|
GTGO/GTGH
|
8/16 ports GPON line card
|
|
|
FTGK
|
48 ports P2P/24 ports GE/FE optical Ethernet interface card
|
|
|
CTUB
|
32-channel E1 unbalanced CES interface card
|
|
|
CTLA
|
STM-N CES interface card
|
|
|
Common cards
|
CICK
|
Common interface card
|
|
PRWG/PRWH
|
Power supply card
|
|
|
Ethernet uplink cards
|
GUFQ
|
4 ports GE/FE optical interface Ethernet uplink card
|
|
GUSQ
|
2 ports GE optical and 2 ports GE/FE electrical interface Ethernet uplink card
|
|
|
XUTQ
|
4 ports 10GE optical interface Ethernet uplink card
|
|
|
HUTQ
|
2 ports 10GE and 2 ports GE optical interface Ethernet uplink card
|
|
|
HUVQ
|
2 ports 10GE/GE and 2 ports GE/FE optical interface Ethernet uplink
card(Sync-E) |
