- Model Number:sfp
- Type:sfp, fiber optic tramsceivers
- Place of Origin:China
- Brand Name:kunda
- Use:pon card
- Warranty Time:1 year
- Network:TCP, Ip, POE, wifi
- name:SFP
- brand:kunda
- distance:10km
- power supply:3.3v
- application:GPON OLT
- connector:SC
- Class:gpon olt class c+
- supply Current:500mA
- Warranty:1 year
- Supply Ability10000 Piece/Pieces per Month
- Packaging Detailsbox
- PortShanghai/Ningbo
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)7To be negotiated
Product Description

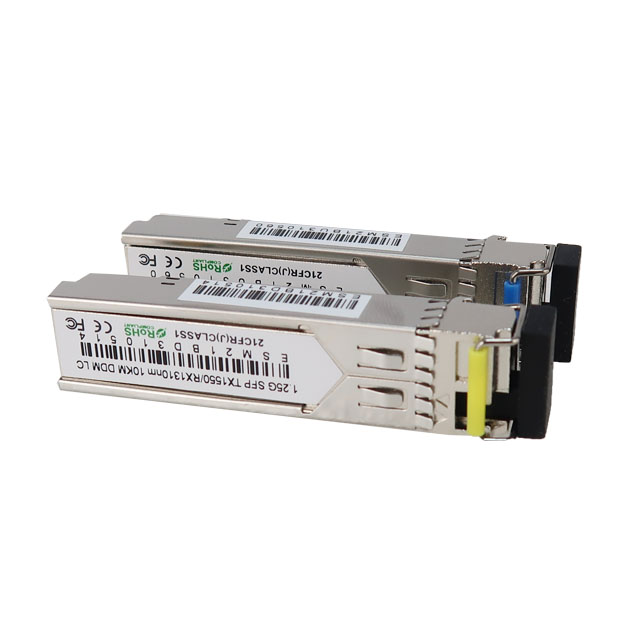

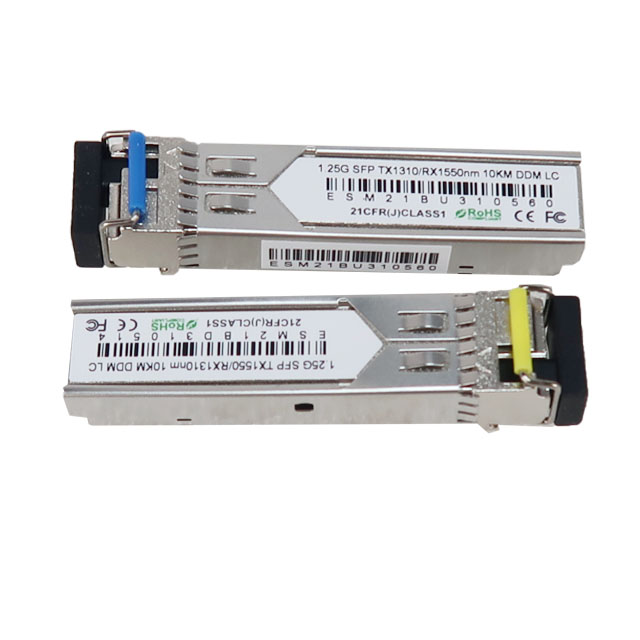

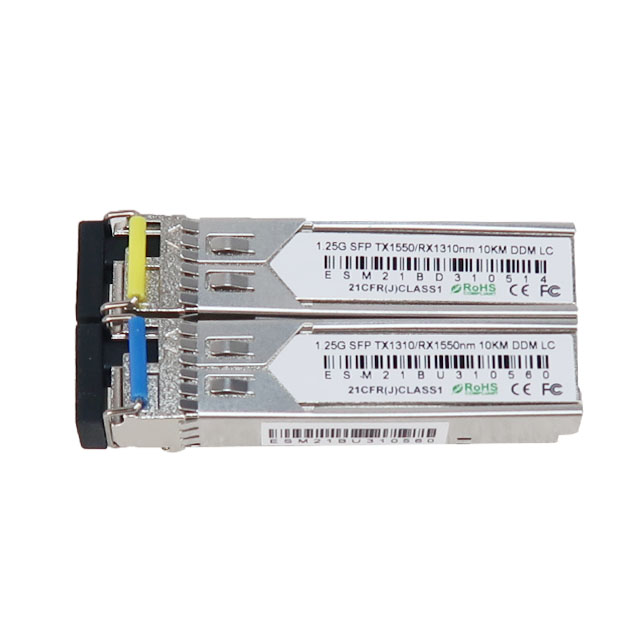

1.25g/10g 1490/1550nm SFP
1).Support 1.25Gbps data links
2).1310nm FP laser and PIN photodetector for 20km transmission
3).2xBi-directional transceivers in1 SFP transceiver package
4).Compliant with CSFP MSA Option 2 and SFF-8472
5).Digital Diagnostic Monitoring: Internal Calibration or External Calibration
6).Compatible with SONET OC-24 system
7).Compatible with RoHS
8).+3.3V single power supply
9).Operating case temperature: 0 – +70°C(Commercial) -40°C – +85°C (Industrial) Applications
1).SONET OC-24 system
2).Gigabit Ethernet
3).Fiber Channel
4).Switch to Switch interface
5).Point to Point FTTH Application
6).Other optical transmission systems Description
1).The CSFP transceivers are high performance, cost effective modules supporting 1.25Gbps and 20km transmission distance with SMF.
2).The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
3).The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA). For further information,
please refer to SFP MSA.
Specification
|
Brand
|
OEM
|
|
model
|
1.25g/10g 1490/1550nm SFP
|
|
Interface Type
|
SC
|
|
Cable type
|
optical fiber
|
|
Transmission distance
|
20 (km)
|
|
transfer method
|
Optical transmission
|
|
Emission wavelength
|
1310/1550(nm)
|
|
Transmit power
|
5 (dbm)
|
|
Voltage input
|
48(V)
|

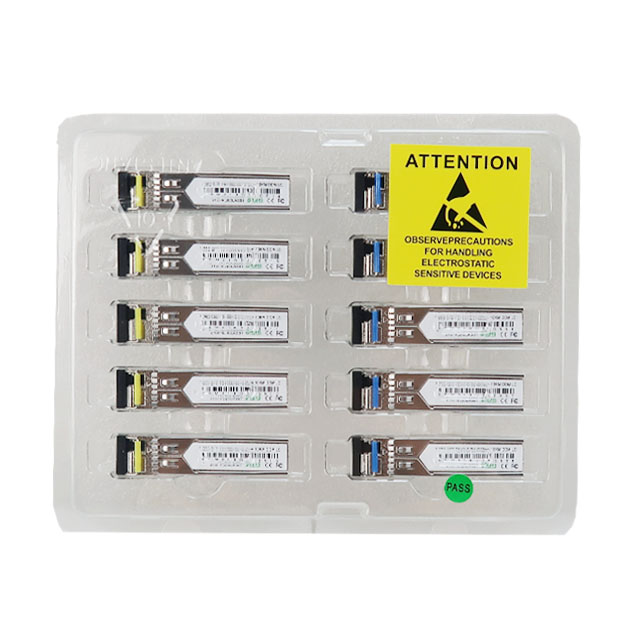

Packing & Delivery
