SKU 1600571243320 Categories ,
  • Model Number:GPHF
  • Type:OLT
  • Place of Origin:Guangdong
  • Brand Name:Huawei
  • Use:Multiple applications
  • Warranty Time:1 year
  • Network:None
  • Apply to:MA5600 MA5608T MA5680T MA5683T
  • Supply Ability
    250 Piece/Pieces per Week
  • Packaging Details

    Cartons

  • Port

    Shenzhen

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 500>500Lead time (days)15To be negotiated

Overview

Huawei GPHF Service Board is a 16-port GPON interface board that works with ONU (Optical Network Unit) devices to implement GPON service access.

The MA5800 multi-service access device is a 4K/8K/VR Ready OLT in the Gigabit Ultra-wide era. It adopts a distributed architecture and supports PON/10G PON/GE/10GE common platform. The MA5800 supports multi-media Gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization common platform, and smooth evolution of 50G PON.

MA5800 series frame products include three sizes: MA5800-X17MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.

Specifications

Brand Huawei
Model GPHF
GPON Port 16-GPON Port
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25W; Maximum:50W
Maximum Frame Size 2004 bytes
  9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C

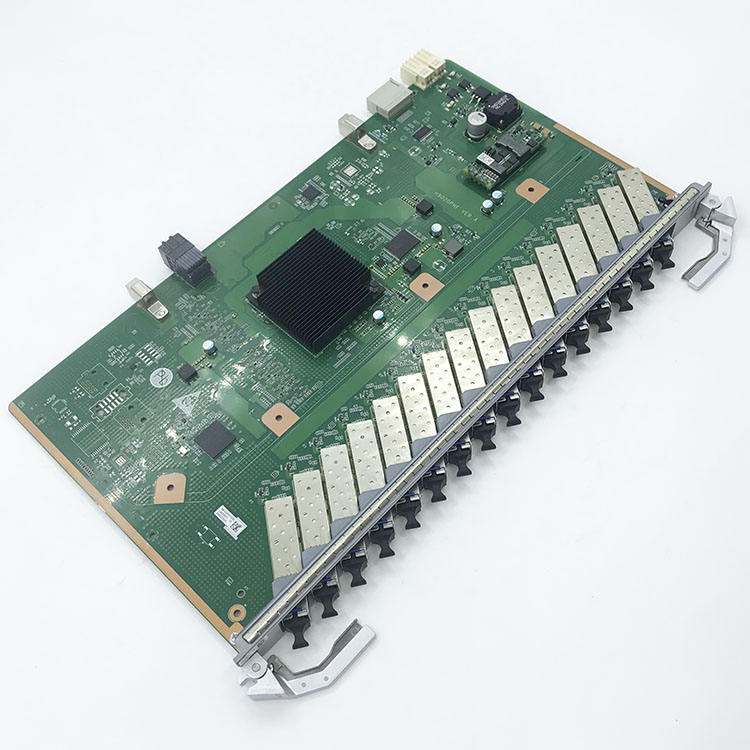

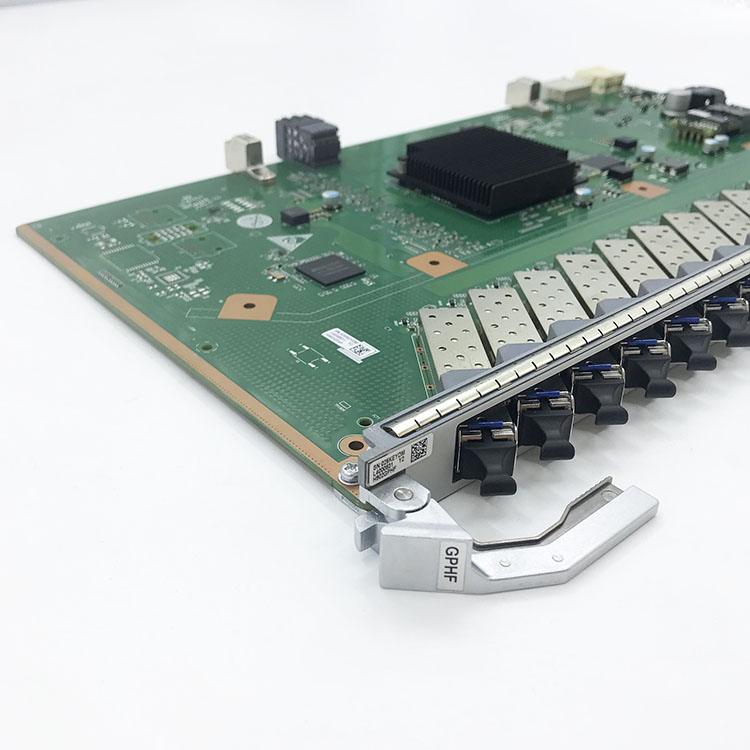

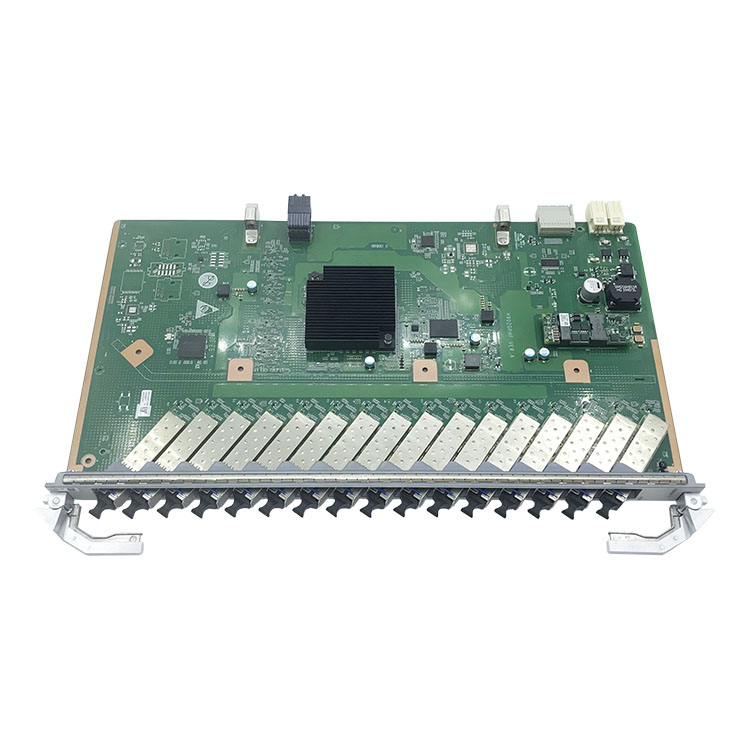

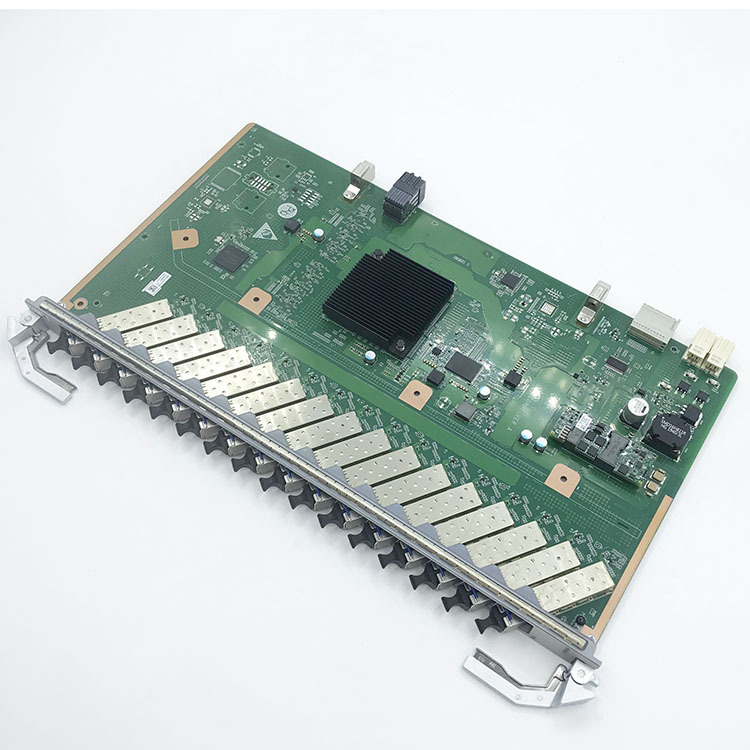

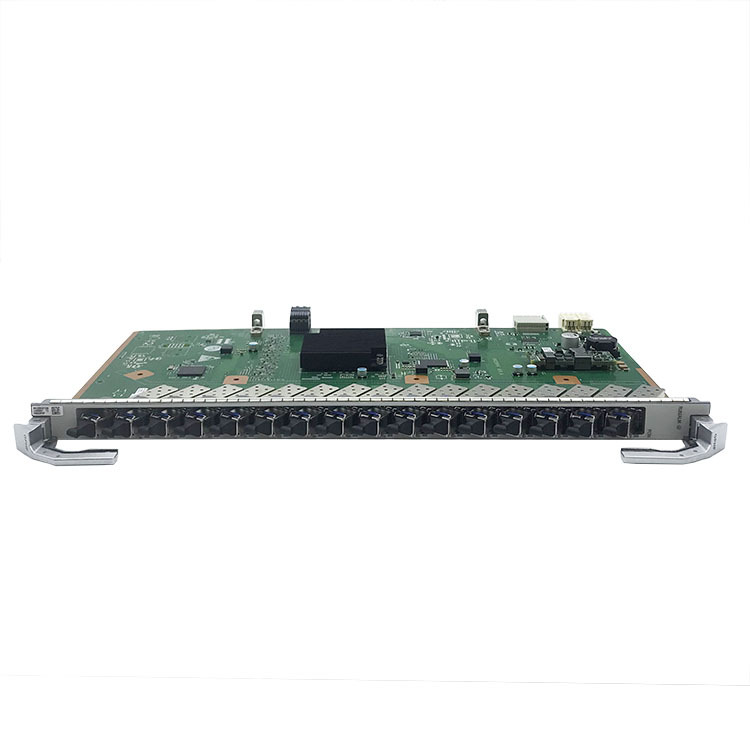

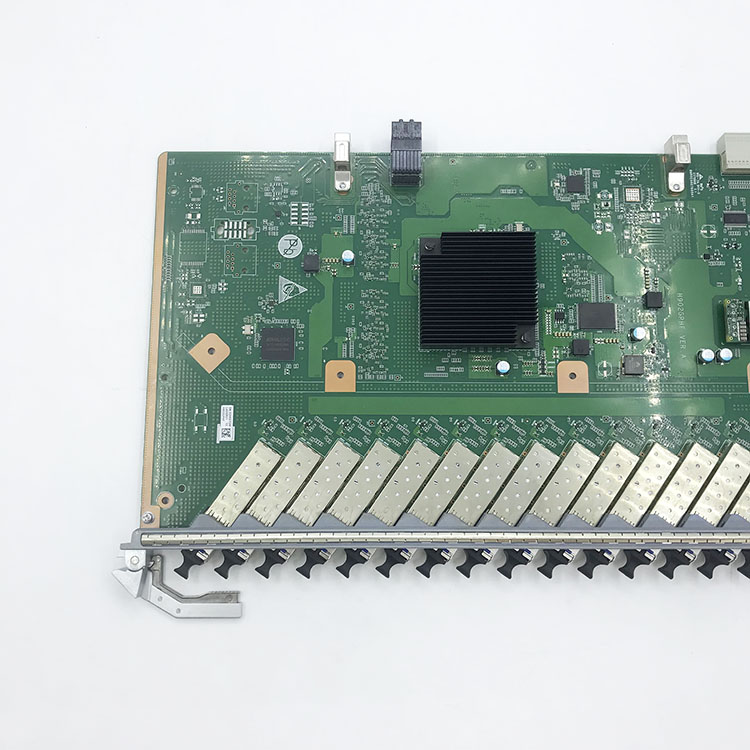

Product Pictures

16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T16ports GPFD GPHF GPLF B+ C+ C++ GPON OLT Interface Board For MA5800T







Specification

23.30 mm * 257.90 mm * 399.20 mm
