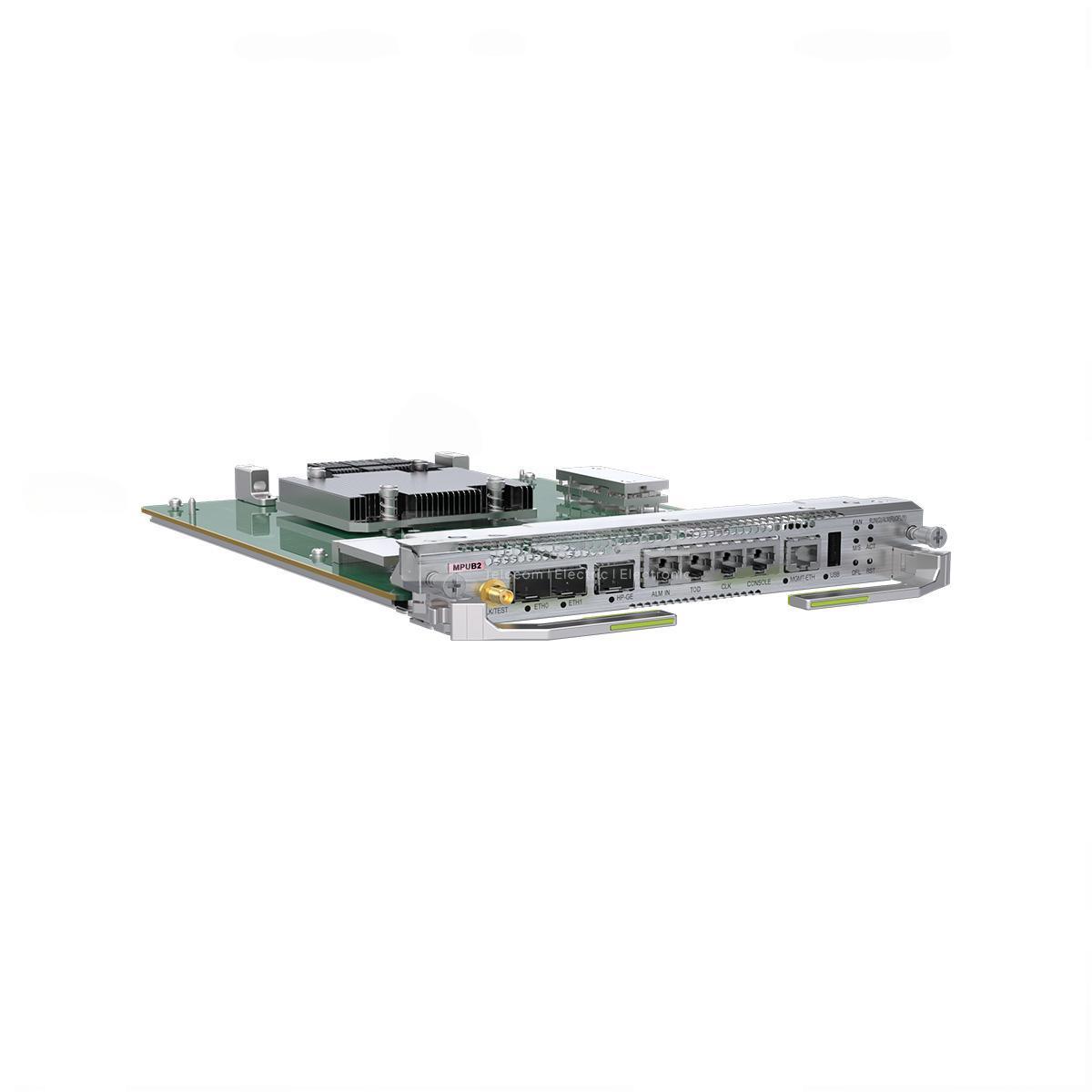

Huawei CR8DMPUF8BF2 – Net Engine 8000 F Main Processing Unit (MPU-F)
Product Overview
The Huawei CR8DMPUF8BF2 is the Main Processing Unit (MPU-F) specifically designed for the Huawei Net Engine 8000 F-series Routers. As the core control and management component of the NE8000 platform, this MPU delivers powerful processing capabilities, carrier-grade reliability, and efficient system resource coordination for ultra-broadband networks and next-generation IP backbone deployments.
Whether you’re expanding an ISP backbone, upgrading enterprise infrastructure, or building a next-gen metro core, the CR8DMPUF8BF2 provides the intelligent control you need for resilient and high-capacity routing environments.
Key Features of Huawei CR8DMPUF8BF2
- Model: CR8DMPUF8BF2
- Component Type: Main Processing Unit (MPU-F)
- Platform Compatibility: Huawei Net Engine 8000 F Series
- Processing Power: Advanced multi-core architecture for fast route processing and traffic management
- Memory & Storage: Equipped with high-capacity memory for routing tables and control plane operations
- Built-in Redundancy: Supports high availability configurations with dual MPUs
- Condition: 100% Brand New – Original Huawei Hardware
- Warranty: Standard 1-Year Manufacturer Warranty (Extended Options Available)
Huawei CR8DMPUF8BF2 Specifications
| Attribute | Details |
|---|---|
| Product Code | CR8DMPUF8BF2 |
| Device Role | Main Control / Route Processing Unit |
| Routing Support | IPv4 / IPv6 Dual Stack |
| Reliability | Hot-swappable, Dual-MPU Supported |
| Application | Core/Metro Routing, Data Center Edge |
| Status | Brand New, Factory Sealed |
Core Benefits
- Centralized Control: Ensures efficient route computation, policy control, and protocol management
- Scalable Performance: Supports high-throughput requirements in dense IP transport environments
- Stability: Offers long-term operational stability with optimized software/hardware coordination
- High Compatibility: Seamless integration with all supported NE8000-F chassis and interface cards
Use Cases
- National Backbone Networks
- Cloud Interconnect Gateways
- Internet Service Provider (ISP) Core Networks
- Government, Banking, and Education Infrastructure
- Carrier-Grade Data Center Uplinks
Customization Services
Our expert team offers tailored services for your deployment needs, including:
- Custom Configuration: Firmware pre-loading, SNMP setup, routing profiles
- Hardware Integration: Pairing with other NE8000 cards, slots, or redundant MPU units
- Lab Testing & Pre-Staging: Environment simulation before delivery
- OEM Labeling & Custom Packaging for enterprise clients or resellers
- Localized Setup Support (on request)
Technical Specifications
| Category | Details |
|---|---|
| Basic Function | Responsible for system control and management: • Route calculation • Device management & maintenance • Device monitoring • Functions as the system synchronization unit, providing high-precision and high-reliability synchronization clock and time signals |
| Reliability & Availability | Operates in 1:1 backup mode. If one main control board fails or is replaced, services automatically switch to the backup, enhancing system reliability. |
| Restrictions & Remarks | N/A |
| Link Protocol | – |
Technical Details
| Item | Specification |
|---|---|
| Dimensions (H × W × D) | 125 mm × 380 mm × 470 mm |
| Weight | 2.42 kg |
| Typical Power Consumption | 62 W |
| Typical Heat Dissipation | 97.3 BTU/hour |
| Long-Term Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Short-Term Operating Temperature | –5°C to 55°C (23°F to 131°F) |
| CPU | 16-core, 2.0 GHz |
| SDRAM | 32 GB |
| Storage | 16 GB |
Wholesale & Bulk Order Information
We provide cost-effective solutions for integrators, service providers, and resellers worldwide:
- Bulk Discounts for orders with MOQ
- Flexible Payment Terms for corporate accounts
- Priority Fulfillment for large volume or urgent shipments
- Inventory Reservation for long-term projects or phased deliveries
- Global Delivery with customs and logistics assistance
For pricing, datasheets, or a custom quotation, contact our B2B sales team directly with your volume and timeline requirements.
Why Choose Huawei CR8DMPUF8BF2 ?
- Huawei-Certified Hardware Supplier
- Genuine Products with Serial & Batch Tracking
- On-Time Global Shipping
- Technical Assistance Before & After Sale
- Long-Term Procurement Partnerships Available
Place Your Order
Ensure reliable network control with the Huawei CR8DMPUF8BF2 MPU-F – the heart of your Huawei NE8000 F router. Available now for immediate shipping with full customization and wholesale support.
