- Model Number: ZTE F670L
- Type: ONU
- Place of Origin: Shenzhen, China
- Brand Name: ZTE
- Use: FTTX
- Warranty Time:1 year
- Network: Wireless LAN, wifi, 4g
- Product name: ONU
- Brand: ZTE
- Model: F670L
- Color: White
- Package: Box
- Warranty:1year
- Language: English
- Weight:2.5kg
- Ports:4GE+1POT+2USB+WIFI 2.4G&5G
- Supply Ability10000 Pieces/Pieces per Month
- Packaging Details: Box
- Port: Shenzhen
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)7To be negotiated
Product Description

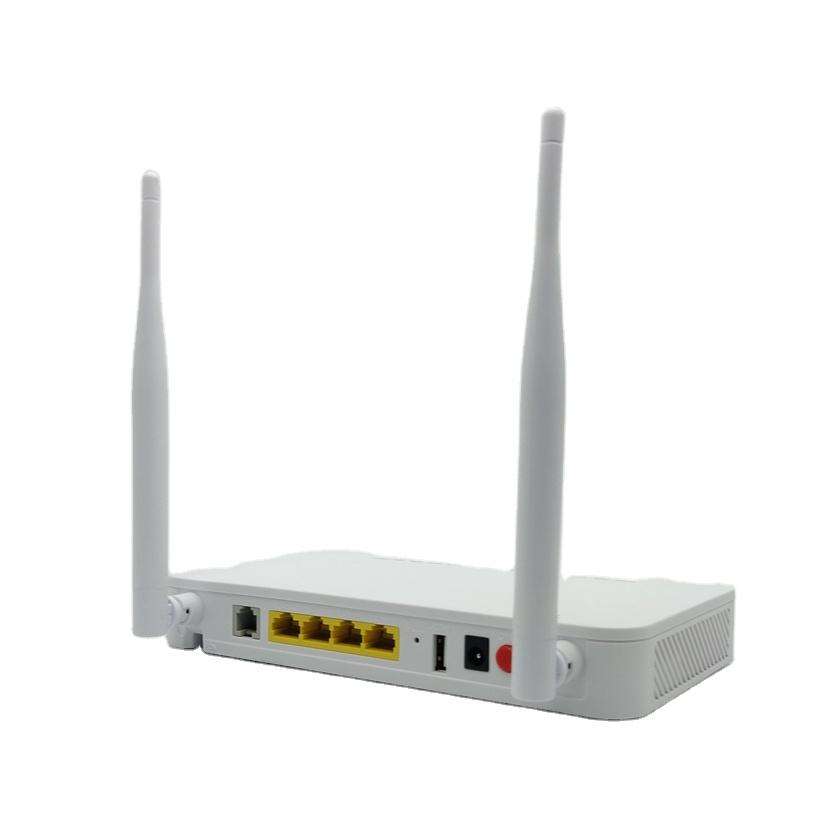

ZTE ZXHN F670L FTTH is a dual-band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next-generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.
Specification
|
Net dimensions
|
205 mm (W) x 120 mm (H) x 28 mm (D)
|
|||
|
Net weight
|
320g
|
|||
|
Typical Power consumption
|
9 W
|
|||
|
Noise
|
Null
|
|||
|
Heat dissipation mode
|
Natural heat dissipation
|
|||
|
Power supply
|
Rated 12 V DC (through the external AC/DC adapter)
|
|||
|
Mounting
|
the desktop or on the wall
|
|||
|
Operating environment
|
0℃–40℃
|
|||
|
Relative humidity
|
5%–95%
|
|||
|
Atmospheric pressure
|
70–106 kPa
|
|||
|
MTTR
|
30 minutes
|
|||
|
Ports
|
4GE+1POTS+1USB+WIFI AC 2.4G & 5C
|
