- Model Number:CGUD
- Type:Board
- Place of Origin:Hunan, China
- Brand Name:HUAWEI
- Use:FTTX
- Warranty Time:1 YEARS

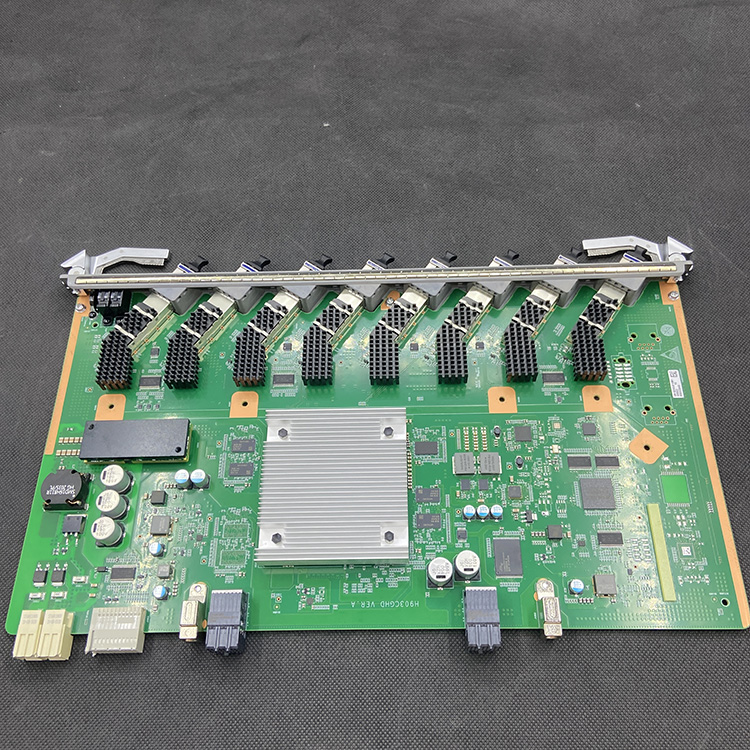

- Product name:COMBO BOARD
- Warranty:1 year
- Weight:4KG
- Model:CGUD
- Certification:CCC
- Ports:8 port
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
CHANGSHA
- Lead time:Quantity(pieces)1 – 10>10Lead time (days)15To be negotiated
Product Description
SmartAX MA5800 Full-service Virtualized OLT Building a convergence access network that is green, ultra-broadband, and intelligent.
The MA5800 series multi-service access device is the first OLT in the industry with distributed architecture. Developed using virtual access technology, it provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring.
The MA5800 provides GPON, XG-PON, XGS-PON, GE, and 10GE access, and supports POL, FTTH, FTTB, FTTC, and D-CCAP network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.
The MA5800 supports capacities for large, medium, and small products, meeting requirements in different scenarios.
Product Specification
|
parameter
|
MA5800-X17
|
MA5800-X15
|
MA5800-X7
|
MA5800-X2
|
|
Size (width x depth x height)
|
493x287x486mm
|
442x287x486 mm
|
442×268.7×263.9 mm
|
442×268.7×88.1 mm
|
|
The maximum number of ports supported by a single frame
|
272 × GPON / EPON
816 × GE / FE 136 × 10G GPON / 10G EPON 136 × 10G GE 544 × E1 |
240 × GPON / EPON
720 × GE / FE 120 × 10G GPON / 10G EPON 120 × 10G GE 480 × E1 |
112 × GPON / EPON
336 × GE / FE 56 × 10G GPON / 10G EPON 56 × 10G GE 224 × E1 |
32 × GPON / EPON
96 × GE / FE 16 × 10G GPON / 10G EPON 16 × 10G GE 64 × E1 |
|
MPU exchange capacity
|
7 Tbit / s
|
480 Gbit / s
|
||
|
MAC addresses
|
262143
|
|||
|
ARP / routing table entries
|
64K
|
|||
|
Operating temperature
|
-40 ℃ ~ + 65 ℃ (work)
-25 ℃ ~ + 65 ℃ (restart) * 65 ℃ refer to operational block inlet temperature. |
|||
|
Operating Voltage
|
-38.4 ~ -72 V DC power supply
|
DC power supply: -38.4V ~ -72V
AC power supply: 100V ~ 240V |
||
|
Layer 2 features
|
VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE +, DHCP option82
|
|||
|
Layer 3 features
|
Static routing, RIP, OSFP / OSPFv3, IS-IS, BGP / BGP4 +, ARP, DHCP relay, VRF
|
|||
|
MPLS & PWE3
|
LDP, RSVP-TE, MPLS OAM, tunnel protection switching, TDM / ETH PWE3, PW protection switching, MPLS BGP IP VPN
|
|||
|
IPv6
|
IPv4 and IPv6 dual stack, IPv6 Layer 2 and Layer 3 forwarding, DHCPv6 relay
|
|||
|
Multicast
|
IGMPv2, IGMPv3, IGMP proxy with the listener, VLAN-based multicast IPTV
|
|||
|
QoS
|
Traffic classification, prioritization, traffic policing trTCM based, HQoS, traffic shaping, WRED, PQ / WRR / PQ + WRR, ACL
|
|||
|
System Reliability
|
GPON type B, type C protection;
EPON type B, type D protection; XG-GPON and the 10G EPON type B protection; Between the plate and the inner plate LAG, MSTP; Master and upgrade service boards continued business. |
