- Model Number:GPON /EPON ONU
- Type:GPON ONU ONT
- Place of Origin:Guangdong, China
- Brand Name:GPON ONU
- Model:FTTH ONT HK720
- Dimensions (H x W x D):152 x 105 x 30 mm
- Weight:192g
- Operating Temperature:0°C to +40°C
- Operating Humidity:5% RH to 95% RH (non-condensing)
- Power Adapter Input:100 V to 240 V AC, 50 Hz/60 Hz
- System Power Supply:11 V to 14 V DC, 1.5 A
- Optical Connector:SC/APC SC/UPC
- Indicators:Power/PON/LOS/LAN/TEL/WLAN/WPS
- Ports:1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
-
- Supply Ability
- 5000 Piece/Pieces per Week
-
- Packaging Details
Carton box
-
- Port
shenzhen
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)5To be negotiated
FTTH GPON EPON ONU
FTTH GPON EPON WiFi ONU ONT 1GE 3FE USB TEL Optical Network Terminal SAME FUNCTION EG8141A5
Brief Introduction :

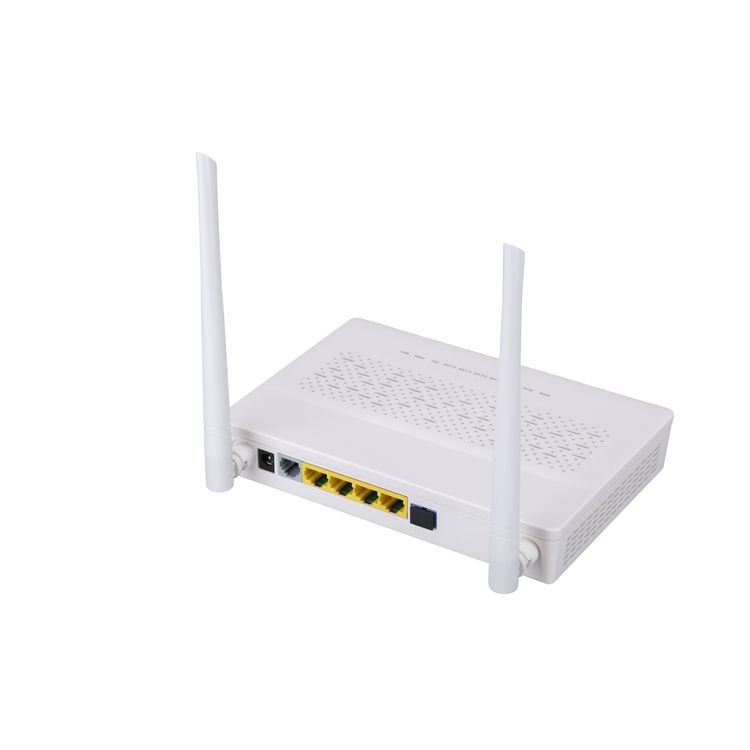

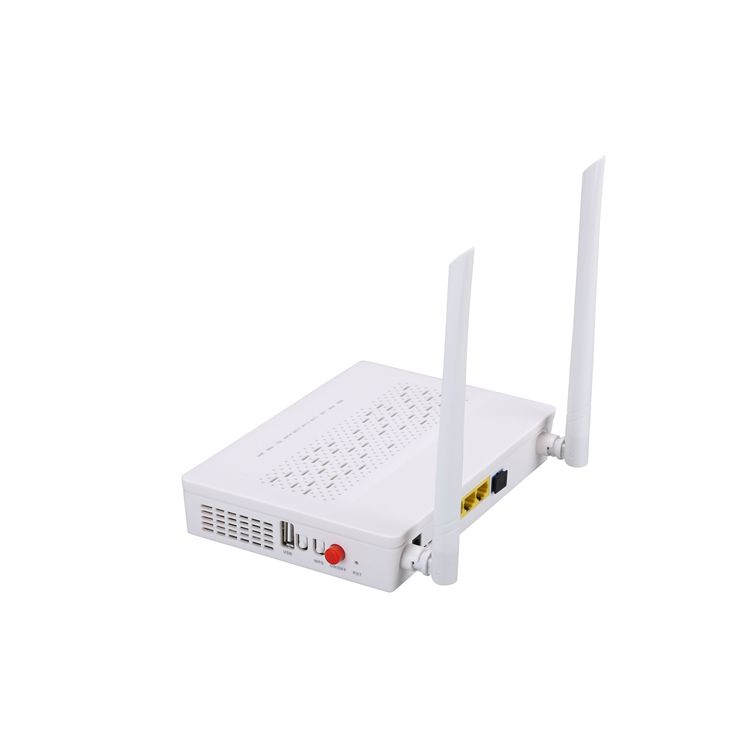

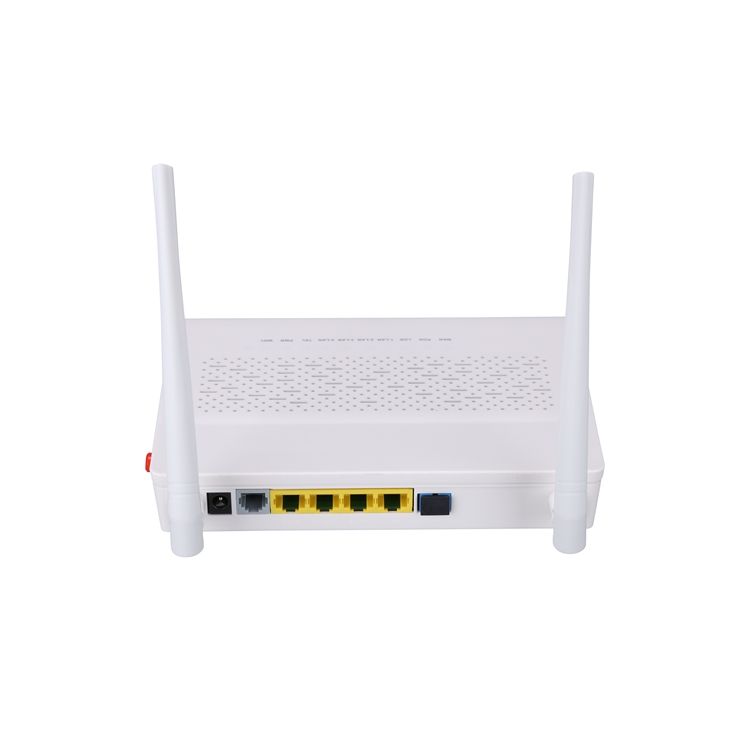

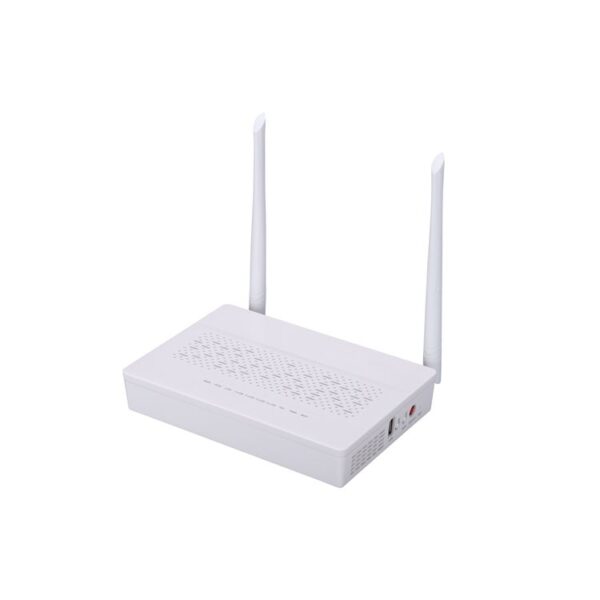

HK-722 provides 1GE port, 1POTS port, 3FE ports and supports 2.4G Wi-Fi. The ONT features
high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.
Product Specification :
|
Parameters
|
HK-722
|
|
Dimensions (H x W x D)
|
152 x 105 x 30 mm
|
|
Weight
|
192g
|
|
Operating Temperature
|
0°C to +40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100 V to 240 V AC, 50 Hz/60 Hz
|
|
System Power Supply
|
11 V to 14 V DC, 1.5 A
|
|
Static Power Consumption
|
3.1W
|
|
Maximum Power Consumption
|
7.5W
|
|
Ports
|
1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
|
|
Optical Connector
|
SC/APC
|
|
Indicators
|
Power/PON/LOS/LAN/TEL/WLAN/WPS
|
Product Overview :
