Product Description
Echolife HG8321R ONT

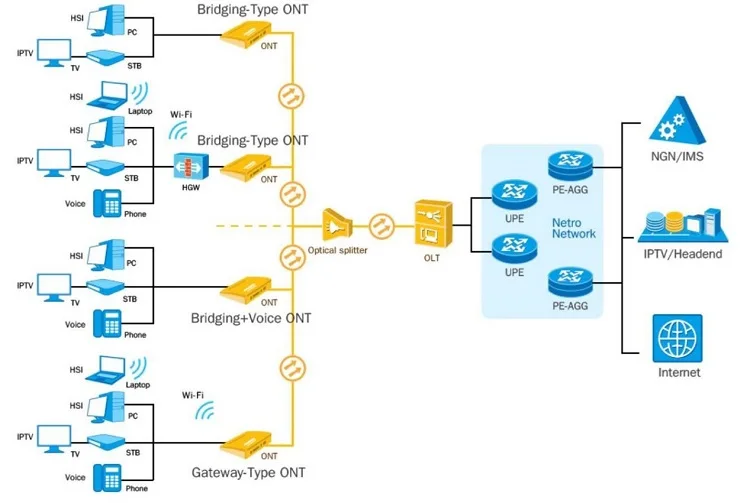

HG8321R FTTH is a high-end home Bridge in FTTH solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8120C provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment..
Features:
Plug-and-Play:Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.
Comprehensive Triple Play Service:Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
Energy Efficient:System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
Plug-and-Play:Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.
Comprehensive Triple Play Service:Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
Energy Efficient:System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
Specification
|
Dimensions (H x W x D)
|
144 x 100 x 28 mm
|
|
Gross Weight
|
200g
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100 V to 240 V AC, 50 Hz/60 Hz
|
|
System Power Supply
|
11 V to 14 V DC, 0.5 A
|
|
PPPOE
|
YES
|
|
Firmware
|
English
|
|
Power Consumption
|
<= 7 W
|
|

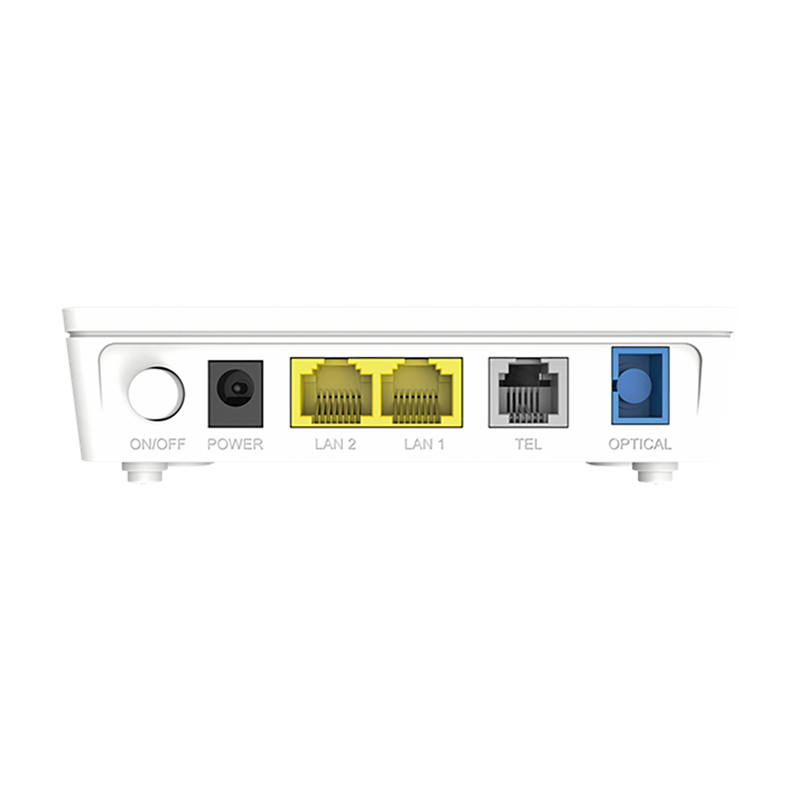

Ports
|
2FE+1TEL
|
|
Optical Connector
|
SC/UPC
|
|
Indicators
|
Power / PON / LOS / INTERNET / LAN / TEL
|

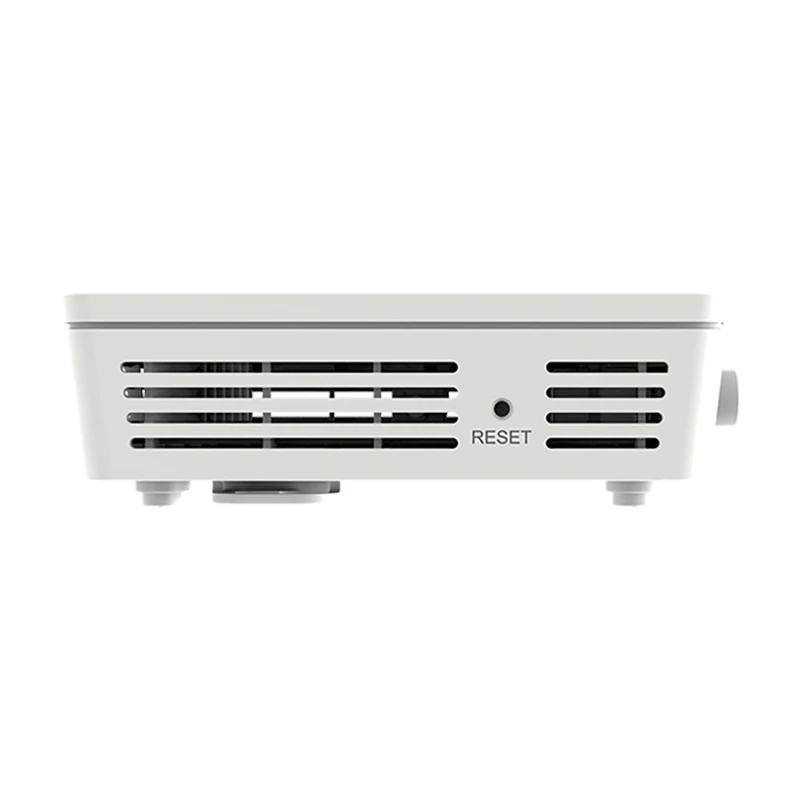

Details Images
Installation Instructions

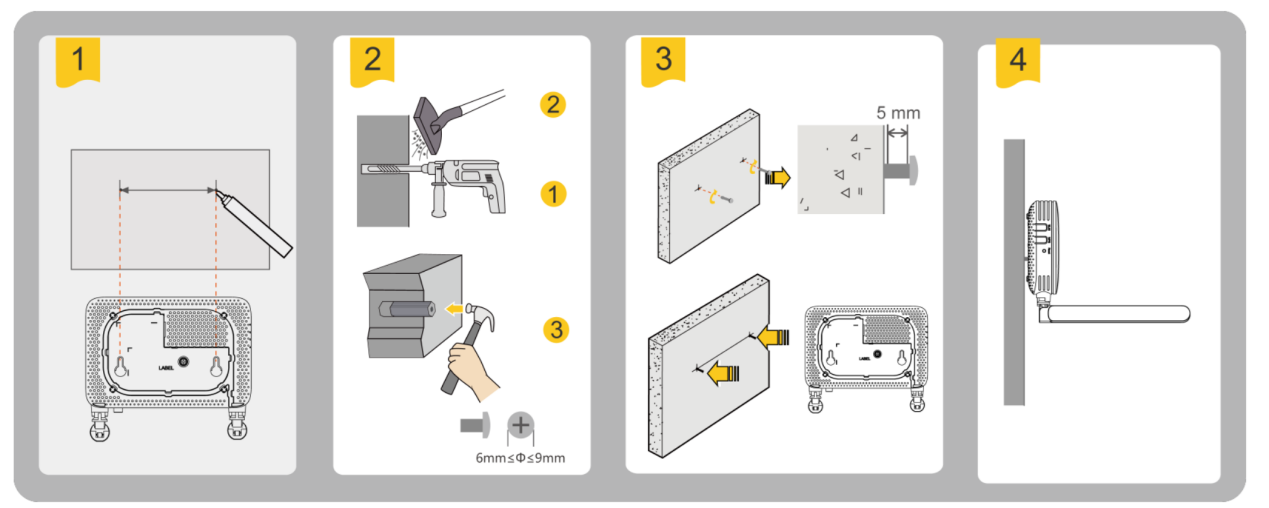

Mounting an ONT onto the wall： * Mark two positions with the same spacing as that between the two mounting holes of the ONT using a marker on a wall.
* Select a proper drill bit according to the outer diameter of the screws. Use a hammer drill to drill the marked positions on the wall. Then clean the holes and install two expansion bolts.
* Use a screwdriver to fasten the screws into the expansion bolts, reserving 5 mm ends out of the wall, and mount the ONT onto the screws
* Select a proper drill bit according to the outer diameter of the screws. Use a hammer drill to drill the marked positions on the wall. Then clean the holes and install two expansion bolts.
* Use a screwdriver to fasten the screws into the expansion bolts, reserving 5 mm ends out of the wall, and mount the ONT onto the screws
