- Model Number:HD4108P
- Type:Testers &Tools
- Place of Origin:Zhejiang, China
- Use:engineering
- Warranty Time:1 year
- Network:None
- Product name:HD4108P PON Power Meter
- model:HD4108P
- Function:test and estimate the signals of the voice, data and video
- Application:FTTX CATV
-
- Supply Ability
- 1000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

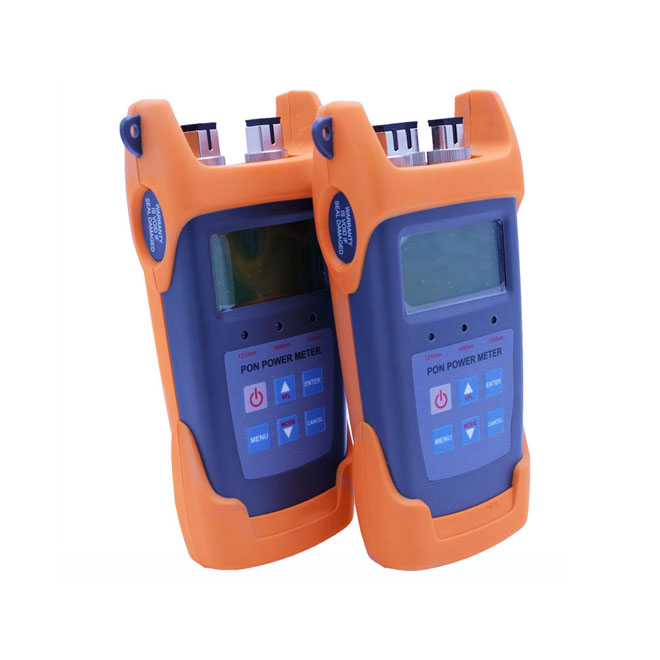

HD4108P PON Optical Power Meter, target at the FTTxapplication and maintenance.This power meter is able to simultaneously test and estimate the signals of the voice, data and video.
Products Description
|
Product name
|
HD4108A mini fiber optical meter
|
|
|
Model
|
HD4108A
|
|
|
1310 upstream measurement
|
||
|
Pass Zone(nm)
|
1260~1360nm
|
|
|
Measurement Range(dBm)
|
15dBm
|
|
|
Output power(max) Isolation@1490/1550(dB)
|
>40dB
|
|
|
Burst mode measurement error
|
+0.15 dB
|
|
|
1490 downstream measurement
|
||
|
Pass Zone(nm)
|
1470nm~1505nm
|
|
|
Measurement Range(dBm)
|
-40dBm~+10dBm
|
|
|
Output power(max)
|
15dBm
|
|
|
Isolation@1310/1550(dB)
|
>40dB
|
|
|
1550 downstream measurement
|
||
|
Pass Zone(nm)
|
1535nm~1570nm
|
|
|
Measurement Range(dBm)
|
-40dBm~+10dBm
|
|
|
Output power(max)
|
25dBm
|
|
|
Isolation@(1310/1490nm)
|
>40dB
|
|
|
Measurement Accuracy
|
||
|
Connatural uncertainty(dB)
|
+0.5dB
|
|
|
Linearity(dB)
|
+0.1dB
|
|
|
Passing through insertion Loss(dB)
|
<1.5dB
|
|
|
General Information
|
||
|
Detector Type
|
InGaAs
|
|
|
Optical Connector
|
FC/SC/ST Interchangeable/2.5universal adapter
|
|
|
Fiber Type
|
SM 9/125um
|
|
|
Measurement Unit
|
dB/dBm/xW
|
|
|
Resolution(dB)
|
0.01dB
|
|
|
Operation Voltage(V)
|
DC3.3V~5.5V
|
|
|
Power Supply
|
3pc1.5V battery
|
|
|
Operation Temperature(℃)
|
-10℃~60℃
|
|
|
Storage temperature(℃)
|
-25℃~70℃
|
Details Images
Features：
* It can experiment at Voice, data and video signal synchronous measurement BPON/EPON/GPON * Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm). * Used in Burst mode measurement of 1310nm upstream. * Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength. * USB communication port enables data transfer to a PC.1000measurement items can be
