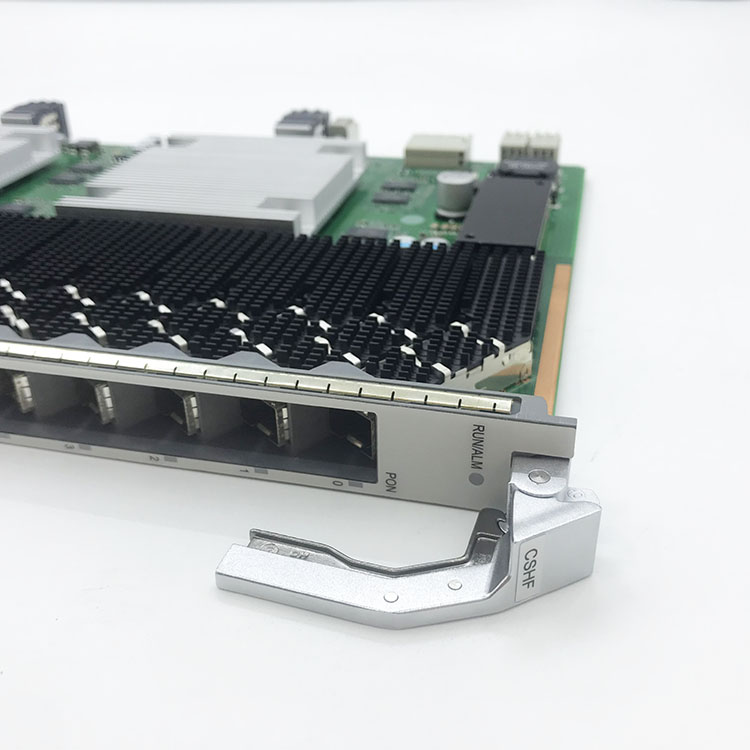

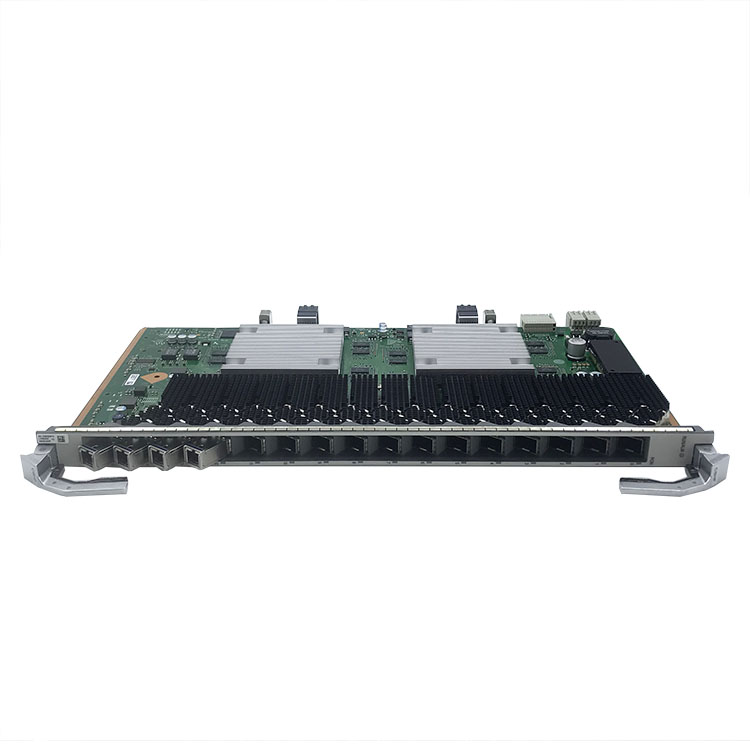

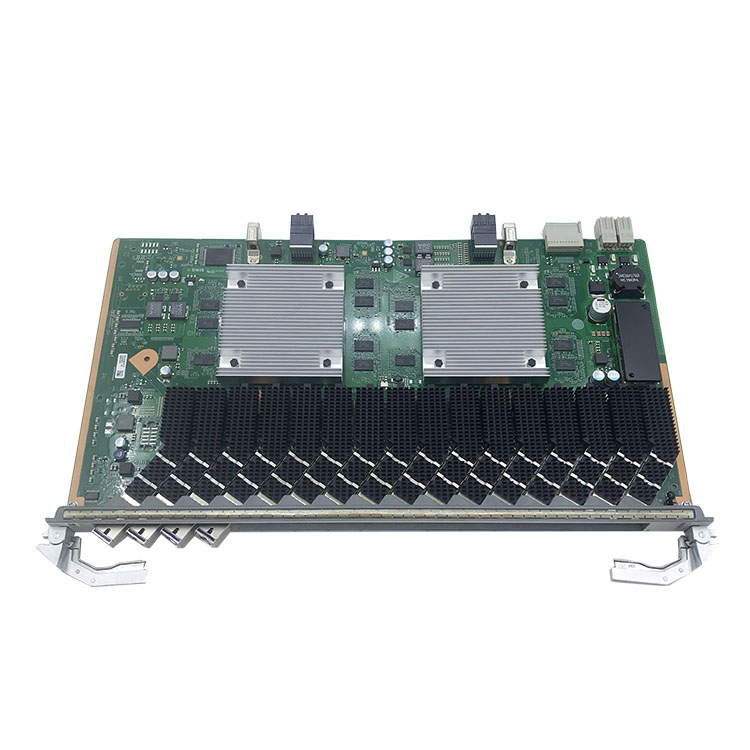

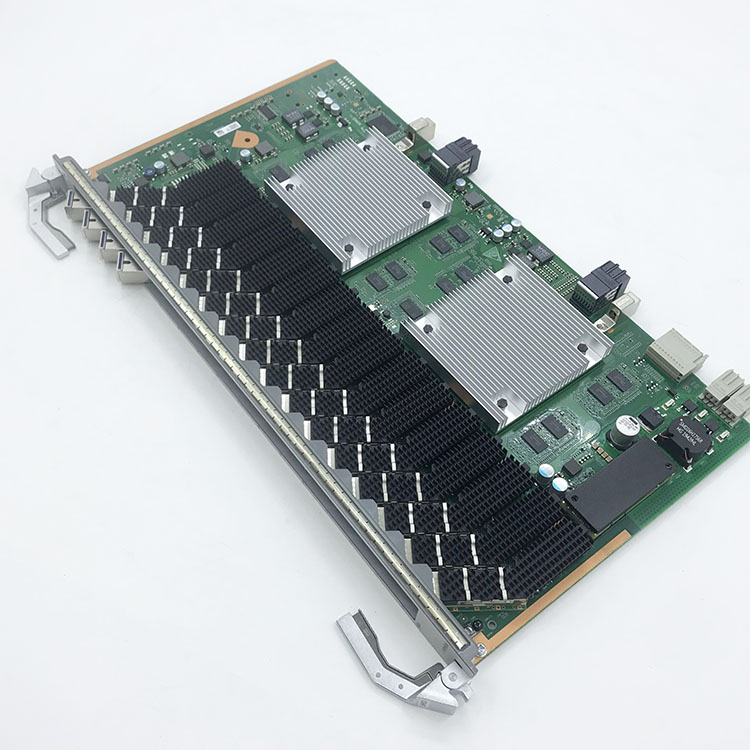

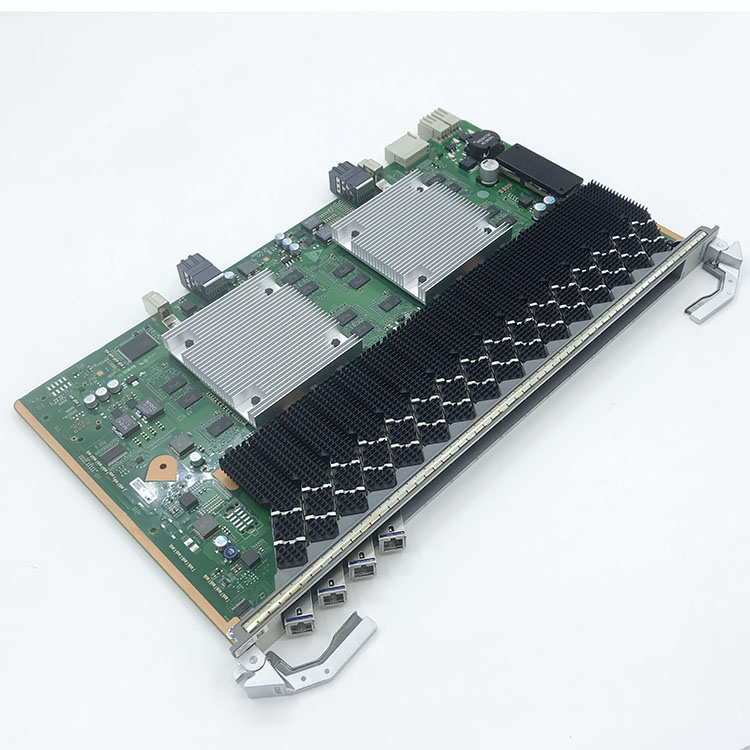

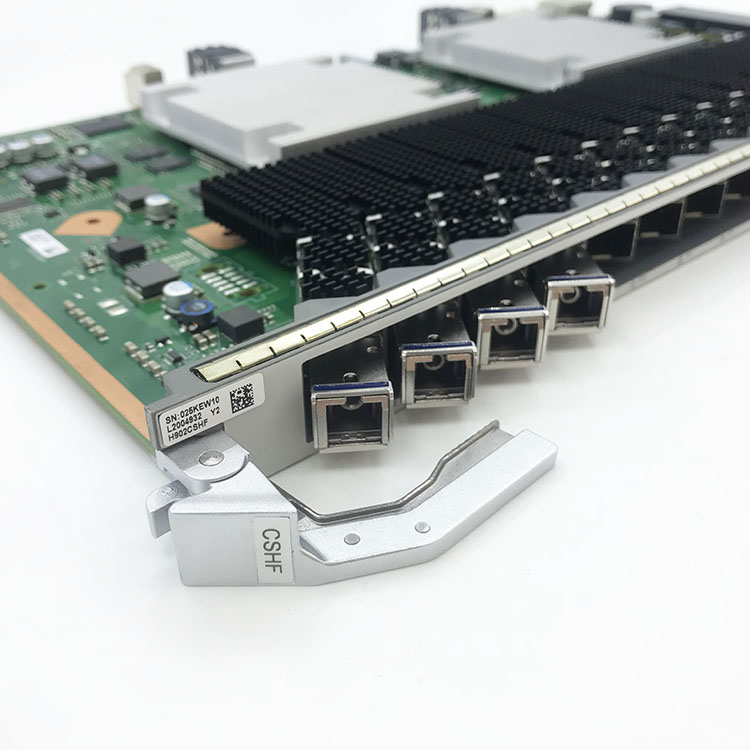

- Model Number:Huawei CSHF
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:OLT
- Warranty Time:1 year
- Network:None
- Applied to:MA5800 X17 X15 X7 X2
- Port:16
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
SHENZHEN
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Specification
|
Brand
|
Huawei
|
|
Model
|
CSHF
|
|
Port
|
16
|
|
Type
|
C+ Module: One-fiber bidirectional optical module, class C+
|
|
B+ Module: One-fiber bidirectional optical module, class B+
|
|
|
Operating Wavelength
|
C+/B+ Module:
|
|
GPON channel:
|
|
|
Tx: 1490 nm
|
|
|
Rx: 1310 nm
|
|
|
XGS-PON channel:
|
|
|
Tx: 1577 nm
|
|
|
Rx: 1270 nm
|
|
|
Encapsulation Type
|
SFP+
|
|
Port Rate
|
C+/B+ Module:
|
|
GPON channel:
|
|
|
Tx: 2.488 Gbit/s
|
|
|
Rx: 1.244 Gbit/s
|
|
|
XGS-PON channel:
|
|
|
Tx: 9.953 Gbit/s
|
|
|
Rx: 9.953/2.488 Gbit/s
|
|
|
Minimun Output Optical Power
|
C+ Module:
|
|
GPON channel: 3 dBm
|
|
|
XGS-PON channel: 5 dBm
|
|
|
B+ Module:
|
|
|
GPON channel: 1.5 dBm
|
|
|
XGS-PON channel: 1 dBm
|
|
|
Maximum Output Optical Power
|
C+ Module:
|
|
GPON channel: 7 dBm
|
|
|
XGS-PON channel: 8 dBm
|
|
|
B+ Module:
|
|
|
GPON channel: 5 dBm
|
|
|
XGS-PON channel: 4 dBm
|
|
|
Maximum Receiver Sensitivity
|
C+ Module:
|
|
GPON channel: -32 dBm
|
|
|
XG-PON channel: -30.5 dBm
|
|
|
XGS-PON channel: -29 dBm
|
|
|
B+ Module:
|
|
|
GPON channel: -28 dBm
|
|
|
XG-PON channel: -26.5 dBm
|
|
|
XGS-PON channel: -25 dBm
|
|
|
Optical Connector Type
|
SC
|
|
Optical Fiber Type
|
Single-mode
|
|
Overload Optical Power
|
C+ Module:
|
|
GPON channel: -12 dBm
|
|
|
XG-PON channel: -10 dBm
|
|
|
XGS-PON channel: -8 dBm
|
|
|
B+ Module:
|
|
|
GPON channel: -8 dBm
|
|
|
XG-PON channel: -6 dBm
|
|
|
XGS-PON channel: -4 dBm
|
|
|
Extinction Ratio
|
8.2 dB
|
|
Dimensions (W x D x H)
|
23.3 mm x 257.90 mm x 399.20 mm
|
|
Power Consumption
|
Static: 51 W
|
|
Maximum: 99 W
|
|
|
Operating temperature
|
-40°C to +55°C
|
