Overview

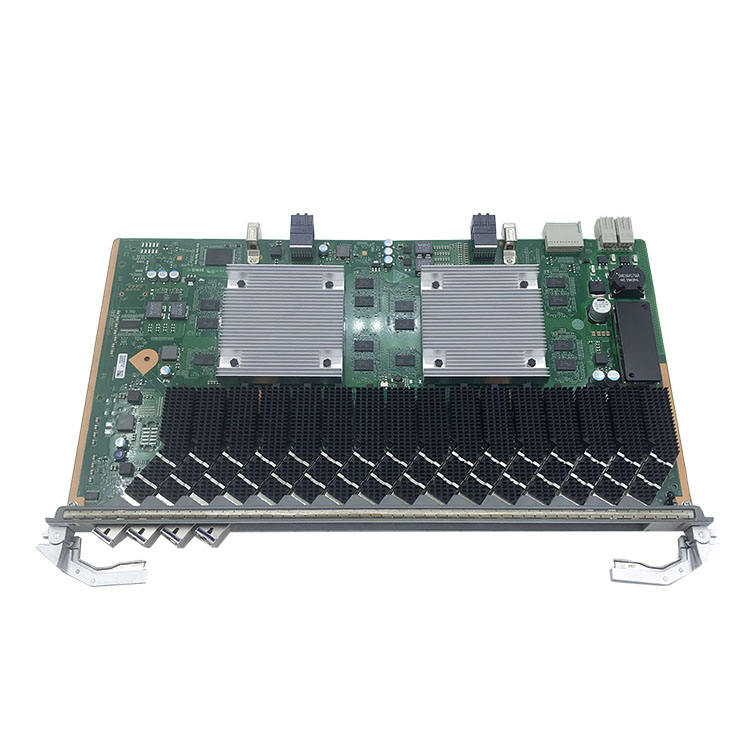

Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. This board is used in MA5800 ,EA5800 Series OLT Equipment and works together with optical network unit to offer XGS-PON and GPON access services.

MA5800 series include three sizes of large, medium and small, namely MA5800-X17, MA5800-X7 and MA5800-X2, and support multiple networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP.

MA5800 multi-service access equipment is a 4K/8K/VR Ready OLT in the gigabit ultra-broadband era. It adopts a distributed architecture and supports a common platform of PON/10G PON/GE/10GE. MA5800 supports multi-media Gigabit convergence, best 4K/8K/VR video experience, multi-service virtualization common platform, and 50G PON smooth evolution.

Specification

Dimensions (W x D x H): 23.3 mm x 257.90 mm x 399.20 mm

Power Consumption: Static: 51 W   Maximum: 99 W

Operating temperature: -40°C to +55°C

 Features

• Support defense against system DoS (Denial of Service) attacks.
• Support MAC address filtering function.
• Support defense against ICMP/IP packet attacks.
• Support source address routing filtering function.
• Support blacklist function.
• Support DHCP option82 to enhance the security of DHCP.
• Support MAC address and port binding, support IP address and port binding.
• Supports defense against MAC/IP spoofing attacks.
• Support ONU/ONT SN (Serial Number)/Password authentication.
• Support triple churing encryption.
• GPON downstream adopts a method of encrypted broadcast transmission for different users, and supports AES (Advanced Encryption Standard) 128-bit encryption.
• Support GPON Type B OLT dual-homing.
• For dual-uplink networking, Smart Link and Monitor Link are supported.

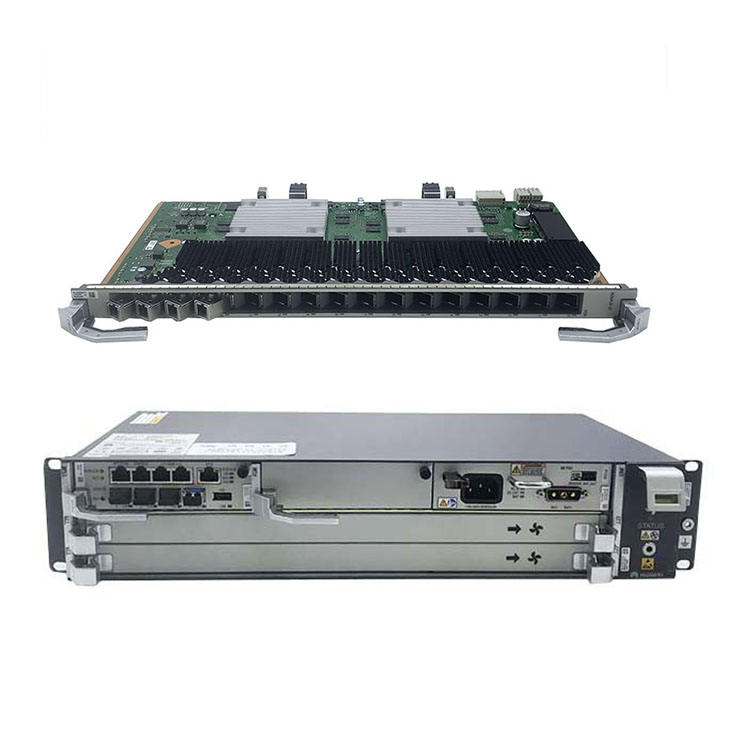

Product Pictures
