- Model Number:Huawei HS8546X6
- Type:ONT
- Place of Origin:China, china
- Brand Name:HUAWEI
- Use:School ,home ,hotel
- Warranty Time:1 YEARS
- Network:wifi
- model number:Huawei HS8546X6
- type:gpon olt pon card
- Fiber Type::FTTx Solutions, FTTH Solutions
- Material::Plastic
- Certification::CE ROHS FCC, Other
- Type::ONU, Optical Fibers
- Color::White
- Function::Fiber Signal Transmission
- Brand Name::HUAWEI
-
- Supply Ability
- 100 Carton/Cartons per Day
- Lead time:Quantity(carats)1 – 1>1Lead time (days)3To be negotiated
Product Description

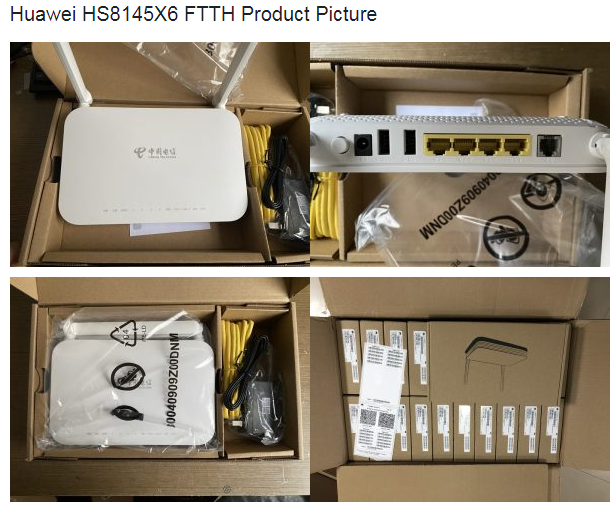

Huawei HS8145X6 FTTH Product Overview
Huawei HS8145X6 FTTH is an intelligent Wi-Fi 6 routing-type Optical Network Terminal with four GE ports, one POTS port, and one USB port, and 2.4G and 5G Wi-Fi connectivity. HS8145X6 adopts Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users, ensuring an exceptional experience for voice, data, and High Definition (HD) video services and future-oriented service support capabilities and visualized network management, Huawei HS8145X6 10G FTTH supports enterprises construct powerful all-optical access solutions.
Specification
|
Model
|
HUAWEI HN8546Q
|
|
Weight
|
<500g
|
|
Dimensions (H x W x D)
|
210mm*159.5mm*36mm
|
|
Operating temperature
|
0℃ to 40℃
|
|
Humidity during operation
|
5% RH to 95% RH, non-condensing
|
|
Power supply input
|
180–240V AC, 50/60HZ
|
|
Power supply
|
11–14V DC, 3A
|
|
Ports on the network side
|
<8W
|
|
User-side ports
|
SC/UPC
|
|
Indicators
|
1POTS+4GE+2USB+2.4G&5G Wi-Fi
|
HUAWEI HG8310M
HUAWEI HG8120C
ZTE F601
HUAWEI HG8546M
ZTE F660V8.0
ZTE WITH CATV
