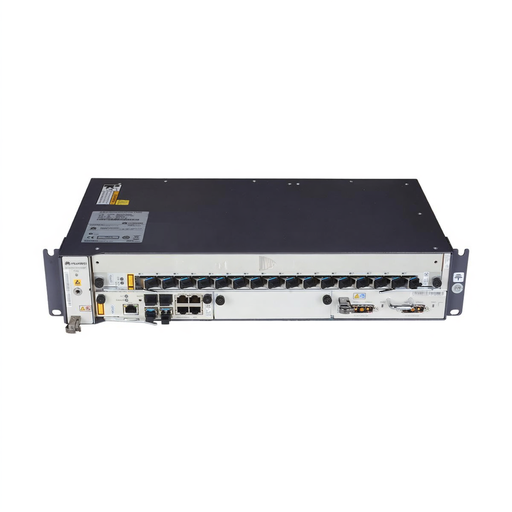

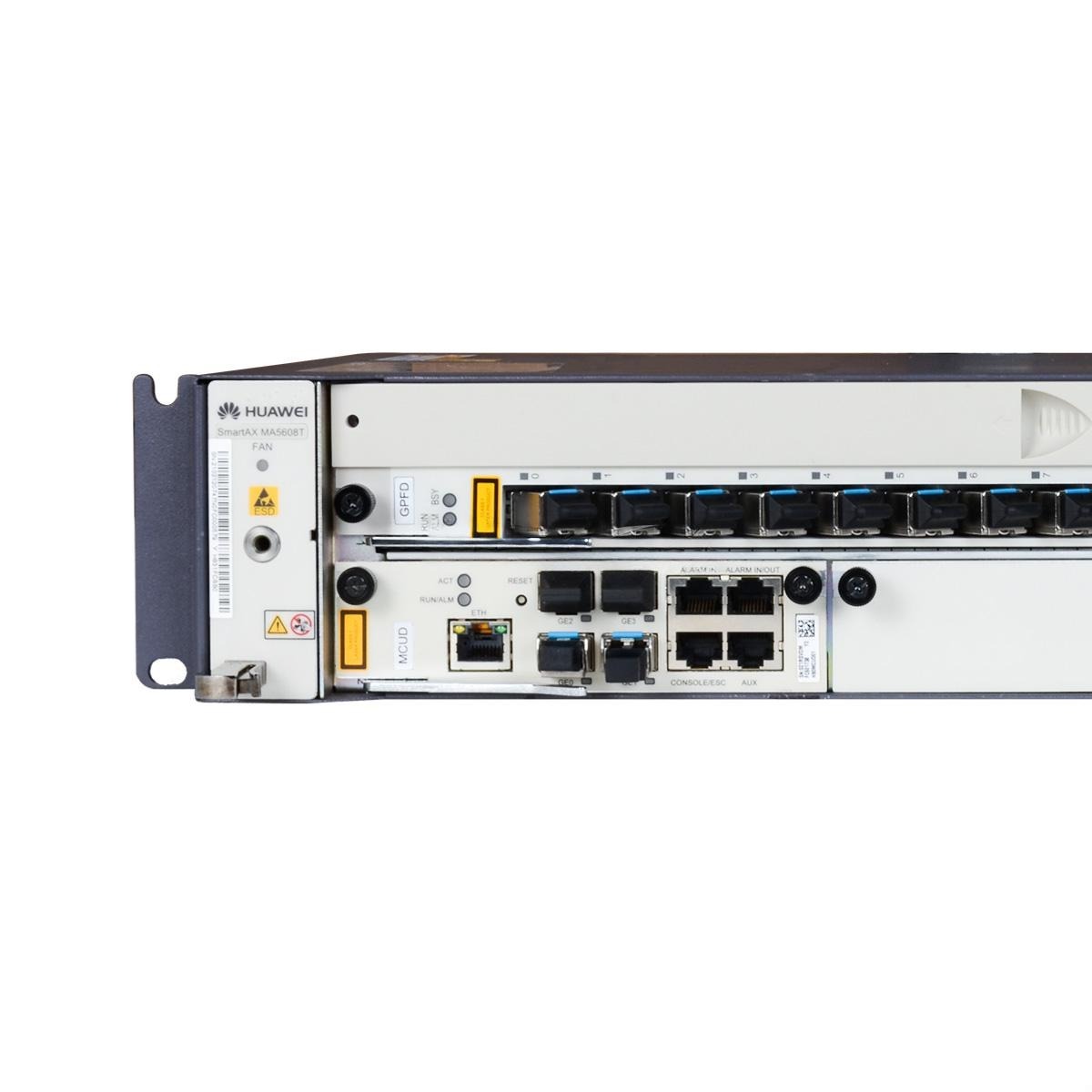

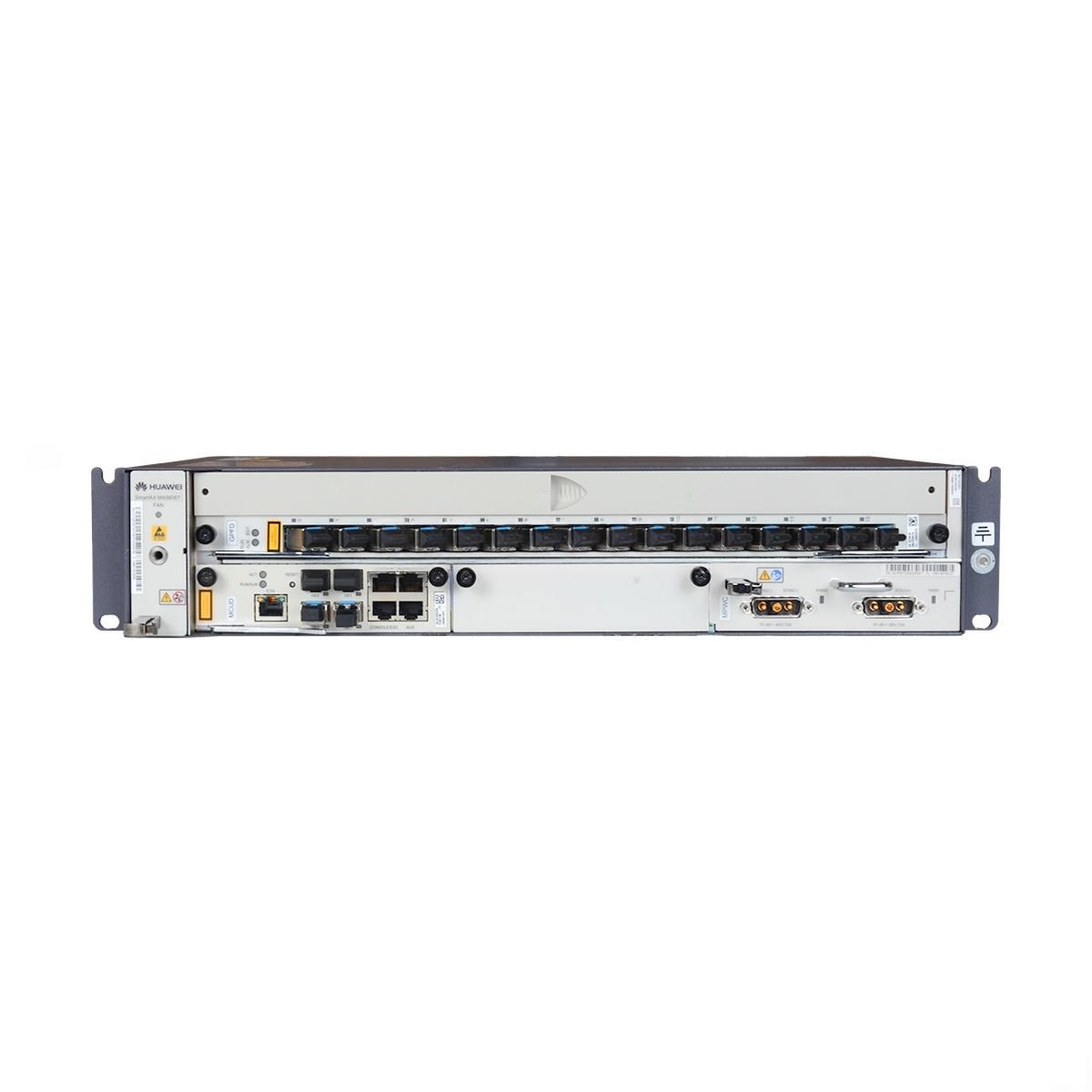

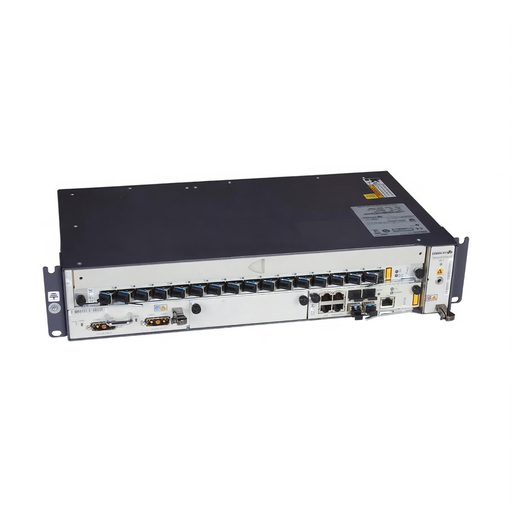

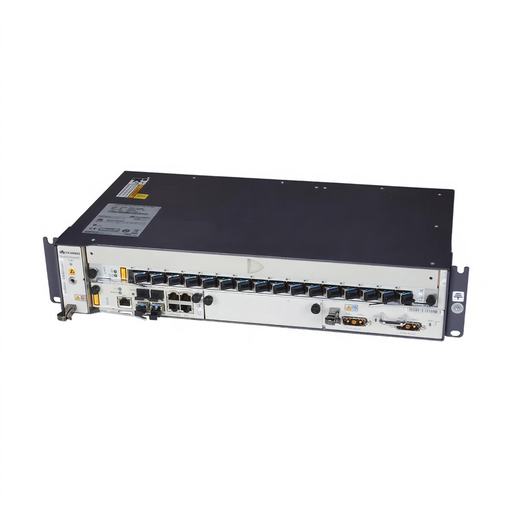

Huawei MA5608T – New Compact GPON OLT with 16GPON C+ Ports, Single GE Uplink, DC Power & Main Control Board
Product Overview
The Huawei MA5608T is a compact, modular GPON Optical Line Terminal (OLT) designed for FTTH/FTTx deployments, optimized for small to medium-scale access scenarios including MDUs, rural broadband, and multi-service access points.
Engineered with carrier-grade reliability, scalability, and intelligent service management, the MA5608T supports high user density, energy efficiency, and easy remote provisioning — ideal for ISPs, telecom operators, and fiber contractors.
Included Configuration of Huawei MA5608T
| Component | Specification |
|---|---|
| OLT Model | Huawei MA5608T – New, Original |
| Uplink Port | 1 × GE (Gigabit Ethernet) |
| Service Board | 1 × 16-Port GPON C+ |
| Power Input | -48V DC (dual input optional) |
| Control Board | Integrated Main Control Board (SCUN or SRU) |
| Mounting | 19-inch rack-mount or wall-mount |
| Status | Brand New, Factory Sealed, Huawei Original |
Huawei MA5608T Technical Specifications
| Parameter | Details |
|---|---|
| Switching Capacity | 480 Gbps total system |
| Forwarding Performance | 192 Mpps |
| GPON Ports | 16 × GPON C+ (up to 128 ONUs per port) |
| Uplink Interface | 1 × GE SFP |
| Split Ratio | Up to 1:128 per GPON port |
| ONU Management | OMCI / TR-069 / CLI / SNMP / Web GUI |
| Operating Temperature | -40°C to +65°C |
| Power Supply | -48V DC (dual-feed supported) |
| Redundancy Support | Dual power & control (optional) |
| Dimensions (W×D×H) | 442mm × 220mm × 43.6mm (1U height) |
| Weight | Approx. 4.5 kg (full configuration) |
| Compliance | CE, FCC, RoHS, ITU-T G.984/G.988 |
Huawei MA5608T Applications
-
🏘️ FTTH / FTTB / FTTC Deployments
-
🏢 Multi-Dwelling Units (MDU) & Residential Complexes
-
🏫 Campus & Hospitality Broadband Networks
-
🌐 Rural Broadband Projects & Government Connectivity Programs
-
☁️ Carrier-Grade Triple-Play Services – Internet, IPTV, VoIP
Customization & Expansion Options
Huawei MA5608T supports flexible service expansion and upgrades:
-
🔧 Add-On Boards: Dual GE / 10GE uplink, extra GPON or XG-PON ports
-
🔧 Redundancy Modules: Second control board or DC power for protection
-
🔧 Compatible ONUs: Huawei EG8145V5, HG8546M, HG8010H, etc.
-
🔧 Mounting Options: Rackmount brackets, wall kits, pole enclosures
-
🔧 Firmware Customization: With OLT configuration, SNMP & OMCI templates
📦 Tech Specs – GPON OLT Chassis Configuration
⚙️ Configuration
| Component | Specification |
|---|---|
| Main Control Board | H801MCUD: 1 |
| Upstream Ports | GE SFP: 4 |
| GPON Ports | 16 |
| Service Slots Remaining | 1 |
| Power Supply Mode | DC power supply: -48 V DC |
📐 Device Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 482.6mm × 244.5mm × 88.1mm (IEC cabinet compatible) |
| Weight (Empty Chassis) | 7.5 kg |
Wholesale & Project Supply
Best suited for ISPs, telecom contractors, government networks, and FTTH turnkey solution providers:
-
📦 Bulk Pricing for 5–500 Units
-
📦 Fast Lead Times & Global Export Support
-
📦 Complete Kit Options with ONUs, Patch Cords, Splitters
-
📦 OEM/White Label Branding & Labeling Support
-
📦 Documents Provided: CE, RoHS, COO, Huawei Test Reports
Why Choose Huawei MA5608T GPON OLT?
-
✔️ Compact Size, Carrier-Class Performance
-
✔️ Future-Ready with Upgrade Paths to 10G PON/XG-PON
-
✔️ Scalable Subscriber Management up to 2048 ONUs
-
✔️ Full Support for Triple-Play Services
-
✔️ Proven Huawei Quality with Global Support
Order Now
Accelerate your FTTH rollout with the Huawei MA5608T OLT – Preloaded with 16 GPON Ports, GE Uplink, and DC Power. A powerful and scalable solution trusted by telecom operators worldwide.
