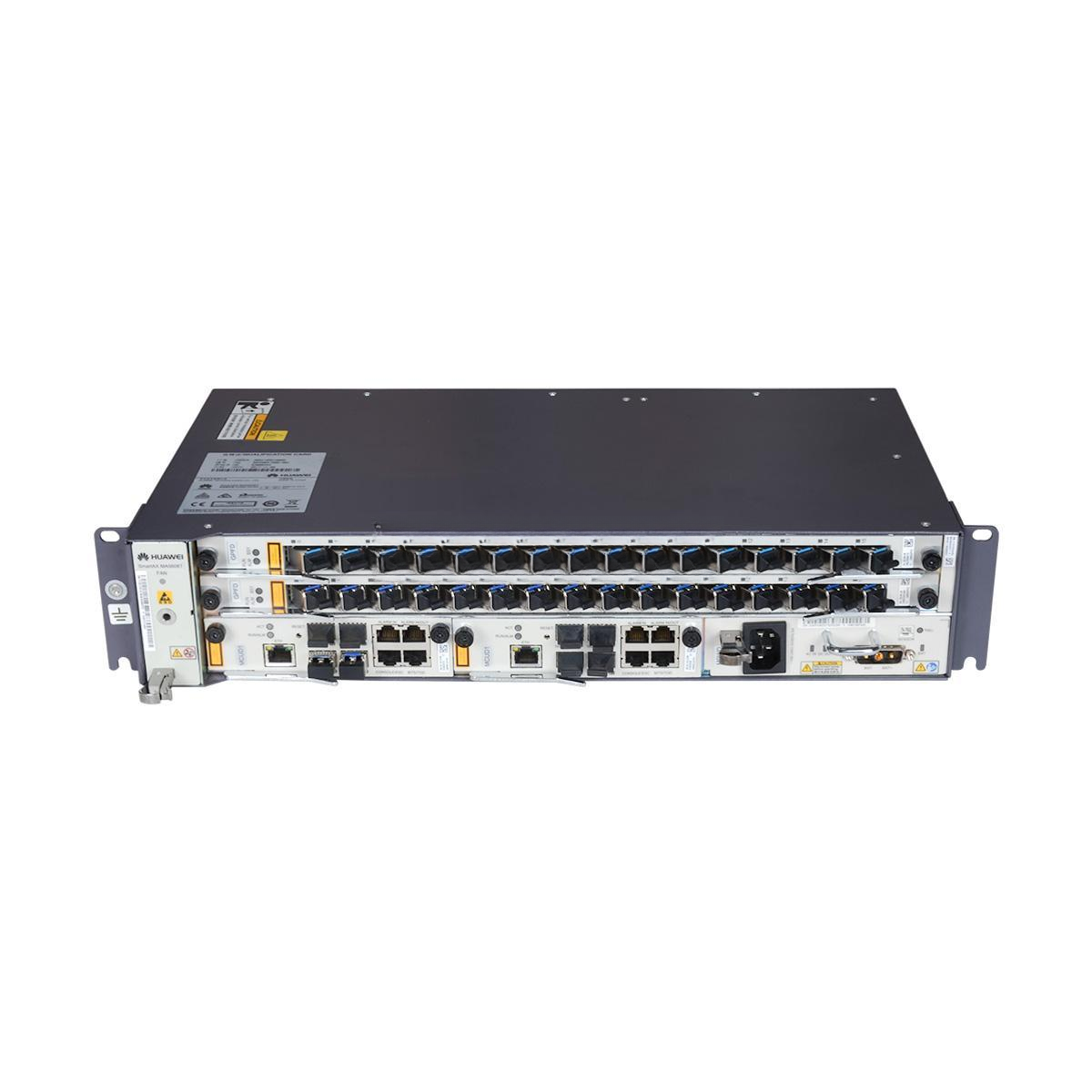

Huawei MA5608T – 32GPON C+ Port OLT | 10GE Uplink, DC Power, Main Control Board | Brand New Carrier-Grade Solution
Product Overview
The Huawei MA5608T is a compact, high-density GPON Optical Line Terminal (OLT) designed to deliver carrier-grade access performance in space-constrained environments.
With support for up to 4096 ONUs, high switching capacity, and full compliance with ITU-T GPON standards, the MA5608T is ideal for FTTH, FTTB, rural broadband, enterprise access, and multi-service scenarios. Its modular design and hot-swappable boards make it perfect for future upgrades and scalable deployment.
Included Configuration of Huawei MA5608T
| Component | Description |
|---|---|
| OLT Model | Huawei MA5608T (Brand New, Factory Sealed) |
| GPON Service Boards | 2 × 16-Port GPON C+ Boards (SC/PC Interface) |
| Uplink Interface | 1 × 10GE SFP+ Uplink Module |
| Main Control Board | 1 × Integrated SCUN or SRU Board |
| Power Module | 1 × DC (-48V) Power Input Terminal |
| Form Factor | 1U Rack-Mountable Compact Chassis |
Huawei MA5608T Technical Specifications
| Feature | Details |
|---|---|
| Switching Capacity | 480 Gbps |
| Forwarding Performance | 192 Mpps |
| GPON Port Count | 32 × GPON C+ (2.5Gbps down / 1.25Gbps up) |
| Split Ratio per Port | Up to 1:128 |
| Max Subscribers | 4096 ONUs Supported |
| Uplink Interface | 1 × 10GE (SFP+ slot) |
| Control & Management | CLI, SNMP, OMCI, TR-069, Web GUI |
| Fiber Type | Singlemode (9/125μm), SC/PC Interface |
| Power Supply | -48V DC (Dual-feed optional) |
| Operating Temperature | -40°C to +65°C |
| Dimensions (W×D×H) | 442 × 220 × 43.6mm (1U standard) |
| Weight | Approx. 5–6 kg (full config) |
| Certifications | CE, RoHS, ITU-T G.984/G.988, ISO9001 |
Huawei MA5608T Applications
-
🏘️ Fiber to the Home (FTTH) Deployments
-
🏢 Campus & Multi-Dwelling Units (MDUs)
-
📡 Telecom & ISP Rural Expansion Projects
-
📺 Triple-Play Services – Internet, IPTV, VoIP
-
☁️ Enterprise LAN/Metro Aggregation Layer Access
Customization & Expansion Options
Huawei MA5608T offers flexible expansion to suit custom telecom needs:
-
🔧 Uplink Choices: Add 2nd 10GE/GE combo or dual uplink cards
-
🔧 Redundancy: Optional dual control board & power input module
-
🔧 Service Interface Support: GPON, Combo PON, XG-PON1 compatible
-
🔧 Compatible ONUs: Huawei EG8145V5, HG8546M, HG8010H, and more
-
🔧 Optional Accessories: Splitters, patch panels, fiber trays
📦 Tech Specs – GPON OLT Chassis Configuration (Dual H801MCUD1)
⚙️ Configuration
| Component | Specification |
|---|---|
| Main Control Board | H801MCUD1: 2 |
| Upstream Ports | 10GE SFP+: 4 GE SFP: 4 |
| GPON Ports | 32 |
| Service Slots Remaining | 0 |
| Power Supply Mode | AC power supply: -100 V / -240 V |
📐 Device Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 482.6mm × 244.5mm × 88.1mm (IEC cabinet compatible) |
| Weight (Empty Chassis) | 7.5 kg |
Wholesale & Project Fulfillment
Perfect for FTTH solution integrators, ISPs, telecom agencies, and fiber infrastructure providers:
-
📦 Bulk Supply at Factory Direct Pricing
-
📦 Custom Branding & Labeling Support (OEM/ODM)
-
📦 Global Logistics & Export Documentation (CE, RoHS, COO)
-
📦 Kits Available with ONUs, Cables, Splitters, and ODFs
-
📦 Fast Turnaround with MOQ Flexibility
Why Choose Huawei MA5608T with 32 GPON Ports?
-
✔️ Compact, Rack-Ready GPON OLT with Massive Capacity
-
✔️ Up to 4096 Subscribers with 32 GPON Ports
-
✔️ Ready for 10GE Backhaul Demands
-
✔️ Energy Efficient, Field-Proven, and Scalable
-
✔️ Huawei Original – Fully Tested, Operator Grade
Order Now
Empower your fiber network with the Huawei MA5608T – Fully Loaded 32GPON C+ OLT featuring 10GE Uplink, DC Power, and Main Control Board. A compact powerhouse for future-proof broadband deployments.
