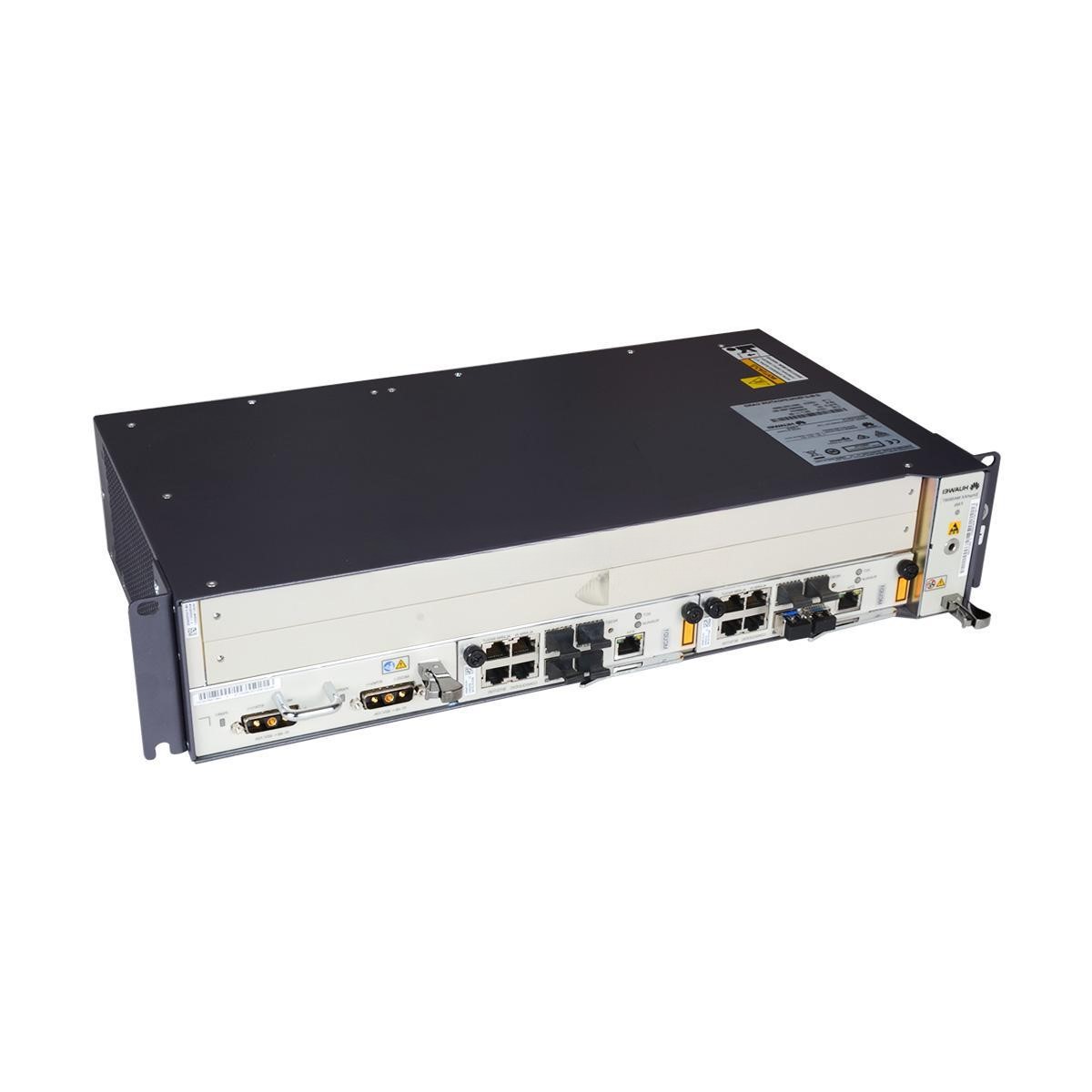

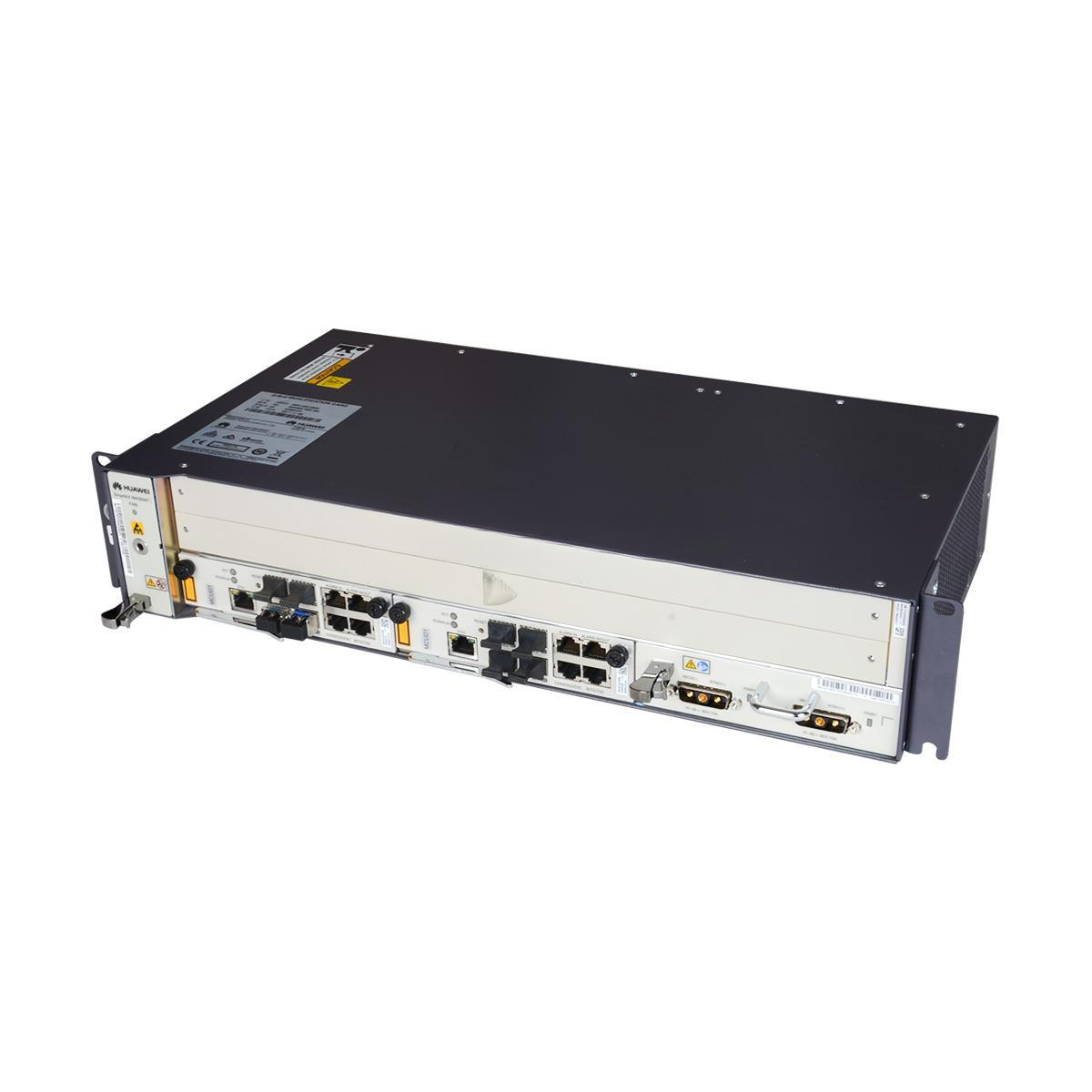

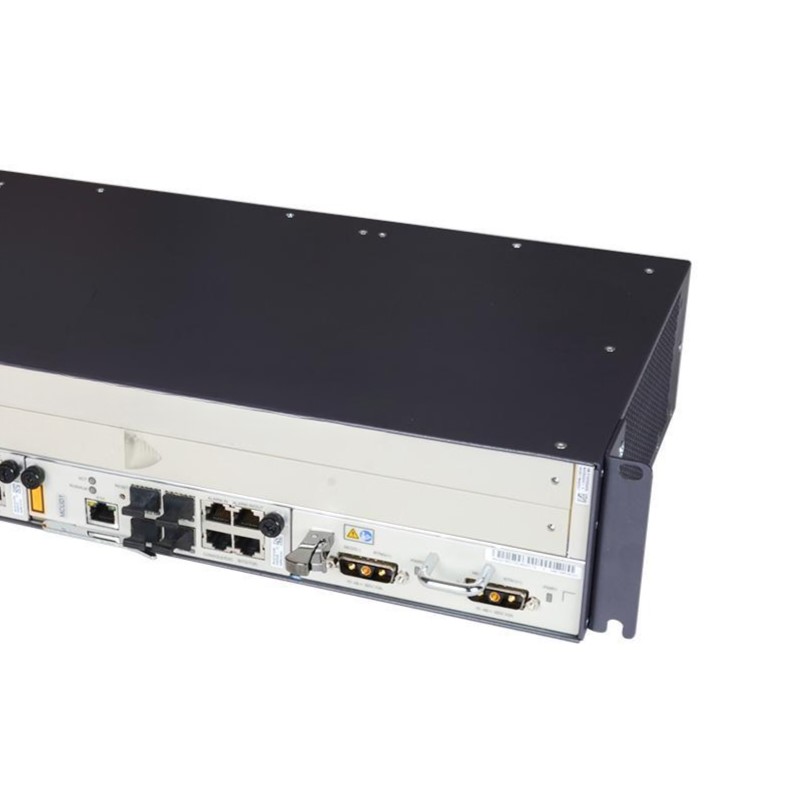

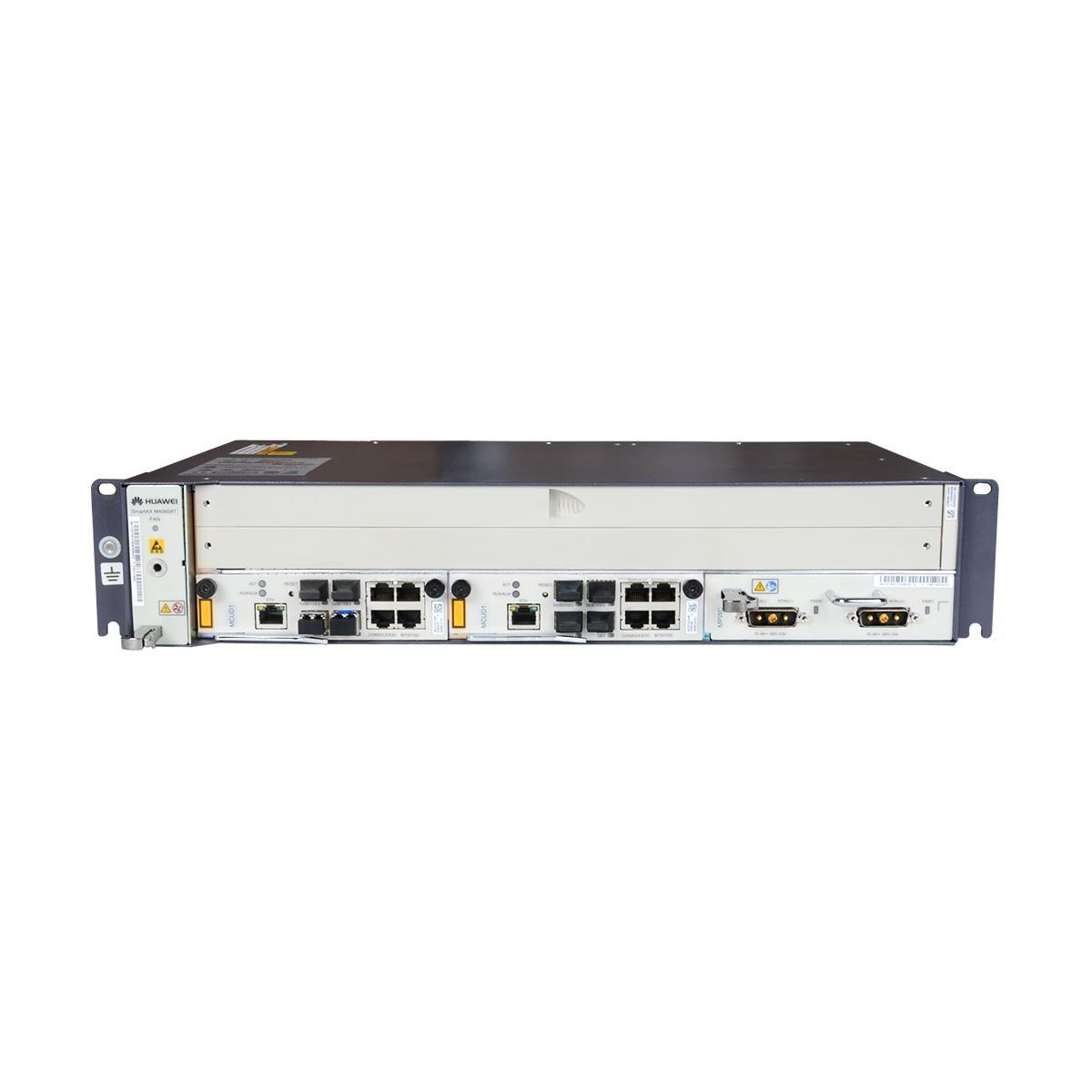

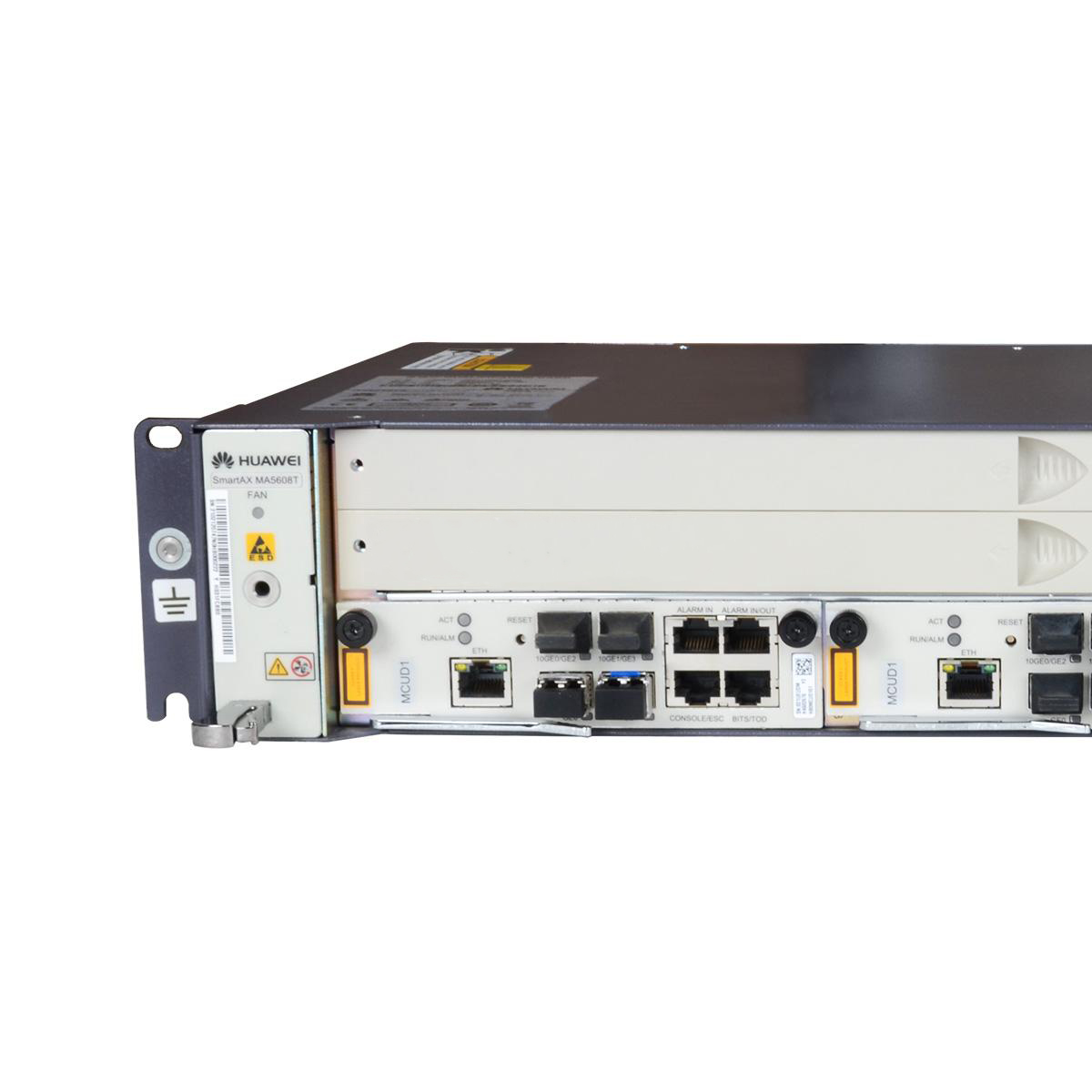

Huawei MA5608T Chassis – Branded Compact OLT with New 2× MCUD1 10GE Main Control Boards | Dual Redundant 10G Uplink Solution
Product Overview
The Huawei MA5608T Chassis with New 2× MCUD1 10GE Main Control Boards delivers a high-availability, dual-redundant fiber access platform for FTTH, FTTB, and enterprise broadband networks. This carrier-grade GPON OLT system is equipped with two MCUD1 control boards, each supporting dual 10GE uplink ports, ensuring enhanced performance, active/standby redundancy, and seamless failover.
With 1U rack-mount design, 2 service slots, and compatibility with GPON, Combo PON, and XG-PON service boards, this configuration is ideal for high-demand deployments where reliability, speed, and scalability are critical.
Huawei MA5608T Chassis Board What’s Included
| Component | Description |
|---|---|
| Chassis Model | Huawei MA5608T – Branded, 1U Rack-Mountable |
| Control Boards | 2 × MCUD1 (10GE Main Control Boards with Redundant Uplink) |
| Service Board Slots | 2 × GPON/Combo PON/XG-PON Compatible |
| Power Slots | 2 × -48V DC (Power modules sold separately) |
| Status | Brand New, Huawei Original, Factory Sealed |
Huawei MA5608T Chassis Board Highlights
-
✅ 2 × 10GE SFP+ Uplink Ports per Board (Total: 4 Ports)
-
✅ Supports Redundant Operation (Active/Standby)
-
✅ Advanced Switching, Multicast, QoS, and Routing Functions
-
✅ Hot-Swappable, Dual-Processor Design
-
✅ Supports OMCI, SNMP, CLI, and Web-Based Management
Huawei MA5608T Chassis Board Technical Specifications
| Feature | Detail |
|---|---|
| Switching Capacity | Up to 480 Gbps |
| Forwarding Performance | 192 Mpps |
| Service Board Slots | 2 × Universal Slots |
| Control Board Slots | 1 × Slot (Houses 2 × MCUD1 for Redundancy) |
| Uplink Ports | 4 × 10GE SFP+ (2 per MCUD1 board) |
| Operating Temperature | -40°C to +65°C |
| Power Supply Support | Dual DC -48V Redundant Modules (Optional) |
| Dimensions (W×D×H) | 442mm × 220mm × 43.6mm |
| Weight (With 2xMCUD1) | Approx. 5.5–6.5 kg |
| Certifications | CE, RoHS, ITU-T G.984/G.988, ISO9001 |
Ideal Use Cases
-
🌐 High-Uptime GPON/XG-PON Deployments
-
🏢 Enterprise, MDU & Campus Fiber Distribution
-
📶 ISP Infrastructure with Dual Control Board Redundancy
-
📡 Metro Access Nodes, IP Triple-Play Aggregation
-
☁️ Carrier Core or Edge Environments Needing 10GE Backhaul
📦 Tech Specs – OLT Chassis Configuration (H801MCUD1 x2 | DC Power | No GPON)
⚙️ Configuration
| Component | Specification |
|---|---|
| Main Control Board | H801MCUD1: 2 |
| Upstream Ports | 10GE SFP+: 4 GE SFP: 4 |
| GPON Ports | 0 |
| Service Slots Remaining | 2 |
| Power Supply Mode | DC power supply: -48 V DC |
📐 Device Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 482.6mm × 244.5mm × 88.1mm (IEC cabinet compatible) |
| Weight (Empty Chassis) | 7.5 kg |
Customizable Add-Ons
-
🔧 Service Cards: 8P, 16P, 32P GPON / Combo PON / XG-PON
-
🔧 Redundant Power Modules (DC -48V)
-
🔧 ONUs Supported: EG8145V5, HG8010H, HG8546M, etc.
-
🔧 Accessories: Patch Cords, Splitters, Fiber Adapters, ODFs
-
🔧 Firmware Configs, CLI Templates & Deployment Kits Available
Wholesale & Project Deployment Support
Perfect for fiber infrastructure rollouts, ISPs, and system integrators:
-
📦 Bulk Supply with Competitive Pricing
-
📦 OEM Branding, White Label Options
-
📦 CE, RoHS, Test Reports, COO Documents Included
-
📦 Available in Kit Form with ONUs, Power Modules, Accessories
-
📦 Technical Pre-Sales & Remote Support Available
Why Choose Huawei MA5608T Chassis Board?
-
✔️ 4 × 10GE Uplinks for High-Bandwidth Backhaul
-
✔️ Dual MCUD1 for Fault Tolerance & Continuous Service
-
✔️ Compact Size – Ideal for Data Centers & Edge Cabinets
-
✔️ Flexible Configuration with Full Service Board Compatibility
-
✔️ Huawei Carrier-Class Stability & Global Network Compatibility
Order Now
Empower your network with the Huawei MA5608T + 2× MCUD1 10GE Main Control Boards – a reliable, redundant, and scalable OLT solution for modern broadband access.
