- Model Number:MCUD1
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:Huawei
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Network:POE
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail Carton
-
- Port
Guangzhou

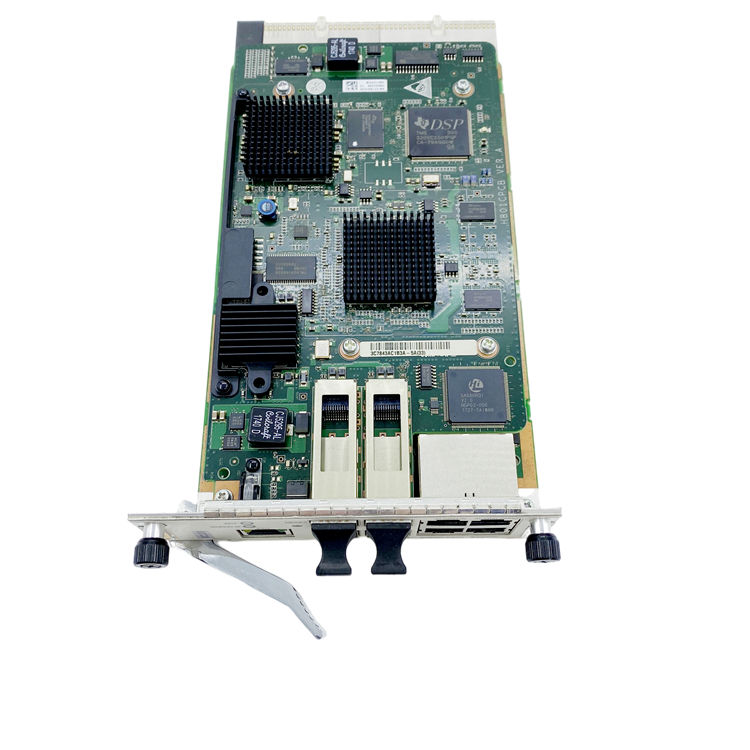

- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Huawei MCUD1 10GE Uplink Card is MA5608T main control board integrated with 2-port GE and 2-port GE/10GE optical uplink.
Huawei MCUD1 10GE Uplink Card is a mini control unit board. It is the core of the system control and service switching and aggregation. And it can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H801MCUD1 board configures, manages, and controls the device, and also implements the simple route protocol functions.
Huawei MCUD GE Control Card is MA5608T main control board integrated with 4-port GE optical uplink.
Huawei MCUD1 10GE Uplink Card is MA5608T main control board integrated with 2-port GE and 2-port GE/10GE optical uplink.
Product Specification
| Items | Description |
| Type | The one-fibre bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm |
| Rx: 1270 nm | |
| Encapsulation Type | XFP |
| Port Rate | Tx: 9.95 Gbit/s |
| Rx: 2.49 Gbit/s | |
| Minimum Output Optical Power | 2 dBm |
| Maximum Output Optical Power | 6 dBm |
| Maximum Receiver Sensitivity | -27.5 dBm |
| Optical Connector Type | SC/UPC |
| Optical Fiber Type | Single-mode |
| Reach | 20 km |
| Overload Optical Power | -7 dBm |
| Extinction Ratio | 8.2 dB |
| Standard ID | Description |
| ITU-T G.987.1 | 10Gigabit-capable Passive Optical Networks (XG-PON) General Requirements |
| ITU-T G.987.2 | 10Gigabit-capable Passive Optical Networks (XG-PON) Physical Media Dependent (PMD) Layer Specification |
| ITU-T G.987.3 | 10Gigabit-capable Passive Optical Networks (XG-PON) Transmission Convergence Layer Specification |
| ITU-T G.988 | 10Gigabit-capable Passive Optical Networks (XG-PON) ONU Management and Control Interface Specification |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
