- Model Number:MPLA
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTx
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Overview
Huawei MPLA Board is the main control unit board, the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management. H901MPLA transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
Specification
| Brand | Huawei |
| Model | MPLA |
| Bandwidth per slot | 100Gbit/s (load sharing mode) |
| MAC address table | 262144 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 4000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 262144 |
| ARP table | 65536 |
| ACL rule | 1042 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, |
| a maximum of 9216 bytes can be supported. | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 62W |
| Maximum: 117 W | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 2.2 |

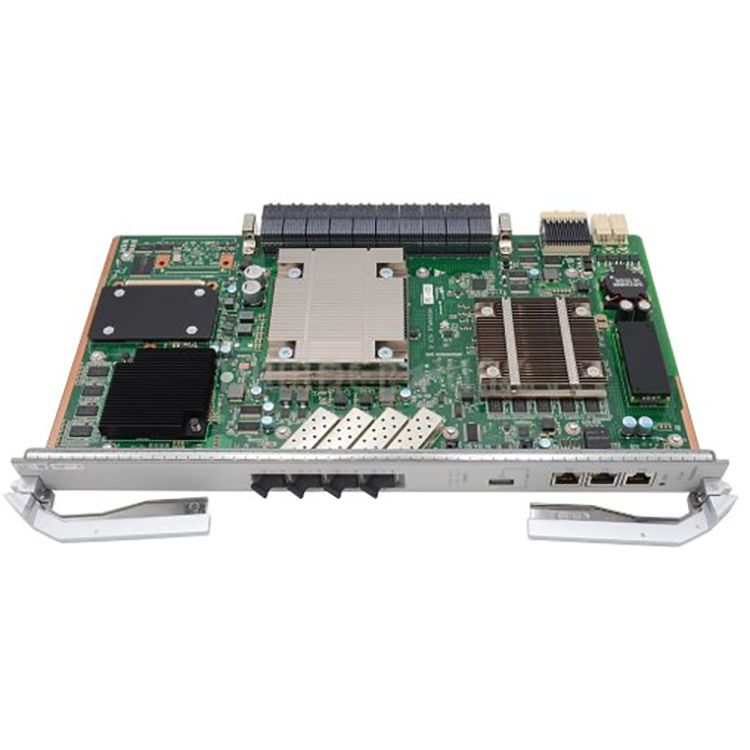

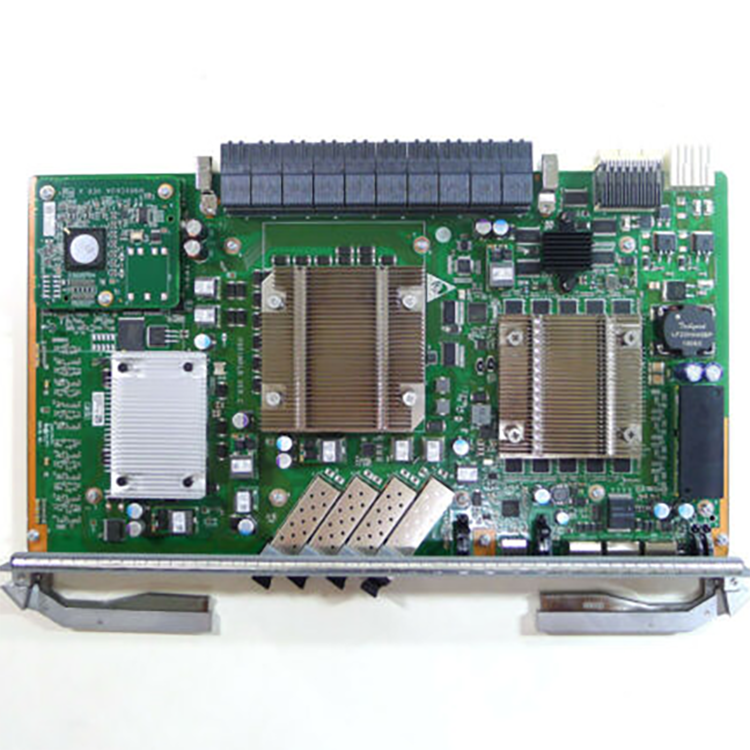

Product Pictures
