- Private Mold:Yes
- Products Status:Stock
- Ports:6, 4 10/100Base-TX 1 10/100/1000Base-T and 1 1000Base-X SFP slot
- Transmission Rate:10/100Mbps
- Function:POE, VLAN Support, Network Devices
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:4.8G
- Model Number:SF411P SFP
- Place of Origin:Guangdong, China
- Model:SL411P-SFP
- Product Name:PoE Switch
- Condition:Origianl
- Warranty:3 Years
- Device Type:Switch – 6 Ports – Unmanaged
- PoE Ports:4*10/100Mbps POE Ports
- Dimensions (W x D x H):201x140x44mm
- Applications:Telecommunication
- Selling Units:Single item
- Single package size: 25X15X8 cm
- Single gross weight:1.000 kg
- Package Type:Carton

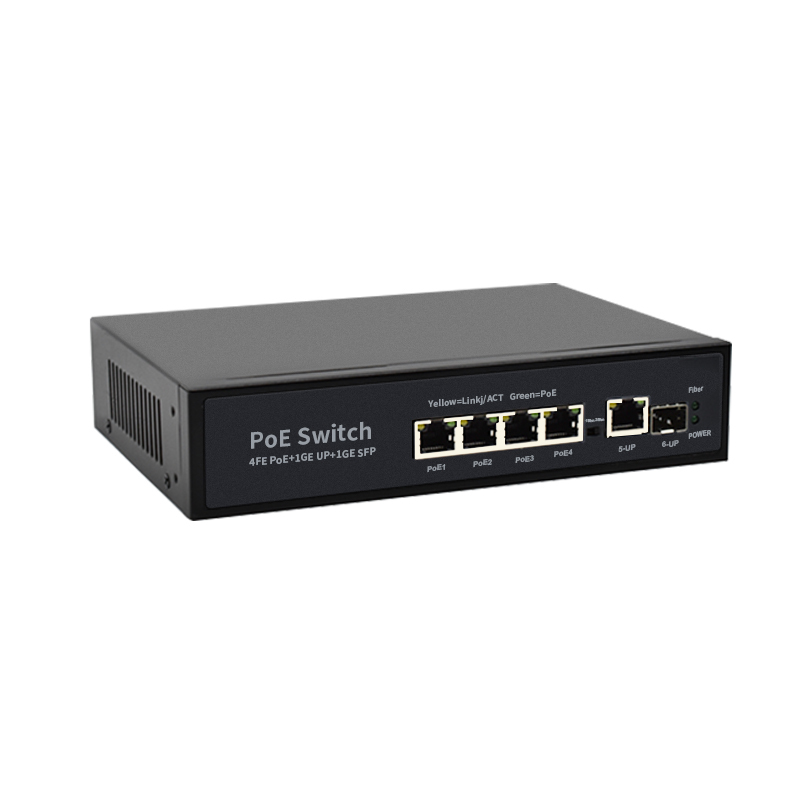

- Picture Example:
- Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)51015To be negotiated
Product Description
Overview
ThisPoE switch has4 10/100Base-TX Ethernet ports, 110/100/1000Base-T Ethernet port and 11000Base-X SFP slot, of which port 1-4 support IEEE802.3 af/atPoE(Power over Ethernet) protocol power supply. The PoE port supports a maximum output power of 25.4W, and the maximum PoE power output of whole machine is 65W;It is support standard PoE protocol, which can automatically detect whether the powered device supports PoE power supply, and it only provide the power to the same PoE protocol PD devices, it can effectively prevent damage to non-PoE powered devices.
The PoE switch can force theport 1-4 transmission rate to be reduced to 10mbps through the DIP switch, and then this will be able to transmit a maximum distance of 250m through the existing twisted pair.At the same time, the port 1-4 are in a state of mutual network isolation, but they can communicate with the uplink ports (5-6) respectively.It can effectively isolate the conflict domain and broadcast domain, reduce the generation of broadcast storms, and improve the efficiency of network communication. It is an ideal choice for video surveillance networking in hotels, shops, supermarkets, family homes and small and medium-sized enterprises.
Specification
|
Model
|
SL411P-SFP
|
|
|
Protocol
|
Standard
|
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.1W Spanning Tree IEEE 802.3x flow control |
|
Fiber Port Characteristic
|
Connector Type
|
SFP Slot
|
|
Transmission rate
|
1.25Gbps
|
|
|
Transmission distance
|
Multi-mode: 550m/2km;
Single-mode: 2/20/40/60/80/100km |
|
|
Wavelength
|
Multi-mode:850nm/1310nm,
Single-mode:1310nm/1550nm/1490nm |
|
|
Ethernet port |
Connector Type
|
1×4 RJ45，1×1 RJ45
|
|
Transmission rate
|
10/100Mbps auto-negotiate；
10/100/1000Mbps auto-negotiate |
|
|
Transmission distance
|
10Base-T: ≤250m（CAT3,4,5 UTP）
100Base-TX: ≤100m（CAT3,4,5 UTP） 1000Base-T: ≤100m（CAT3,4,5 UTP） |
|
|
Exchange performance
|
Forward method
|
Store-and-forward（full wire-speed）
|
|
Transmission mode
|
Half/Full duplex adaptive
|
|
|
MAC address table
|
2K
|
|
|
Case space
|
1Mb
|
|
|
Jumbo frames
|
9216b
|
|
|
Packet Forwarding Rate
|
3.5712Mpps@64byte
|
|
|
Bandwidth
|
4.8G（non-blocking）
|
|
|
LED indicator |
Power indicator
|
Green, Power
|
|
Fiber indicator
|
Green, per SFP optical fiber port
|
|
|
Link/Act indicator
|
Yellow, per ethernet port
|
|
|
PoE indicator
|
Extend, per PoE port
|
|
|
DIP switch
|
100m
|
Standard mode – All ports can communicate with each other.
|
|
250m
|
Extend mode, port 1-4 is isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6.
|
|
|
Power parameters |
Input voltage
|
AC100~240V, 50Hz
|
|
Power consumption
|
Standby: ≤2W; whole: ≤65W
|
|
|
PoE pin
|
1/2+,3/6-
|
|
|
The port max rate
|
≤25.4W
|
|
|
Environment |
Operating Temperature
|
-20℃～60℃
|
|
Storage Temperature:
|
-40℃～85℃
|
|
|
Operating Humidity
|
5%～95% non-condensing
|
|
|
Heat dissipation method
|
Natural heat dissipation
|
|
|
Physical properties |
Size
|
201×140×44mm
|
|
Weight
|
Net weight:0.7kg,Gross weight: 0.9kg
|

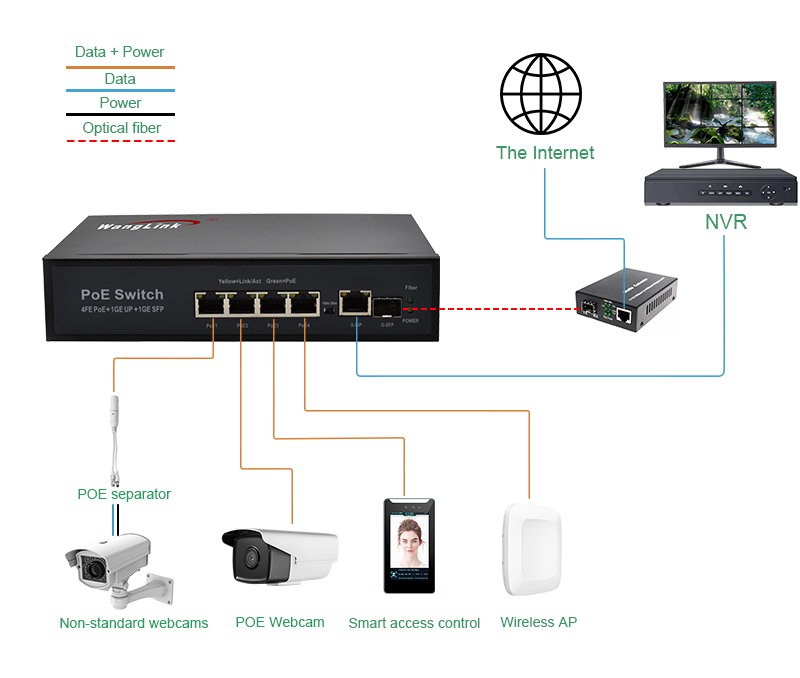

Application
