- Model Number:GFCH
- Place of Origin:Guangdong
- Brand Name:ZTE
- Warranty Time:1 YEAR
- Supply Ability
- 250 Piece/Pieces per Week
- Packaging Details
- Picture Example:
- Lead time:Quantity(pieces)1 – 500>500Lead time (days)15To be negotiated

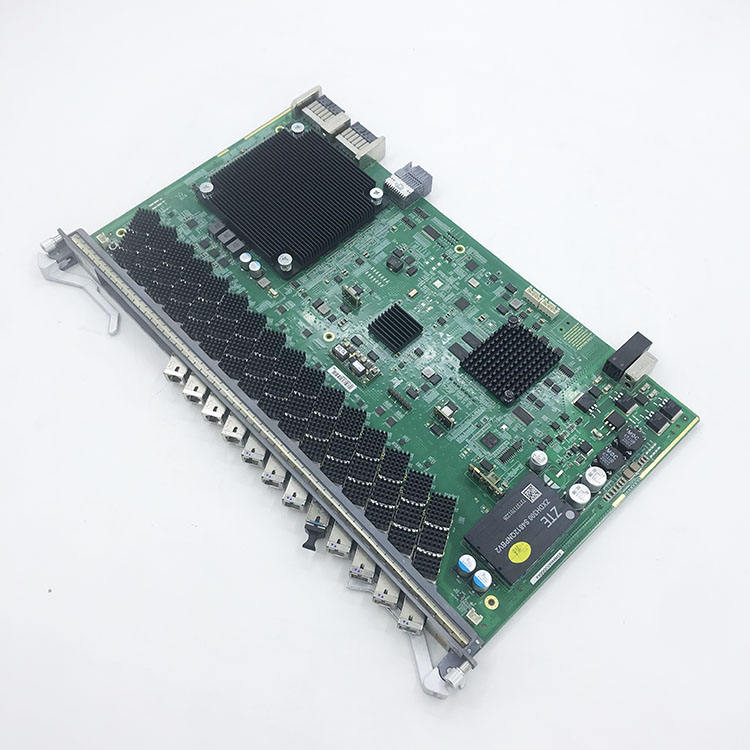

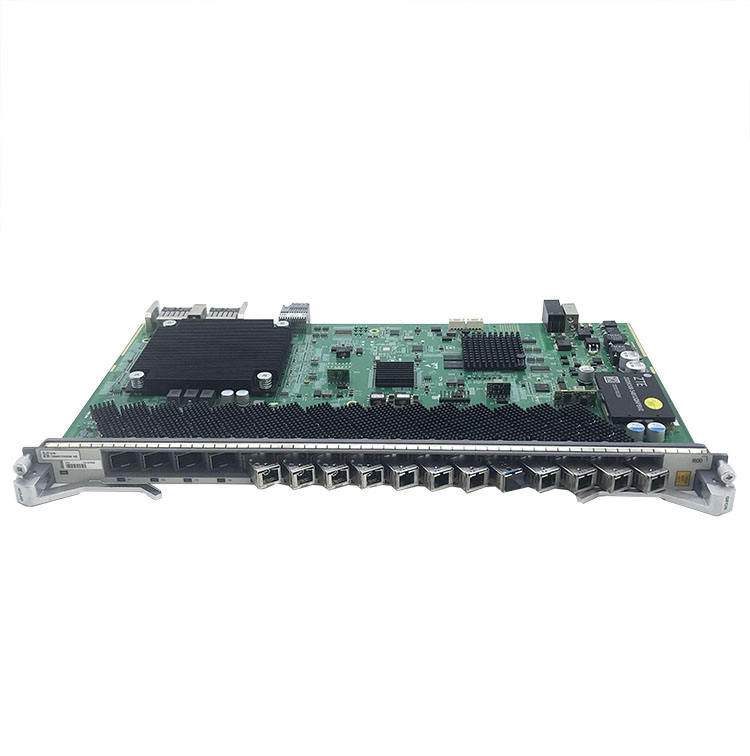

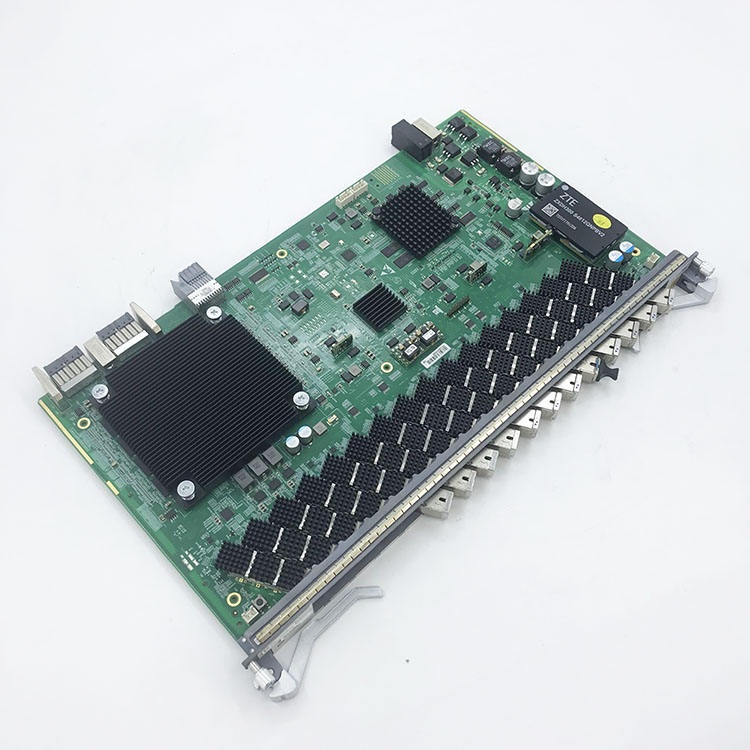

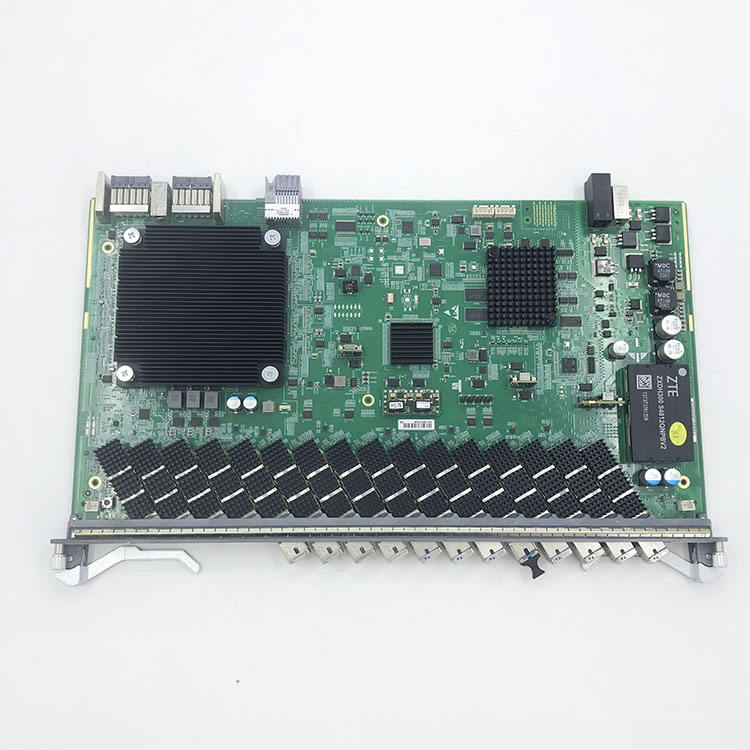

ZTE GFCH Service Board is 16-port XGS-PON and GPON Combo OLT interface board with N1/B+ or N2/C+ module used for ZTE ZXA10 C600 Serie OLT.
ZXA10 C680 is a 60S high optical access convergence device, 36 line card slot, the industry’s most, can provide 576 GPON/10G PON ports.
ZXA10 C650 is a 6U high device with 7 line card slots and can support 112*GPON/10GPON ports. It is a medium-sized optical access OLT device based on the TITAN platform, which can meet the needs of ultra-high bandwidth access, large video, fixed-mobile convergence, network reconfiguration, carrier-grade QoS and security assurance.
ZXA10 C600 is an 11U high-optical access device with 17/15 line card slots and can support 272/240 GPON/10G PON ports. It is a large-capacity optical access OLT equipment based on TITAN platform. It can meet the needs of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconfiguration, and carrier-grade QoS and security assurance.
|Interface||XG-PON & GPON Combo|
|Function||XG-PON & GPON service access|
|Specification||XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector|
|Management and control module||Configures, controls, and manages the card.|
|PONMAC module||Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.|
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
|Optical module||Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.|
|Clock module||Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.|
|Dimensions (L x H x W)||393.1 mm × 23.9 mm × 214 mm|
