- Model Number:HG8245Q2
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:HUAWEI
- Use:FTTH
- Warranty Time:1 YEARS
- Product name:Onu
- Color:WHITE
- Ports:1GE
- Model:HG8245Q2
- Wavelength:1 YEAR
-
- Supply Ability
- 100000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
GUANGDONG
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated
Product Description

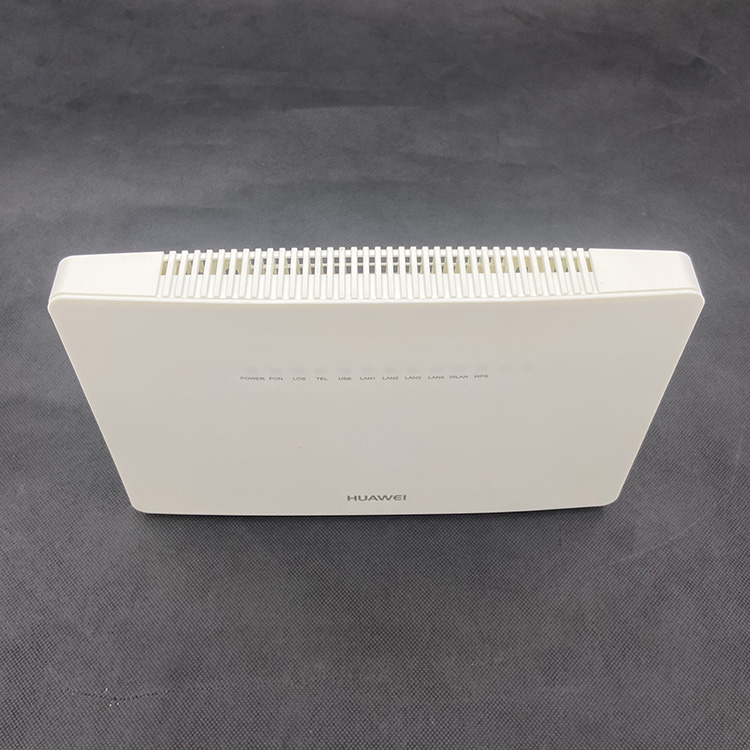

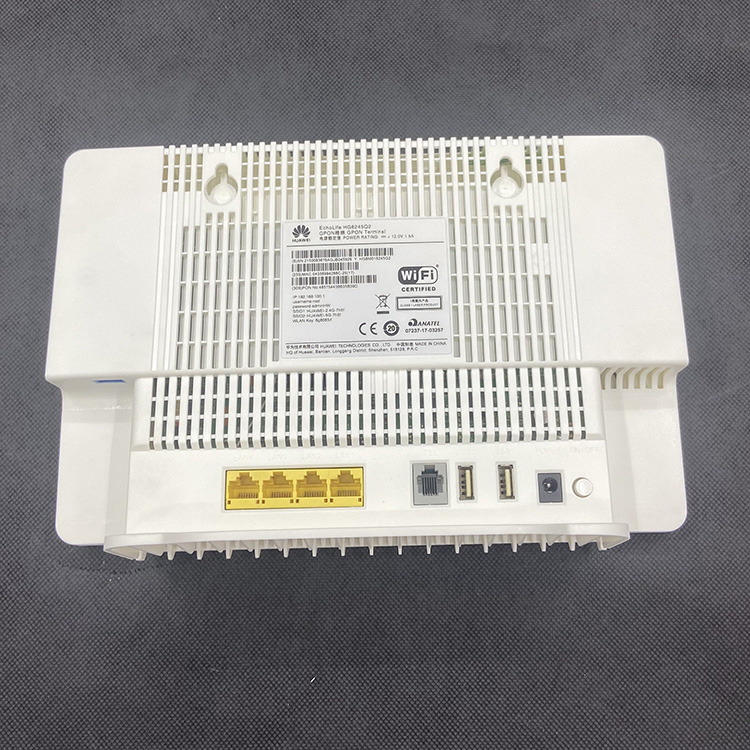

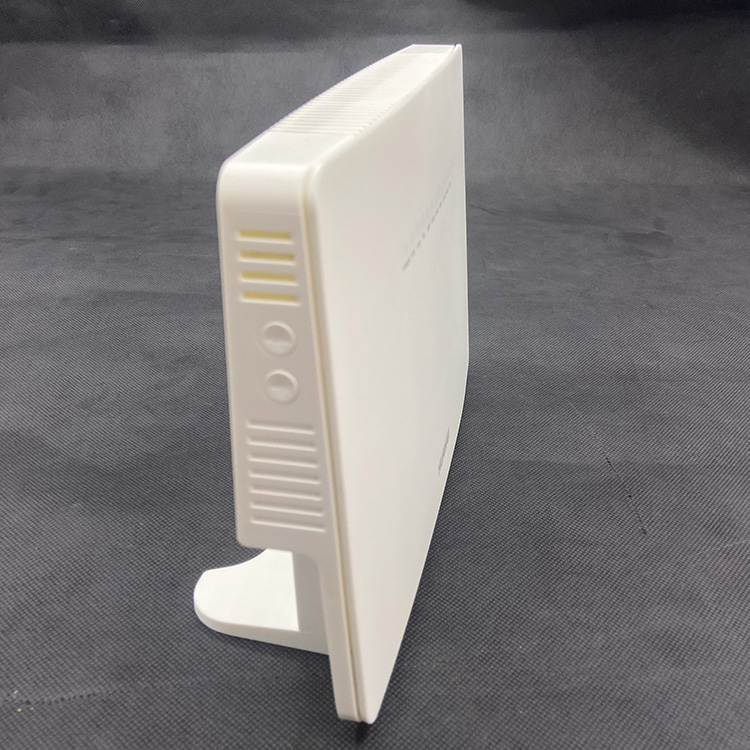

The HG8245Q2 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.
It provides 4 GE+2 POTS+1 USB+2 WiFi(4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
It provides 4 GE+2 POTS+1 USB+2 WiFi(4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
Specification
|
XPON
|
GPON
|
|
Optical interface
|
SC/UPC
|
|
UNI
|
1POTS+4GE+2USB+24G&5G Wi-Fi+8G SD
|
|
WiFi standard
|
2.4GHz: 2 x 2 MIMO 802.11b/g/n
|
|
5GHz: 2x 3 MIMO 802.1 la/n/ac
|
|
|
Antenna gain
|
2dBi
|
|
Dimensions(Width x Depth x Height)
|
265mm x 176mm x 82mm
|
|
Box Dimensions(Width x Depth x Height)
|
290mm x 230mm x 98mm
|
|
Box Weight(kg)
|
0.85kg，
|
|
Power supply
|
Power supply: 11-14V DC, 1A
|
|
Input power: 100-240V AC, 50/60HZ
|
|
|
Operating temperature and operating humidity
|
10C to 40*C，
|
|
5% to 95%, non-condensing
|
|
|
Cooling
|
Passive cooling
|
|
Maximum number of MAC addresses learned
|
1024
|
|
L2 forwarding capability
|
200 Mbit/s downstream (with any length packets)
|
|
200 Mbit/s upstream (with any length packets)
|
|
|
Pv4 L3 forwarding capability
|
2Gbit/s with any length packets in downstream direction
|
|
1 Gbit’s with any length packets in upstream direction
|
|
|
Pv6 L3 forwarding capability
|
2Gbit’s with any length packets in downstream direction
|
|
1 Gbit’s with any length packets in upstream direction
|
|
|
Configuration method
|
NMS, Web, or TR069
|
|
Voice protocol
|
SIP, H.248
|
|
Software version
|
V3R017C10S138
|
