- Model Number:ZXA10 GFGH
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:FTTx
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Overview
ZTE GFGH 16-Port GPON Subscriber Card for ZTE ZXA10 C600 C650 C680 OLT ZTE ZXA10 C600 OLT is a 19-inch, 11U height unified platform with 17 service slots that supports multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10G-EPON and GE P2P, as well as smooth migration to 50G PON, and provides L2 switch, VLAN service, L3 routing protocol and service processing capabilities, supporting flexible configurations and suits multiple application scenarios.
Specification
| Brand | ZTE |
| Item | GFGH |
| Port | 16 |
| Type | B+ Module:Single Fiber Bidirectional Optical Module, Class B+ |
| C+ Module: Single Fiber Bidirectional Optical Module, Class C+ | |
| D Module: Single Fiber Bidirectional Optical Module, Class D | |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | B+ Module:1.5dBm |
| C+ Module: 3dBm | |
| D Module: 6dBm | |
| Maximum Output Optical Power | B+ Module: 5dBm |
| C+ Module: 7dBm | |
| D Module: 9dBm | |
| Maximum Receiver Sensitivity | B+ Module: -28dBm |
| C+ Module: -32dBm | |
| D Module: -35dBm | |
| Optical Connector Type | SC/UPC |
| Optical Fiber Type | Single-mode |
| Reach | 20km |
| Extinction Ratio | 8.2 dB |
| Weight | 1.46kg |
| Dimensions (W x D x H) | 393.1 mm × 23.9 mm × 214 mm |

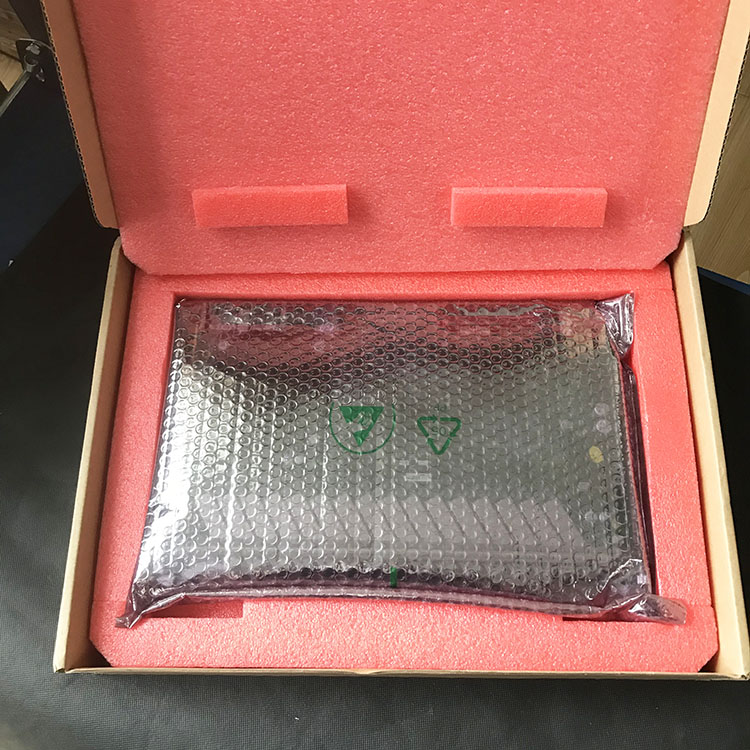

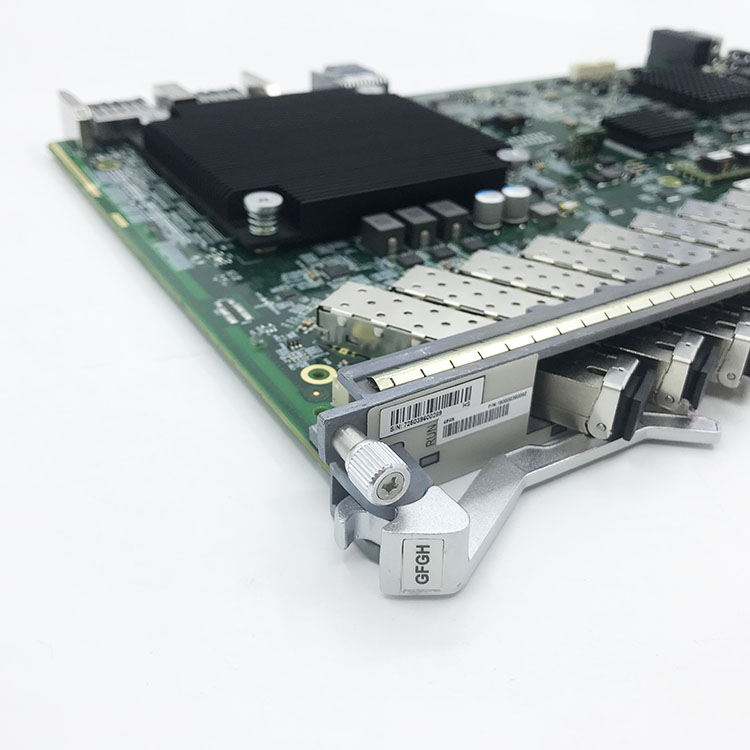

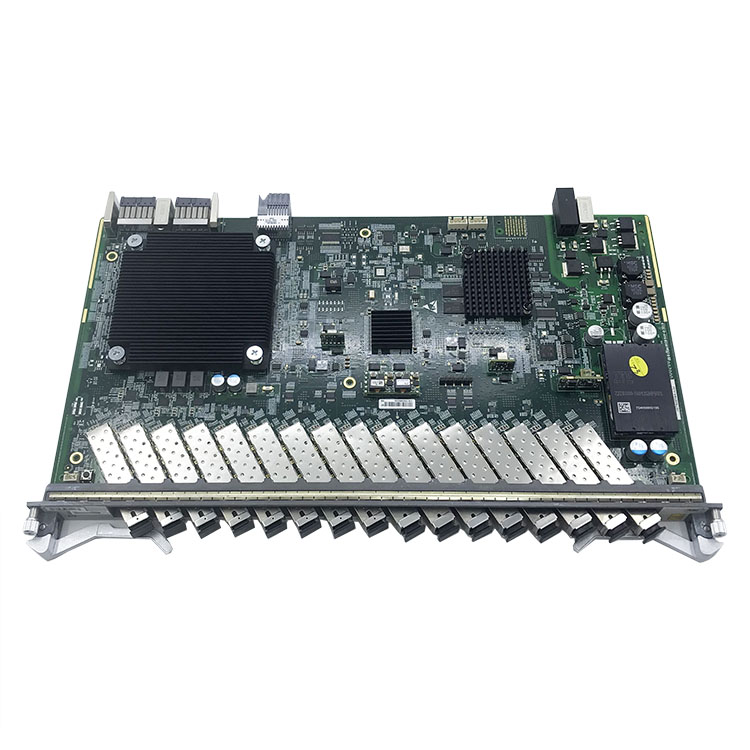

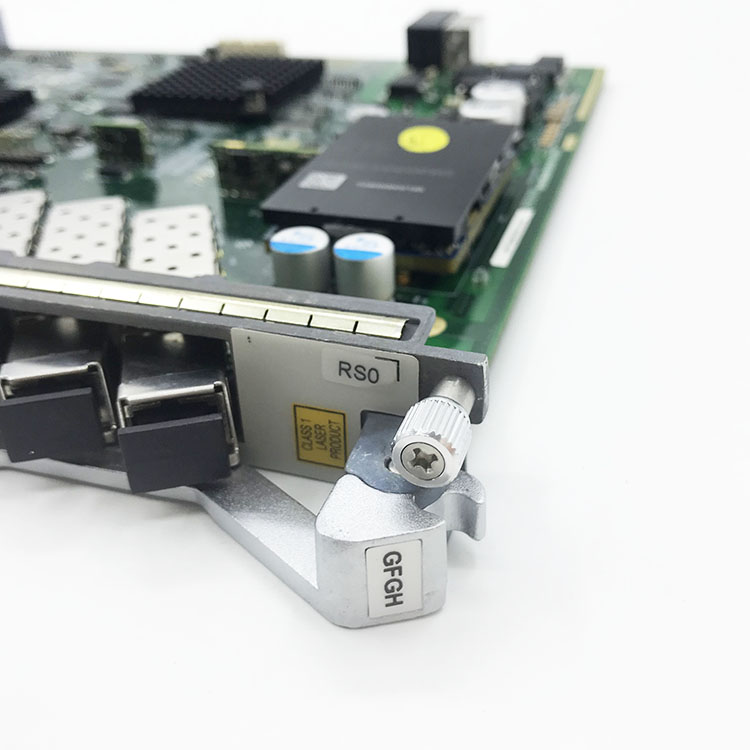

Product Pictures
