- Model Number:F660 V8.0
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail Carton
- Lead time:Quantity(pieces)1 – 200201 – 1000>1000Lead time (days)1215To be negotiated

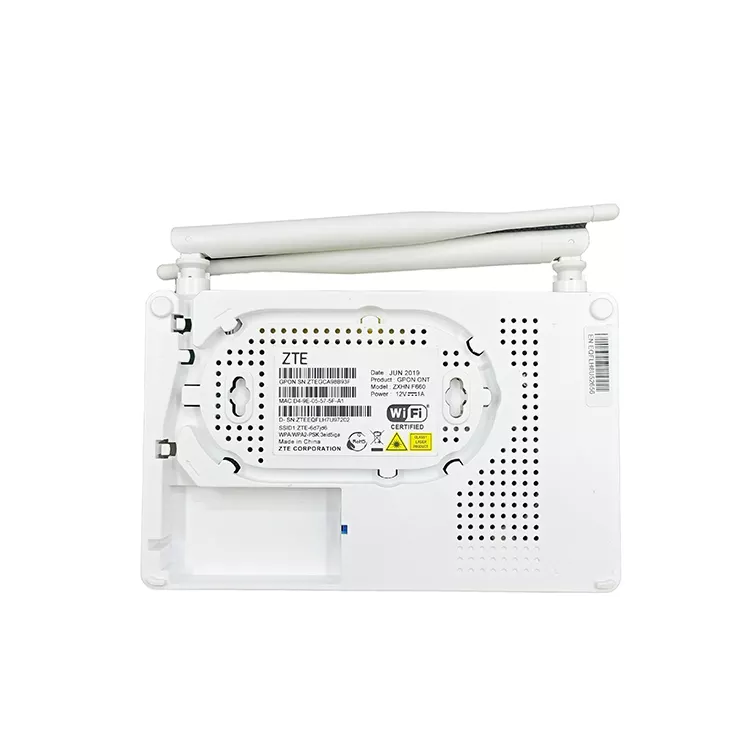

ZTE ZXHN F660 V8.0 FTTH is GPON optical terminal unit with 1GE + 3FE + 1POTS + WIFI + 1USB ports English Firmware.
| Model No. | Enternet Ports | Voice | Router (PPPoE) | Wifi | Firmware Language |
| ZXHN F660 V8.0 | 1GE+3FE | 1pots | Yes | Yes | English |
Overview
ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
POL (Passive Optical LAN) is a new type of LAN networking solution based on PON technology, which combines different services such as data, voice, video, and wireless access into one optical fiber network, inheriting the PON network With the advantages of large bandwidth, high reliability, low latency, flatness, easy deployment, and easy management, it is the best choice for different scenarios such as smart parks, commercial buildings, enterprises, campuses, hotels, governments, and finance.
Specification
| Brand | ZTE |
| Model | F660V8.0 |
| Optical port | 1 x GPON interface |
| Transmission Distance | 0-20KM |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1GE +3FE port |
| 1 x Wi-Fi interface | |
| 1 x USB host interface | |
| 1 x POTS interfaces | |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <10W |
| Dimensions | 220mm(W) x 44mm(H) x 160mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 380G |
| Power supply | 12V DC |
