- Model Number:PRWH
- Type:OLT cards, olt card
- Place of Origin:China
- Brand Name:ZTE
- Use:FTTTX
- Product name:PRWH
- Color:Green
- Warranty:1 Year / 12 Months
- Brand:ZTE Original
- Package:Carton Box
- Power supply:12V DC
- MOQ:1 Pcs
- Dimensions:197.75* 25 * 225 mm
- Service:After-sales Service
-
- Supply Ability
- 2500 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Product Description
|
Indicator
|
Status
|
Description
|
|
Brand
|
ZTE
|
|
|
Model
|
PRWH
|
|
|
RUN
|
LED is OFF
|
The card is powered off l The card does not match l CPU is not started
|
|
Green LED is ON
|
The card self-checking completes but fails to receive data from the switching and control card or NM
|
|
|
Green LED flashes irregularly
|
The card is downloading data from the network management server
|
|
|
Green LED flashes slowly (05 Hz)
|
The card runs properly
|
|
|
Red LED is ON
|
Card hardware failure
|
|
|
Red LED flashes slowly (05 Hz)
|
The card is plugged in the wrong slot
|
|
|
Yellow LED flashes slowly (05 Hz)
|
The software version of the card does not match that of the switching and control card Auto-update is not configured on the card
|
|
|
ACTi (i = 1–16)
|
LED is OFF
|
No ONU is configured on the EPON interface
|
|
The EPON interface has no optical module installed
|
||
|
The EPON interface is shutdown
|
||
|
The EPON interface is TypeB protection port
|
||
|
Green LED flashes
|
The EPON interface and connected ONUs work properly
|
|
|
Red LED is ON
|
The EPON interface has Loss Of Signal (LOS) alarms
|

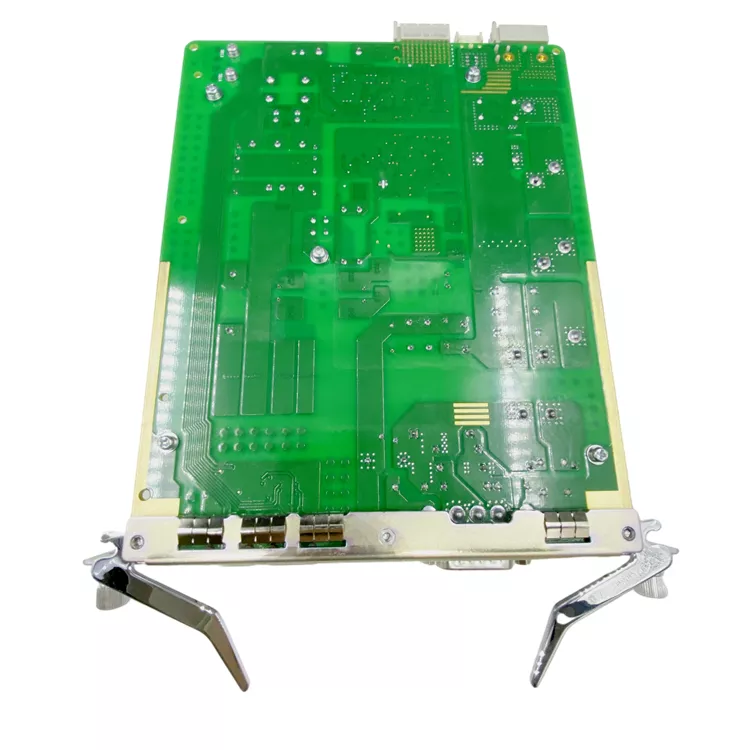

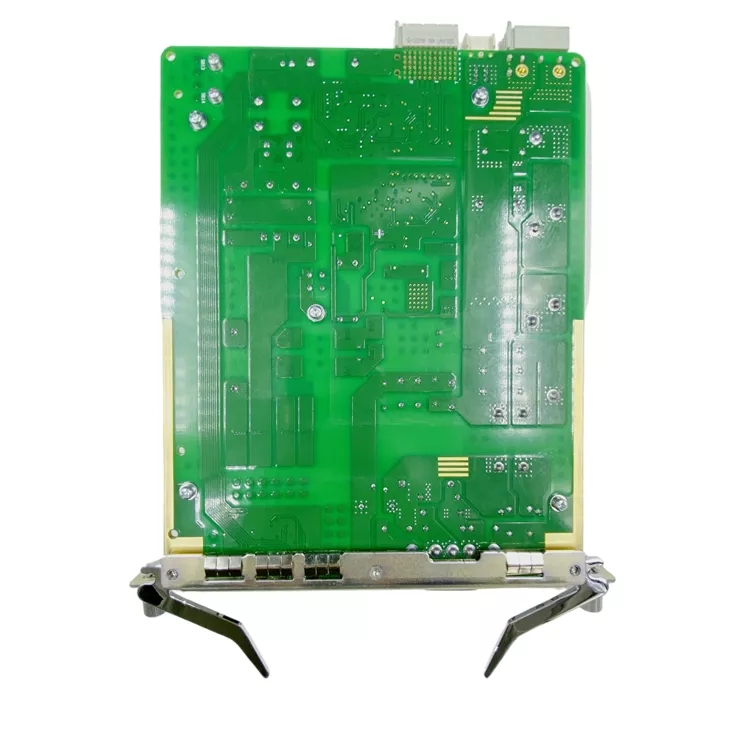

TE PRWH Power Board is DC Power Connect Board for ZTE C300 OLT.

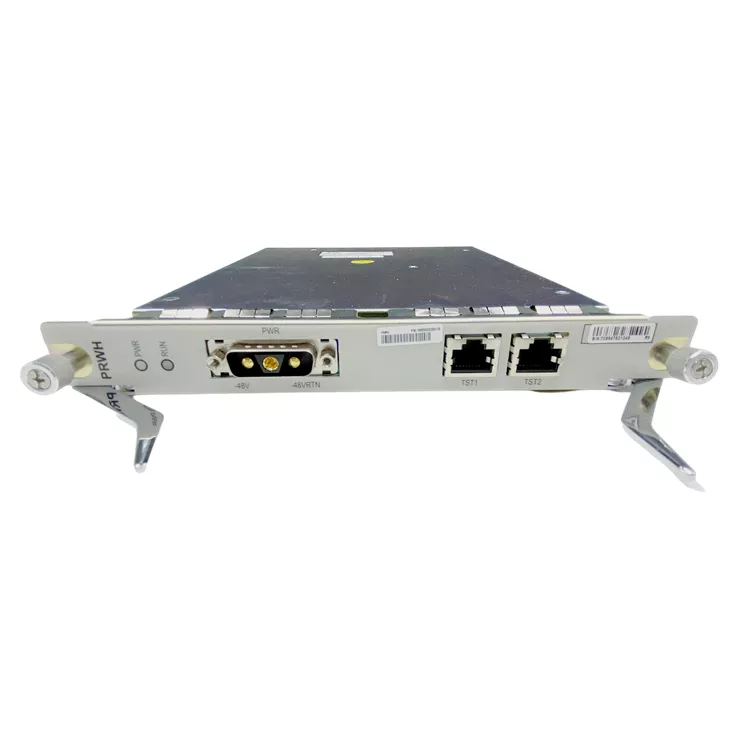

ZTE PRWH Power Board is intended for installation on the ZTE C300 chassis. It is equipped with two RJ-45 control interfaces and one power port.

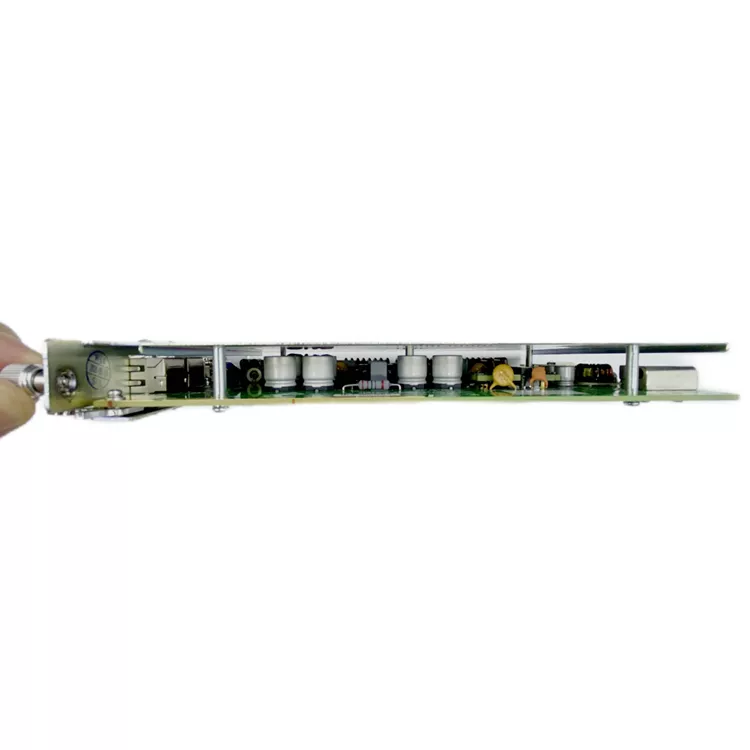

The dimensions is 197.75 mm × 25 mm × 225 mm, and its horizontal placement in the chassis significantly saves useful space for the installation of other expansion cards.
ZTE PRWH Power Board has additional system monitoring functions. Environment main features: Filtration and current limitation for input power status monitor and alarm indicator, etc. Support of electric serial number Built-in temperature sensor Voltage, current and power functions
ZTE PRWH Power Board is intended for installation on the ZTE C300 chassis. It is equipped with two RJ-45 control interfaces and one power port.
The dimensions is 197.75 mm × 25 mm × 225 mm, and its horizontal placement in the chassis significantly saves useful space for the installation of other expansion cards.
ZTE PRWH Power Board has additional system monitoring functions. Environment main features: Filtration and current limitation for input power status monitor and alarm indicator, etc. Support of electric serial number Built-in temperature sensor Voltage, current and power functions
