- Model Number:GPUF
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:huawei
- Use:FTTX
- Warranty Time:1 year
- Network:None
- GPON Port::16-GPON Port
- Encapsulation Type::SFP
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
Retail Carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 200>200Lead time (days)15To be negotiated
Huawei GPUF Service Board is a 16 port GPON interface card applying for MA5800 X2 MA5800 X7 MA5800 X15 MA5800 X17 OLT system and gives GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.
Overview
Huawei GPUF Service Board is 16-GPON Port Interface Card with C+ SFP module for MA5800 X2, X7, X15, X17 NG OLT system and support split ration 1:128
MA5800 can help operators cope with the development needs of “wider, faster and smarter” gigabit ultra-wide networks, and meet users’ ultimate service experience for 4K/8K/VR video; support future smart homes and all-optical parks At the same time, MA5800 can realize the unified carrying of multiple services such as home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO computer rooms, and reduce operation and maintenance costs.

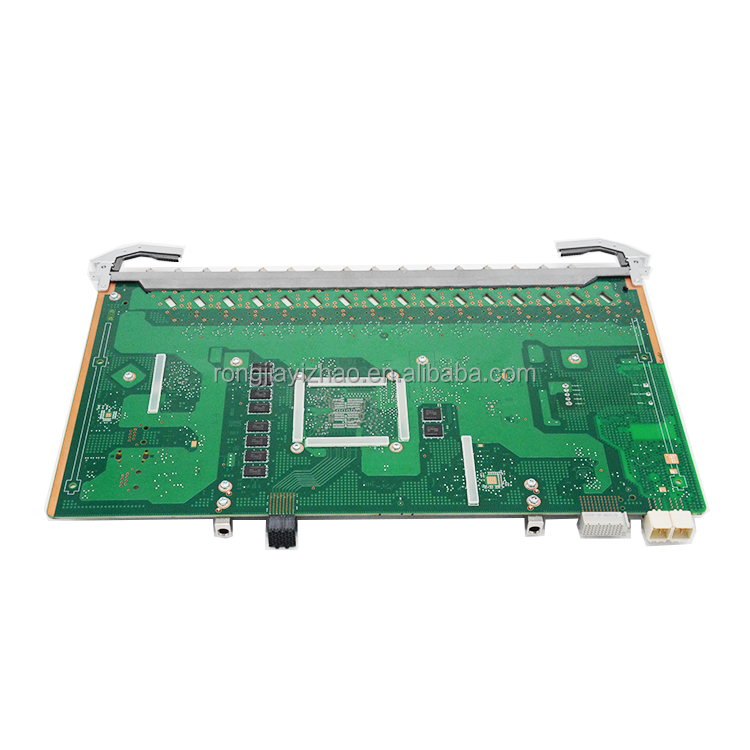

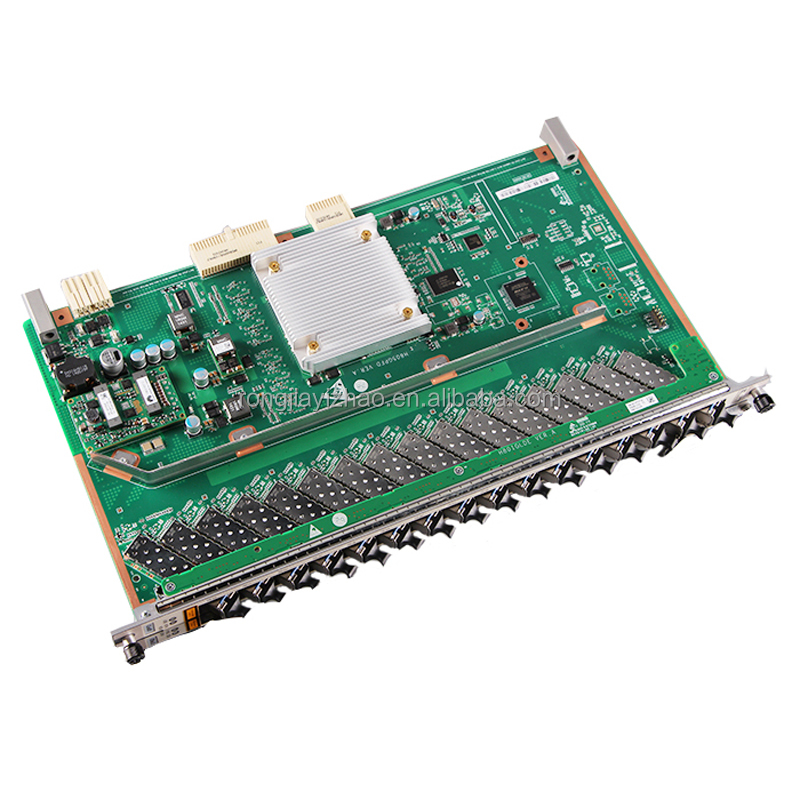

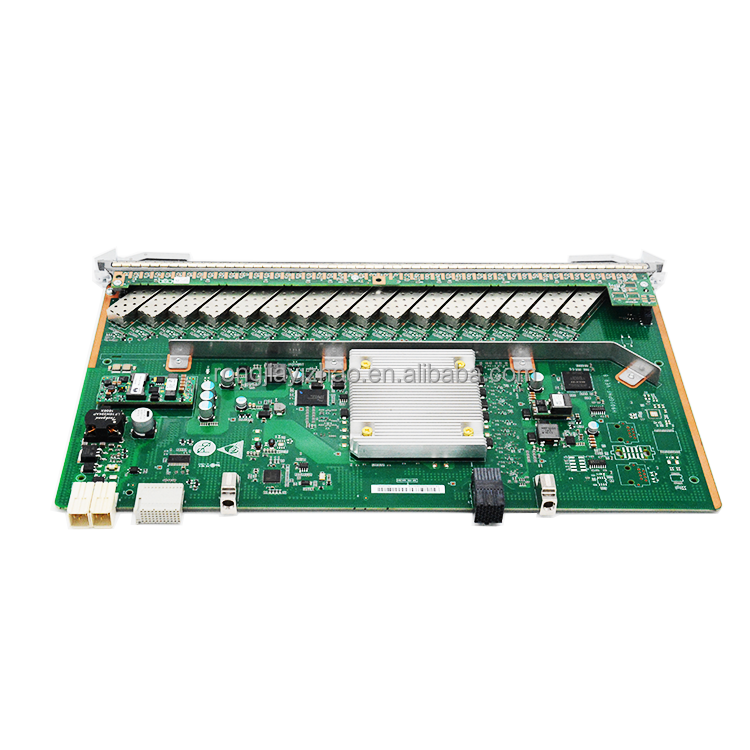

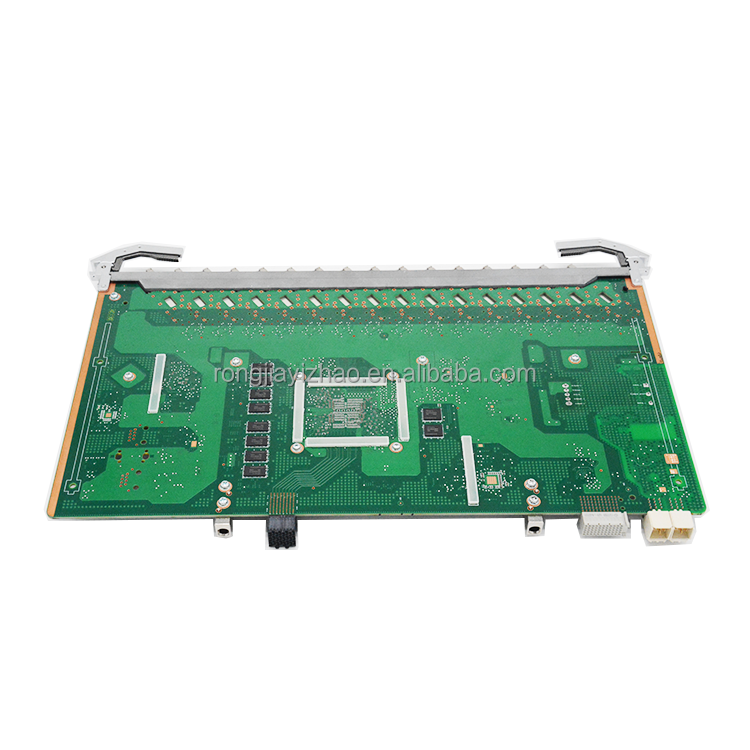

Product Picture
Specifications
Brand | Huawei |
Model | GPUF |
GPON Port | 16-GPON Port |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
Power Consumption | Static: 25W; Maximum:50W |
Maximum Frame Size | 2052 bytes |
Operating temperature | -40°C to +65°C |
Huawei GPUF Service Board Product Feature
- Huawei 16-GPON Port Interface Card with C+ SFP module
- Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
- Support split ration 1:128
- Transmit Speed: 2.488Gbit/s
- Receive Speed: 1.244Gbit/s
- Interface Type: SC
- Transmit Wavelength: 1490nm
- Receive Wavelength: 1310nm
- C+ SFP Module Optical Power: 3 dBm~7 dBm
- Receiver Sensitivity: -32 dBm
- Maximum number of MAC addresses: 32768
Huawei GPUF Service Board Product and More Service Boards
GPON | XG-PON | XGS-PON | XG-PON and GPON Combo | XGS-PON and GPON Combo | Port | |
MA5608T/MA5680T/MA5683T | XGBC | 4 | ||||
GPBD/GPBH | XGBD | 8 | ||||
GPFD | 16 | |||||
MA5800 X2/X7/X15/X17 | XGHD | TWED/XSHD/TWHD | CGID/CGHD | CSHD | 8 | |
GPLF/GPSF/GPUF/GPHF | XGSF | XSHF | CGHF | CSHF | 16 |
