- Model Number:CGHF
- Type:OLT
- Place of Origin:Zhejiang, China
- Brand Name:HUAWEI
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- model:CGHF
- brand name:HUAWEI
- Optical Fiber Type:Single-mode
- Operating Wavelength:Tx: 1490 nm, Rx: 1310 nm
- Port Rate:Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
- Optical Connector Type:SC
- Maximum distance difference between:40KM
- Dimensions (W x D x H):23.30 mm * 257.90 mm * 399.20 mm
-
- Supply Ability
- 100 Piece/Pieces per Month
-
- Packaging Details
1pcs/ctn
-
- Port
Shanghai/Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description
Huawei 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module
Huawei CGHF Service Board is 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module. This board is applied to MA5800 X2, X7, X15, X17 NG OLT system. The max split radio goes to 1:256

Product Paramenters
Model
|
HUAWEI CGHF
|
GPON Port
|
16 XG-PON & GPON ports
|
Operating Wavelength
|
GPON channel:Tx: 1490 nm, Rx: 1310 nm
XG-PON channel:Tx: 1577 nm , Rx: 1270 nm
|
Port Rate
|
GPON channel: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
XG-PON channel:Tx: 9.953 Gbit/s, Rx: 2.488 Gbit/s
|
Optical Connector Type
|
SC
|
Optical Fiber Type
|
Single-mode
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
Maximum Frame Size
|
2052 bytes
|
Maximum number of MAC addresses
|
131072
|
Maximum distance difference betweentwo ONUs under the same PON port
|
40 km
|

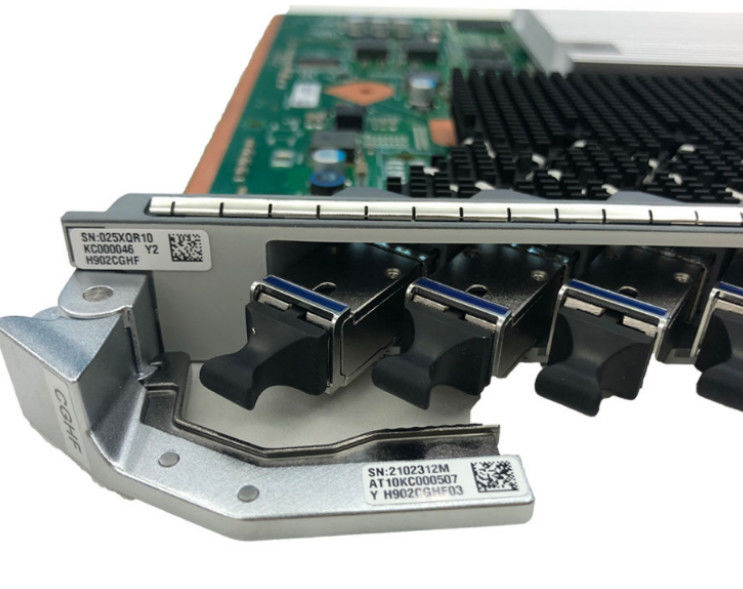

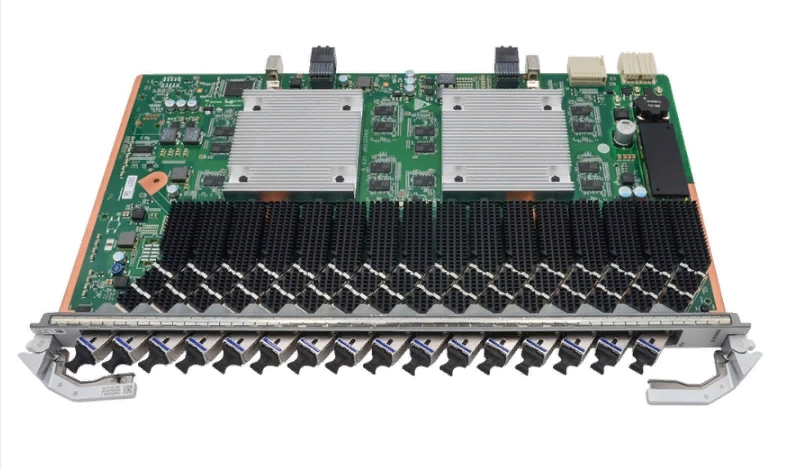

Details Images


Application

Packing&Shipping

Shipment
