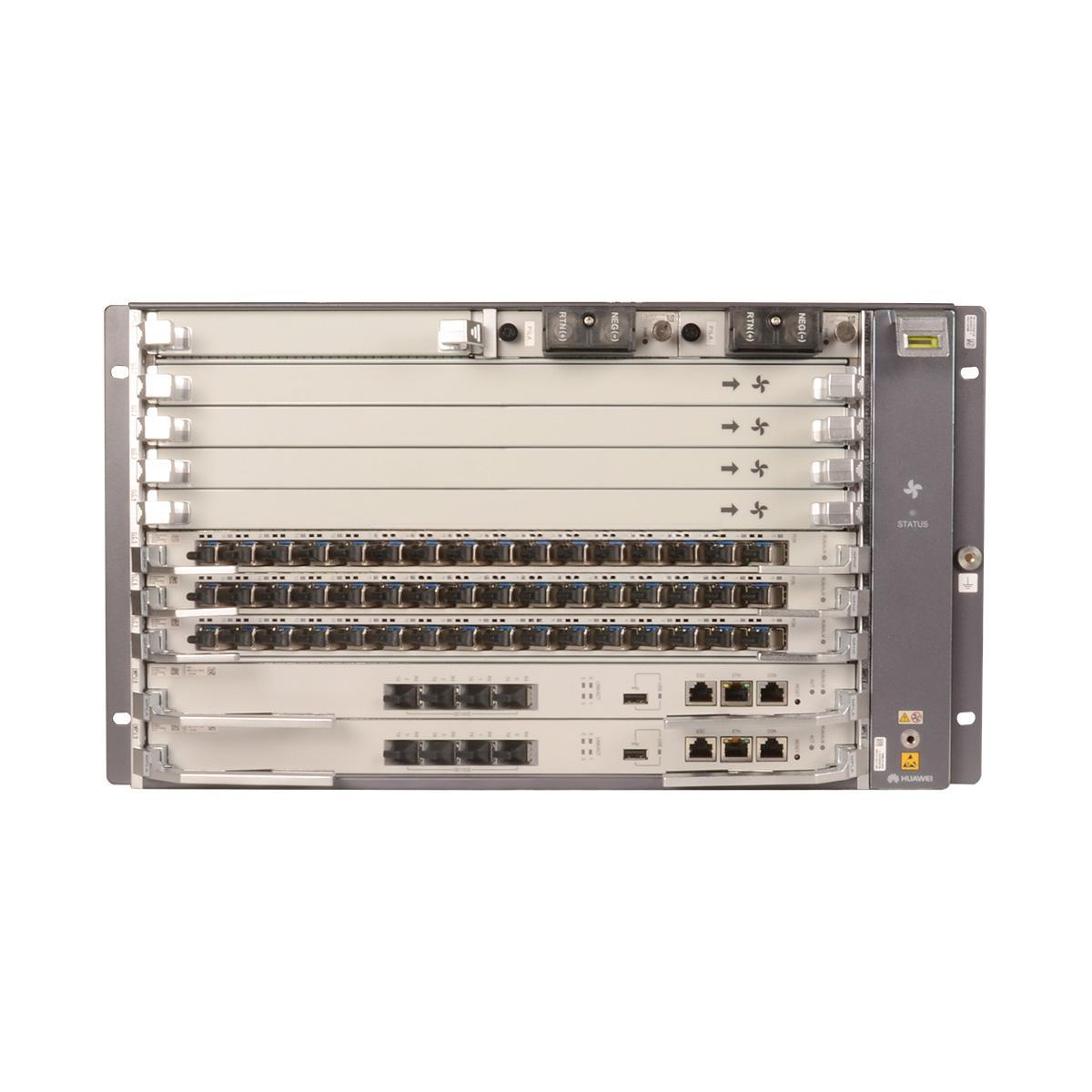

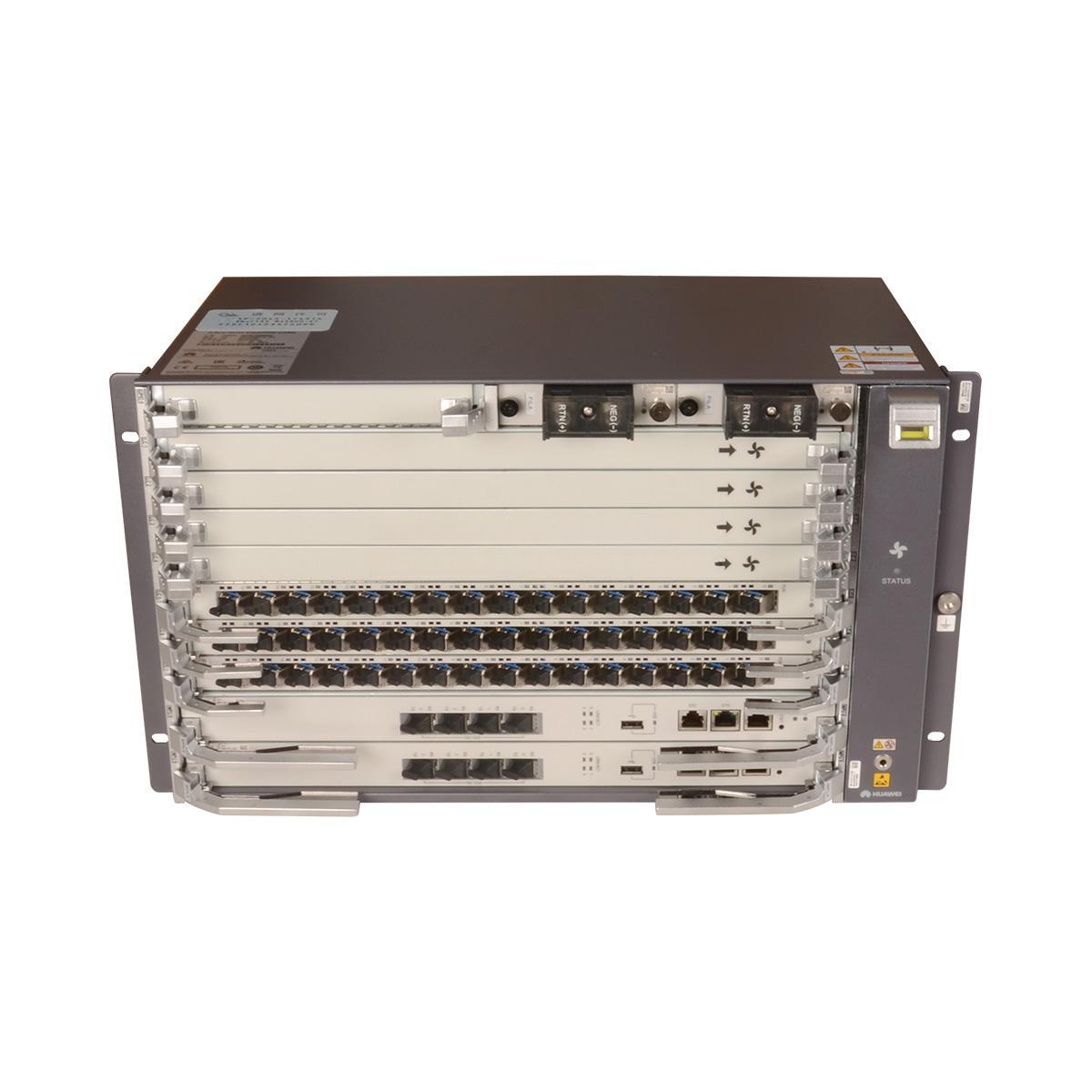

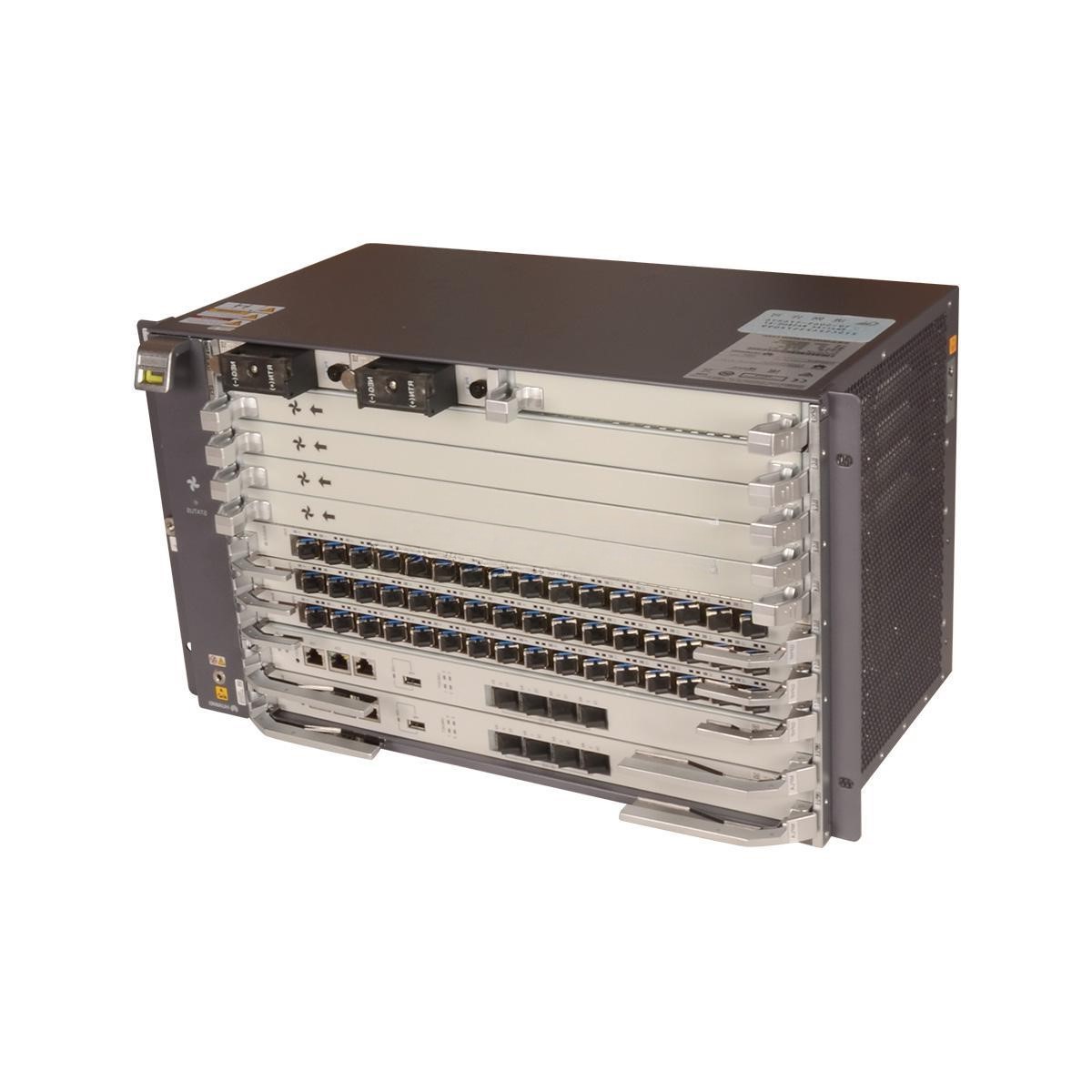

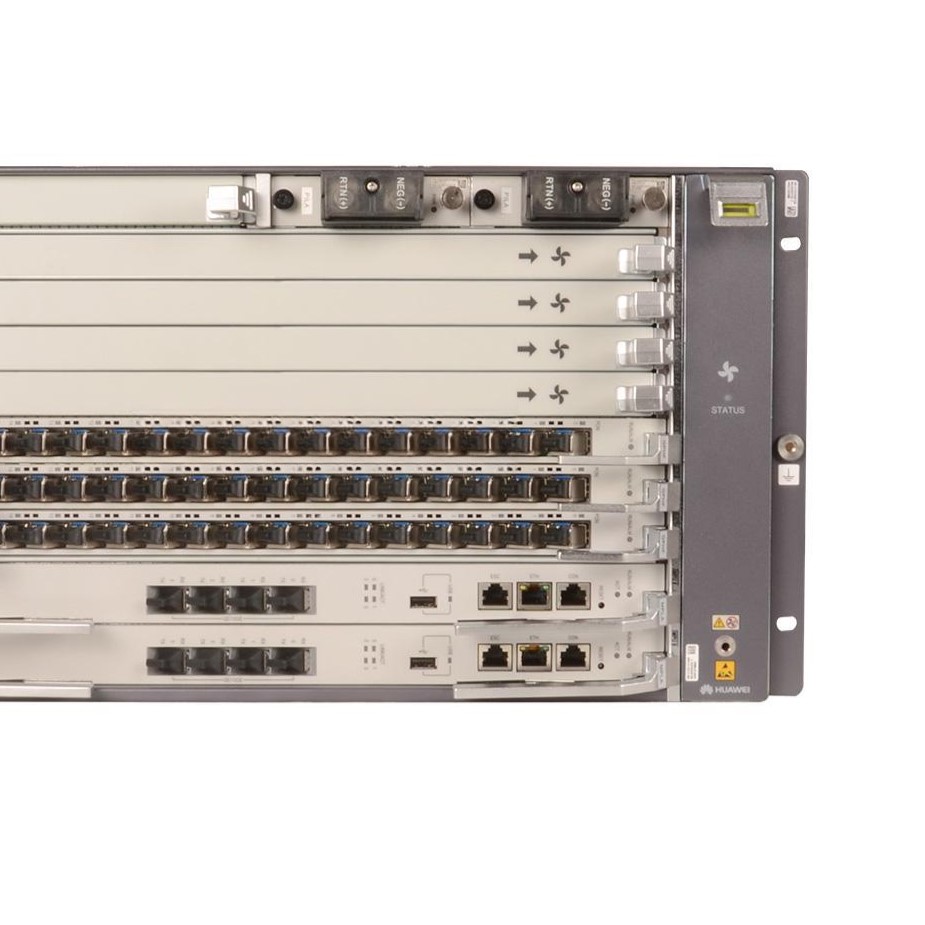

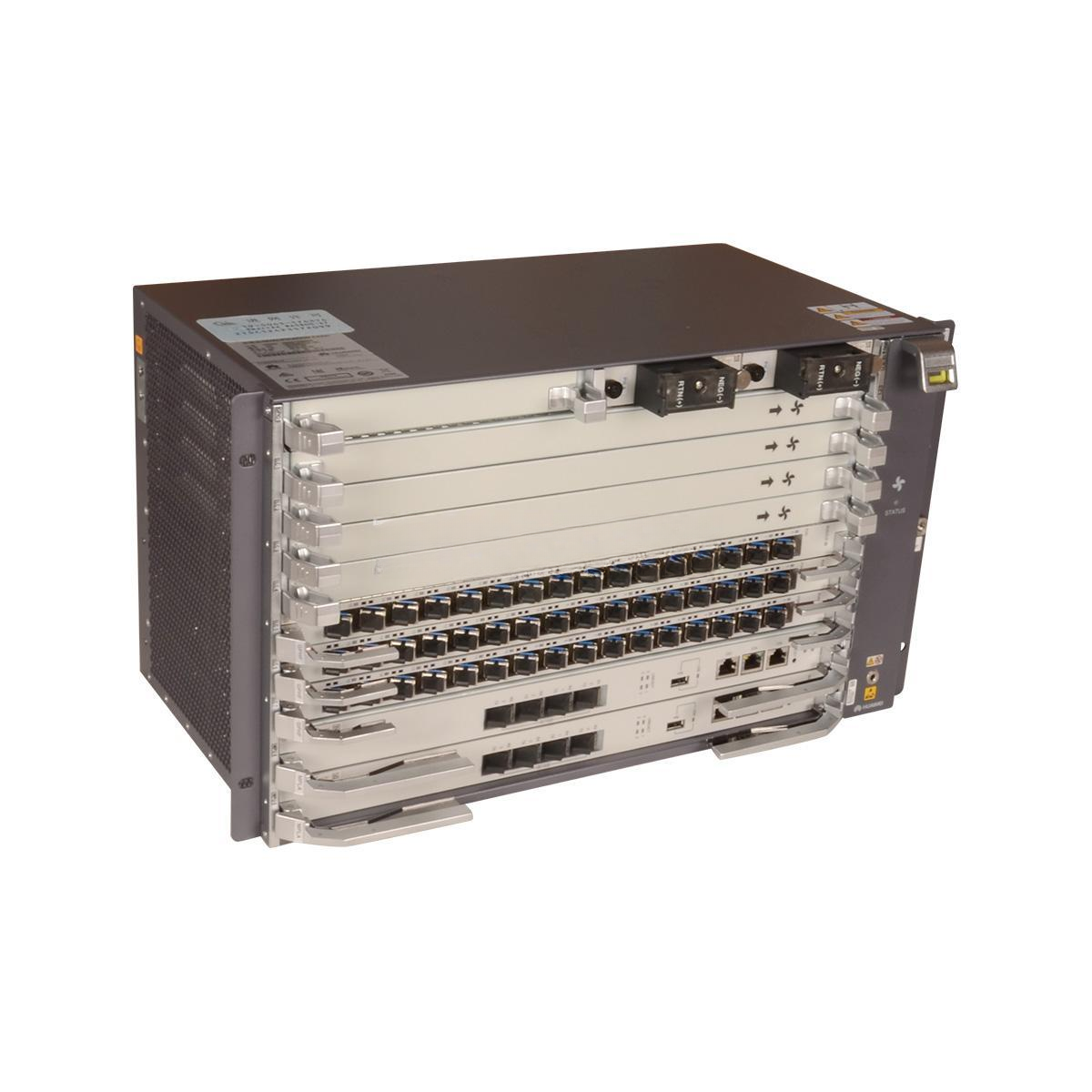

Huawei MA5800 X7 OLT – 16 GPON Ports with C+ Optics Bundle | Equipped with 2 × MPLA Control Boards | Carrier-Grade FTTH Solution
Product Overview
The Huawei MA5800 X7 16GPON is a high-capacity distributed OLT platform engineered for the next-generation fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and fiber-to-the-office (FTTO) deployments. This bundled configuration includes 1x MA5800 X7 chassis, 2 × MPLA main control boards, and a 16-port GPON service card equipped with C+ class optical transceivers.
Designed to support ultra-broadband services, cloud applications, and massive user concurrency, the MA5800 X7 delivers 10G uplinks, service convergence, and intelligent network slicing, all within a compact 7U frame — making it a future-ready choice for telecom operators and ISPs.
Huawei MA5800 X7 16GPON Bundle Includes
-
1 × Huawei MA5800 X7 Chassis (7U height, 16 service slots)
-
2 × H901MPLA Main Control Boards (for 1+1 redundancy, each with 4 × 10GE SFP+ ports)
-
1 × 16-Port GPON Service Board (e.g., H901GPHF) with integrated C+ class SFP modules
Key Features of Huawei MA5800 X7 16GPON
-
High-density GPON access: Supports 16 GPON ports with C+ optics for long-reach deployment
-
Dual MPLA control boards: Ensures 1+1 redundancy and uninterrupted service operation
-
4 × 10GE uplinks per control board: Seamless aggregation to core network or metro switches
-
Built-in support for Layer 2/3 forwarding, VLAN, QoS, multicast, DHCP, IPv6
-
Compatible with Huawei’s iManager U2000/NCE for centralized O&M and provisioning
-
Modular chassis with flexible slot architecture for Combo PON, XGS-PON, or 10GE upgrades
-
Carrier-grade protection against power failure, overvoltage, and interface-level faults
Huawei MA5800 X7 16GPON Technical Specifications
| Component | Specification |
|---|---|
| OLT Model | Huawei MA5800 X7 |
| Chassis Size | 7U, 482.6 mm × 275.8 mm × 295.4 mm (W×D×H) |
| Service Slots | 16 slots (excluding power and control board slots) |
| GPON Ports | 16 × GPON interfaces with C+ SFP modules (Class B+ optional) |
| Control Boards | 2 × MPLA (each with 4 × 10GE SFP+ uplink ports) |
| Uplink Capacity | Up to 80Gbps aggregated with redundancy |
| User Capacity | Up to 16K subscribers per chassis (depends on PON planning) |
| Switching Capacity | Up to 7.2 Tbps |
| Redundancy | 1+1 control board protection, hot-swappable cards |
| Power Supply | Dual DC (-48V) or AC (optional) |
| Cooling System | Front-to-rear forced air cooling |
| Operating Temperature | -25°C to +65°C (with airflow and industrial design) |
| Compliance | ITU-T G.984, CE, RoHS, ISO9001 |
Huawei MA5800 X7 16GPON Application Scenarios
-
FTTH/FTTB access for residential subscribers
-
Metro access for enterprise and leased line services
-
Triple-play service delivery (Internet, VoIP, IPTV)
-
High-density GPON deployments for urban and rural broadband projects
-
Telecom operator central offices and ISP access nodes
Comprehensive Tech Specs Table
| Category | Item | Specification |
|---|---|---|
| Performance | Bandwidth per Slot | 200 Gbit/s (load sharing mode) |
| Switching Capacity | 3.6 Tbit/s | |
| Slot Bandwidth | 100 Gbit/s | |
| MAC Address Table | 262,143 entries | |
| Access ONTs Supported | 17,408 | |
| Multicast Users | 17,408 | |
| IPv4 Routing Table | 65,536 entries | |
| IPv6 Routing Table | 16,384 entries | |
| ARP Table | 131,072 entries | |
| Service Ports | 139,264 | |
| Max Frame Size | 2052 bytes (standard), 9216 bytes (jumbo enabled) | |
| Interfaces | GE/10GE Ports | 8 |
| GPON Ports | 48 | |
| Slots | Service Slots | 3 occupied, 4 remaining |
| Power | Power Supply | -48V DC |
| Static Power Consumption | 164 W | |
| Typical Power Consumption | 294.5 W | |
| Maximum Power Consumption | 425 W | |
| Previous Static Power Consumption | 73 W | |
| Previous Maximum Power Consumption | 120 W | |
| Mechanical | Dimensions (W × D × H, excl. brackets) | 442.0 mm × 283.2 mm × 263.9 mm |
| Dimensions (W × D × H, incl. ETSI brackets) | 535.0 mm × 283.2 mm × 263.9 mm | |
| Previous Dimensions (another unit) | 31 mm × 258.9 mm × 399.1 mm | |
| Weight | 2.2 kg | |
| Environment | Operating Temperature | -40°C to +65°C |
| Working Temp (1 Subrack) | -25°C to +65°C | |
| Working Temp (2 Subracks) | -25°C to +55°C | |
| Altitude | < 4000 m | |
| Atmosphere Pressure | 61 kPa to 106 kPa |
Customization & Wholesale Options
-
Available in bulk quantities for network rollouts and national projects
-
Options for Combo PON (GPON + XG-PON), XGS-PON, or 10GE service cards
-
Pre-installed with firmware, serial tracking, and certified factory test reports
-
OEM/white-label solutions, rack-mount kits, and optical splitters available
-
Full provisioning and technical support for integration into live networks
Why Choose Huawei MA5800 X7 GPON Bundle with 2x MPLA?
-
Delivers future-proofed fiber access with 10GE uplinks and high user density
-
Ensures uninterrupted performance via dual control boards
-
Fully integrated into Huawei’s cloudified access network ecosystem
-
Scalable for evolving needs: from GPON to XGS-PON and multi-service platforms
-
Ideal for next-generation broadband infrastructure projects
Request a Quote
Deploy your fiber access network with confidence using the Huawei MA5800 X7 GPON C+ Bundle with Dual MPLA Control Boards – a robust, intelligent, and scalable platform for modern connectivity.
