Home GPON Card HUAWEI GPON Card huawei olt card CSHF 16 ports XGS-Gpon board with XGD GPON C+ module
Huawei Cshf 16-port Xgs-pon And Gpon Combo Olt Interface Board $71,312.00
Back to products
In Stock Good Price Control board SCTM B11 10GE with 4 pcs 10GE uplink port for ZTE C300 GPON/EPON OLT $4,975.00

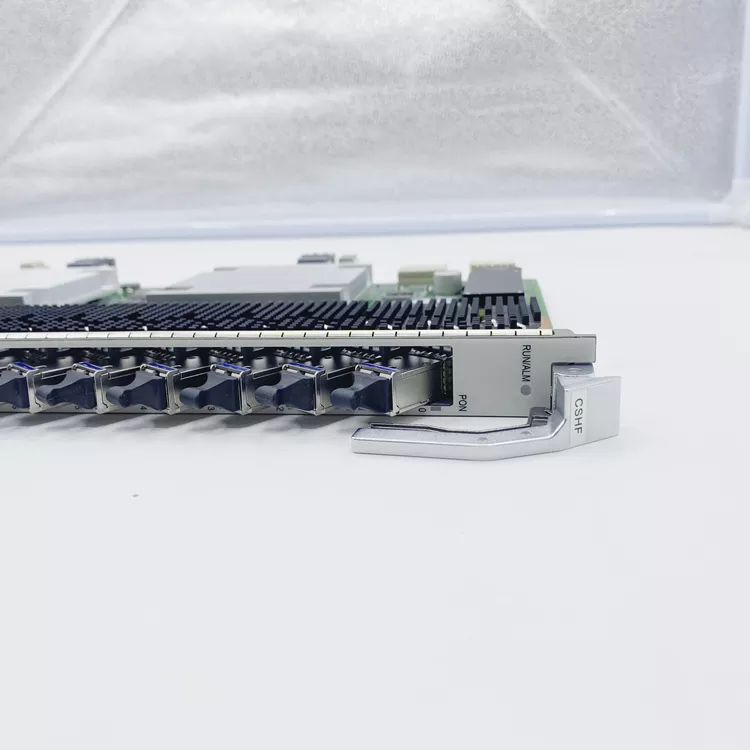

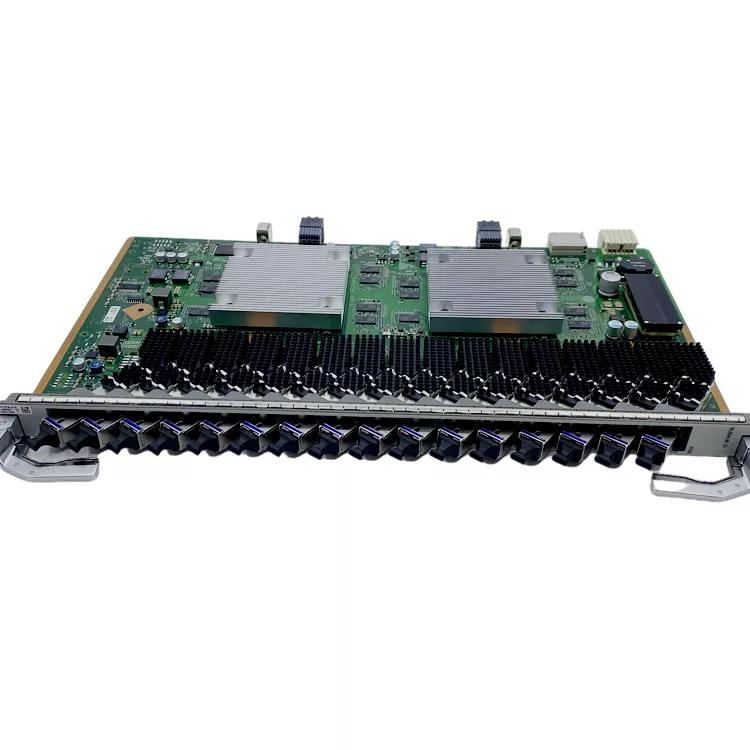

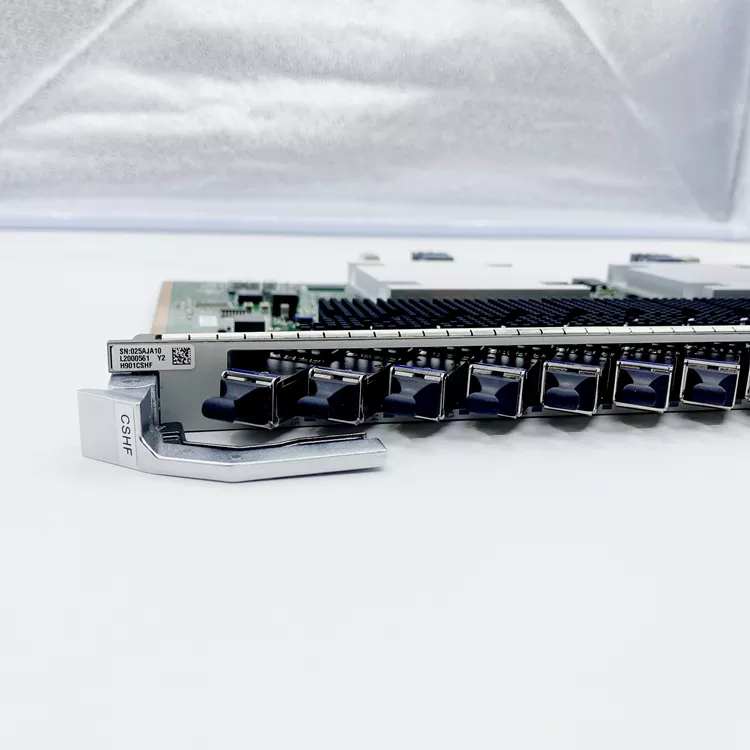

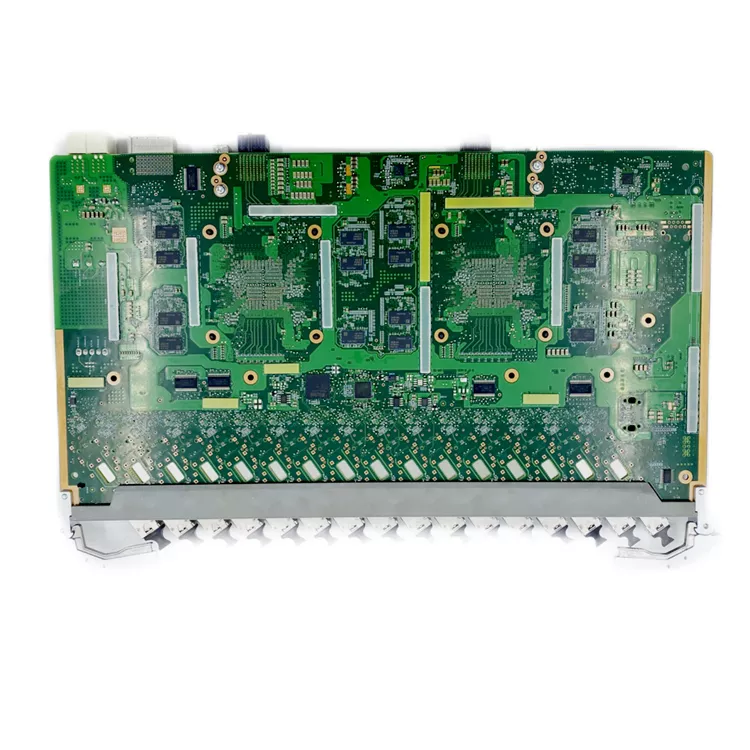

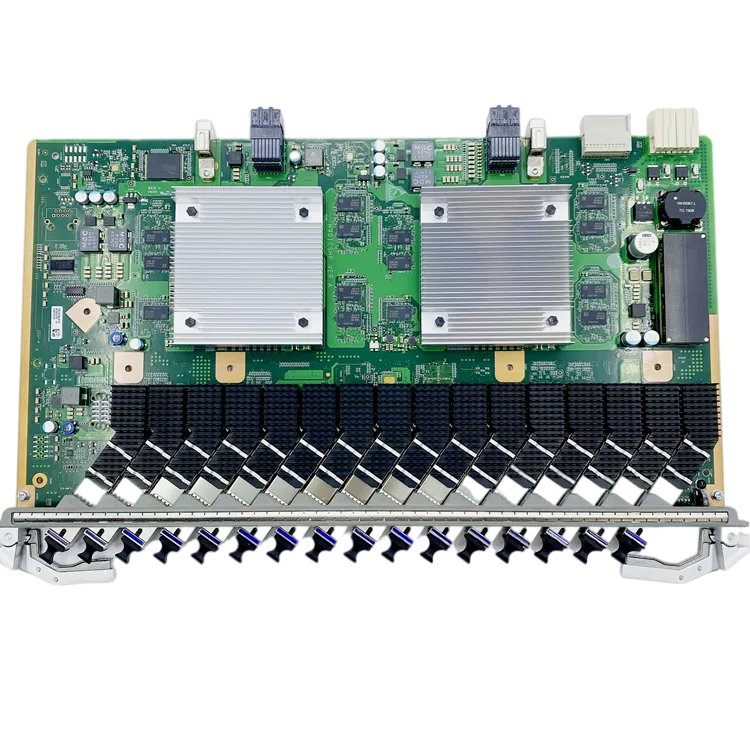

huawei olt card CSHF 16 ports XGS-Gpon board with XGD GPON C+ module

$85,998.00

Compare
Add to wishlist
SKU: 1600604971944 Categories: All Products, GPON Card, HUAWEI GPON Card
Share:
  • Description
Description
  • Model Number:CSHF
  • Type:olt card, combo board
  • Place of Origin:China
  • Brand Name:huawei
  • Use:FTTX
  • Warranty Time:1 year
  • Product name:CSHF
  • Ports:16 Ports
  • Warranty:1 Year / 12 Months
  • Wavelength:Tx1310nm/Rx1490nm
  • Brand:Huawei Original
  • Keywords:CSHF
  • MOQ:1 Pcs
  • Package:Carton Box
  • Service:After-sales Service
  • Supply Ability
    500 Piece/Pieces per Week
  • Packaging Details

    Cartons

  • Port

    Shenzhen

  • Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Product Description
Brand
Huawei
Model
CSHF
Port
16
Type
C+ Module: One-fiber bidirectional optical module, class C+
B+ Module: One-fiber bidirectional optical module, class B+
Operating Wavelength
C+/B+ Module
GPON channel
Tx: 1490 nm
Rx: 1310 nm
XGS-PON channel
Tx: 1577 nm
Rx: 1270 nm
Encapsulation Type
SFP+
Port Rate
C+/B+ Module
GPON channel
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XGS-PON channel
Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power
C+ Module
GPON channel: 3 dBm
XGS-PON channel: 5 dBm
B+ Module
GPON channel: 1.5 dBm
XGS-PON channel: 1 dBm
Maximum Output Optical Power
C+ Module
GPON channel: 7 dBm
XGS-PON channel: 8 dBm
B+ Module
GPON channel: 5 dBm
XGS-PON channel: 4 dBm
Maximum Receiver Sensitivity
C+ Module
GPON channel: -32 dBm
XG-PON channel: -30.5 dBm
XGS-PON channel: -29 dBm
B+ Module
GPON channel: -28 dBm
XG-PON channel: -26.5 dBm
XGS-PON channel: -25 dBm
Optical Connector Type
SC
Optical Fiber Type
Single-mode
Overload Optical Power
C+ Module
GPON channel: -12 dBm
XG-PON channel: -10 dBm
XGS-PON channel: -8 dBm
B+ Module
GPON channel: -8 dBm
XG-PON channel: -6 dBm
XGS-PON channel: -4 dBm
Extinction Ratio
8.2 dB
Dimensions (W x D x H)
23.3 mm x 257.90 mm x 399.20 mm
Power Consumption
Static: 51 W
Maximum: 99 W
Operating temperature
-40°C to +55°C
Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with optical network unit to offer XGS-PON and GPON access services.
Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. This board is used in MA5800 ,EA5800 Series OLT Equipment and works together with optical network unit to offer XGS-PON and GPON access services.
Huawei SmartAX EA5800 series OLT products include four models: EA5800-X17, EA5800-X15, EA5800-X7, and EA5800-X2.
They support GPON, XG-PON, XGS-PON, GE, 10GE and other interfaces.
MA5800 series include three sizes of large, medium and small, namely MA5800-X17, MA5800-X7 and MA5800-X2, and support multiple networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP.
MA5800 multi-service access equipment is a 4K/8K/VR Ready OLT in the gigabit ultra-broadband era. It adopts a distributed architecture and supports a common platform of PON/10G PON/GE/10GE. MA5800 supports multi-media Gigabit convergence, best 4K/8K/VR video experience, multi-service virtualization common platform, and 50G PON smooth evolution.
