SKU 1600614831754 Categories ,
  • Model Number:Huawei CSHF
  • Type:OLT
  • Place of Origin:Guangdong
  • Brand Name:Huawei
  • Use:OLT
  • Warranty Time:1 year
  • Network:None
  • Applied to:MA5800 X17 X15 X7 X2
  • Port:16
  • Supply Ability
    500 Piece/Pieces per Week
  • Packaging Details

    cartons

  • Port

    CHANGSHA

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

Overview

Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. This board is used in MA5800 ,EA5800 Series OLT Equipment and works together with optical network unit to offer XGS-PON and GPON access services.

MA5800 series include three sizes of large, medium and small, namely MA5800-X17MA5800-X7 and MA5800-X2, and support multiple networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP.

MA5800 multi-service access equipment is a 4K/8K/VR Ready OLT in the gigabit ultra-broadband era. It adopts a distributed architecture and supports a common platform of PON/10G PON/GE/10GE. MA5800 supports multi-media Gigabit convergence, best 4K/8K/VR video experience, multi-service virtualization common platform, and 50G PON smooth evolution.

Specification

Dimensions (W x D x H): 23.3 mm x 257.90 mm x 399.20 mm

Power Consumption: Static: 51 W   Maximum: 99 W

Operating temperature: -40°C to +55°C



 Features

  • Support defense against system DoS (Denial of Service) attacks.
  • Support MAC address filtering function.
  • Support defense against ICMP/IP packet attacks.
  • Support source address routing filtering function.
  • Support blacklist function.
  • Support DHCP option82 to enhance the security of DHCP.
  • Support MAC address and port binding, support IP address and port binding.
  • Supports defense against MAC/IP spoofing attacks.
  • Support ONU/ONT SN (Serial Number)/Password authentication.
  • Support triple churing encryption.
  • GPON downstream adopts a method of encrypted broadcast transmission for different users, and supports AES (Advanced Encryption Standard) 128-bit encryption.
  • Support GPON Type B OLT dual-homing.
  • For dual-uplink networking, Smart Link and Monitor Link are supported.

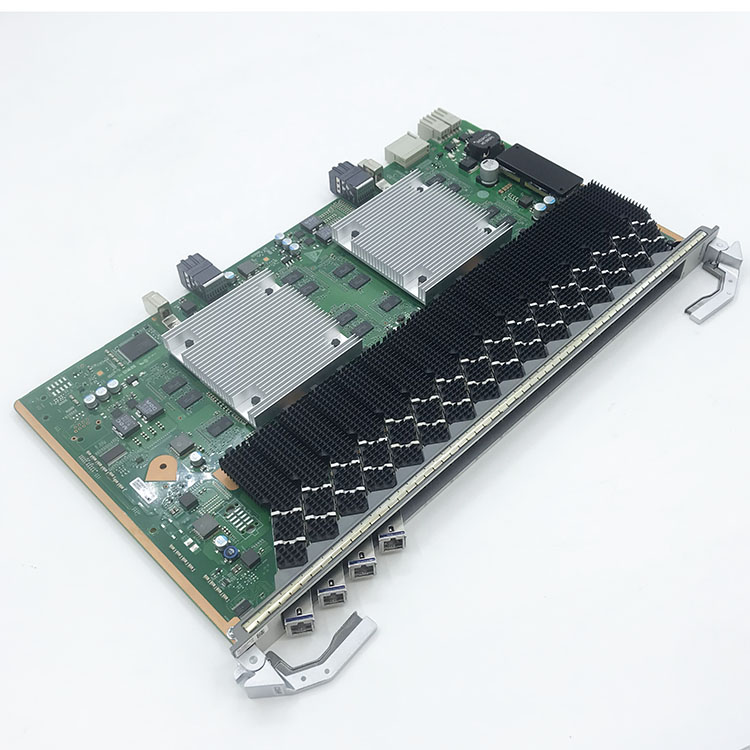

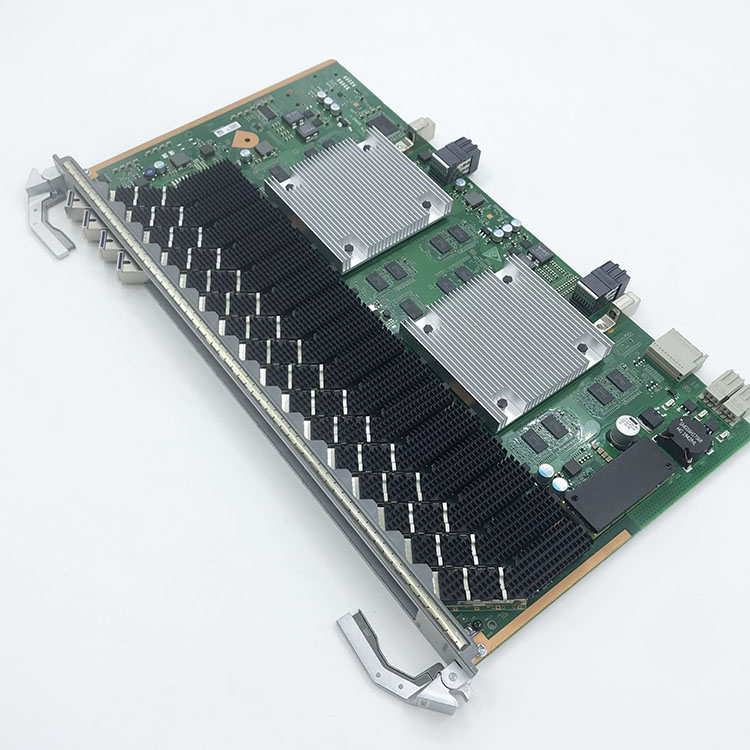

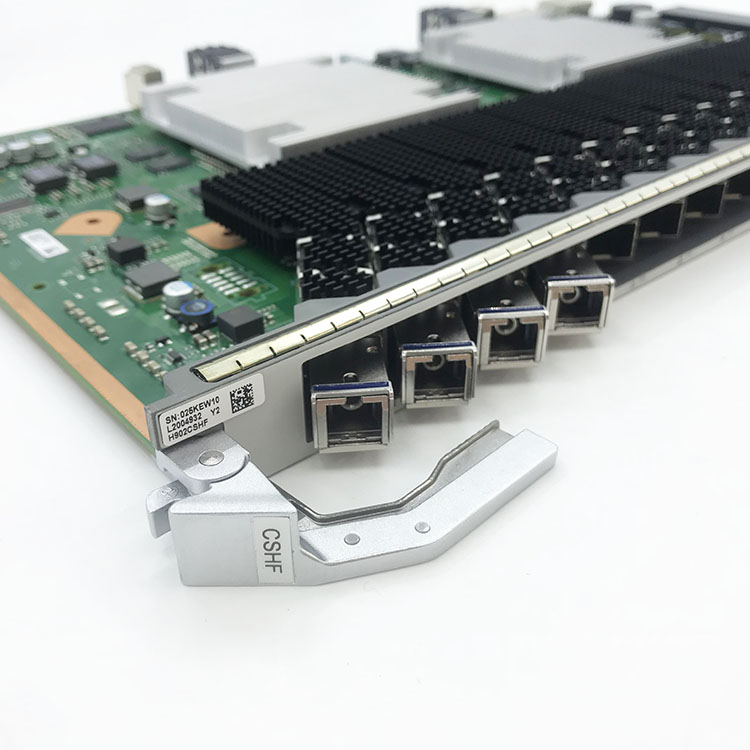

Product Pictures

Huawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface cardHuawei OLT MA5800 X7 H901CSHF H902CSHF CSHF 16-port XGS-PON&GPON Combo OLT Interface card

Specification

23.3 mm * 257.90 mm * 399.20 mm
