- Products Status:Stock
- Ports:16
- Transmission Rate:10/100/1000Mbps
- Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:56Gbps
- Model Number:TS8200-16P-2FM
- Place of Origin:Guangdong, China
- PoE Ports:16 Ports
- Uplink Ports:2GE SFP
- Management port:1*Console
- PoE Standard:IEEE802.3af /IEEE802.3at
- Whole Power:300W
- Input:100-240VAC 50/60HZ
- Max Power Per Port:30W
- Certification:CE FCC RoHS
- Operating temperature:0°– 55°C
- Dimensions (W x D x H):440X290X45mm( W*L*H)
-
- Supply Ability
- 5000 Piece/Pieces per Month
-
- Packaging Details
bubble box, carton
-
- Port
GUANGZHOU SHENZHEN
- Picture Example:
Product Description

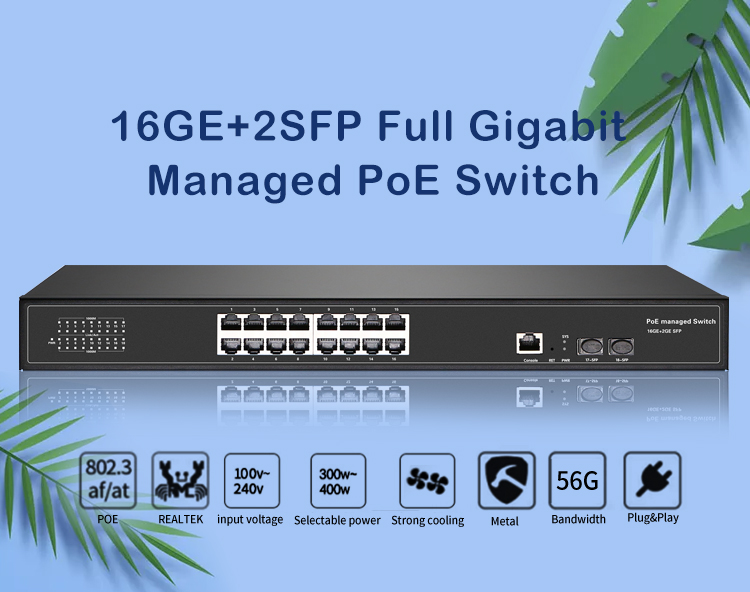

OEM/ODM L2 manageable PoE switch 16 ports Gigabit managed 48V ethernet fiber switch poe for CCTV camera
Specifications
|

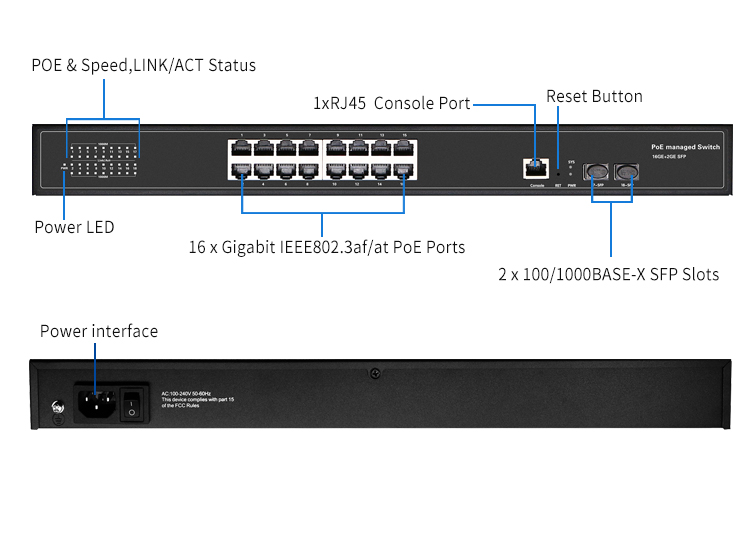

Hardware
|
|
|
Model
|
TS8200-16P-2FM
|
|
Port
|
16*10/100/1000M
|
|
2GE SFP
|
|
|
Management port
|
1*Console
|
|
Reset KEY
|
1
|
|
bandwidth
|
56Gbps
|
|
Packet forwarding
|
40.32Mpps
|
|
POE port
|
16
|
|
POE standards
|
IEEE802.3af/at max 30W/port
|
|
CPU
|
500MHZ
|
|
RAM
|
128M
|
|
MAC
|
8K
|
|
buffer
|
4.1M
|
|
FLASH
|
16M
|
|
transmission
|
Store and forward
|
|
Environmental
|
working temperature : 0℃~50℃
|
|
Storage temperature : -40℃~70℃
|
|
|
Operating humidity : 10%~90% Non coagulation
|
|
|
Storage humidity : 5%~95% Non coagulation
|
|
|
Product size
|
440(L)*290(W)*45(H)mm
|
|
Packing size
|
497(L)*393(W)*97(H)mm
|
|
Weight
|
5.0kg
|
|
Power in
|
AC 100~240V 50/60hz
|
|
Power
|
≤350W
|
|
WEB software function
|
|
|
standards
|
IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、EEE 802.1S |
|
MAC Address
|
8K MAC addresses ；MAC address learning and aging
|
|
VLAN
|
4k VLANS；Port-based VLANs；802.1Q VLAN
|
|
Spanning Tree
|
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol 802.1x argumentation agreement |
|
Link Aggregation
|
Max 8 aggregation groups, each supports 8 ports
Static aggregation and dynamic aggregation |
|
Port Mirror
|
Many-to-one port mirroring
|
|
Loop Guard
|
Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery
|
|
Isolation
|
Support downlink ports isolated from each other and communicate with upstream port
|
|
Port flow control
|
Half duplex based back pressure control
Full duplex based on PAUSE frames |
|
Line rate
|
Support port based input / output bandwidth management
|
|
IGMP Snooping
|
IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses |
|
DHCP
|
DHCP Snooping
|
|
Storm suppression
|
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering |
|
Security
|
User port+IP address+MAC
ACL based on IP and MAC Security properties of port based MAC address quantities |
|
QOS
|
802.1p port queue priority algorithm
Cos/Tos，QOS sign WRR (Weighted Round Robin)，Weighted priority rotation algorithm WRR、SP、WFQ，3 priority scheduling models |
|
Port
|
Auto-MDIX ; Auto negotiation
|
|
system maintenance
|
Upgrade package upload；system log view
WEB restore factory configuration |
|
PoE Management
|
Open or close port
Standard POE scheduling management A variety of timing reset function (recently upgraded) POE Automatic equipment on-line inspection |
|
Management and maintenance
|
WEB NMS
Remote configuration and maintenance using Telnet SNMP V1/V2/V3；SSH V1/V2 RMON |
