Overview
Essential details
Model Number:
EG8143A5
Type:
Dual Band WIFI Modem Router
Place of Origin:
Guangdong, China
Brand Name:
OEM
Use:
FTTH
Warranty Time:
1 year
Ports:
4GE 1USB 1Voice
Power supply:
12V 1.5A
Dimensions:
187*140*27mm
Router Weight:
218g
Firmware:
English Firmware
L2 forwarding capability:
Forwarding packets of any length at wire speed
Power Adapter:
EU, US, UK, AU
Cooling:
Passive cooling
Fiber interface:
SC/UPC
Wavelength:
Tx 1310nm, Rx 1490nm
Supply Ability
Supply Ability
25000 Piece/Pieces per Week
Packaging & delivery
Packaging Details

Packing with cartoon box for 2021 New EG8143A5 1GE+3FE+1TEL+1CATV RF+1USB+Antenna 5db WiFi ONU EG8247H5 Gpon Ont Ftth Catv Onu Wifi And Rf With Great Price

Port

shenzhen

Lead time:
Quantity(pieces) 1 – 10 11 – 100 101 – 500 >500
Lead time (days) 7 10 15 To be negotiated
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:446px}#detail_decorate_root .magic-3{overflow:hidden;width:446px;height:249.76px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-4{margin-top:-38.05866666666667px;margin-left:85.632px;width:292px;height:292px}#detail_decorate_root .magic-5{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-10{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{vertical-align:top}#detail_decorate_root .magic-13{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-14{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-15{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:183px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:504px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:504.4px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-21{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-22{margin-bottom:0}#detail_decorate_root .magic-23{position:relative;width:100%}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:755px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:755px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:838px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:838px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:677.9431664411367px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:677.9431664411367px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:562px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:562px}

Product Description
2021 New EG8143A5 1GE+3FE+1TEL+1CATV RF+1USB+Antenna 5db WiFi ONU EG8247H5 Gpon Ont Ftth Catv Onu Wifi And Rf With Great Price

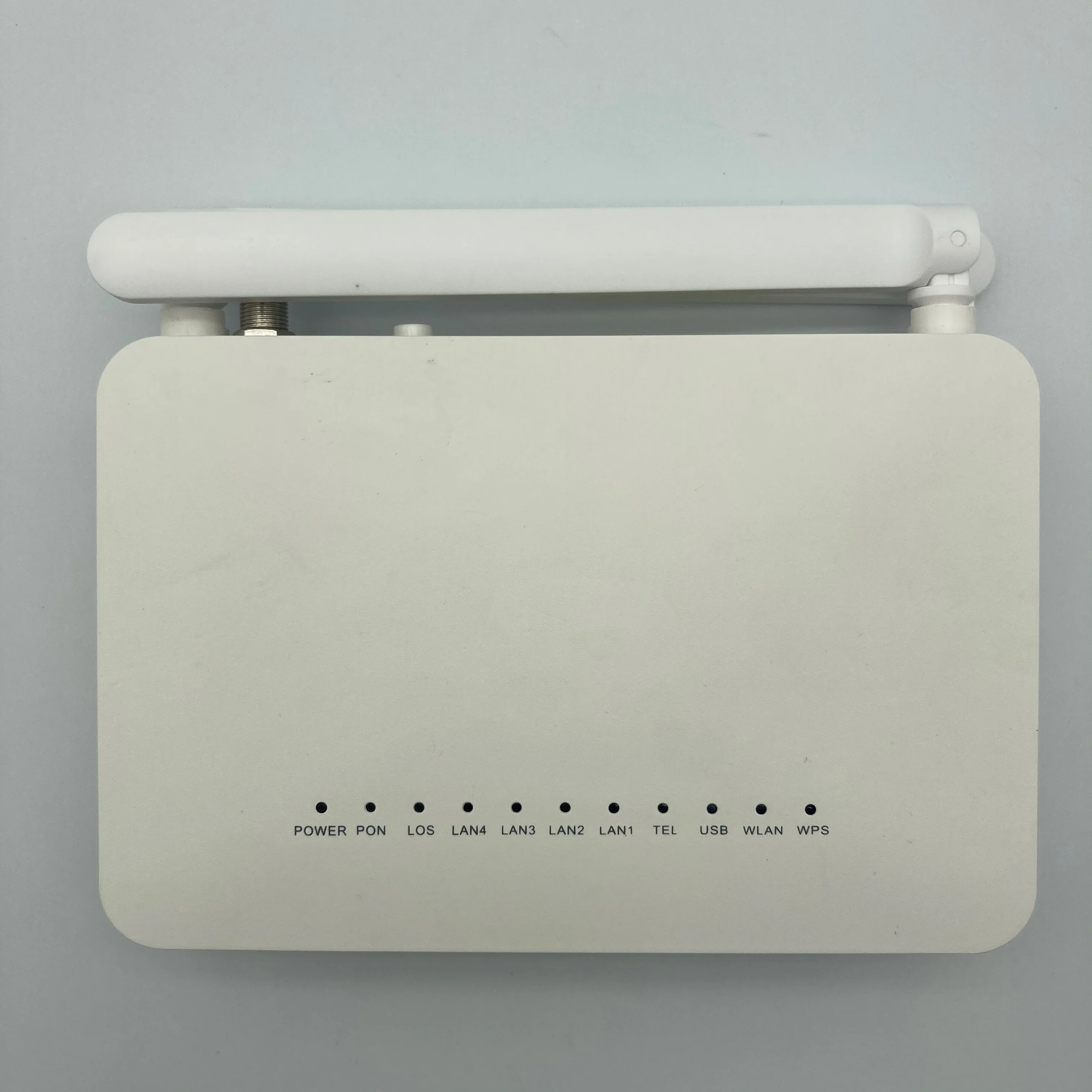

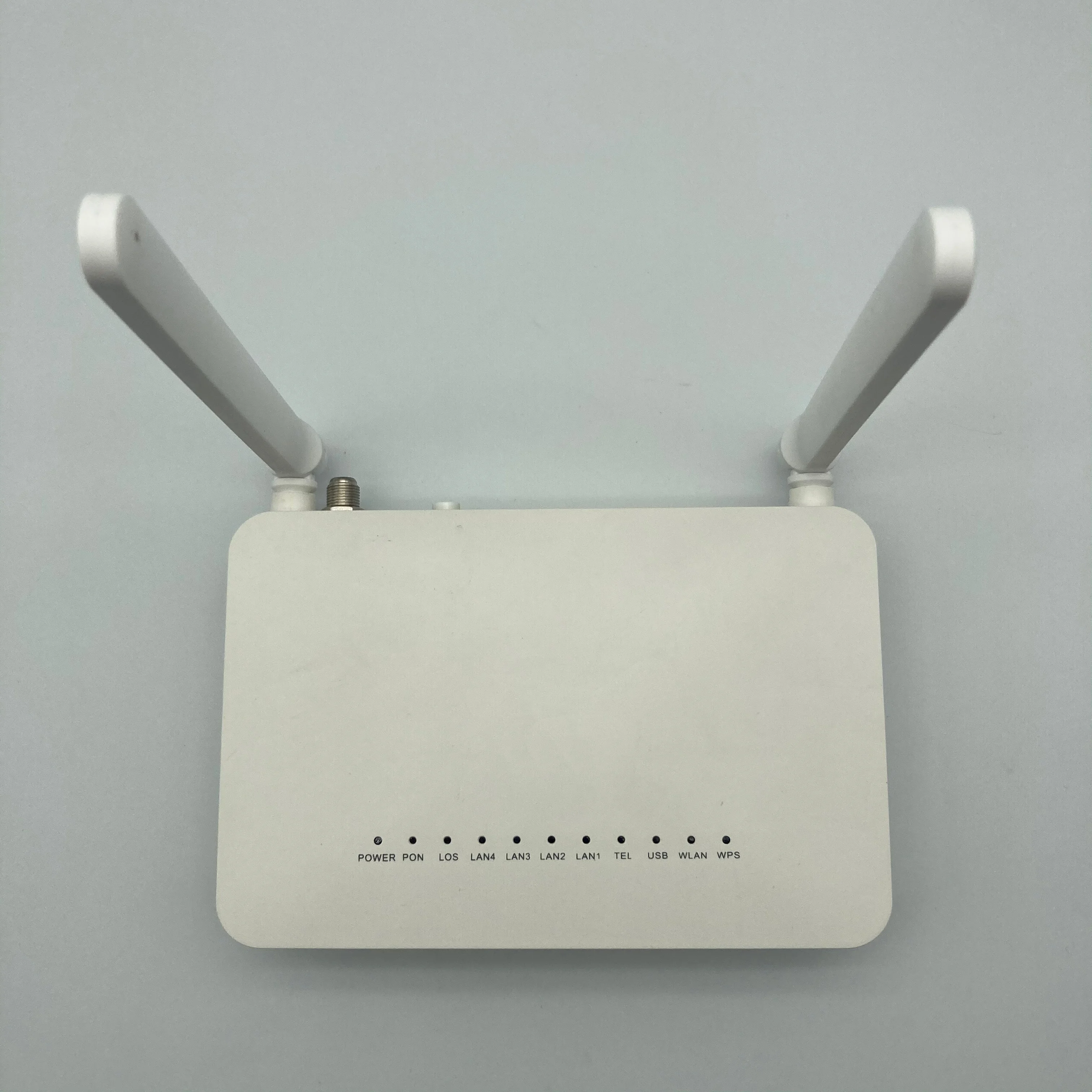

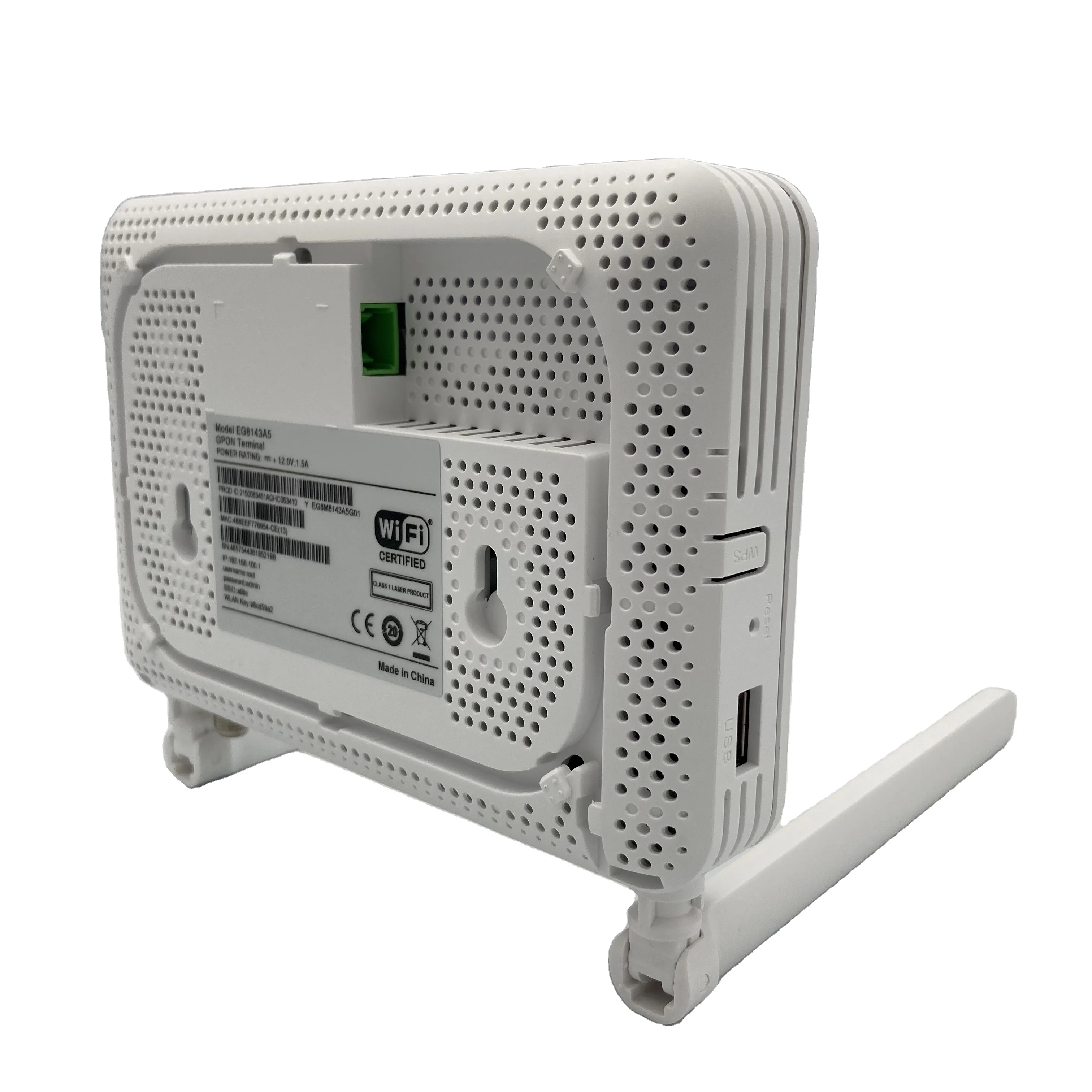

EG8143A5, an optical network terminal (ONT), is a high-end home fiber optic in FTTH solution. By using the GEPON technology,ultra-broadband access is provided for home and SOHO users. The F673 provides 1* POTS ports, 4* GE Ethernet ports, and 2.4G Wi-Fi. The F673 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the F673 provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.
Firmware version:
Specification
Model
EG8143A5 English Firmware
Dimensions (H x W x D)
175 mm * 115 mm * 34 mm
Weight
255g / 420g (Include Package)
Operating Temperature
0°C to 40°C
Operating Humidity
5% RH to 95% RH (non-condensing)
Power Adapter Input
100~240 V AC, 50/60 Hz
System Power Supply
11 V to 14 V DC, 1.5A
Ports

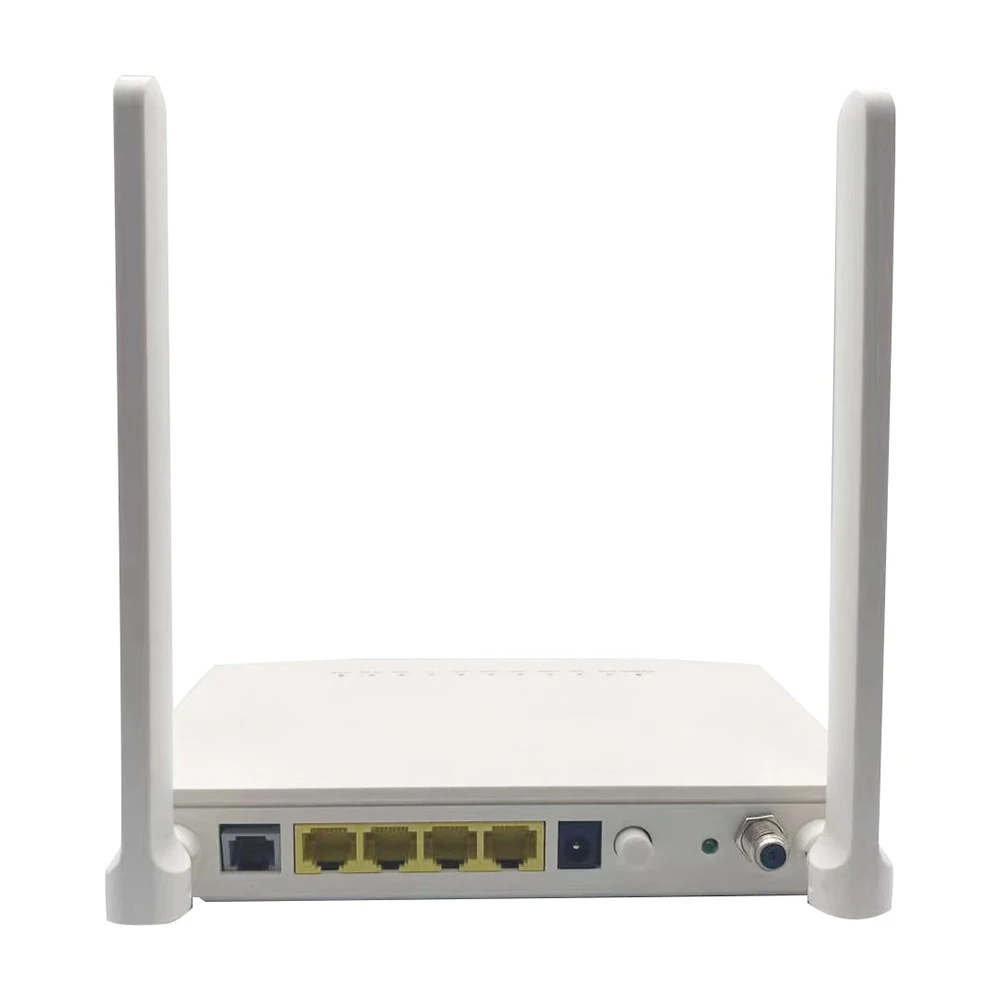

1*GE + 3*FE + 1*POTS + 2.4G WiFi + 1*CATV
Optical Connector
Connector: SC/APC
Class B+
Receiver sensitivity: –27 dBm
Overload optical power: –8 dBm
Type B single-homing
Type B dual-homing (supported in Layer 2 forwarding)
Indicators
POWER/PON/LOS/LAN1~LAN4/TEL/USB/WLAN/CATV
