- Model Number:GFCH
- Type:olt board
- Place of Origin:China
- Brand Name:ZTE
- Use:fttx
- Warranty Time:1 year
- Keywords:GFCH
-
- Supply Ability
- 50 Piece/Pieces per Month
-
- Packaging Details
Cartons
-
- Port
SHENZHEN
- Lead time:Quantity(pieces)1 – 100>100Lead time (days)15To be negotiated

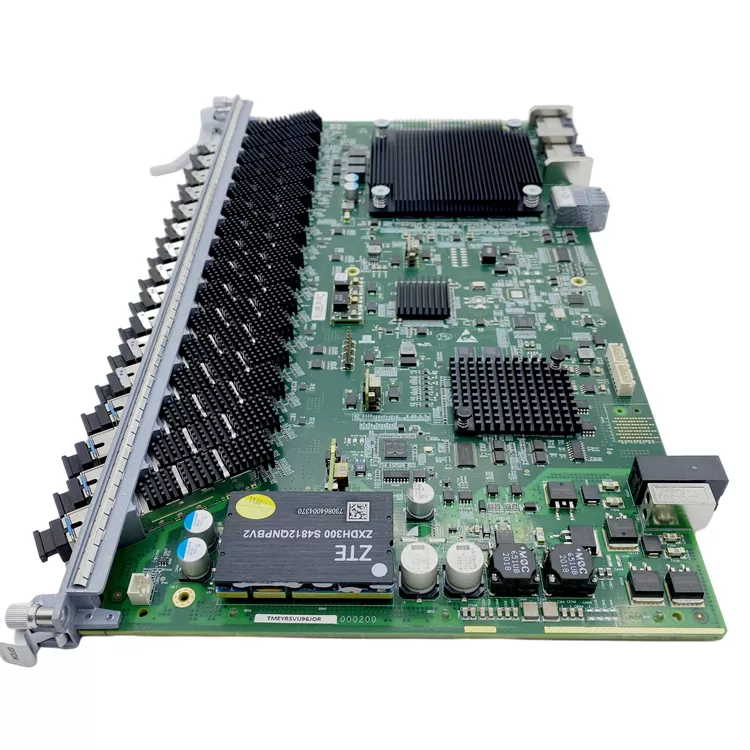

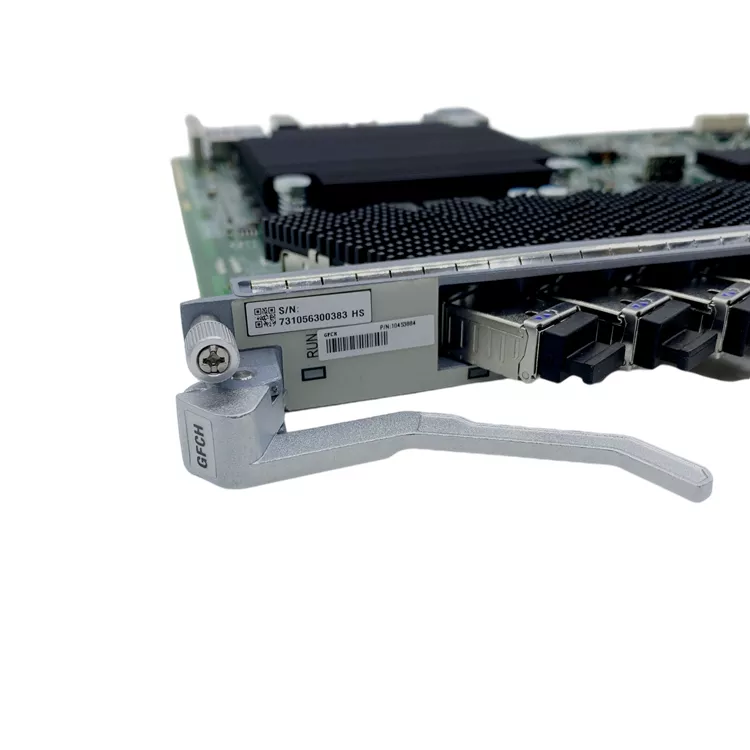

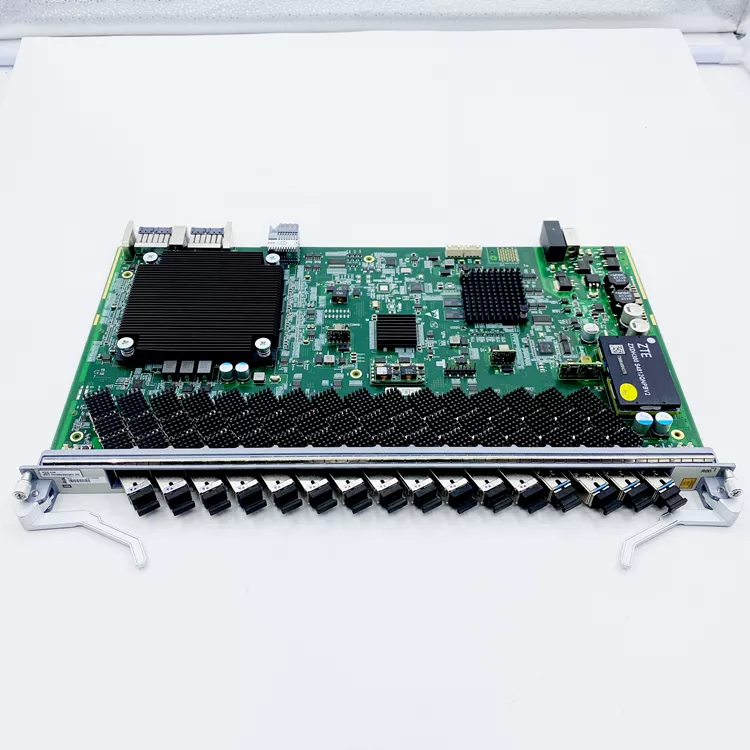

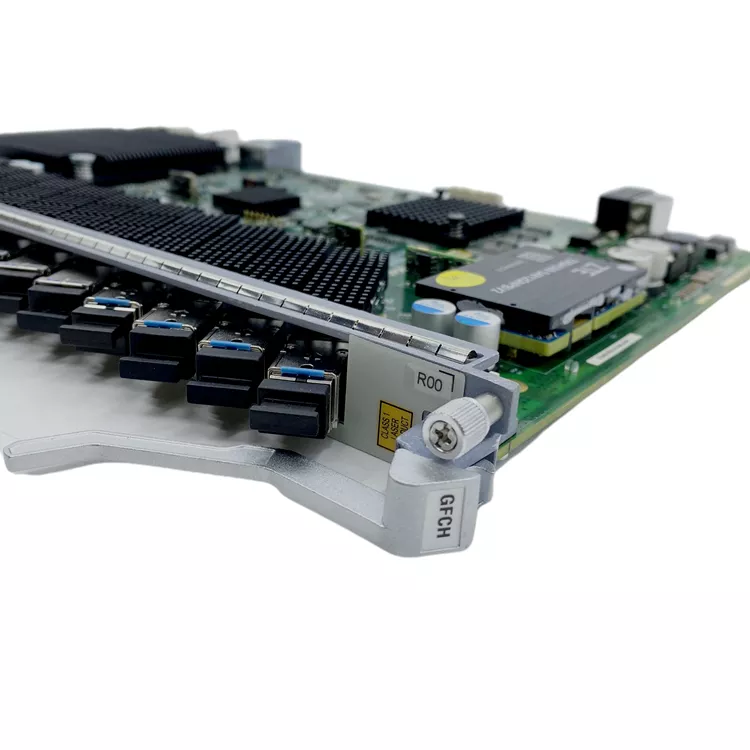

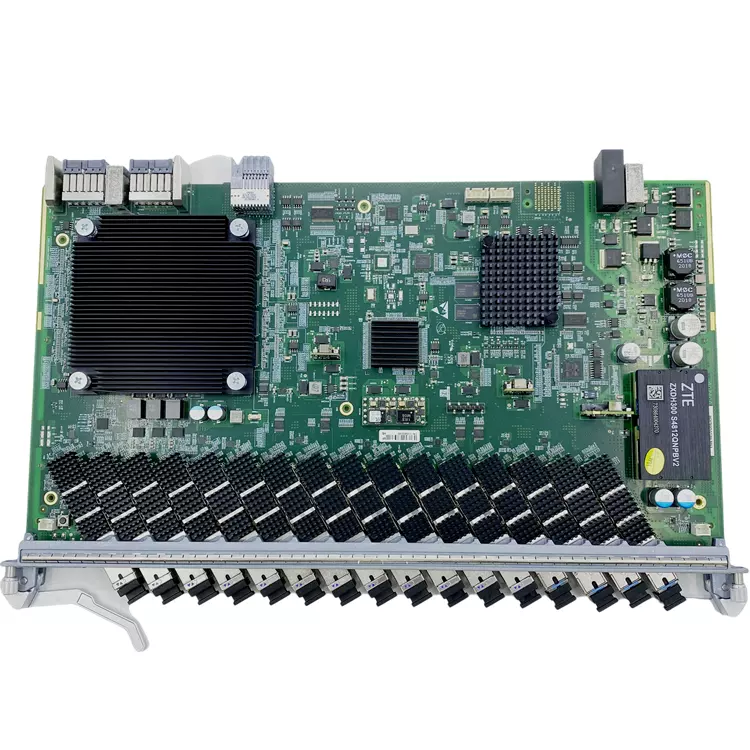

Product Description
Brand
|
ZTE
|
Model Name
|
GFCH
|
Port
|
16-port
|
Interface
|
XG-PON & GPON Combo
|
Function
|
XG-PON & GPON service access
|
Specification
|
XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
|
Management and control module
|
Configures, controls, and manages the card.
|
PONMAC module
|
Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T
G.987.3. |
NP module
|
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user
needs to meet the SLA requirements. The data processing function complies with TR156. |
Optical module
|
Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T
G.9807. |
Clock module
|
Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
|
Weight
|
1.72 kg
|
Dimensions (L x H x W)
|
393.1 mm × 23.9 mm × 214 mm
|
Huawei GPSF Service Board is 16-port GPON OLT interface board with C+ SFP module for Huawei MA5800 series. It works together with the optical network unit (ONU) to provide GPON access services.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas.
The MA5800 can help operators cope with the development of “broader, faster, smarter” Gigabit ultra-wide networks, satisfying users’ extreme business experience for 4K/8K/VR video; supporting future smart homes and all-optical campuses. At the same time, the MA5800 can implement multi-service unified bearer for home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO equipment rooms, and reduce operation and maintenance costs.
