SKU 1600673745001 Categories , Tag
  • Model Number:GTBO
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:ZTE
  • Use:FTTH FTTB FTTX Network
  • Warranty Time:1 year
  • Network:POE
  • Supply Ability10000 Piece/Pieces per Year
  • Packaging DetailsRetail Carton
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Product Description

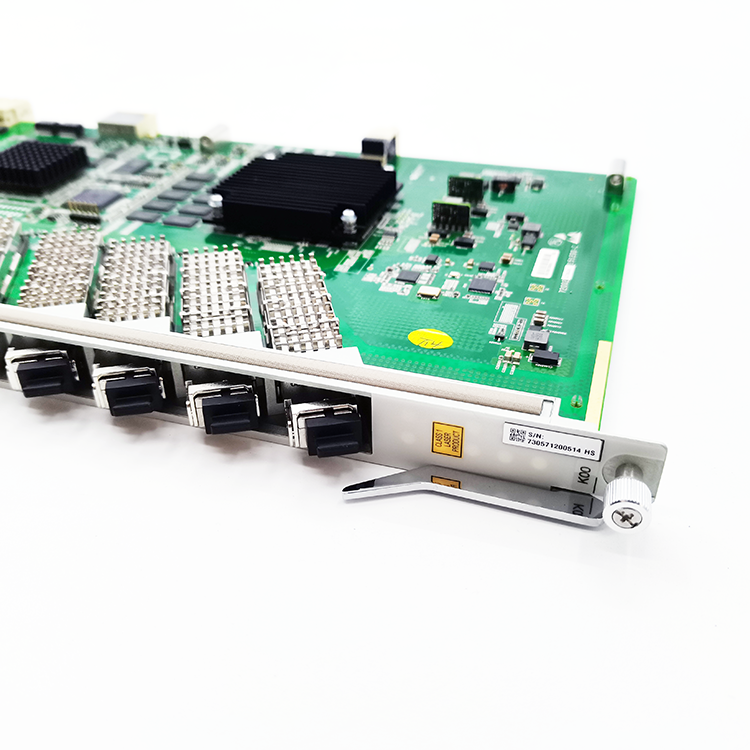

ZTE GTBO Service Board is an 8-Port XG-PON1 subscriber card designed to be used with ZXA10 C300 and ZXA10 C320.

Product Overview

ZTE GTBO Service Board is an 8-port XGPON OLT interface board, which cooperates with ONU to realize GPON access service for ZTE C320 C300. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port. ZTE ZXA10 C300 solution is very threatening to competitors in the global FTTP market. The new ZXA10 C300 platform is one of only a handful of FTTP OLT solutions that supports both standards-based GPON and EPON, not to mention point-to-point active Ethernet (AE) FTTP and 10G EPON. This gives ZTE a solid competitive advantage in terms of deployment flexibility vis-à-vis rival vendor OLTs, most of which will support only one or two of the various FTTP connectivity options.

Product Specifications

Brand ZTE
Item GTBO
Port 8
Type N1 Module: Single Fiber Bidirectional Optical Module N1
N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type SFP+
Port Rate Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2dBm
N2a Module: 4dBm
Maximum Output Optical Power N1 Module: 6dBm
N2a Module: 8dBm
Maximum Receiver Sensitivity N1 Module: -27.5dBm
N2a Module: -29.50dBm
Optical Connector Type SC/UPC
Optical Fiber Type Single-mode
Reach 20.00 km
Saturation optical power N1 Module: -7dBm
N2a Module: -9dBm
Extinction ratio 8.2dB
Weight 1.68kg
Dimensions (W x D x H) 393.1 mm(H) × 23.9 mm(W) × 214 mm(D)

ZTE GTBO Service Board and More Service Boards

GTGO 8 ports GPON board with 8 B+ modules.
GTGO 8 ports GPON board with 8 C+ modules.
GTGO 8 ports GPON board with 8 C++ modules.
GTGH 16 ports GPON board with 16 B+ modules.
GTGH 16 ports GPON board with 16 C+ modules.
GTGH 16 ports GPON board with 16 C++ modules.
GTTO 8 ports 10G GPON board with 8 10G GPON modules
GTXO 8 ports 10G GPON board with 8 10G GPON modules
ETGO 8 ports EPON board with 8 modules.
ETGH 16 ports EPON board with 16 modules
ETTO 8 ports 10G EPON board with 8 10G EPON modules

ZTE GTBO Service Board Product Features

  • Support ISSU and NSR
  • Support multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul.
  • Support CFM functions defined by 802.1ag.
  • Support Type-B/C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces.
  • Provide enriched equipment security, system security, network security and service security features
  • Provide redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane
  • Support 8 port XGS-PON/ XG-PON/Combo PON/10G-EPON cards, 8-port 10GE cards and 48-port GE P2P cards.
Specification

GTBO 8 port
