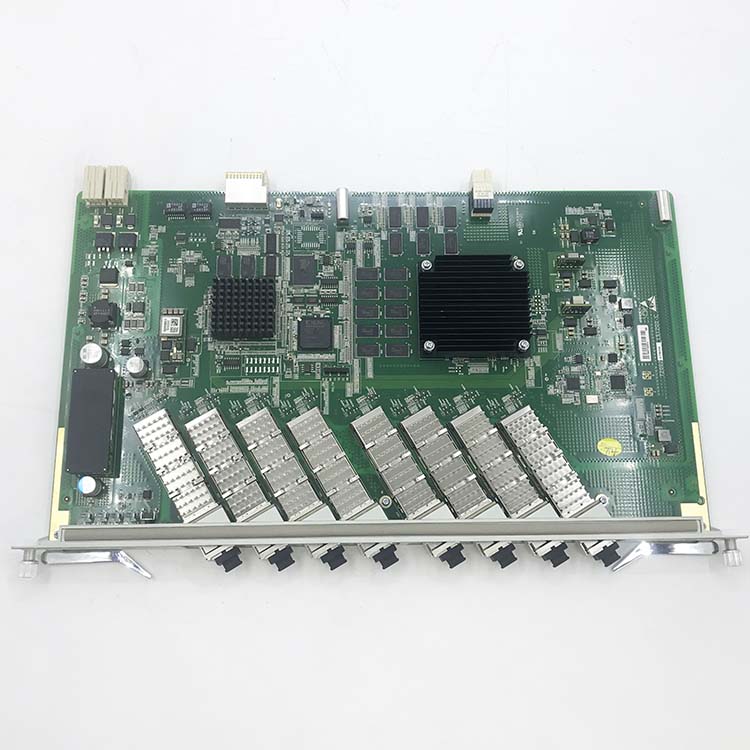

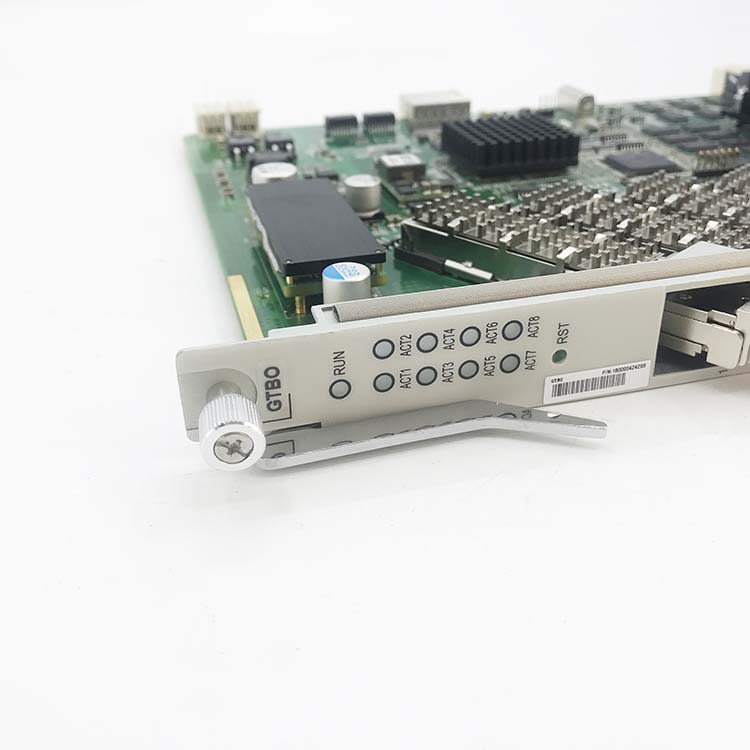

ZTE GTBO 8-port GPON/XG-PON optical interface board for ZTE C320 C300 OLT

Model Number:GTBO
Type:OLT
Place of Origin:Guangdong
Brand Name:ZTE
Use:FTTX
Warranty Time:1 year
Network:None
Supply Ability

500 Piece/Pieces per Week
Packaging Details

carton Package
Port

Shenzhen
Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated

Overview

ZTE GTBO Service Board is an 8-port XGPON OLT interface board, which cooperates with ONU to realize GPON access service for ZTE C320 C300. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port. ZTE ZXA10 C300 solution is very threatening to competitors in the global FTTP market. The new ZXA10 C300 platform is one of only a handful of FTTP OLT solutions that supports both standards-based GPON and EPON, not to mention point-to-point active Ethernet (AE) FTTP and 10G EPON. This gives ZTE a solid competitive advantage in terms of deployment flexibility vis-à-vis rival vendor OLTs, most of which will support only one or two of the various FTTP connectivity options.

Specifications

Brand	ZTE
Item	GTBO
Port	8
Type	N1 Module: Single Fiber Bidirectional Optical Module N1
N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength	Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power	N1 Module: 2dBm
N2a Module: 4dBm
Maximum Output Optical Power	N1 Module: 6dBm
N2a Module: 8dBm
Maximum Receiver Sensitivity	N1 Module: -27.5dBm
N2a Module: -29.50dBm
Optical Connector Type	SC/UPC
Optical Fiber Type	Single-mode
Reach	20.00 km
Saturation optical power	N1 Module: -7dBm
N2a Module: -9dBm
Extinction ratio	8.2dB
Weight	1.68kg
Dimensions (W x D x H)	393.1 mm(H) × 23.9 mm(W) × 214 mm(D)
