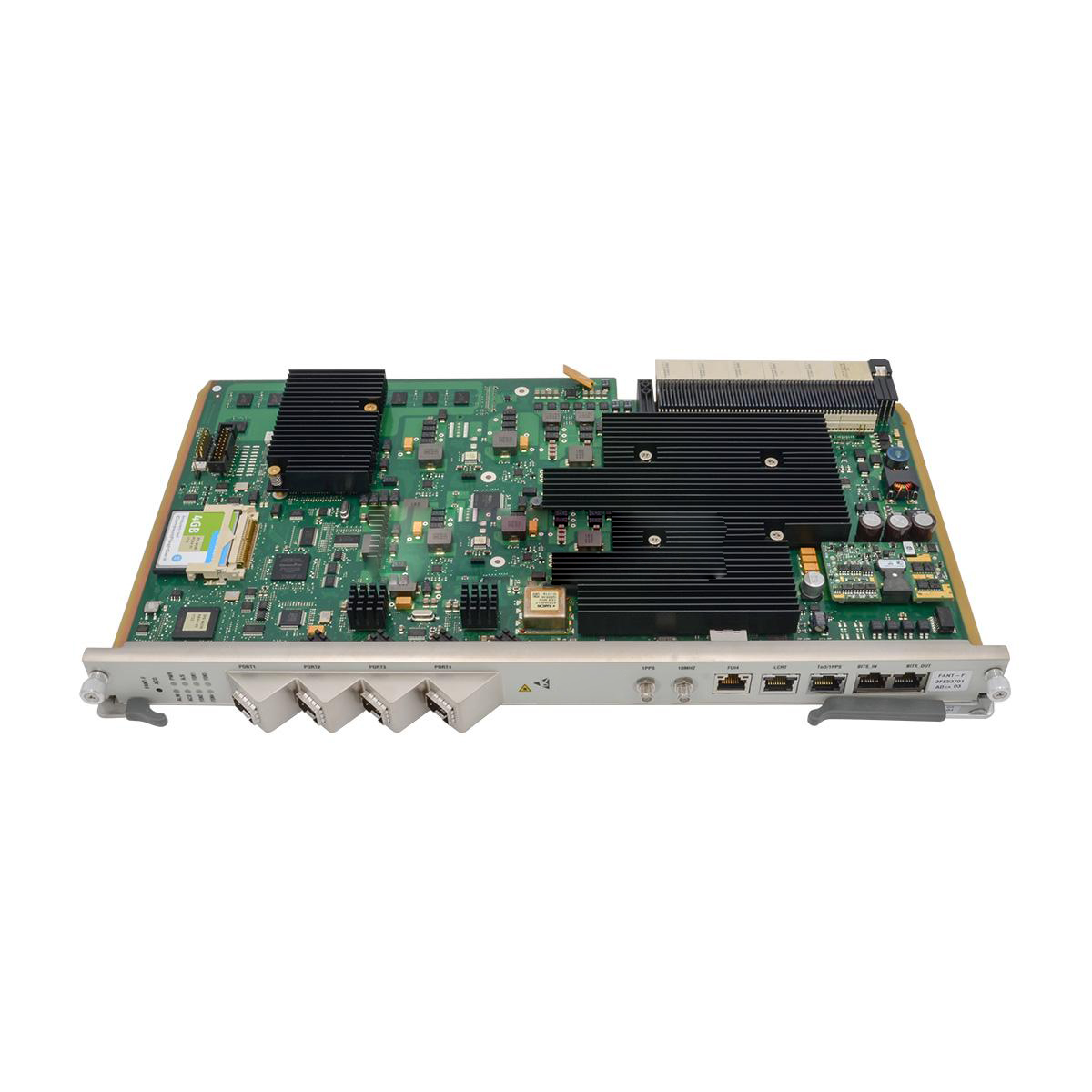

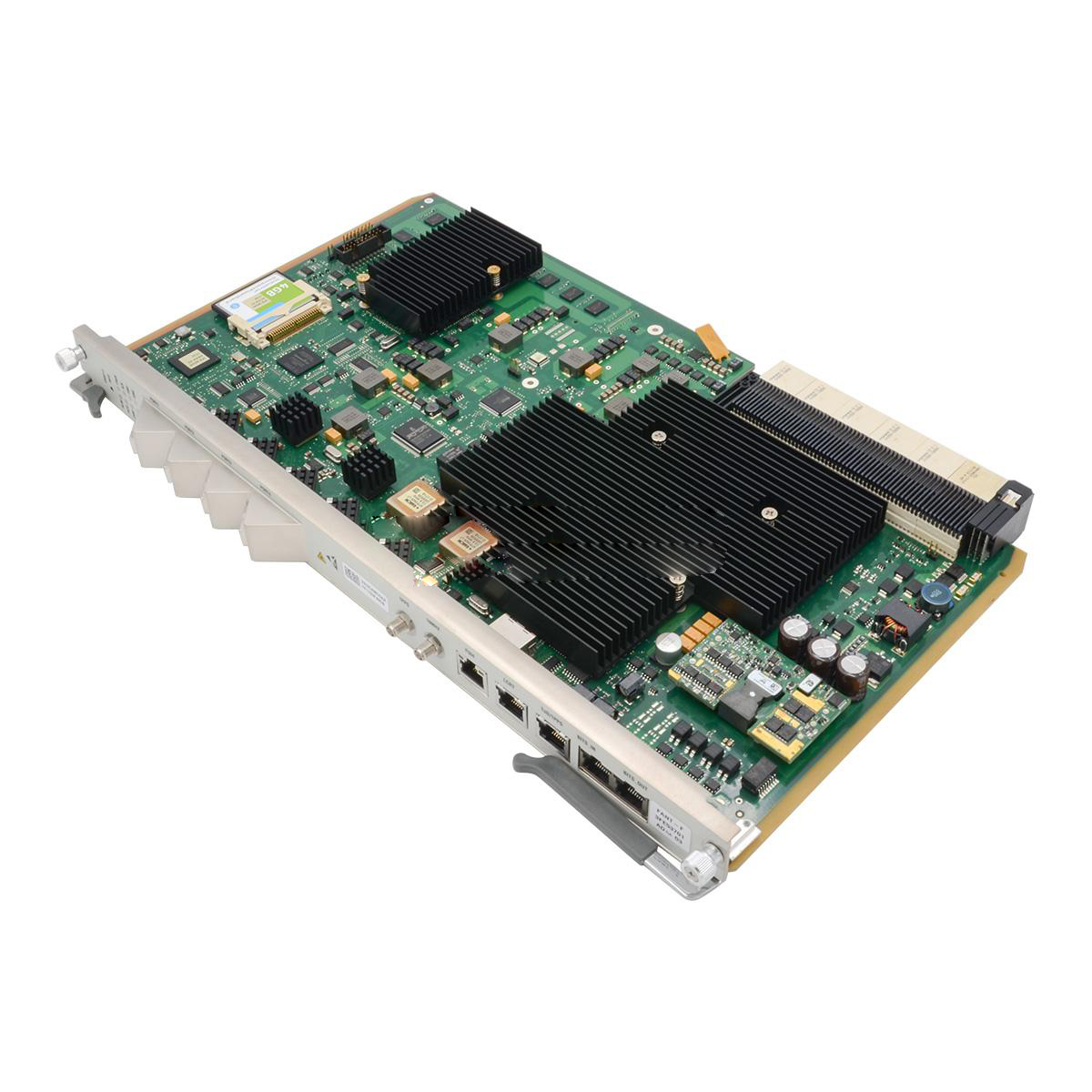

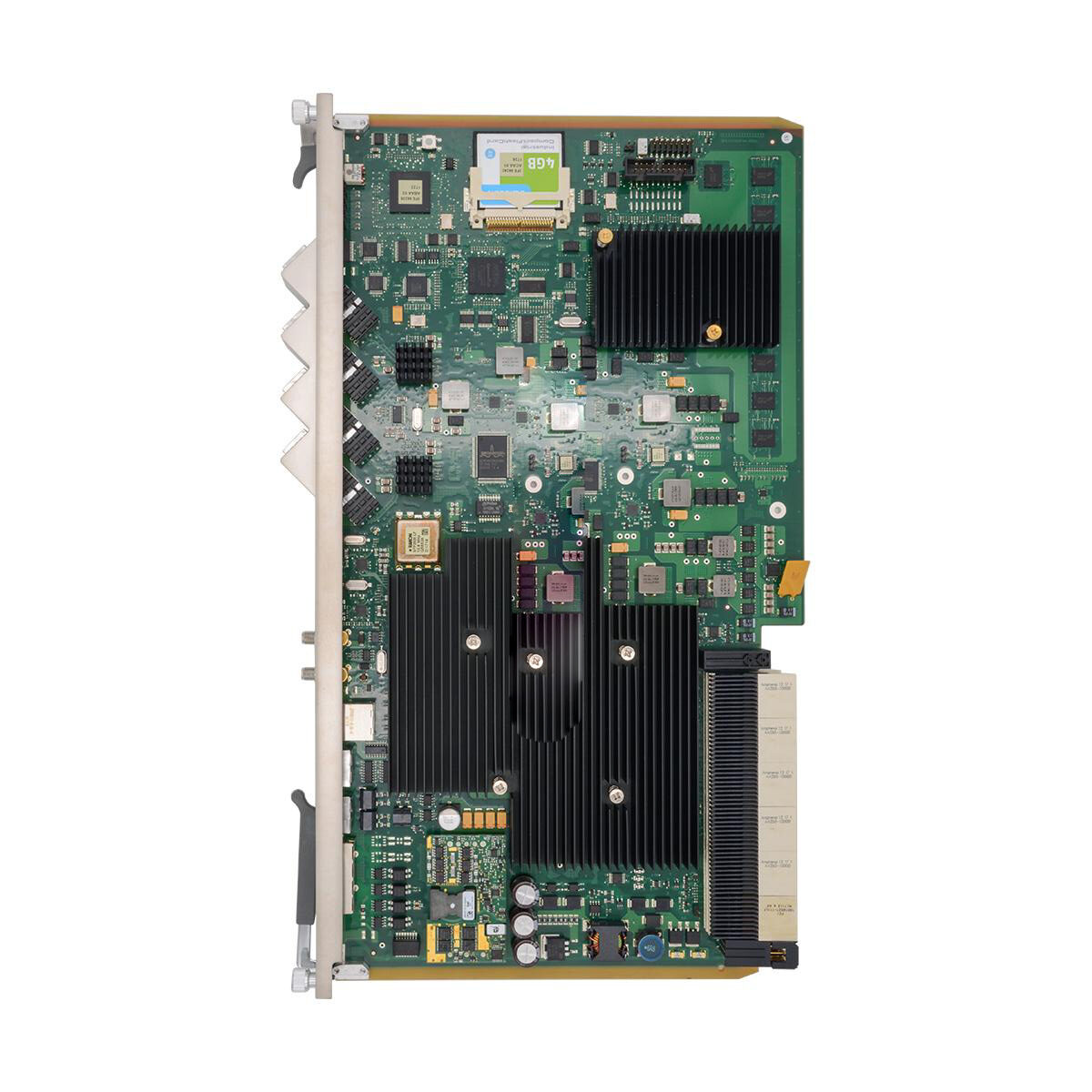

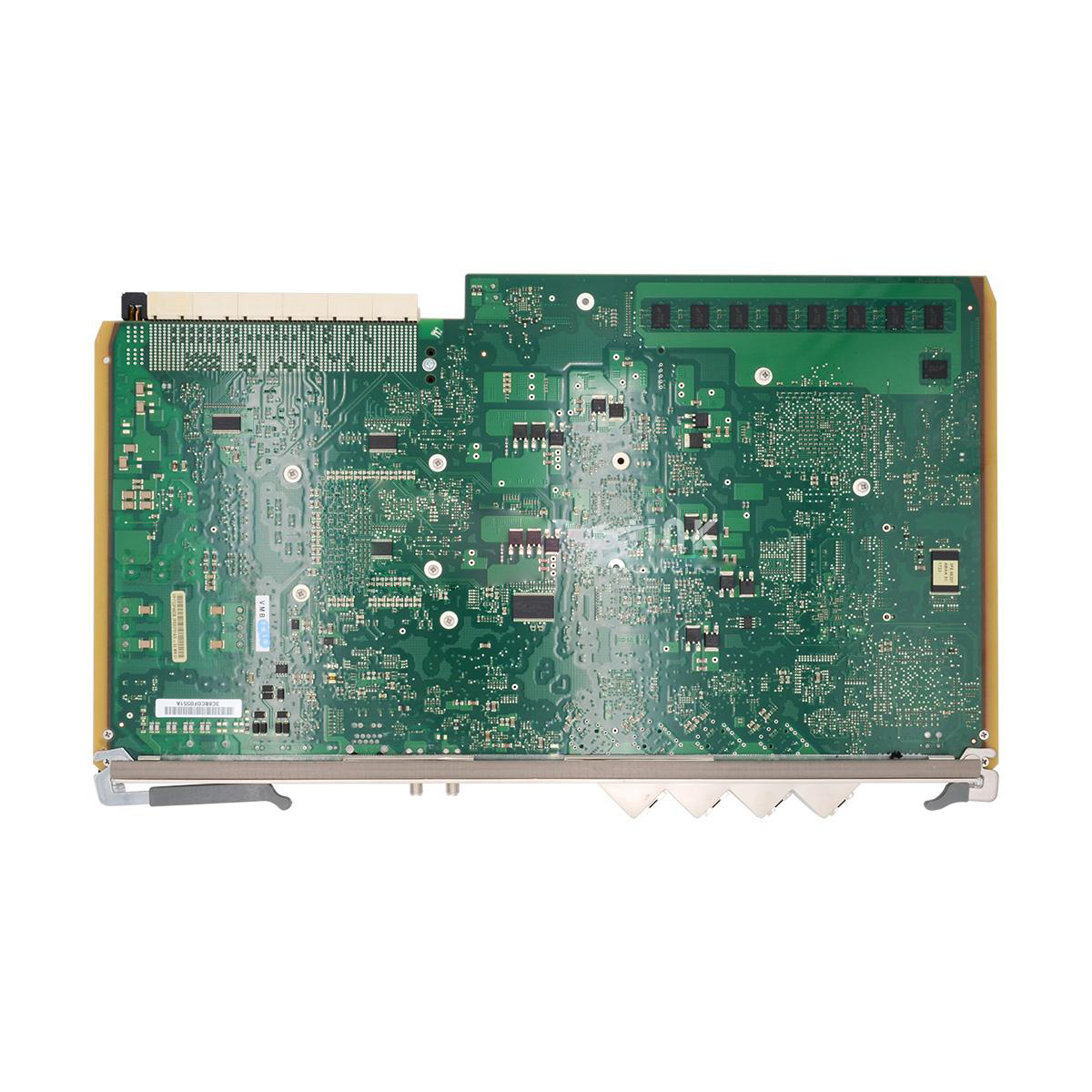

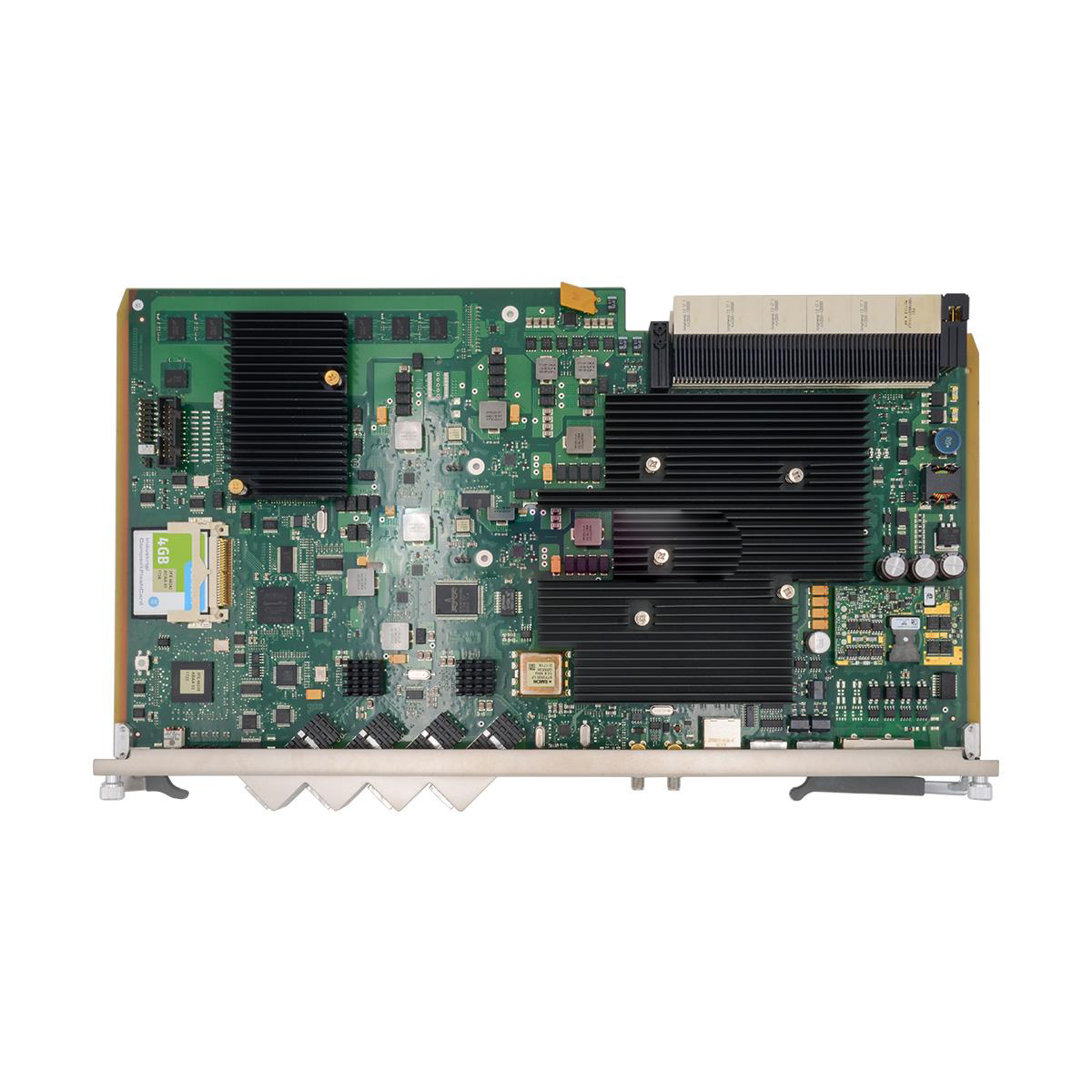

7360 ISAM Termination Board – Original FANT-F (ADAA) with Integrated IHub Subsystem
The FANT-F (ADAA) is a high-performance termination and fabric interface board designed for use in Nokia 7360 ISAM FX platforms. Featuring integrated IHub subsystem capabilities, it provides robust traffic management, switching, synchronization, and interconnect functions for distributed GPON, XGS-PON, and next-gen broadband deployments.
This unit delivers carrier-grade switching performance with 480 Gb/s bidirectional switching matrix, high-speed uplinks, and full support for active-active redundancy, ensuring resilience and scalability for large-scale fiber networks. It provides seamless interconnection across line card slots and integrates precise timing and synchronization interfaces for TDM or mobile backhaul services.
Tech Specs 7360 ISAM
| Specification | |
| Throughput | 480 Gb/s switching matrix (bidirectional) |
| Maximum number of MAC addresses (FDB) | 128 k |
| Maximum number of IP interfaces | 512 |
| ARP table size: IPv4 | 16K |
| ARP table size: IPv6 | 8K |
| Maximum number of IP routes: IPv4 | 16K |
| Maximum number of IP routes: IPv6 | 8K |
| Maximum number of ONTs | 16 k |
| Maximum number of UNIs | 16 k |
| External interfaces | 4-port optical 10 Gb/1 Gb interface
Optical and electrical connection through SFP and SFP+ standards 1-port electrical 10/100/1000Base-T (RJ-45 connector) 2-port BITS interface: only on BITS variant; 1 port in, 1 port out, using ITU-T G.703 (ANSI interfaces available on a separate generic flow control [GFC] unit) |
| Device Specifications | |
| Weight | 2kg |
| Dimensions (W x D x H) | 405 mm x 225mm x 30 mm |

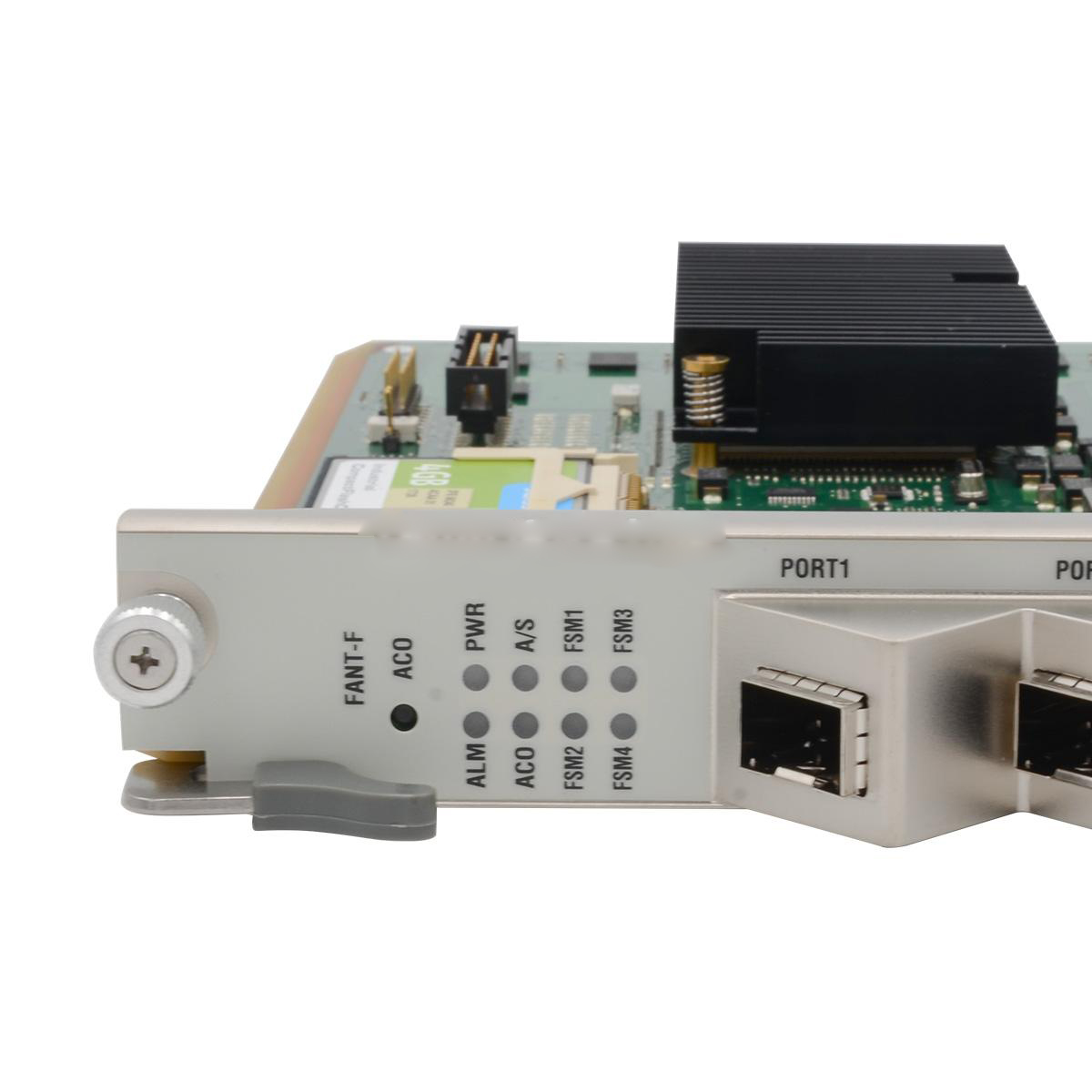

🔧 Front Panel Interfaces 7360 ISAM
| Interface Type | Description |
|---|---|
| 1 x RJ-45 Port | 10/100/1000Base-T Ethernet (fixed) |
| 4 x Optical Uplink Ports | 10GE/GE SFP+ (fiber) |
| LCMI (RJ-45) | Local Craft Management Interface |
| ToD/1PPS (RJ-45) | Time of Day & 1 Pulse Per Second (synchronization) |
| 1PPS (SMA) | 1 Pulse Per Second (high-precision timing) |
| 10 MHz GPS (SMA) | External GPS clock input for synchronization |
📦 Key Technical Specifications
| Feature | Details |
|---|---|
| Switching Capacity | 480 Gb/s bidirectional switching matrix |
| Redundancy | Supports active-active redundancy for high availability |
| Uplink Ports | 4 x 10GE/GE optical (SFP+/SFP), 1 x 1GE RJ-45 fixed |
| Synchronization Support | 10 MHz GPS, 1PPS, ToD inputs (RJ-45 & SMA) |
| Line Card Interconnect (FX-4/8) | Up to 40 Gb/s per slot |
| Line Card Interconnect (FX-16) | Up to 20 Gb/s per slot |
| Platform Compatibility | Fully compatible with Nokia 7360 ISAM FX series chassis |
| IHub Integration | Integrated IHub subsystem for intelligent traffic distribution |
| Management Interfaces | LCMI and external synchronization inputs |
| Form Factor | Slot-based board for ISAM chassis |
✅ Key Features
-
High-Capacity Fabric: 480 Gb/s non-blocking switching matrix for rapid packet processing
-
Integrated IHub: Manages traffic aggregation and distribution intelligently
-
Advanced Timing Support: Synchronization interfaces for TDM, mobile backhaul, or time-sensitive traffic
-
Flexible Uplinks: Supports mixed copper and fiber interfaces (RJ-45 and SFP+)
-
Redundancy Built-In: Active-active redundancy for mission-critical applications
-
Platform Scalability: Supports a variety of ISAM FX configurations (FX-4, FX-8, FX-16)
-
Optimized for PON Access: Ideal for GPON, XGS-PON, and combo PON networks
-
High-Density Interconnects: Full-speed backplane links to all service line card slots
📂 Applications
-
Central Office (CO) Fiber Aggregation Nodes
-
Carrier-Grade FTTH Access Networks
-
Mobile Backhaul with GPS Sync
-
XGS-PON & Combo PON OLT Architectures
-
High-Density Gigabit Services with Full Redundancy
-
Interfacing to Core and Metro Ethernet via 10GE
