- Model Number:MPWD
- Type:power board
- Place of Origin:China
- Brand Name:huawei
- Use:fttx
- Warranty Time:1 year
- Keywords:MPWD
-
- Supply Ability
- 500 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)15To be negotiated
Product Description
Brand
|
Huawei
|
Model
|
MPWD
|
Port & Function
|

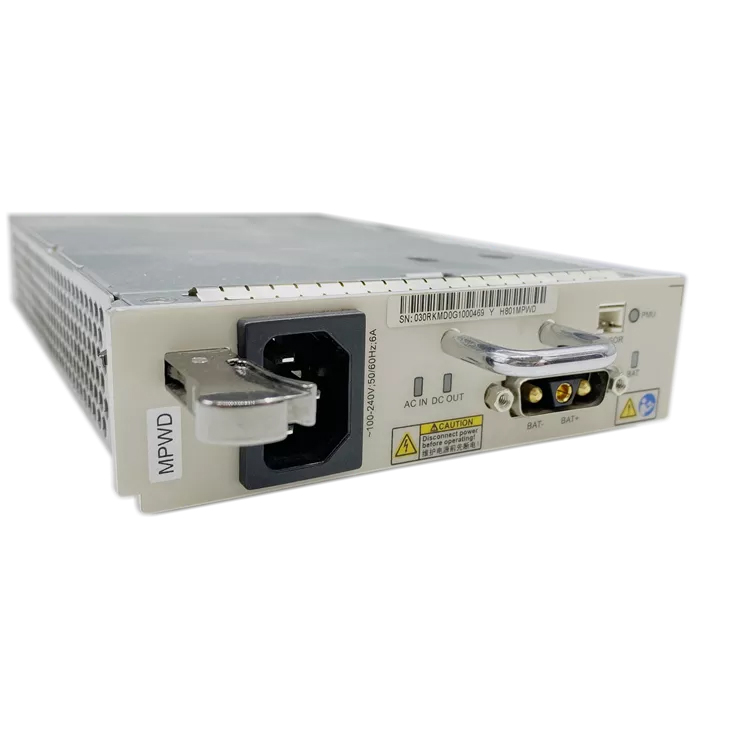

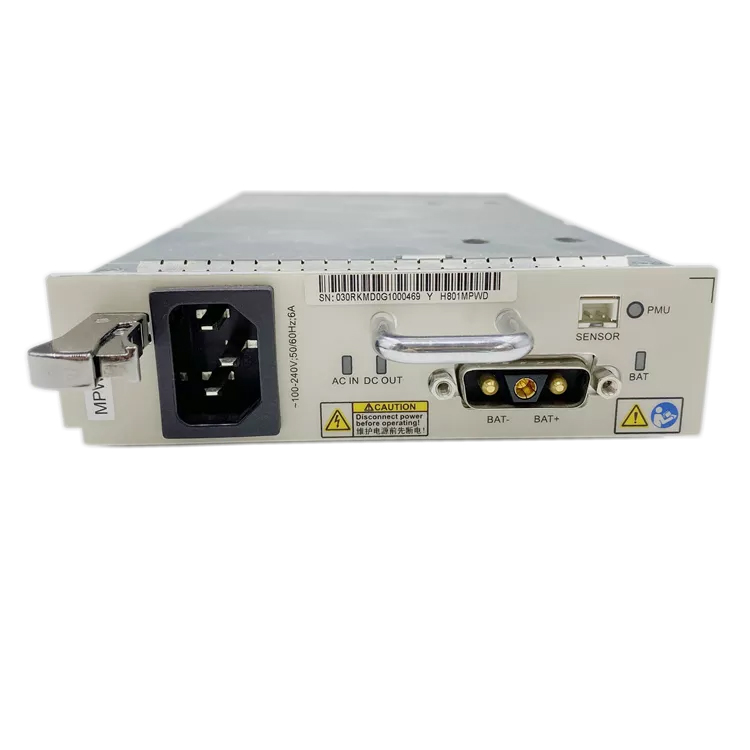

AC input port:
|
Connected to the power socket and used for AC power input
|
|
Battery input port:
|
|
Connected through a 3V3 connector and used for battery input
|
|
Port for battery temperature sensor:
|
|
Connected to the temperature sensor
|
|
Connection
|
Cable requirements: low-smoke halogen-free; brown for L wire; blue for N wire; yellow green for PE wire
|
Power Consumption
|
Static: 2 W
|
Maximum transfer efficiency: 93%(220 V, 100% load, 25°C)
|
|
Dimensions (mm)
|
35.56 mm x 251.70 mm x 132.10 mm
|
Huawei MPWD Power Module offers overcurrent protection, output overvoltage protection, short circuit protection, and over-temperature protection. And monitoring unit provides comprehensive management for the power system and storage battery and also provides certain environment monitoring functions.
The SmartAX MA5680T series includes the high-capacity SmartAX MA5680T, medium-capacity SmartAX MA5683T, and MINI-type SmartAX MA5608T. The hardware and software of the three specifications are fully compatible, saving network stocking costs. Among the three specifications, the SmartAX MA5680T with large capacity can provide 16 service slots, and the medium-capacity SmartAX MA5683T can provide 2 service slots, and MINI-type SmartAX MA5608T can provide 2 service slots.
The SmartAX MA5680T series includes the high-capacity SmartAX MA5680T, medium-capacity SmartAX MA5683T, and MINI-type SmartAX MA5608T. The hardware and software of the three specifications are fully compatible, saving network stocking costs. Among the three specifications, the SmartAX MA5680T with large capacity can provide 16 service slots, and the medium-capacity SmartAX MA5683T can provide 2 service slots, and MINI-type SmartAX MA5608T can provide 2 service slots.
Packing&Shipping
