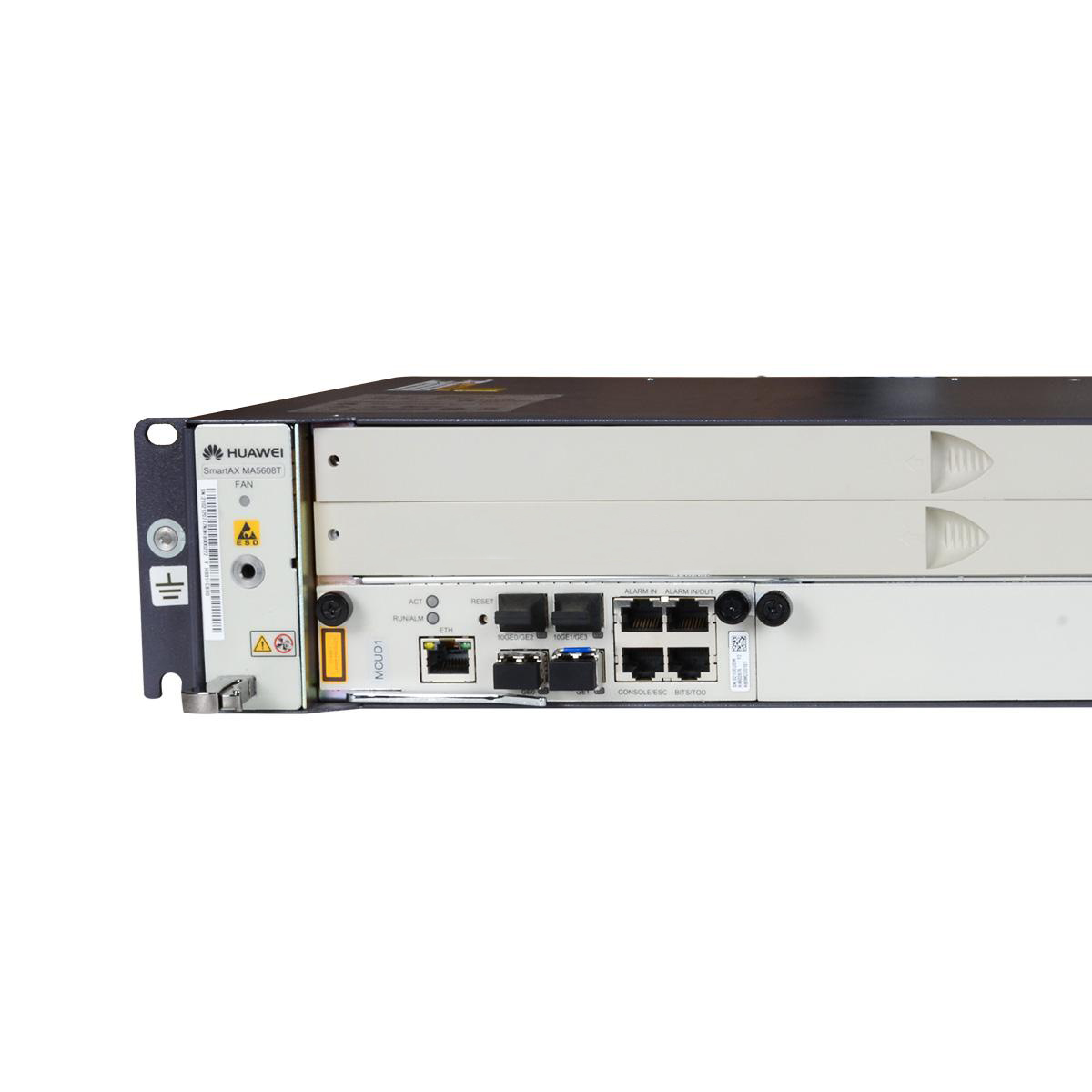

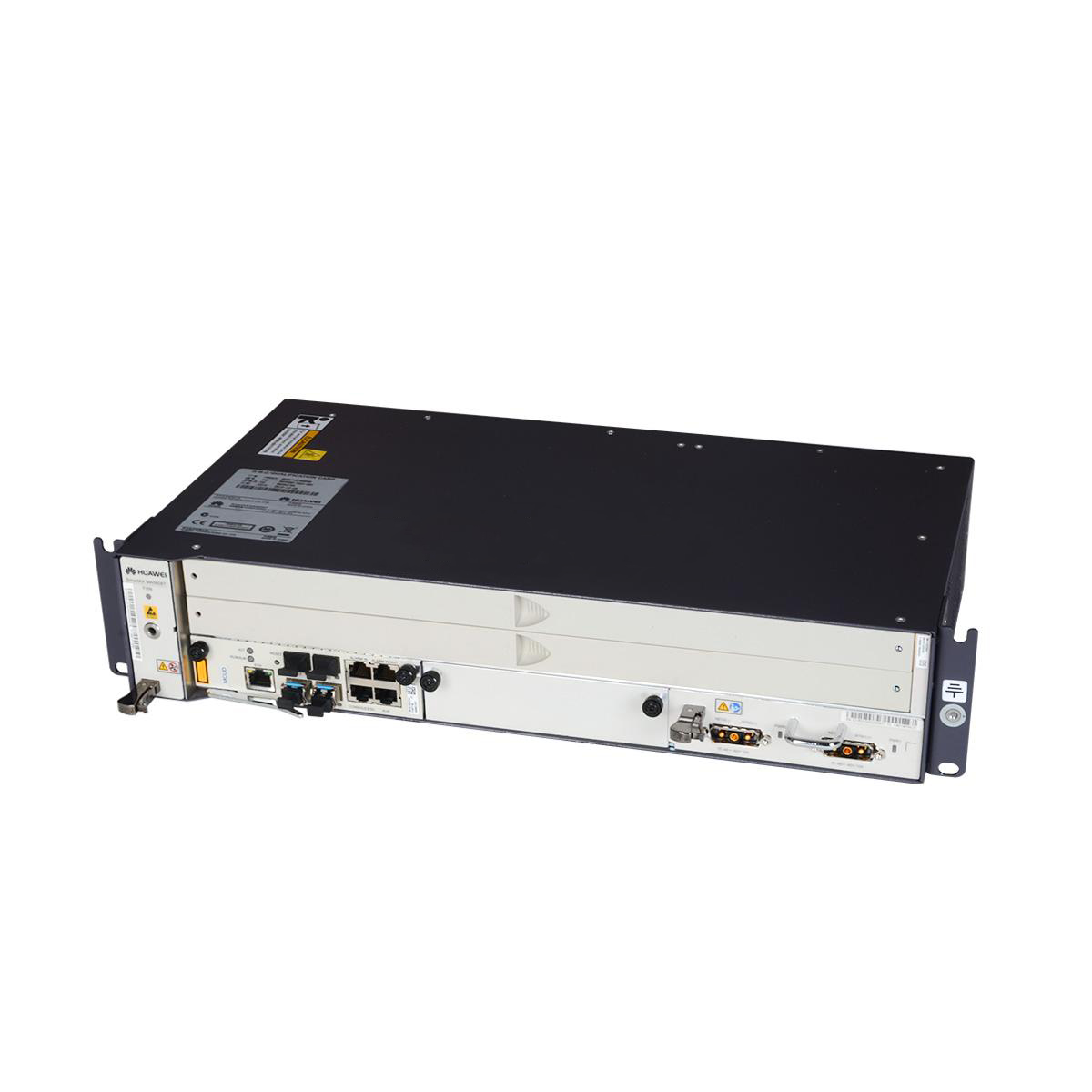

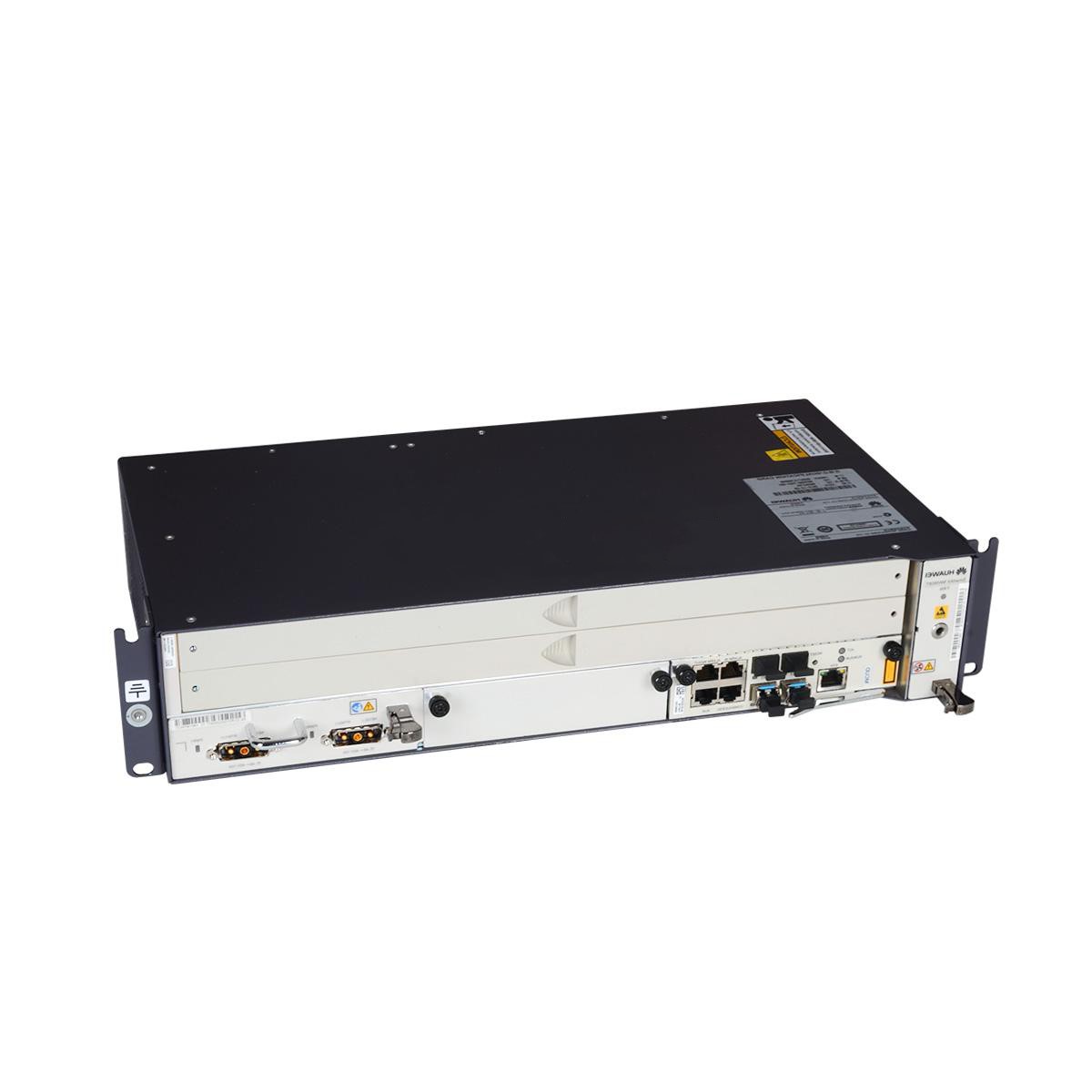

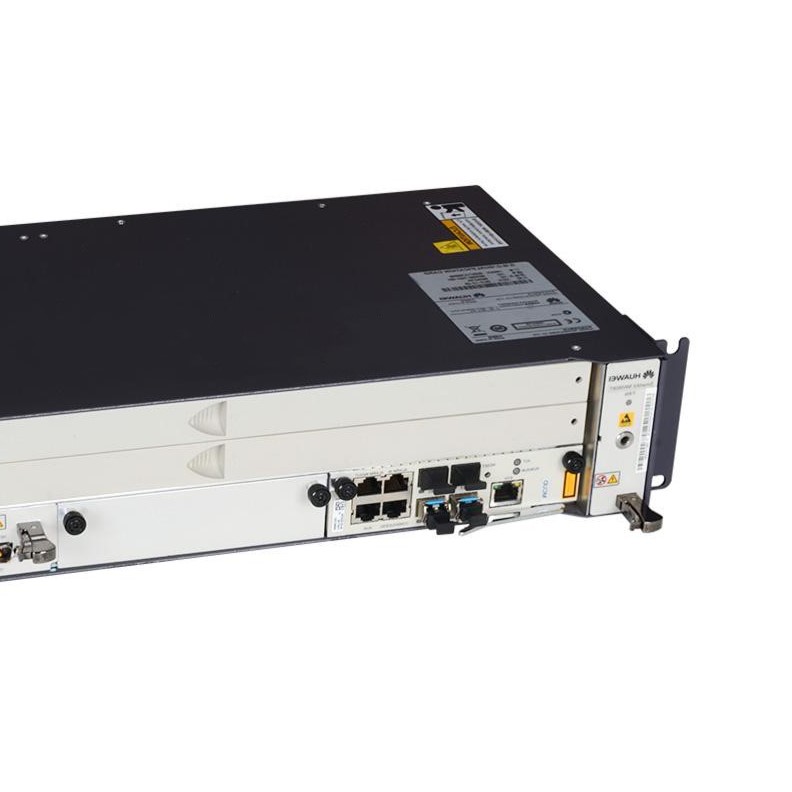

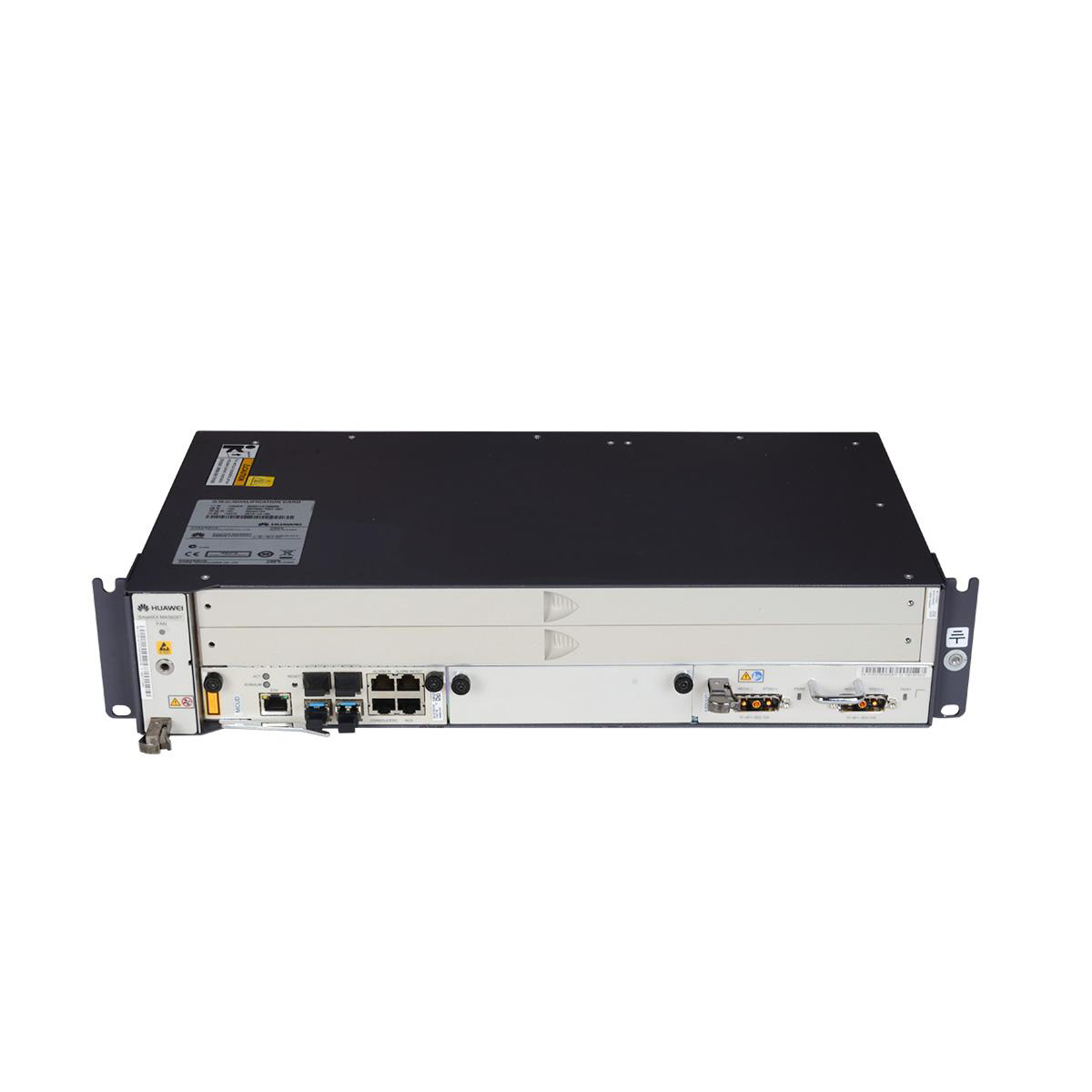

Huawei MA5608T Chassis – Branded GPON OLT Frame with 2× MCUD GE Control Boards | Redundant Control, Carrier-Grade Platform
Product Overview
The Huawei MA5608T Chassis with 2× MCUD GE Control Boards is a redundant, compact Optical Line Terminal (OLT) designed for next-generation fiber access networks. With dual MCUD GE Main Control Boards installed, this configuration offers enhanced system stability, failover protection, and balanced processing, making it ideal for FTTH, FTTB, and mission-critical ISP deployments.
Compact yet powerful, the MA5608T supports modular GPON/Combo PON/XG-PON service cards, dual DC power slots, and advanced Layer 2/3 networking features, all in a 1U rack-mountable chassis.
Huawei MA5608T Chassis Board Key Components
| Component | Specification |
|---|---|
| Chassis Model | Huawei MA5608T (Branded, Compact OLT Frame) |
| Control Boards | 2 × MCUD GE Main Control Boards (Supports GE Uplink, Redundancy) |
| Service Slots | 2 × Slots (Compatible with GPON, Combo PON, or XG-PON) |
| Power Slots | 2 × DC -48V Power Module Slots (Modules sold separately) |
| Rack Compatibility | 19” Rack Mountable, 1U Height |
| Status | Brand New, Huawei Original, Factory Sealed |
Huawei MA5608T Chassis Board Highlights
-
✅ 2 × GE Combo Uplink Ports (RJ45 or SFP Optical)
-
✅ Layer 2/3 Switching, Routing, QoS, and Multicast
-
✅ CLI, SNMP, Web GUI, and OMCI Management Support
-
✅ Dual Control Redundancy for Failover & Load Sharing
-
✅ Supports ONU Management, OAM, VLANs, and PPPoE
Huawei MA5608T Chassis Board Technical Specifications
| Parameter | Details |
|---|---|
| Switching Capacity | Up to 480 Gbps |
| Forwarding Performance | 192 Mpps |
| Uplink Ports (Total) | 4 × GE Combo Ports (2 per MCUD) |
| Redundancy Support | Yes – Dual MCUD Active/Standby Configuration |
| Operating Temperature | -40°C to +65°C |
| Power Input | -48V DC (Dual Power Feed Capable) |
| Form Factor | 1U Rack-Mount (Compact Chassis) |
| Dimensions (W×D×H) | 442mm × 220mm × 43.6mm |
| Weight | Approx. 5–6 kg (with both MCUDs installed) |
| Compliance | CE, RoHS, ITU-T G.984/G.988, ISO9001 |
Huawei MA5608T Chassis Board Applications
-
🏘️ FTTH / FTTB Last-Mile Deployments
-
🏢 Multi-Tenant Buildings & Campus Networks
-
📶 Redundant GPON Access for Critical Networks
-
📡 Carrier Core Edge Aggregation & IPTV Distribution
-
☁️ Enterprise Broadband, VoIP, and Smart City Infrastructure
Customization & Expansion Options
-
🔧 Service Boards Available: 8-port, 16-port, or 32-port GPON / Combo PON
-
🔧 ONU Compatibility: EG8145V5, HG8546M, HG8010H, and more
-
🔧 Redundant DC Power Supply Modules Supported
-
🔧 Hot-Swappable Architecture for All Boards
-
🔧 Custom Kits: Include ONUs, splitters, fiber patch cords, adapters
📦 Tech Specs – OLT Chassis Configuration (H801MCUD x2 | DC Power | No GPON)
⚙️ Configuration
| Component | Specification |
|---|---|
| Main Control Board | H801MCUD: 2 |
| Upstream Ports | GE SFP: 8 |
| GPON Ports | 0 |
| Service Slots Remaining | 2 |
| Power Supply Mode | DC power supply: -48 V DC |
📐 Device Specifications
| Attribute | Details |
|---|---|
| Dimensions (W × D × H) | 482.6mm × 244.5mm × 88.1mm (IEC cabinet compatible) |
| Weight (Empty Chassis) | 7.5 kg |
Wholesale & B2B Support
Designed for ISPs, system integrators, fiber contractors, and government telecom projects:
-
📦 Bulk Pricing for Volume Orders
-
📦 OEM Branding, Label Customization
-
📦 Factory QC Test Reports, CE, RoHS, and COO Provided
-
📦 Ready-to-Ship Kits with Complete FTTH Accessories
-
📦 Remote Technical Assistance and Configuration Support
Why Choose Huawei MA5608T Chassis Board?
-
✔️ Redundant System Control for Carrier-Grade Reliability
-
✔️ Compact Chassis with Big Network Potential
-
✔️ 4 × GE Combo Uplink Ports for Flexible Backhaul
-
✔️ Cost-Effective & Scalable for Small to Mid-Sized Networks
-
✔️ Trusted Huawei Quality – Proven in Global Deployments
Order Now
Maximize performance and network uptime with the Huawei MA5608T Chassis + 2× MCUD GE Control Boards — the perfect redundant GPON OLT solution for high-availability fiber networks.
