- Private Mold:NO
- Products Status:Stock
- Ports:8
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:2.4G
- Brand Name:HTF
- Model Number:HT-SW5008M
- Place of Origin:Guangdong, China
- 1000mM POE Rj45:8 port
- 1000M UP SFP:2 SFP
- MAC:8K
- PoE:IEEE802.3af/at, Port PoE MAX 30W
- RAM:128M
- OEM:Yes
- Power input:AC 100-265V 50/60Hz
- Manufacturer:Shenzhen
- Operating Temperature:0℃~40℃ (32℉~104℉)
- Warranty:12 months
- Selling Units:Single item
- Single package size: 24X19X7 cm
- Single gross weight:1.200 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 23 – 200201 – 500>500Lead time (days)31015To be negotiated
Related Products
Product Description
Management Features
1. Fully complies with IEEE 802.3, 802.3u, and 802.3ab standards ;
2. Full-duplex flow control (IEEE Std 802.3x) and half-duplex back pressure;
3. 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX ;

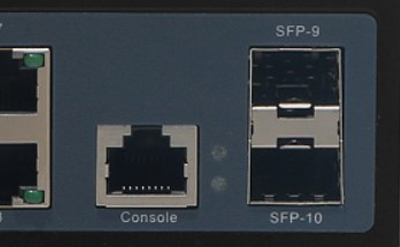

4. 1 Console port
5. 2 Giga SFP independent ports
6. Supports Port-Based /TAG VLAN(IEEE Std 802.1Q) Configuration ;
7. Supports IEEE 802.3ad port trunk with LACP;
8. Web-based and SNMP management;
9. Supports IGMP Snooping Configuration;
10. QOS Supports Static Port Priority and IEEE 802.1p Class of Service (CoS) with 2-level priority queuing;
11. Port-based access control support (IEEE Std 802.1X);
12. Broadcast and multicast storm control;
13. DSCP remarking for both IPv4 and IPv6 packets;
14. Rapid Spanning Tree Protocol support (IEEE Std 802.1w);
15. Multiple Spanning Tree support (IEEE Std 802.1s);
16. Supports the configuration function of Port Security, Port Mirror ;
17. Support bandwidth control;;
18. IGMP, GARP, GMRP, and GVRP support;
19. Quick and easy setup with Web-based management or console management;
20. Supports firmware upgrade, configuration backed up and restored and load default configuration;
21. lightning protected(option);
2. Full-duplex flow control (IEEE Std 802.3x) and half-duplex back pressure;
3. 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX ;
4. 1 Console port
5. 2 Giga SFP independent ports
6. Supports Port-Based /TAG VLAN(IEEE Std 802.1Q) Configuration ;
7. Supports IEEE 802.3ad port trunk with LACP;
8. Web-based and SNMP management;
9. Supports IGMP Snooping Configuration;
10. QOS Supports Static Port Priority and IEEE 802.1p Class of Service (CoS) with 2-level priority queuing;
11. Port-based access control support (IEEE Std 802.1X);
12. Broadcast and multicast storm control;
13. DSCP remarking for both IPv4 and IPv6 packets;
14. Rapid Spanning Tree Protocol support (IEEE Std 802.1w);
15. Multiple Spanning Tree support (IEEE Std 802.1s);
16. Supports the configuration function of Port Security, Port Mirror ;
17. Support bandwidth control;;
18. IGMP, GARP, GMRP, and GVRP support;
19. Quick and easy setup with Web-based management or console management;
20. Supports firmware upgrade, configuration backed up and restored and load default configuration;
21. lightning protected(option);
POE Feature
250M cable power support 150W MAX power output
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode

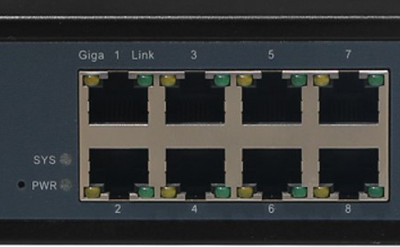

LED indicators for monitoring power, link, activity and speed
Each POE port Up to 30W of power on(802.3af/at)
Compatible With All IEEE 802.3at or Legacy
Safe: Low Power Devices Receive Only the Power They Need
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
LED indicators for monitoring power, link, activity and speed
Each POE port Up to 30W of power on(802.3af/at)
Compatible With All IEEE 802.3at or Legacy
Safe: Low Power Devices Receive Only the Power They Need
Automatic Detection and Protection of Non–sta
Internal power supply 100~240VAC 50/60HZ
|
Model
|
HT-SW5008M
|
|
1000mM POE Rj45
|
8
|
|
1000M UP SFP
|
2
|
|
Exchange Mechanism
|
Store-and-forward
|
|
RAM
|
128M
|
|
Flash
|
16M
|
|
MAC
|
8K
|
|
Environmental |
Working Temperature: -10℃～55℃
Storage temperature: -40℃～70℃ |
|
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing |
|
|
Power input
|
AC 100-265V 50/60Hz MAX400W
|
|
POE
|
IEEE802.3af/at, Port PoE MAX 30W，
|
|
Standards Protocols |
IEEE 802.3
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3x |
|
Speed
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
|
Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
|
Product specifications |

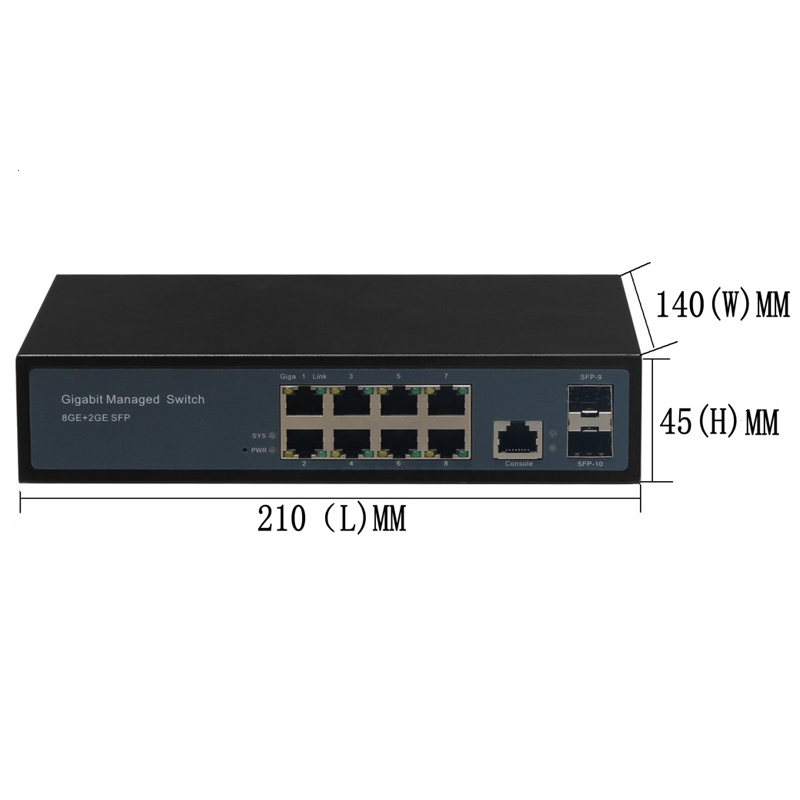

Product Size：210(L)*140(W)*45(H)mm
package Size：260(L)*205(W)*67(H)mm Weight:1.5kg |
|
Certification
|
CE Mark ,commercial; CE/LVD EN60950, RoHS
|
|
Warranty
|
1 year warranty
|

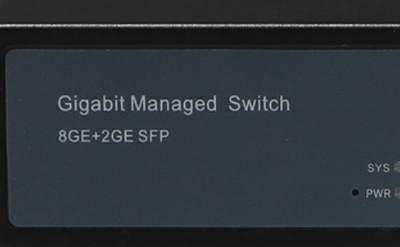

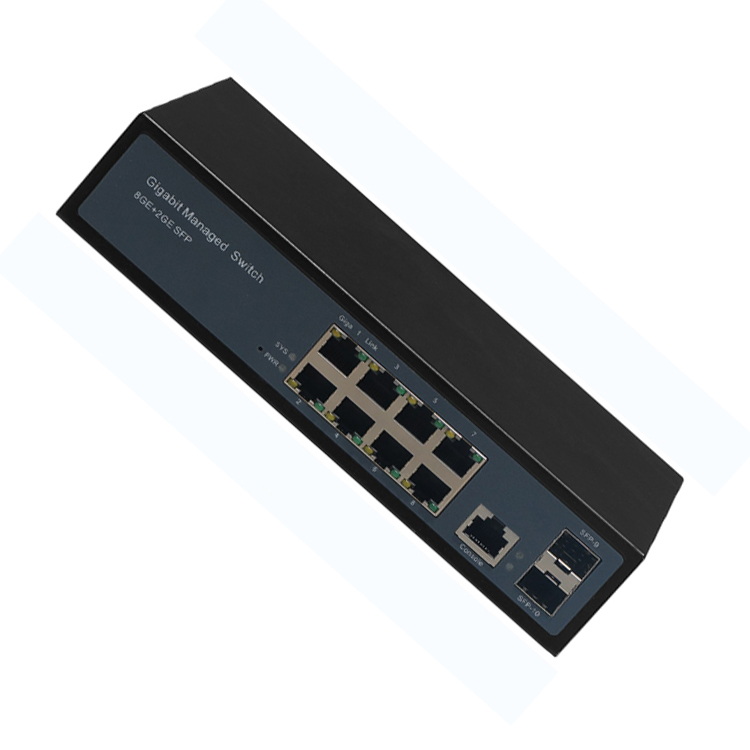

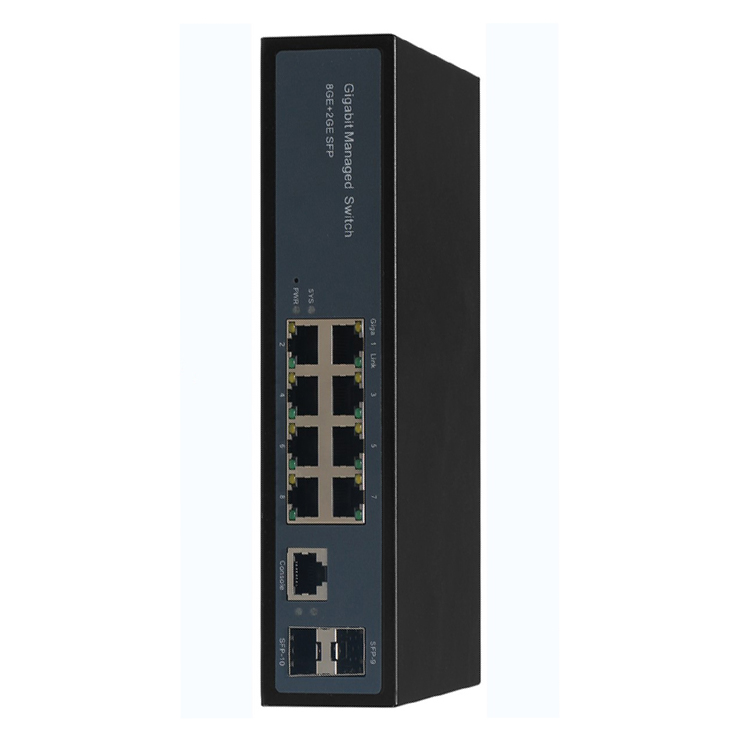

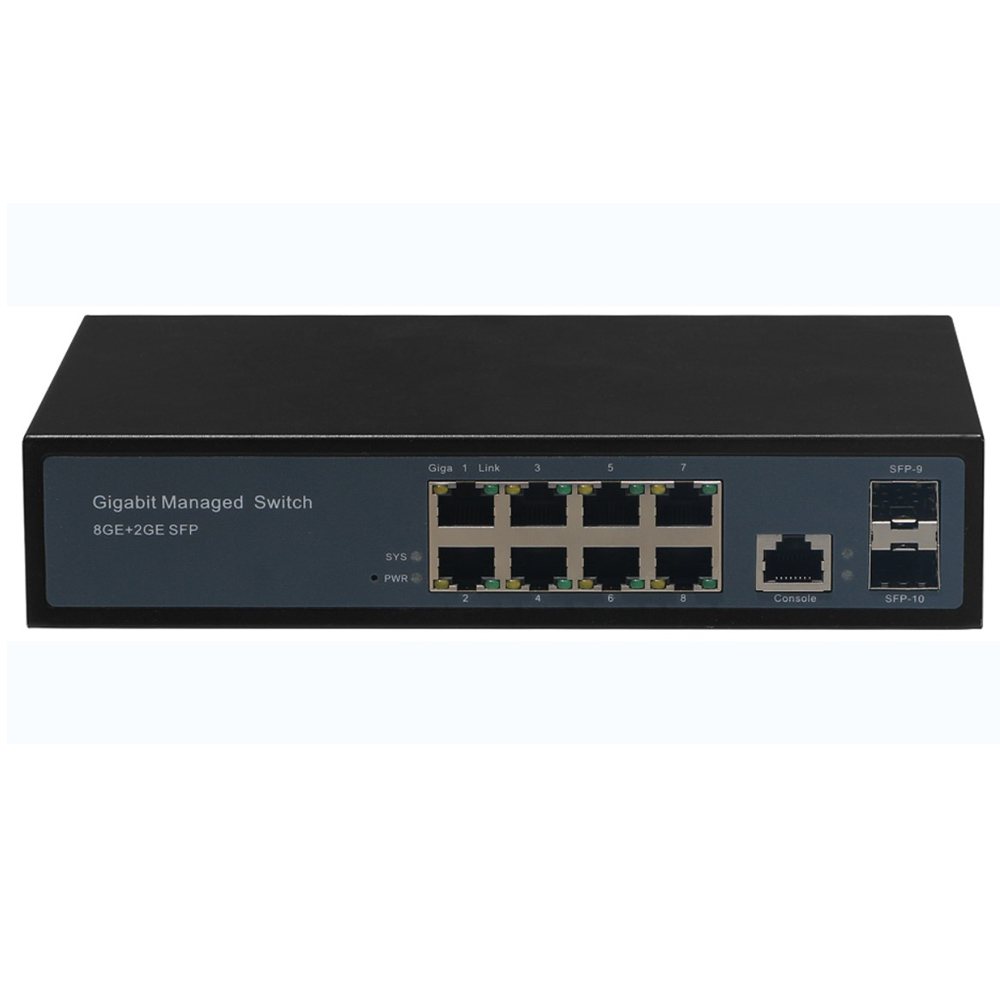

Product Photos
