- Products Status:Stock
- Ports:4+2
- Transmission Rate:10/100Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.6Gbps
- Model Number:TS6204P-2
- Place of Origin:Guangdong, China
- PoE Standard:IEEE02.3af/at
- PoE Ports:4 Support IEEE802.3AF/AT Standard

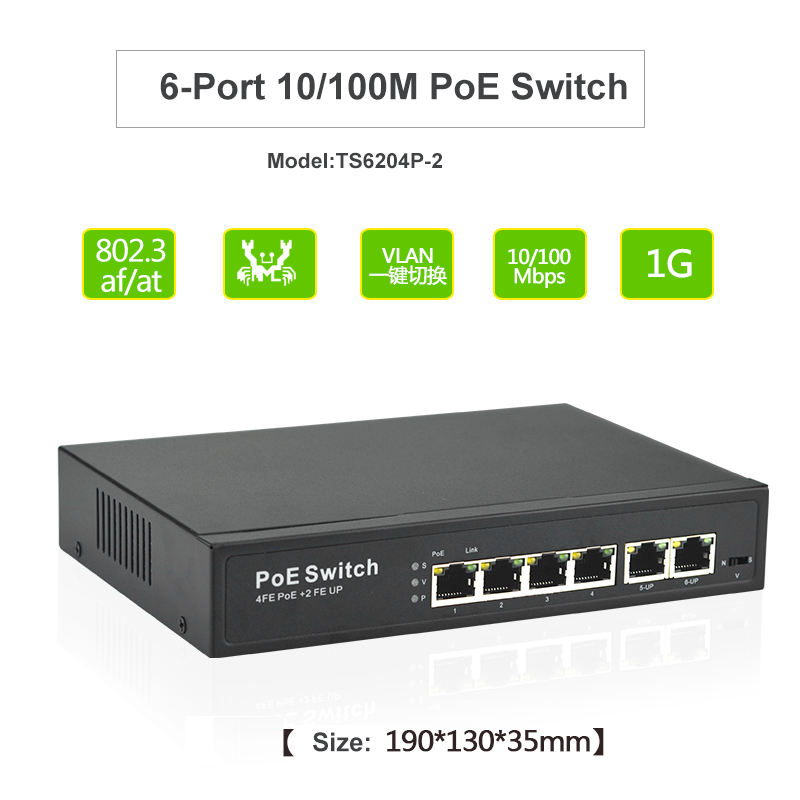

- Product Name:4/6 Port PoE Switch
- Device Type:Switch – 6 Ports – Unmanaged
- Applications:Support PoE IP Cameras
- Manufacturer:GXCOM Technology
- Uplink Ports:2*10/100Mbps RJ45
- Power Supply:52V/1.5A
- Warranty:1 Year
- Keywords:4 port PoE switch
- Certification:CE FCC RoHS
- Selling Units:Single item
- Single package size: 19X13X4 cm
- Single gross weight:0.850 kg
- Package Type:bubble box, carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 300301 – 500>500Lead time (days)51520To be negotiated
Product Description
4 PoE+ port with 2 100Mbps Ethernet uplink 60W 78W plug&play fanless desktop 802.3af/at PoE switch
Features:
1. 4 ports with PoE,2 port 10/100M RJ45 uplink
2. Fully IEEE80.2af/at standard compliant
3. Support PoE power up to 15.4w/25.5w for each port
4. Auto detect powered device(PD)
5. Safe and reliable power to each of PoE end device
6. Plug&play,no configuration required
2. Fully IEEE80.2af/at standard compliant
3. Support PoE power up to 15.4w/25.5w for each port
4. Auto detect powered device(PD)
5. Safe and reliable power to each of PoE end device
6. Plug&play,no configuration required
|
Technical items
|
Description
|
|
Model
|
TS6204P-2
|
|
Port
|
6×10/100Mbps RJ45
|
|
PoE port
|
1-4 ports
|
|
PoE standard
|
IEEE802.3af/at
|
|

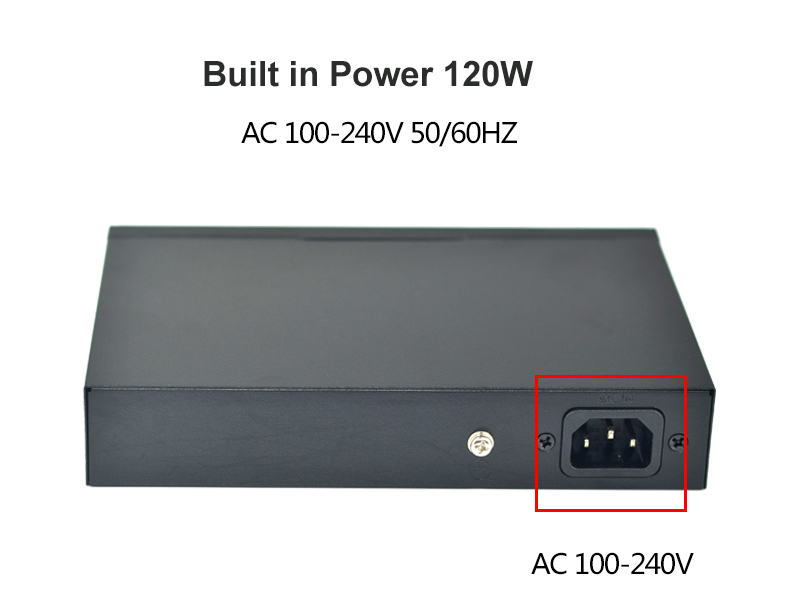

Power supply
|
52V/1.5A
|
|
Network standard
|
IEEE 802.3,IEEE802.3u,802.3x,802.3af/at
|
|
Network medium
|
10/100BASE-TX:5 class and above non shielded twisted pair
|
|
Data distance
|
≤250m
|
|
Switch capacity
|
1.6Gbps
|
|
Forwarding mode
|
Store and forward
|
|
Forwarding Rate
|
10BASE-T: 14880PPS/port
100BASE-tx: 14800pps/port |
|
MAC Address
|
1K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|

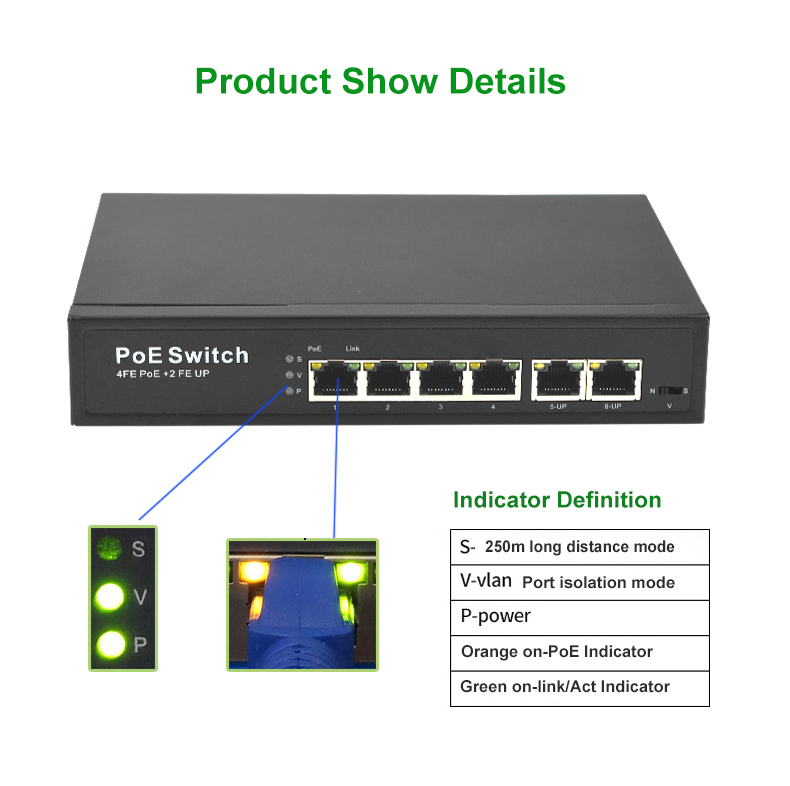

LED Indicator
|
LINK/ACT.100Mbps;
POE Status Indicator;
Power indicator;Extender
|
|
Working temperature
|
-10°~55°C
|
|
Dimension
|
200x120x40mm(LxWxH)
|
|
Weight
|
0.8kg
|
