  • Model Number:ZTE GTGH
  • Type:OLT
  • Place of Origin:Guangdong, China
  • Brand Name:ZTE
  • Use:FTTX
  • Warranty Time:1 year
  • Network:None
  • GPON Port::16-GPON Port
  • Encapsulation Type::SFP
  • Supply Ability10000 Piece/Pieces per Month
  • Packaging DetailsRetail Carton
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 200>200Lead time (days)15To be negotiated
Product Description



GTGH is an 16-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.



ZTE GTGH positioning for the next generation network platform for the large capacity xPON gathering access, HSI, VoIP, TDM for the next generation network, IPTV, CATV, mobile 2 g / 3 g and WiFi access convergence of the whole business and management control, and provide the QoS and the safety reliability of the telecommunication level security.

ZTE GTGH Service Board Product Specifications

Brand ZTE
Model GTGH
GPON Port 16-GPON Port
Type C++ Module: Single Fiber Bidirectional Optical Module, Class C++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power C++ Module : 4.50 dBm
Maximum Output Optical Power C++ Module : 8.00 dBm
Maximum Receiver Sensitivity C++ Module : -30 dBm @10E-10
                       -32 dBm @10E-10
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C++ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Weight 1kg
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm

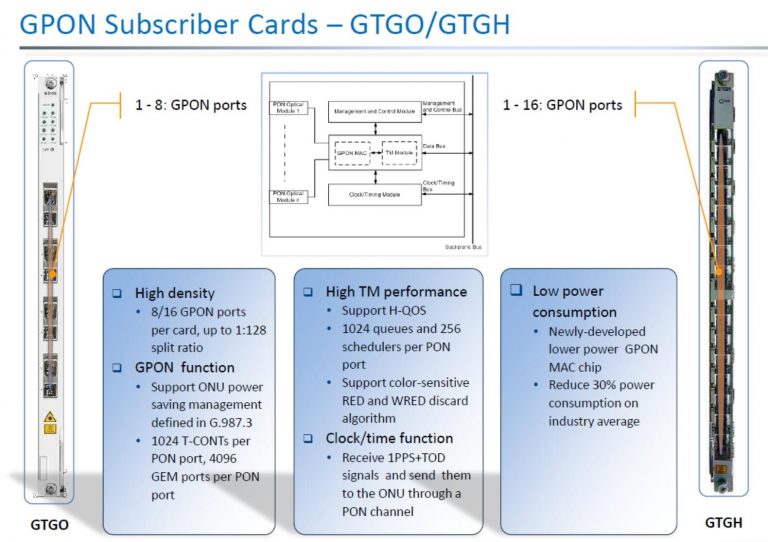

ZTE GTGH Service Board Product Features

  • High Density:
    – 16 GPON ports per card, up to 1:128 split ratio
  • GPON Function:
    – Support ONU power saving management defined in G.987.3
    – 1024 T-CONTs per PON port, 4096 GEM ports per PON port
  • High TM Performance:
    – Support H-QOS
    – 1024 queues and 356 schedulers per PON port
    – Support color-sensitive RED and WRED discard algorithm
  • Clock / Time Function:
    – Receive 1PPS+TOD signals and send them to the ONU through a PON channel
  • Low Power Consumption:
    – Newly developed lower power GPON MAC chip
    – Reduce 30% power consumption on industry average
Specification

GTGH 16 ports, GTGO 8 Ports
