- Model Number:GFGM
- Type:olt card
- Place of Origin:China
- Brand Name:ZTE
- Use:FTTX
- Warranty Time:1 year
- Keywords:GFGM
-
- Supply Ability
- 500 Piece/Pieces per Month
-
- Packaging Details
Cartons
-
- Port
SHENZHEN
- Lead time:Quantity(pieces)1 – 100>100Lead time (days)15To be negotiated
Product Description
|
Service port
|
|
|
Gpon Port
|
16-GPON POrt
|
|
GPON SFP Module Specification
|
|
|
Type
|
C++Module: single fiber bidirectional optical module class C++
|
|
operating wavelength
|
Tx:1490nm, Rx:1310nm
|
|
Encapsulation Type
|
SFP
|
|
Port RATE
|
Tx:2.488 Gbit/s, Rx:1.244 Gbt/s
|
|
Minimun Output Optical Power
|
C++ Module:6.00 dBm
|
|
Maximum Output Optical Power
|
C++ Module:9.00 dBm
|
|
Maximum Receiver Sensitivity
|
C++ Module:-35.00 dBm
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00km
|
|
Overload Optical Power
|
C+Module:-15.0 dBm
|
|
Extinction Ratio
|
8.2dB
|
|
Weight
|
1.46kg
|
|
Dimensions(W*D*H)
|
393.1mm*23.9mm*214mm
|

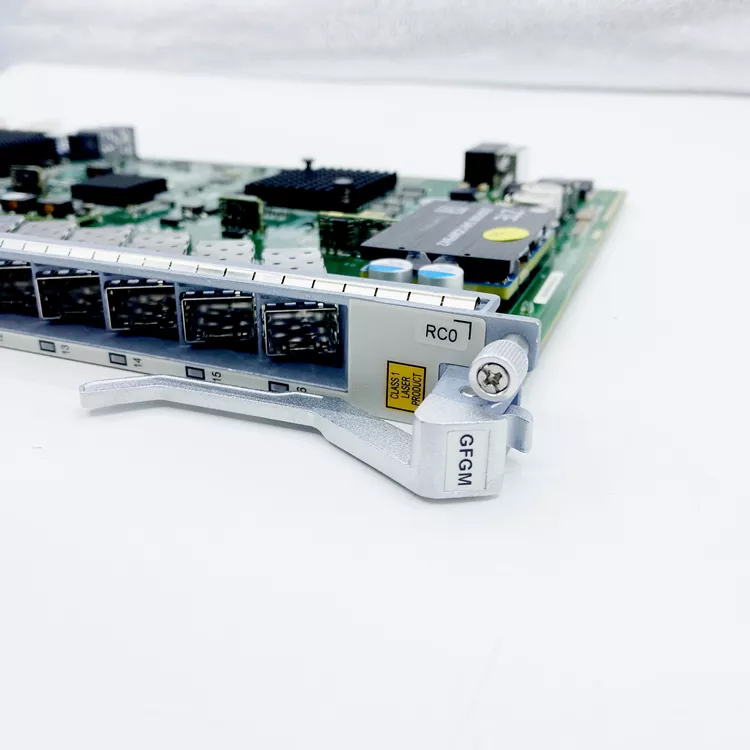

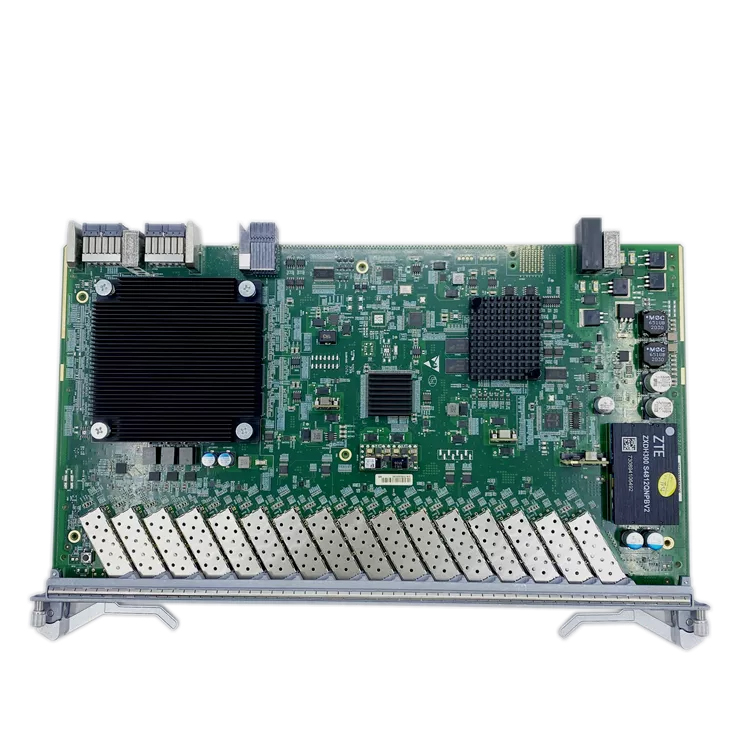

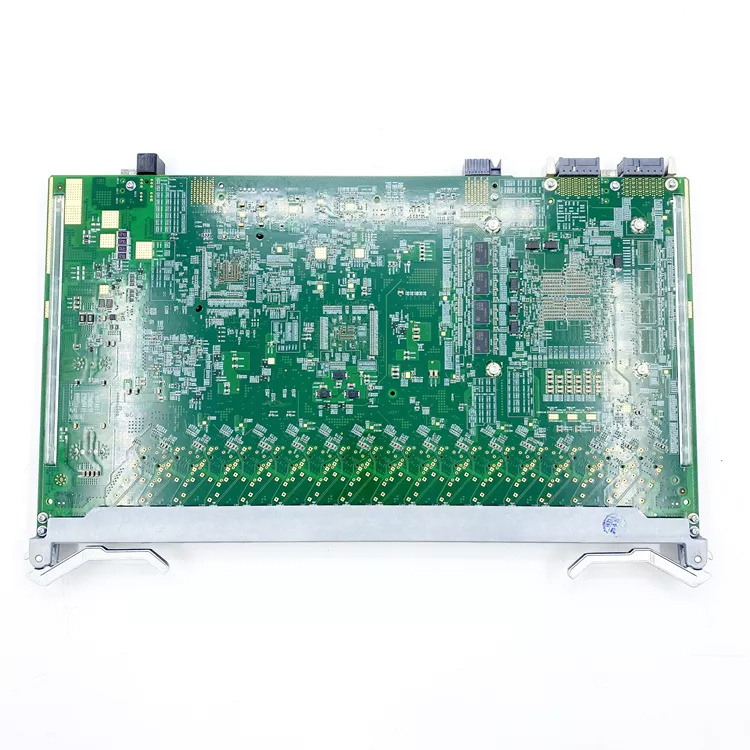

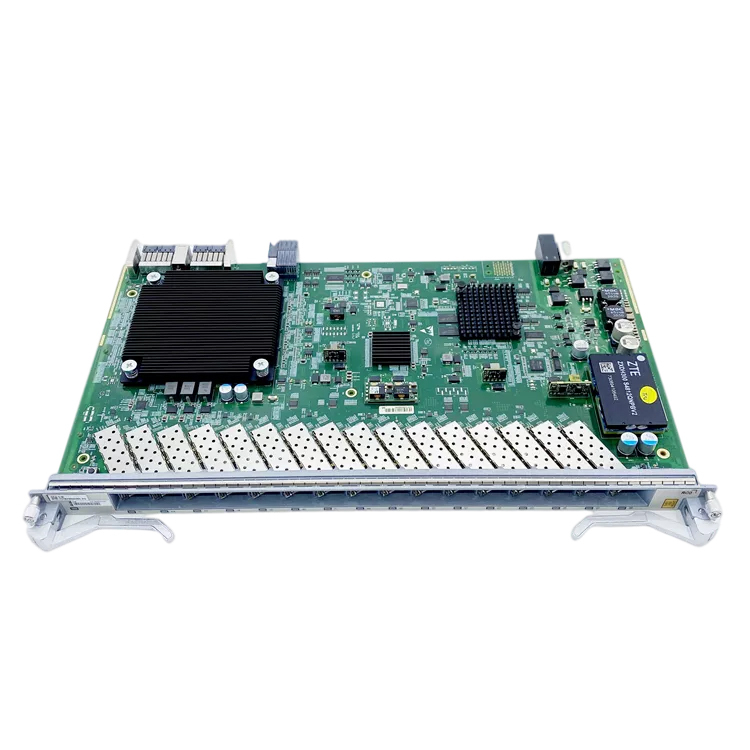

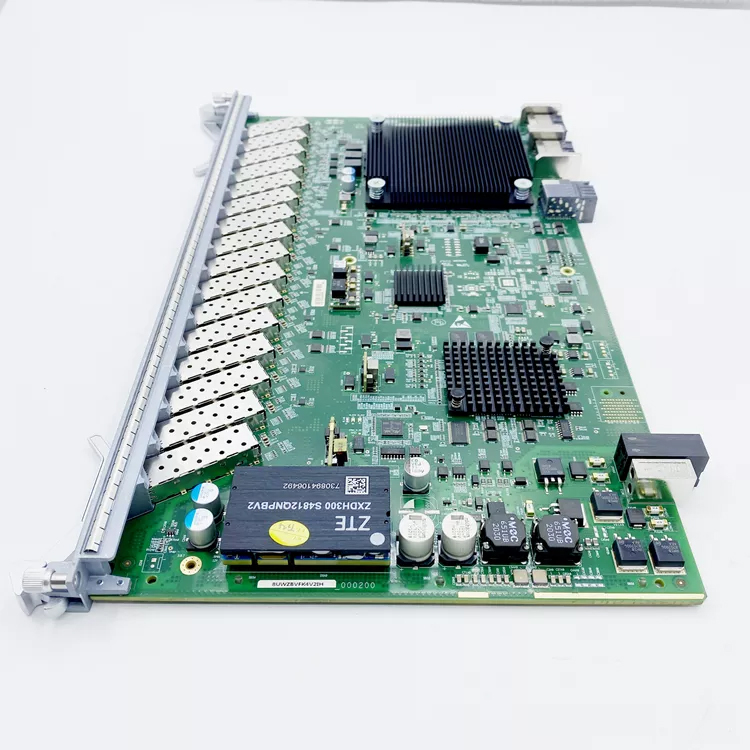

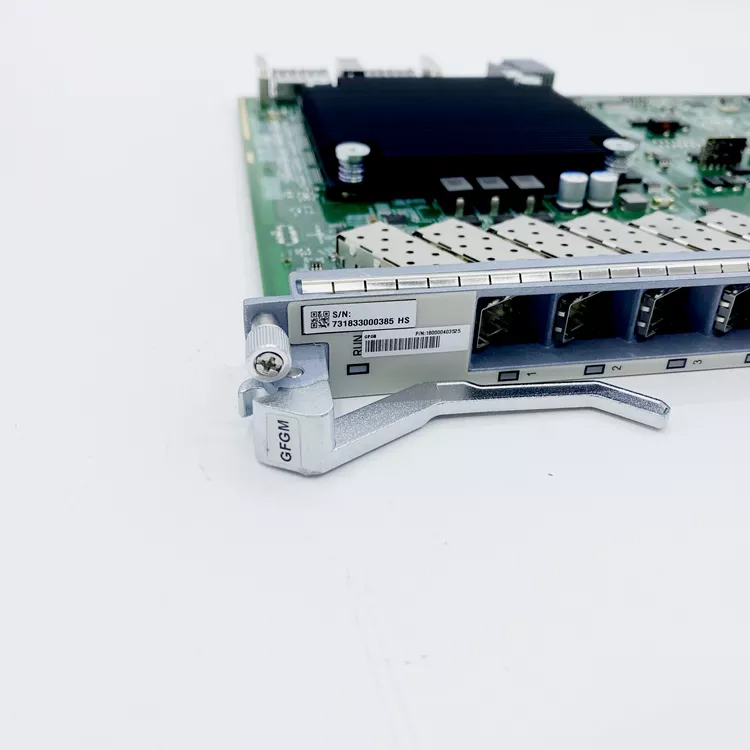

ZTE GFGM Service Board is GPON 16-port service board with C+/C++ module suitable for C600
ZTE GFGM 16-Port GPOM Subscriber Card for ZTE ZXA10 C600 C620 C650 C680.
It is equipped with C+ or C++ modules.
ZTE GFGM Service Board Specification
Similar to GFGH, GFGL, GFGN.
ZTE GFGM 16-Port GPOM Subscriber Card for ZTE ZXA10 C600 C620 C650 C680.
It is equipped with C+ or C++ modules.
ZTE GFGM Service Board Specification
Similar to GFGH, GFGL, GFGN.
